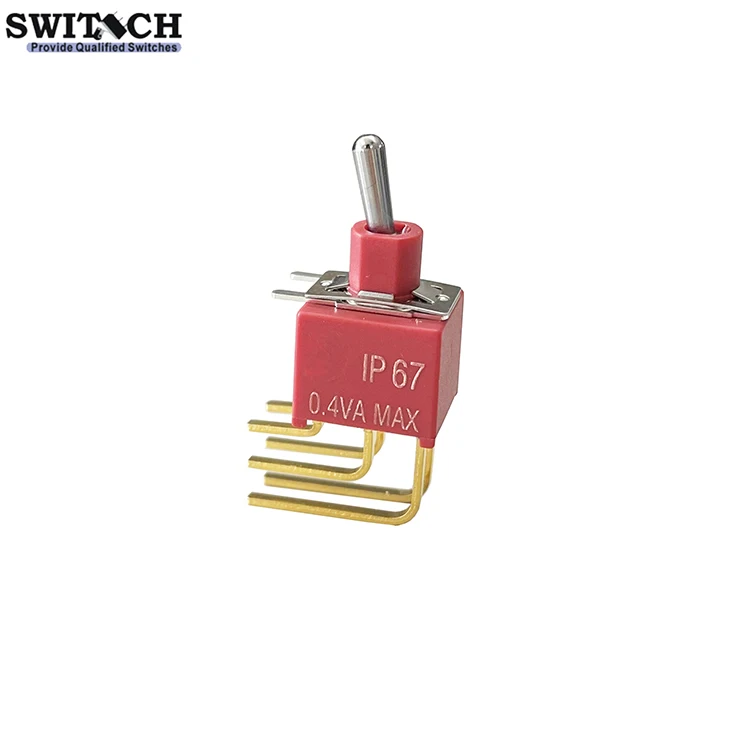

Рычажный переключатель IP67 установленный на печатной плате устойчивые к атмосферным воздействиям
- Категории: Toggle Switches >>>
- Поставщик: Switech,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Specification & Drawing | ||||||||
Name | IP67 pcb mounted toggle switch weatherproof toggle switches | |||||||
Model | 1AD1SWT2B4M7RES | |||||||
Rating | 0.4 Volt-Amps(VA) Max. @20V max(VC or DC) | |||||||
Contact resistance | 10mΩ MAX | |||||||
Insulation resistance | 1000MΩ MIN | |||||||
peration force | 250gf±100gf | |||||||
Total travel | 0.25±0.10mm | |||||||
Operation life | 30,000 cycles | |||||||

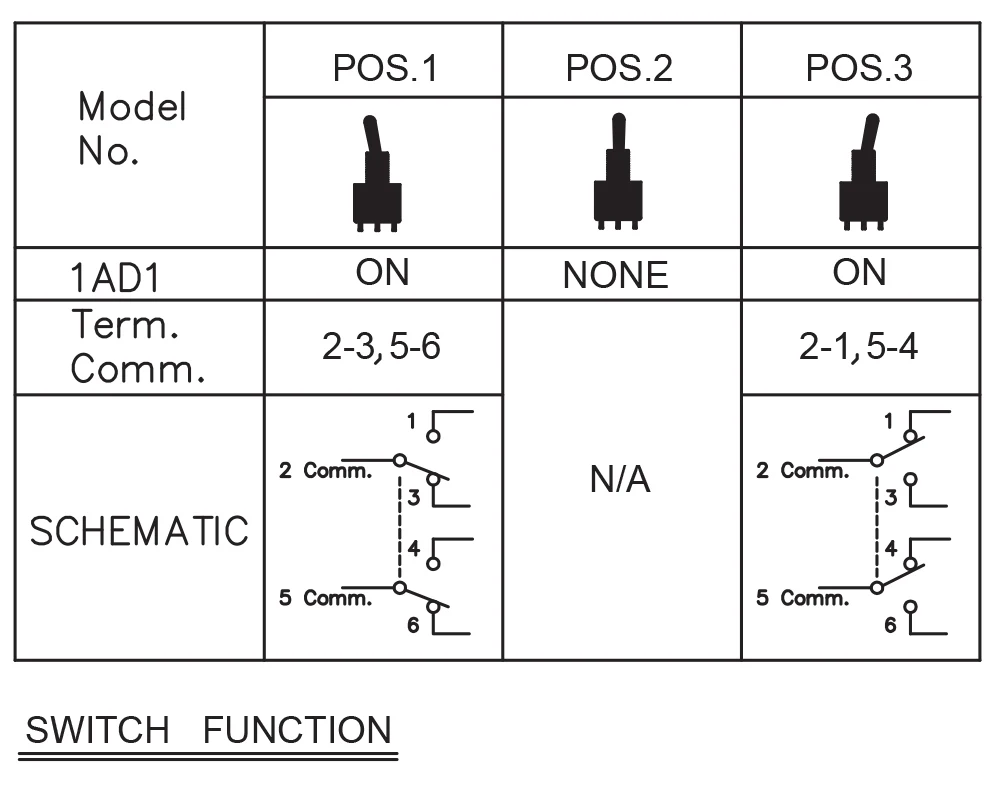

Function | on on | |||||||
Terminal form | PCB | |||||||
Solder ability | 270±5℃ for 5max | |||||||
Operation temperature | -40℃ ～ + 85℃ | |||||||
Material & Color | ||
CASE | Nylon(UL94v-0). | |
ACTUATOR | Brass,chrome.plated. | |
SWITCH SUPPORT | Brass or Steel, tin plated | |
SUPPORT RETAINER | Stainless steel | |
TERMINAL/CONTACT | Silver or gold plated | |
