Product Description
Description of Horizontal ribbon mixer:

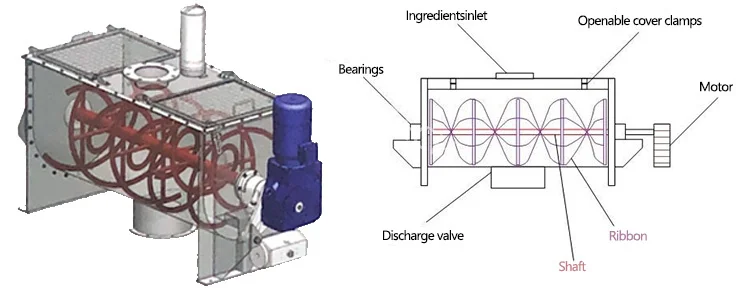

Ribbon mixer is one kind of slot type mixer for powder and paste. It is widely used in the industries of , animal remedy, ceramic, chemical, and food. The main components are U type container, ribbon mixing blades and transmission parts. During the mixing process, the materials in container are doing mixing movement driven by the ribbon spiral mixing blade.

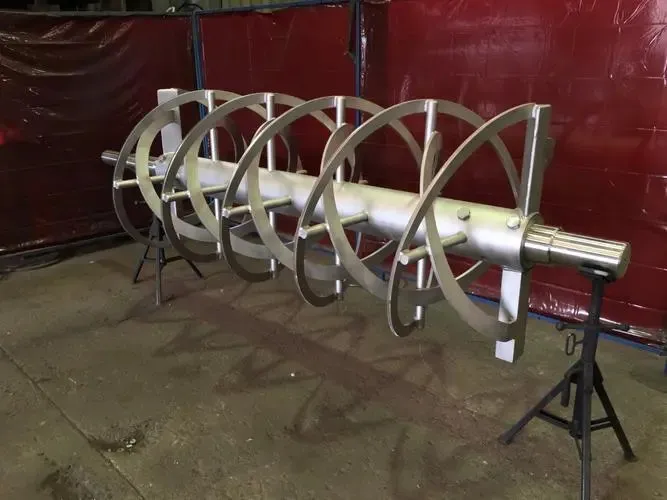

The ribbon blades are generally made of double or triple layers. All the layer are installed on one single horizontal axis, the
inner layers and outer layers are doing opposite rotation during mixing process. The material forms a vortex in the flow during these two movement to speed up the mixing speed and improve the uniformity.
inner layers and outer layers are doing opposite rotation during mixing process. The material forms a vortex in the flow during these two movement to speed up the mixing speed and improve the uniformity.
Features of Horizontal ribbon mixer
1. It is a multifunctional mixing equipment with stable operation, reliable quality, low noise, long service life, easy
installation and maintenance, and a variety of spiral blade structures.
2. The mixing speed is fast and the mixing uniformity is high. A scraper can be installed on the ribbon blade, which has a good mixing effect on viscous materials.
3. According to the mixing requirements of different materials (special materials need to be cleaned each time they are mixed), different spiral blade structures can be used, and heating and drying function can be provided for customers to choose.
4. The smooth mixing process reduces the damage to fragile materials. Customized spiral blade structure is available for special materials.
5. A cleaning door can also be opened on the horizontal machine body for users to clean. The overall height of the equipment is low, easy to install.
installation and maintenance, and a variety of spiral blade structures.
2. The mixing speed is fast and the mixing uniformity is high. A scraper can be installed on the ribbon blade, which has a good mixing effect on viscous materials.
3. According to the mixing requirements of different materials (special materials need to be cleaned each time they are mixed), different spiral blade structures can be used, and heating and drying function can be provided for customers to choose.
4. The smooth mixing process reduces the damage to fragile materials. Customized spiral blade structure is available for special materials.
5. A cleaning door can also be opened on the horizontal machine body for users to clean. The overall height of the equipment is low, easy to install.
uniformity
Product Parameters
Model | Total volume (L) | Mixing capacity (kg/batch) | Power of motor (kW) | Weight (kg) |
WLDH-0.1 | 100 | 30~50 | 1.5~3 | 420 |
WLDH-0.3 | 300 | 100~150 | 3~3.7 | 850 |
WLDH-0.5 | 500 | 200~300 | 4~11 | 1060 |
WLDH-1 | 1000 | 400~600 | 7.5~15 | 1790 |
WLDH-1.5 | 1500 | 600~900 | 11~18.5 | 1900 |
WLDH-2 | 2000 | 800~1200 | 15~22 | 2750 |
WLDH-3 | 3000 | 1200~1800 | 18.5~30 | 3500 |
WLDH-4 | 4000 | 1600~2400 | 22~37 | 4280 |
WLDH-6 | 6000 | 2400~3600 | 37~55 | 5300 |
WLDH-8 | 8000 | 3200~4800 | 37~55 | 6800 |
WLDH-10 | 10000 | 4000~6000 | 45~75 | 7800 |
Company Profile

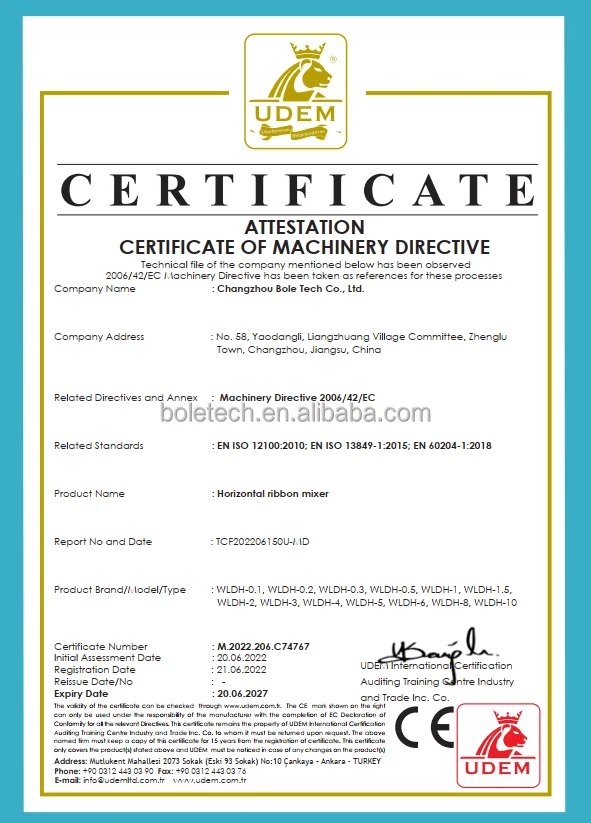

Certifications
Customer Photos
Our service
Service before sale:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors;
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors;
Service in sale:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer’s requirements.
2. Delivery on time;
3. Provide full set of documents as customer’s requirements.
Service after sale:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Warranty period
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
