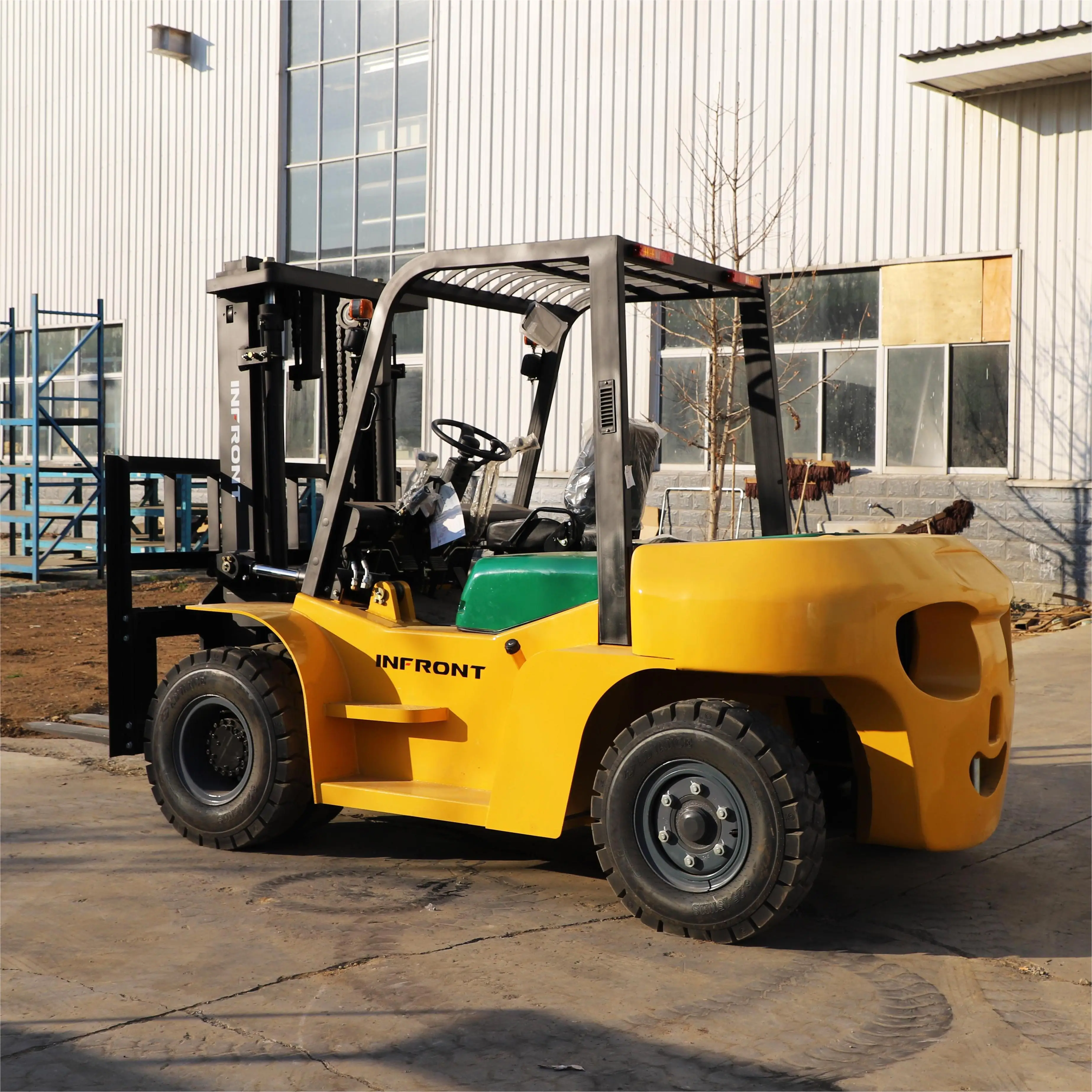

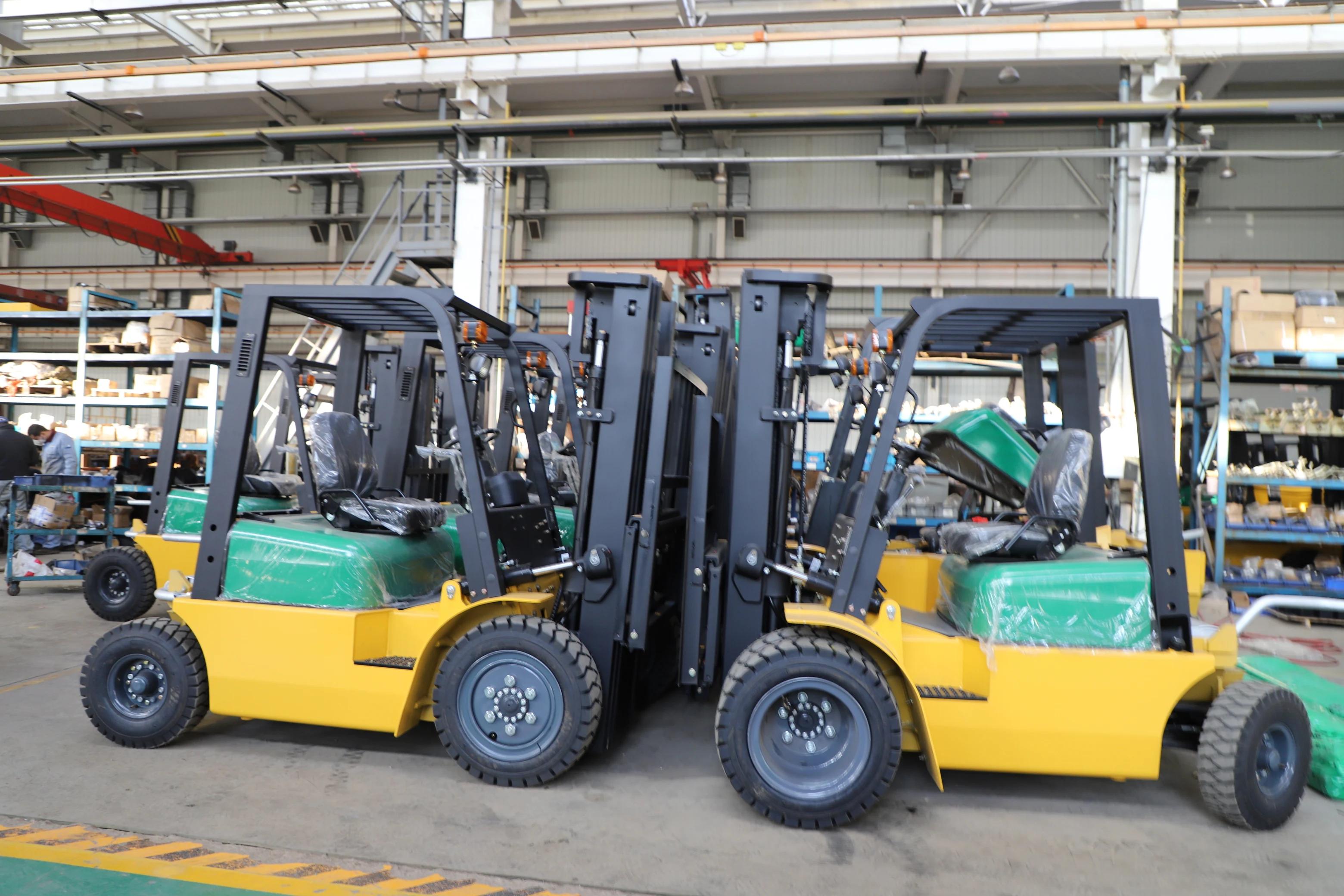

Chinese Supplier diesel Mini Forklift Truck Small Rough Terrain Forklift Price LPG Forklift 7 ton

  The whole machine adopts large arc streamline shape, compact and reasonable structure, strong lifting capacity, low failure rate and good maintainability. The whole machine has advanced design concept, high work efficiency, energy saving and environmental protection, and can meet the needs of customers in various fields.

Summary
Model	SF70
Rated load	7000kg
Load center distance	500mm
Dynamic form	Diesel
Lifting height	3000mm
Free lift height	200mm
Fork Spacing (Outside)	300/1756mm
Front overhang	627mm
Dimensions
Total length	4797mmm
Overall width	1995mm
The gantry can not be raised	2500mm
Height when the gantry is raised	4420mm
Safety rack height	2450mm
Minimum turning radius	3330mm
Minimum right angle channel width	3000mm
Performance
(full load/unloaded) travel speed	26/28km/h
(full load / no load) lifting speed	450/530km/h
Dead weight	9550kg
Maximum grade (full load / no load)	20/15°
chassis
Front Wheel	8.25-15-14PR
Rear wheel	8.25-15-14PR
Front wheel track	1470mm
Rear wheel track	1700mm
Wheelbase	2250mm
Rack ground clearance	200mm
Power Units and Controls
Engine model	6102BG,six-cylinder
Rated power	81/2500 km/rpm
Rated torque	253/1700 N.m/rpm
Bore*stroke	102×118 mm
Displacement	5.795 L
Double variable type	hydraulic
Working pressure	20 Mpa
