Looking for dealer deals super edge banding making furniture Jinan Quick KF51 automatic edge bander machine
Product Description

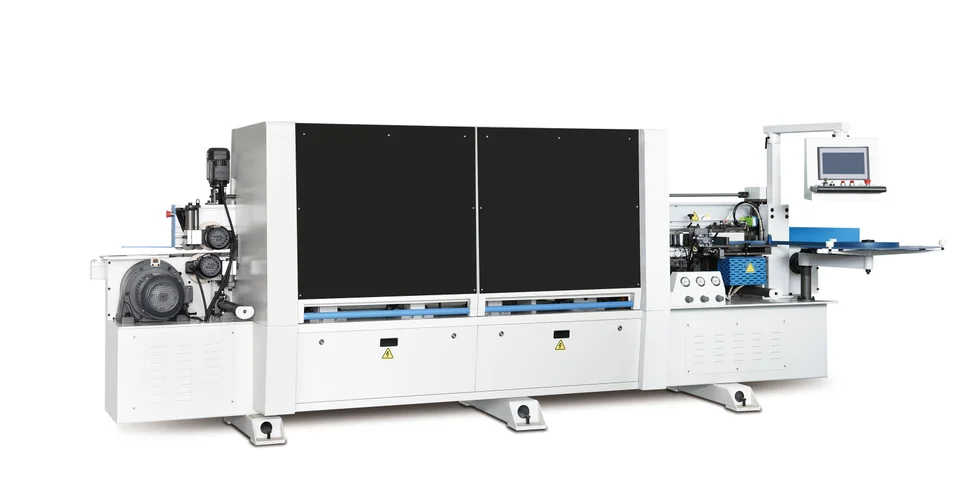

Looking for dealer deals super edge banding making furniture Jinan Quick KF51 automatic edge bander machine
Looking for dealer deals super edge banding making furniture Jinan Quick KF51 automatic edge bander machine, is an indispensable machine for making cabinet door panels. The accessories of the FK51 edge bander machine are made of American, German, Shanghai Schneider and other brands, with comprehensive functions and suitable for edge banding of various thicknesses and materials. This machine also has a tracking function to make the edge of the edge band beautiful.
Configuration Parameters
1). Conveying drive: conveying motor (TDD)
2). Linear transmission: chain block, pressing wheel(Hessen)
3). Electrical equipment: Schneider
4). Controller PLC: Delta
6). Frequency inverter: LITEON,Taiwan
7). Temperature control light sense: AUTONICS
8). Magnetic induction: AirTAC
9). High frequency motor: World motor
10). Travel switch: Honevwell
11). Cylinder: AirTAC
12). Solenoid valve: EASUN
13). Linear guide rail: Hiwin, Taiwan
2). Linear transmission: chain block, pressing wheel(Hessen)
3). Electrical equipment: Schneider
4). Controller PLC: Delta
6). Frequency inverter: LITEON,Taiwan
7). Temperature control light sense: AUTONICS
8). Magnetic induction: AirTAC
9). High frequency motor: World motor
10). Travel switch: Honevwell
11). Cylinder: AirTAC
12). Solenoid valve: EASUN
13). Linear guide rail: Hiwin, Taiwan
Specification
Model | FK51 |
Electric lifting | Yes |
Total power | 12.7kw |
Machine size | 5659×900×1600mm |
Feed speed | 15-25m/min |
Thickness of edge banding | 0.3-3mm |
Panel thickness | 8-60mm |
Panel length | ≥150mm |
Panel width | ≥50mm |
Work air pressure | 0.6mpa |
Min. dimensions of panel | 120mm(L)*120(W) |
Machine Parts
Control Panel
Equipment control by IPC system, man-machine interface, easy to operate.
Corner trimming
This function is to mill the 4 corners of the sidebands of the plate into R arc shape, which increases the aesthetics of the plate corners.
Rough and fine trimming
Its function is to mill the sidebands of the upper and lower protruding parts of the plate
End cutting
Edge pallet
Rapid polishing
Advantages
1) This equipment has the function of general edge sealing, and the price is more user-friendly. It is suggested that the customers should make excessive use in the start-up stage to meet the order demand of the general process requirements in the start-up stage, while the equipment cost threshold is low and it is easy to start.
2) Guided multi-functional control interface, pneumatic control, no manual tool adjustment, feed speed of the fastest 25m / min, easy to use, no special post skills training.

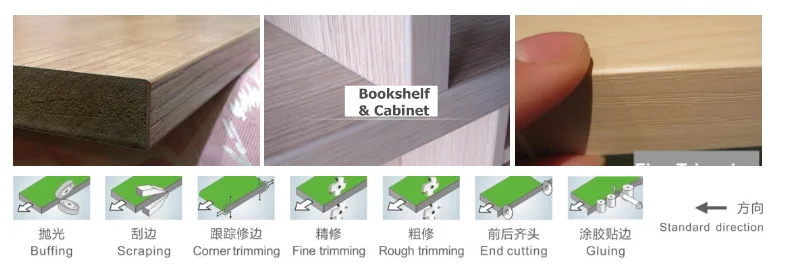

3) Realize plate gluing , end cutting , rough trimming ,fine trimming , corner trimming , scraping , buffing and other processes.
4) Digital temperature control and visual prompt are realized to ensure the best gluing effect, reduce waste and improve benefit.
5) Module design concept, from the processing process to the selection of single parts, the maximum use of international common parts assembly, reduce the high manufacturing costs caused by special devices, and reduce the procurement costs of later accessories.
2) Guided multi-functional control interface, pneumatic control, no manual tool adjustment, feed speed of the fastest 25m / min, easy to use, no special post skills training.
3) Realize plate gluing , end cutting , rough trimming ,fine trimming , corner trimming , scraping , buffing and other processes.
4) Digital temperature control and visual prompt are realized to ensure the best gluing effect, reduce waste and improve benefit.
5) Module design concept, from the processing process to the selection of single parts, the maximum use of international common parts assembly, reduce the high manufacturing costs caused by special devices, and reduce the procurement costs of later accessories.
Company Profile

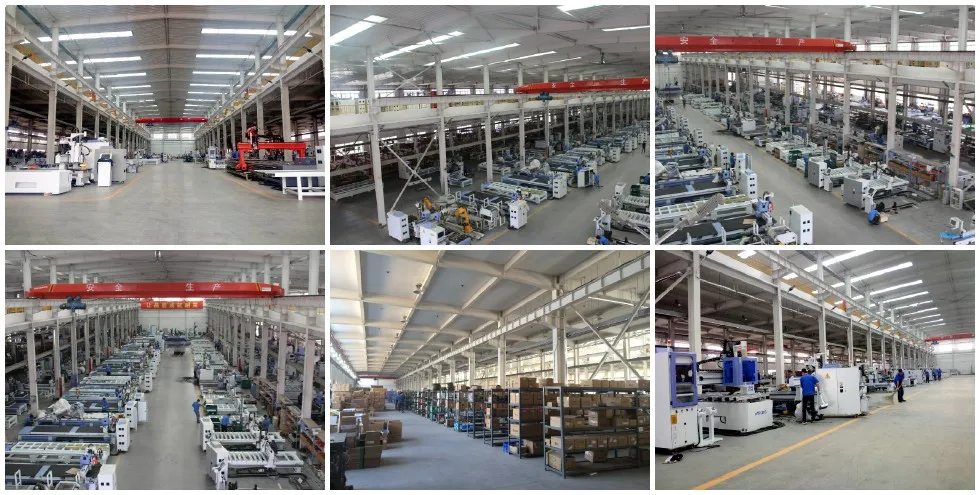

Factory Pictures
Cooperating with Shandong Provincial Computerized Numerical Control Research Institute, Jinan Quick-Fulltek CNC Machinery Co., Ltd. specializes in manufacturing CNC routers. Our routers have gained many computerized numerical control patents.
Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. "Quick" branded CNC routers have obtained remarkable achievements in the design of precise carving machine as well as artistic carving technology. We have realized industrialization of the computerized numerical control technology.
Our router series are sold in many of European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field.
After several years of rapid development, our routers have already covered advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts fields. Our routers for woodworking, advertising and molding well meet the demands of customers in different countries.
We are still trying our best to produce innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please no hesitate to contact us for future cooperation. We hope to get a mutual benefit with you in the near future.
Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. "Quick" branded CNC routers have obtained remarkable achievements in the design of precise carving machine as well as artistic carving technology. We have realized industrialization of the computerized numerical control technology.
Our router series are sold in many of European and American countries. These products are very popular in these markets and have established a leading position in the carving machine field.
After several years of rapid development, our routers have already covered advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts fields. Our routers for woodworking, advertising and molding well meet the demands of customers in different countries.
We are still trying our best to produce innovative products to help customers lower their costs and increase their returns. If you are interested in our products, please no hesitate to contact us for future cooperation. We hope to get a mutual benefit with you in the near future.
Our Exhibition
Packing & Delivery
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.
