Sunsoont NF-8601W POE пинг Ethernet тестер RJ11 RJ45 BNC сеть Lan
- Категории: Testing Equipment >>>
- Поставщик: Shenzhen,Sunsoont,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
high quality RJ11 RJ45 Network Cable Tester LAN Ethernet Toner Detector Line tester

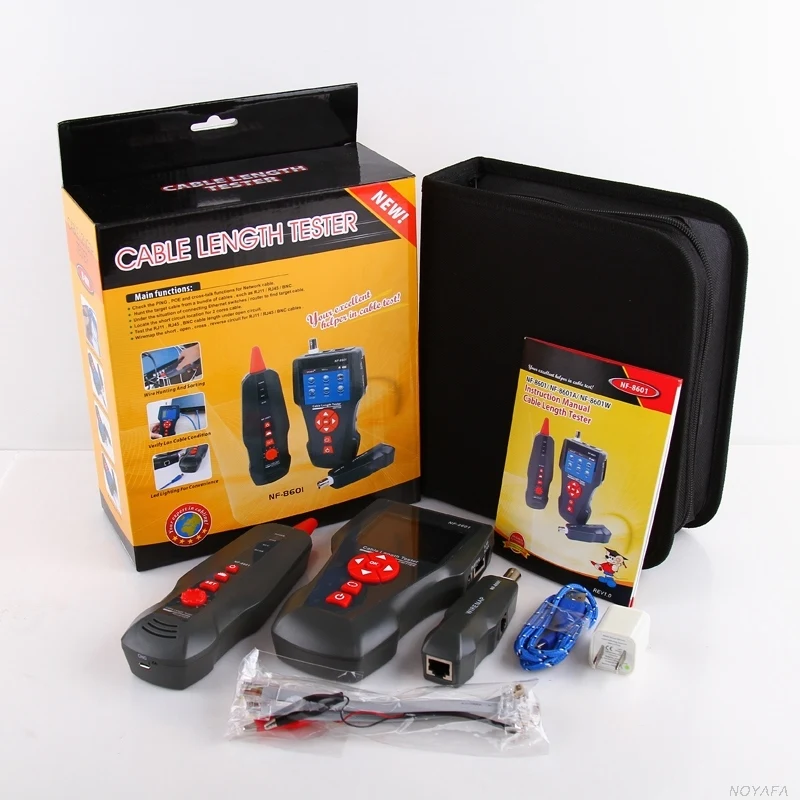

SST-8601 Series are newly developed by our company which are capableofanti current interference . The equipment is composed of three parts: main tester (SST-8601-M), receiver (SST-8601 -S) and remote identifier (SST-8601-R). It is a multifunction device, capable of measuring cable length, cable tracing, cable continuity testing, PoE and PING functions, also it can detect voltage presence. Users can read the test results visually from the 3.7 inch color screen. All these make this item be as a practical tool for low voltage system installation and maintenance technicians of communication circuits and comprehensive wiring circuits. It iswidely used in the fields like telephone system, computer networks and other metal lead circuits.
Specification
SST-860W Transmitter specifications | value | |
Indictor | LCD 320x240 mm, with back light | |
Cable test types | STP/UTP 5E,6E network , telephone , coacial cable | |
Max. distance of wiremap | 1000m | |
Max. distance of tracing | 1000m | |
Max. distance of cable length | 1000m | |
Max. distance of calibration | 50m | |
Accuracy | up to 98%(after calibration) | |
Compatible connectors | RJ11,RJ45, PING/POE,BNC | |
Cable map indication | LCD (#1-#8) | |
Battery Type | 3.7V lithium battery 1800mAh | |
Work temperature / humidity | 10℃ ~ -60℃ / 0℃~70℃ | |
Dimension(LxWxD) | 173x92x34mm | |
SST-8601W Receiver specifications | ||
Frequency | 130kHz | |
The Max. working current | Less than 70mA | |
Earphone jack | 1 | |
LED illumination | 2 LEDs | |
Battery type | Lithium battery | |
Dimensions (LxWxD) | 218 x 46 x 29mm | |
SST-860W Remote unit specifications | ||
Compatible with connectors | RJ11,RJ45,BNC | |
Dimensions (LxWxD) | 107 x 30 x 24mm | |
Remote units | 8PCS | |
Main functions
* Capable to test open, short, cross connection, reverse, and broken wire positioning with M-S, M-R method.
* To perform crosstalk test on network cable to solve the potential problem of slow speed.
* Measure length of network cable, coaxial cable, telephone cable and USB cable up to 2000m, no connection of remote unit.
* To quickly find the targeted cable without stripping isolation among unknown cables.
* Port flash function helps locate the target network cable more easily on the Router/switches with electricity.
* To trace cable on exchanger or Router without current interference.
* Locate breakage and short position accurately.
* Scanning cable on the POE Router.
* Detect PoE presence and how much the voltage is.
* PING Testing.
Benefits
* Low voltage alarm function.
* Remote unit with tone when checking cable continuity.
* Functions of storage and memory.
* TF function: import and export data.(160 sets)
* Currency detection function and Lighting lamp for working in dark.
* Automatic delay power on-off and language selection: Chinese &
* Single chip microprocessor software watchdog design is reliable in operation.
Technical parameters
* . Overall dimensions
Main tester: 173X92X34mm; Receiver: 183X58X35mm Remote identifier: 106X32X30mm.
* . Display
2.8 inch LCD Color screen:320X240 (Effective visible area 60X45mm).
* . Power supply
3.7V rechargeable lithium batteryl 800mAh
* Capable to test open, short, cross connection, reverse, and broken wire positioning with M-S, M-R method.
* To perform crosstalk test on network cable to solve the potential problem of slow speed.
* Measure length of network cable, coaxial cable, telephone cable and USB cable up to 2000m, no connection of remote unit.
* To quickly find the targeted cable without stripping isolation among unknown cables.
* Port flash function helps locate the target network cable more easily on the Router/switches with electricity.
* To trace cable on exchanger or Router without current interference.
* Locate breakage and short position accurately.
* Scanning cable on the POE Router.
* Detect PoE presence and how much the voltage is.
* PING Testing.
Benefits
* Low voltage alarm function.
* Remote unit with tone when checking cable continuity.
* Functions of storage and memory.
* TF function: import and export data.(160 sets)
* Currency detection function and Lighting lamp for working in dark.
* Automatic delay power on-off and language selection: Chinese &
* Single chip microprocessor software watchdog design is reliable in operation.
Technical parameters
* . Overall dimensions
Main tester: 173X92X34mm; Receiver: 183X58X35mm Remote identifier: 106X32X30mm.
* . Display
2.8 inch LCD Color screen:320X240 (Effective visible area 60X45mm).
* . Power supply
3.7V rechargeable lithium batteryl 800mAh
* . Tracing cable types
STP/UTP 5E, 6E network cable, telephone cable, coaxial cable,and common metal wires connected with alligator clip.
* . Testing cable types
STP/UTP 5E, 6E network cable, telephone cable, coaxial cable, and common metal wires connected with alligator clip.
* . Operating environment temperature/humidity
-10eC ~+60°C 720%-70%;
* . Testing device interface
Main unit: RJ45 (M), RJ45 (S), PoE/PING, RJ11, BNC connector, Remote identifier: RJ45, RJ11, BNC connector interface.
* . Length measurement
Range: 1-2000m;
Calibration precision: 2% (+/-0.5m, or +/-1.5 feet); (calibration; cable>10m) measurement precision: 3% (+/-0.5m, or +/-1.5 feet);
(AMP, CAT5E, 6E cable material)Display unit: meter, foot, yard.
* . Length calibration, storage and data load
User can seta length value ata known length, store the value in the system, which can be used for future choice (9 sets of data can be stored), and the calibration length should be over 10m.
* . Cable wiremapping
Open, short, reverse , cross, crosstalk, etc.
* . SST-8601W includes 8 remote units with ID1-ID8.
* . PoE/PING Testing
* . Tracing cable
Locate targeted cable among lots of cables (only for SST-8601 & SST-8601W, SST-8601ACan't)
* . Automatic power-off
Users can choose time to turn off the tester automatically.
STP/UTP 5E, 6E network cable, telephone cable, coaxial cable,and common metal wires connected with alligator clip.
* . Testing cable types
STP/UTP 5E, 6E network cable, telephone cable, coaxial cable, and common metal wires connected with alligator clip.
* . Operating environment temperature/humidity
-10eC ~+60°C 720%-70%;
* . Testing device interface
Main unit: RJ45 (M), RJ45 (S), PoE/PING, RJ11, BNC connector, Remote identifier: RJ45, RJ11, BNC connector interface.
* . Length measurement
Range: 1-2000m;
Calibration precision: 2% (+/-0.5m, or +/-1.5 feet); (calibration; cable>10m) measurement precision: 3% (+/-0.5m, or +/-1.5 feet);
(AMP, CAT5E, 6E cable material)Display unit: meter, foot, yard.
* . Length calibration, storage and data load
User can seta length value ata known length, store the value in the system, which can be used for future choice (9 sets of data can be stored), and the calibration length should be over 10m.
* . Cable wiremapping
Open, short, reverse , cross, crosstalk, etc.
* . SST-8601W includes 8 remote units with ID1-ID8.
* . PoE/PING Testing
* . Tracing cable
Locate targeted cable among lots of cables (only for SST-8601 & SST-8601W, SST-8601ACan't)
* . Automatic power-off
Users can choose time to turn off the tester automatically.
