Импортный двигатель 6BTAA5.9-C190 для вилочных погрузчиков 16 тонн Heavy Duty 15 цена дизельный


Поделиться:

Цена:47 500,00 $ - 48 900,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

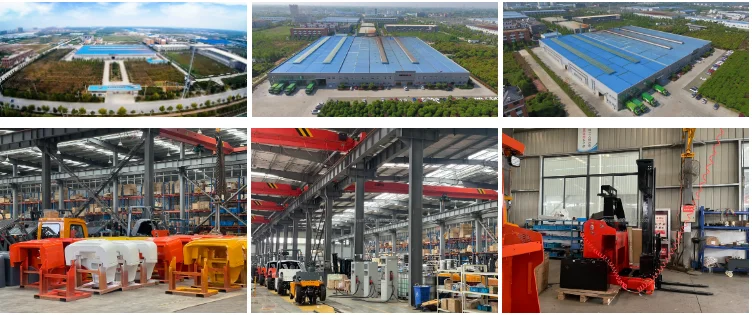

Our factory




Product Overview

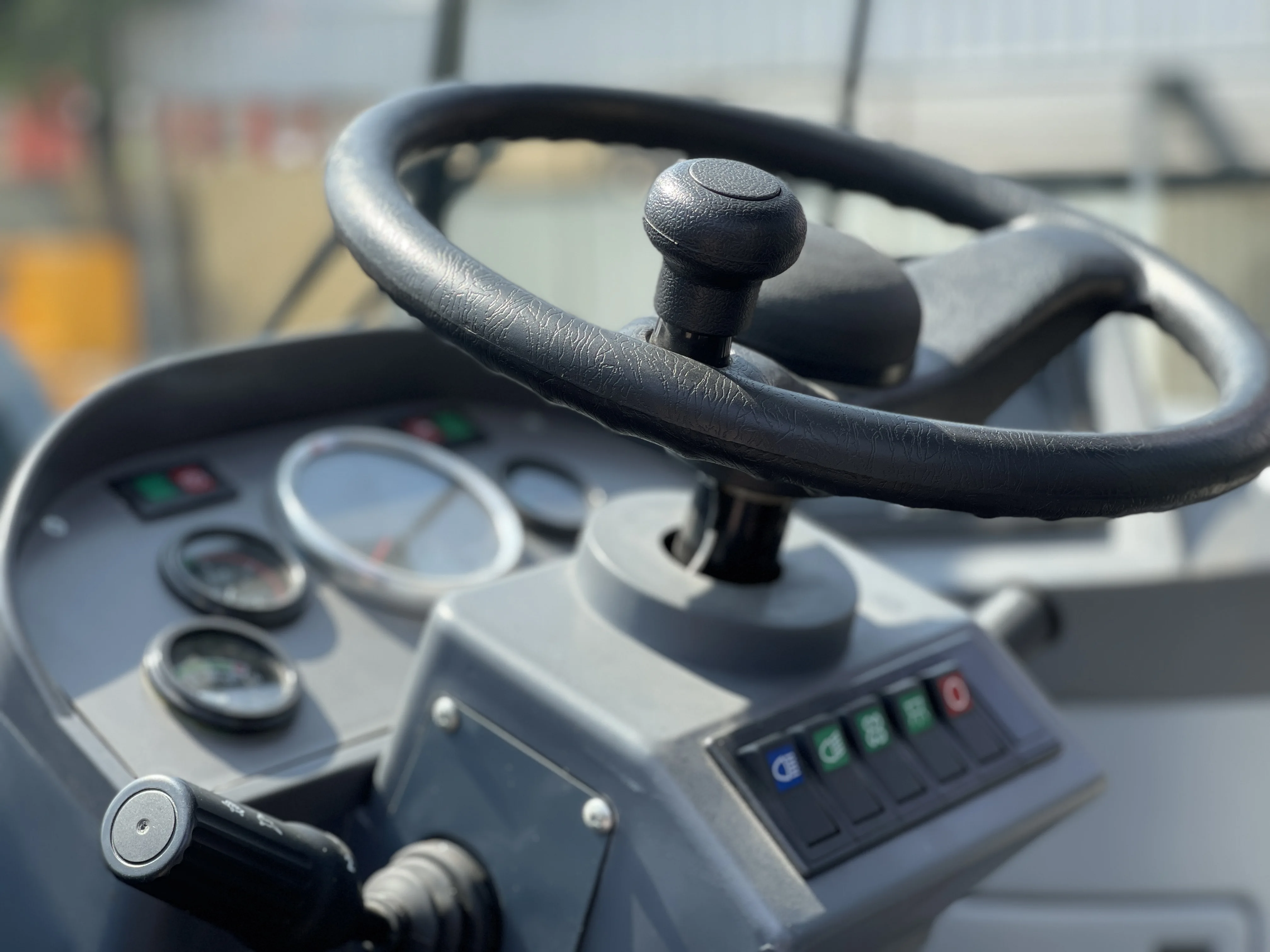

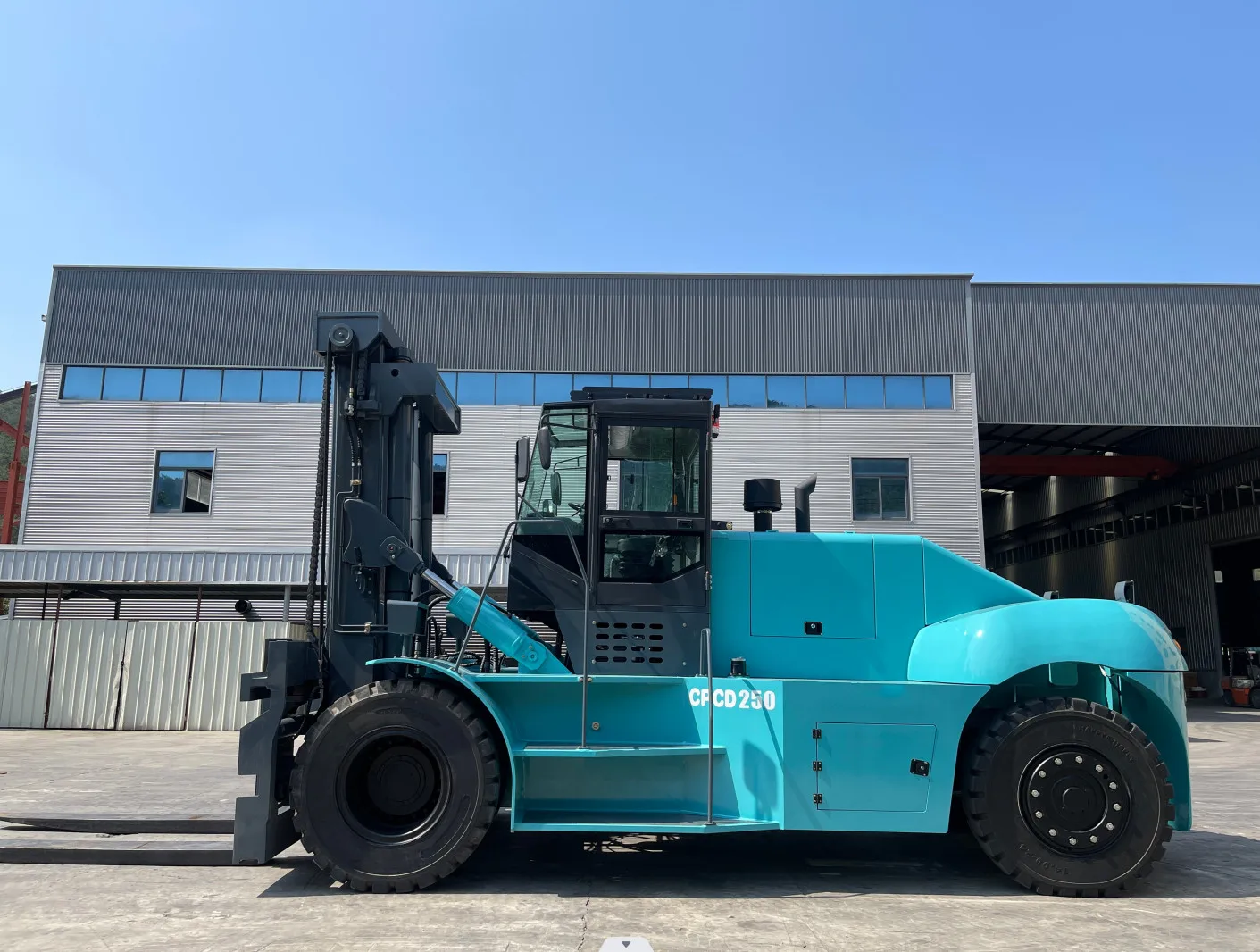

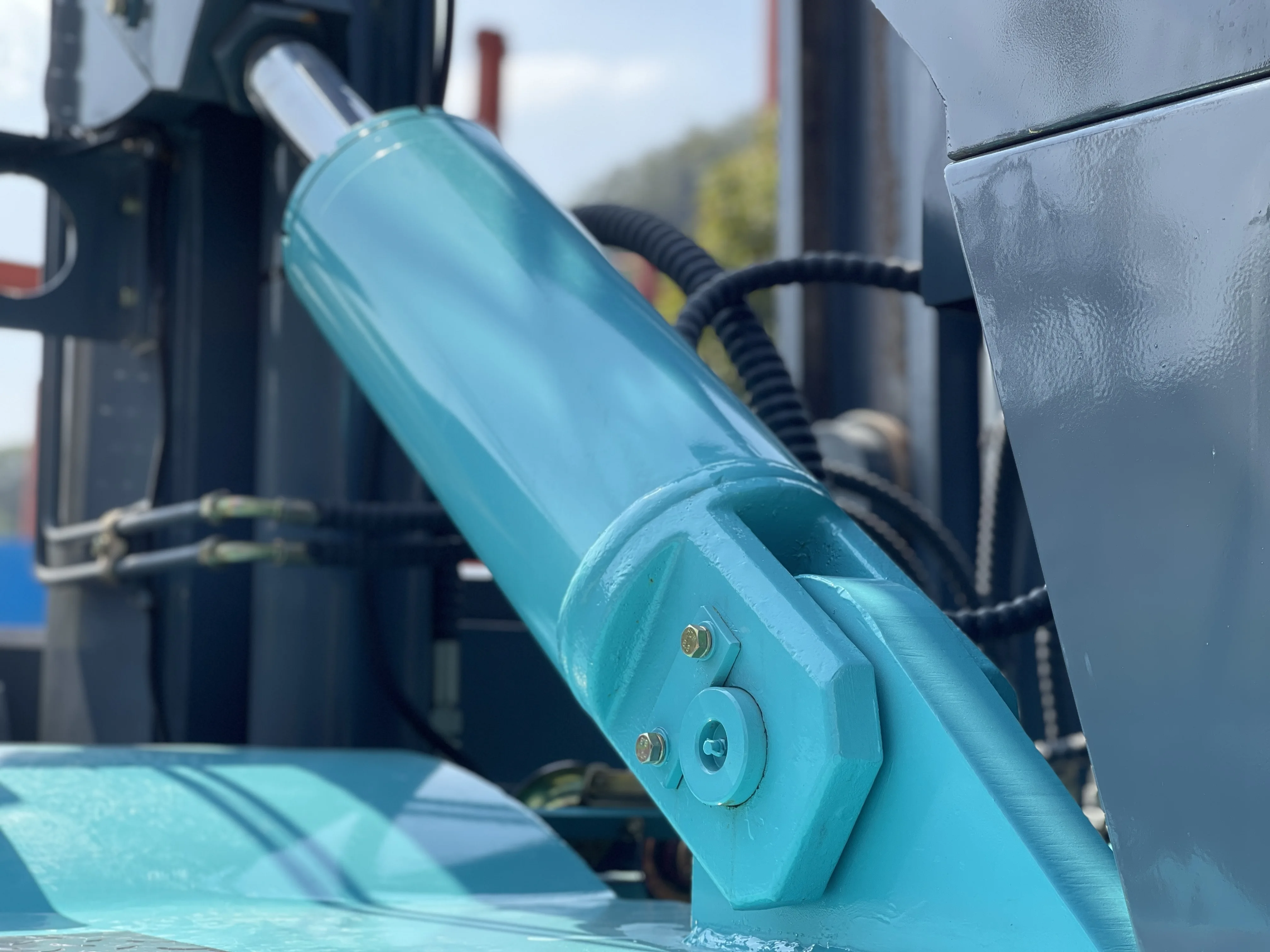

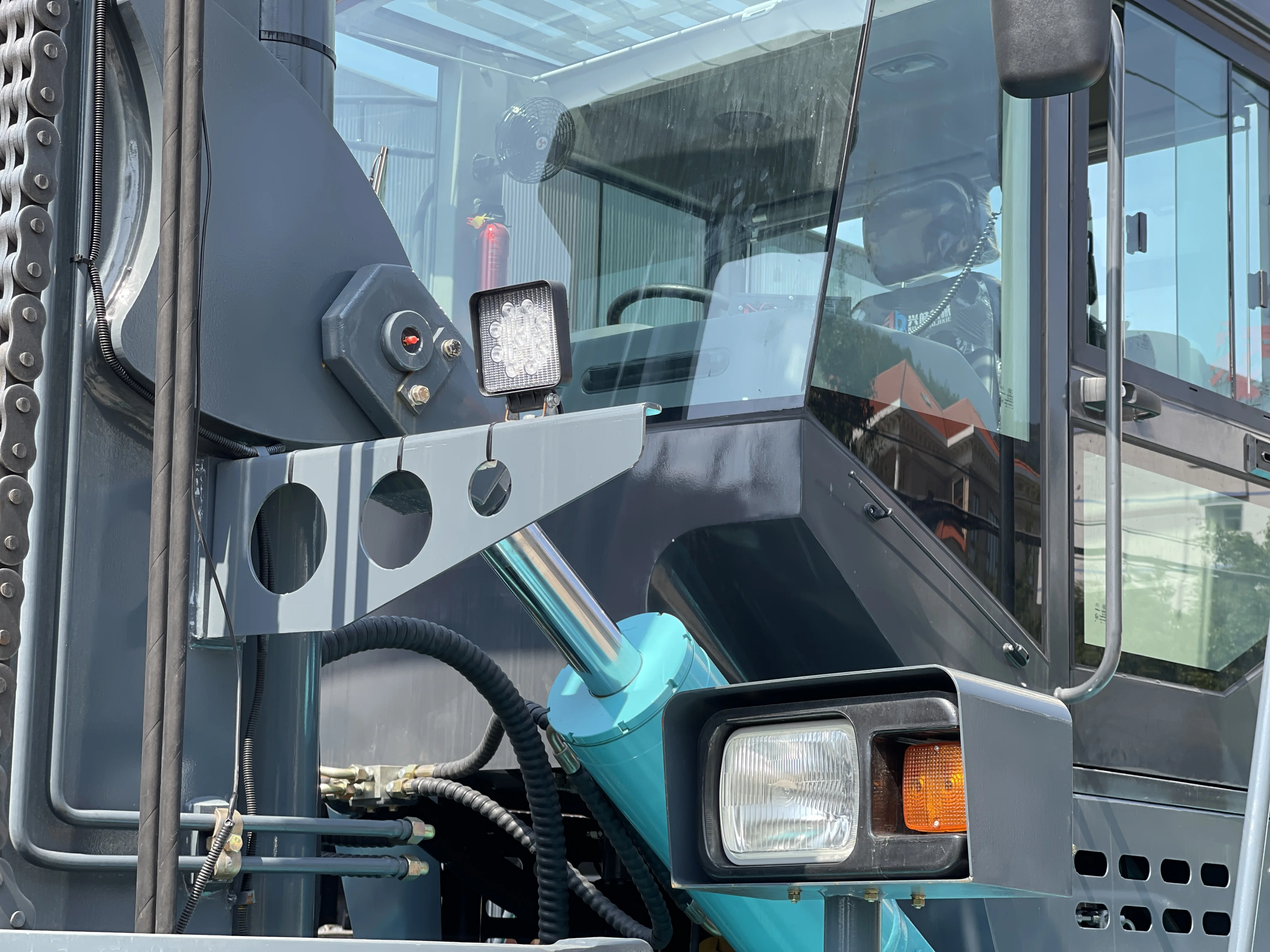

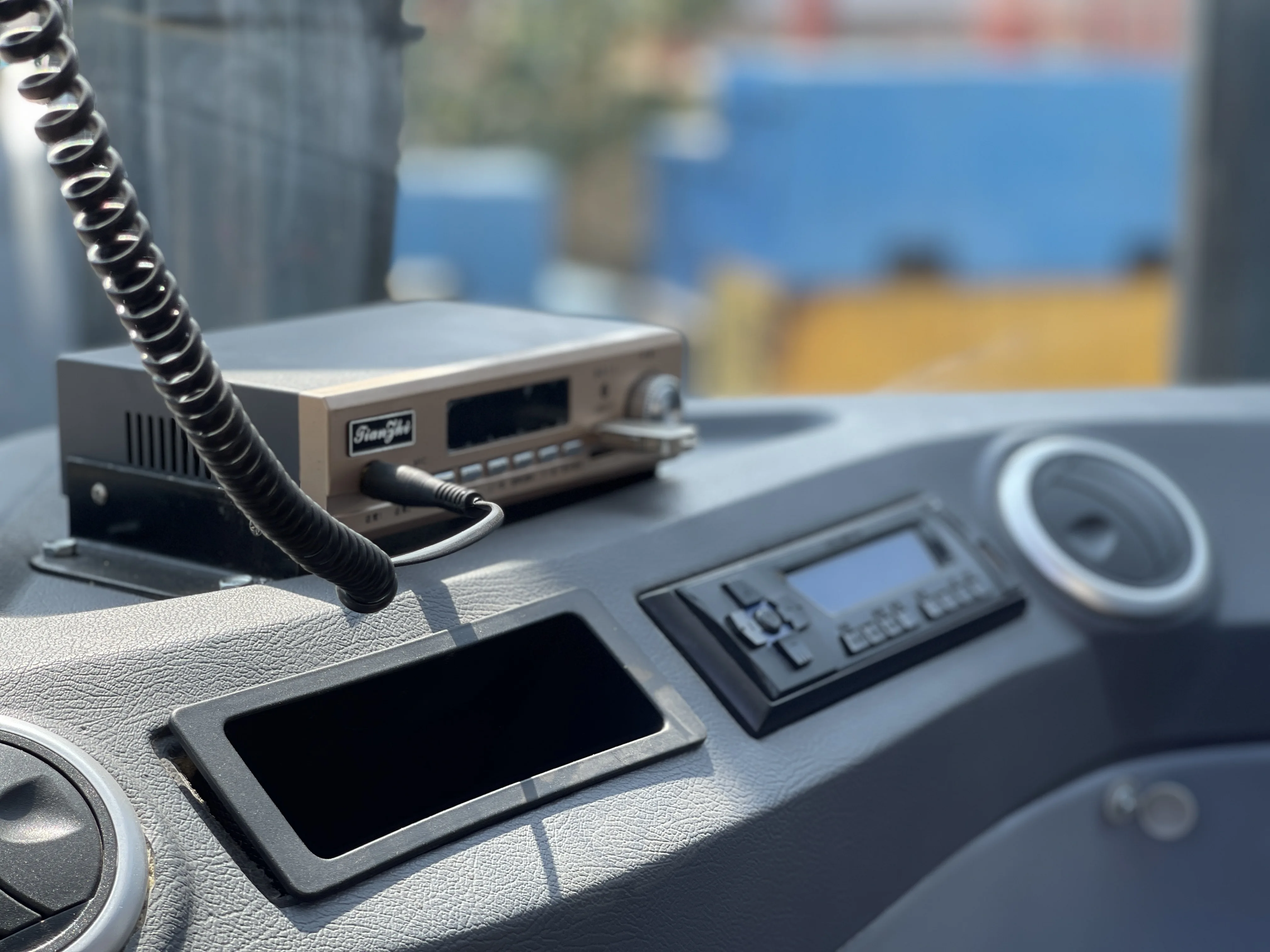

Details Images






Imported Engine 6BTAA5.9-C190 Forklift 16 ton Heavy Duty 15 ton forklift price


PRODUCT SPECIFICATIONS


Item
Unit
CPCD160
CPCD200
CPCD250
CPCD300
CPCD320
Rated Load
Kg
16000
20000
25000
30000
32000
Load Center
mm
600
900
1220
1220
1225
Wheelbase
mm
3300
3970
4400
4800
5100
Weight
kg
18000
28000
33500
38000
42000
Tire Specs:Front
12.00-20
14.00-24
14.00-24
16.00-25
16.00-25
Tire Specs:Rear
11.00-20
12.00-24
14.00-24
14.00-24
14.00-24
Tires Qty,front/rear(X-dreve wheels)
4/2
4/2
4/2
4/2
4/2
Wheel tread:Front
mm
1660
2050
2220
2430
2430
Wheel tread:Rear
mm
1760
2130
2300
2230
2230
Mast/carriage tilt angle(front/rear)
Degree(°)
6/12
6/12
6/12
6/12
6/12
Mast height(fork lowering)
mm
2970
3930
3970
4150
4150
Mast lifting height
mm
3000
4000
4000
4000
4000
Max.height
mm
4440
5900
5940
6120
6120
height to head guard(height to cab)
mm
2780
3320
3440
3460
3460
Overall height(with forks)
mm
8600
8200
8950
9460
9760
Fork front verticaal sueface to the rear end of the vehicle
mm
5000
6000
6550
7060
7360
Overall width
mm
2350
2930
3060
3360
3360
Fork dimension
mm
1800*180*90
2200*220*100
2400*300*100
2400*300*110
2400*320*120
Fork carriage width
mm
2260
2800
2800
3000
3000
Mast min ground(with load)
mm
320
270
350
400
400
Wheelbase center min ground(with load)
mm
360
350
420
460
460
Min.turning Radius
mm
4600
5970
6160
6600
6900
Travel speed(with load/without load)
km/h
22/28
26/30
25/30
24/28
25/28
Max.lifting speed(with load/without load)
mm/s
220/280
260/270
260/270
260/280
260/280
tractionn
KN
110
140
160
180
200
gradeability(with load/without load)
%
20/22
20/22
20/22
20/22
20/20
Driving brake
Hydraulic clamp disvc
Hydraulic clamp disvc
Hydraulic clamp disvc
Hydraulic clamp disvc
Hydraulic clamp disvc

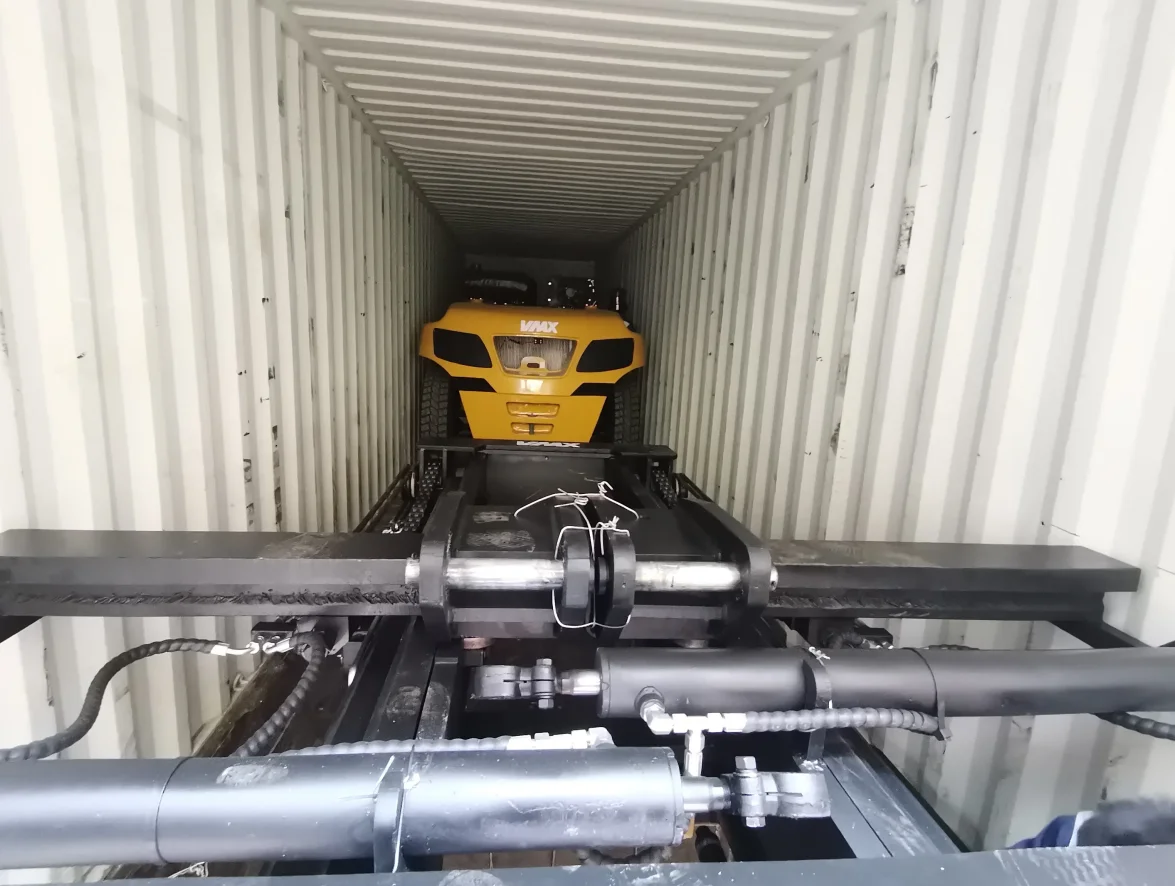

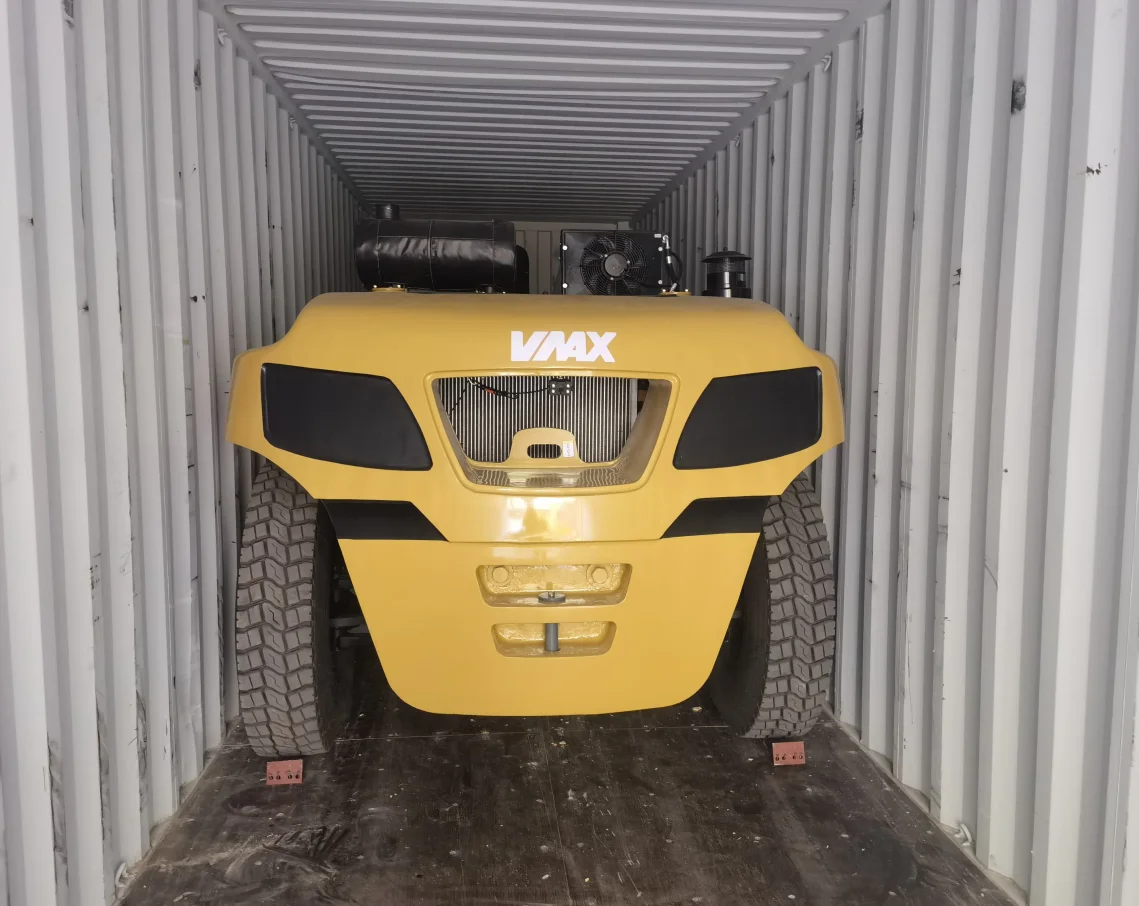

Packing & Delivery




Successful Project




FAQ


1. What Certificate do you have?
VMAX workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate and SGS.
2. Can you customize and design as the clients' requirement?
VMAX will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
3.Warranty time:
Normally 1 year or 2000 working hours whichever occurs first.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
7.Production Time: Within 25 days after order confirmed
