Advantage of automatic edge banding machine:
1.Automatic adjustment function: according to the thickness of the plate, automatic adjustment of beam height, automatic positioning
2.Double glue pot: different glue can be selected according to different colors of plates or side tape
3. Profile tracking function rounds the four corners, making them more smooth and safer.
4.Function customization: Pre-milling, Gluing, End trimming, finishing, track trimming, scraping, Polish, etc
5.malfunction self-inspection
3. Profile tracking function rounds the four corners, making them more smooth and safer.
4.Function customization: Pre-milling, Gluing, End trimming, finishing, track trimming, scraping, Polish, etc
5.malfunction self-inspection
6.Have cleaning function
Product's Configuration
1)Diamond pre-milling cutter, equipped with double trimming blades.
2)Maximum premilling height 35mm(optional 65mm)
3)Milling corrugation, expansion edge of sheet surface
Double glue pot
Good adjustable glue roller ensures the right application amount of glue.
Through precision linear guide movement, using the modeling automatic tracking fast cutting and high speed motor structure, trim the excess banding strips so that the banding strips are flush with the plate front and back.
Trim the excess edge banding strip which is on the up and down the edge plate, so that the width of the edge strip is consistent with the width of the edge plate.
Equipped with independent vacuum cover.
Has two motors, each is 0.75 kw
Double heads corner rounding: high precision guaranteed perfect look and touch.
Scraping
It is used to eliminate the wavy marks caused by the cutting process of trimming non-linear motion, so that the upper and lower
parts of the plate are more smooth and neat. At the same time, the size of the arc angle can be adjusted to make the sealing
effect more perfect.
parts of the plate are more smooth and neat. At the same time, the size of the arc angle can be adjusted to make the sealing
effect more perfect.
Two sets of automatic recoil edge scraping mechanism.
It is used to eliminate the wavy marks caused by the non-linear cutting process of trimming, so that the upper and lower parts of the plate are more smooth and neat, and the size of the arc Angle can be adjusted at the same time, so that the edge sealing effect is more perfect.
Product Paramenters
Model | HSR380A |
Feed Rate | 12-40m/min |
Sheet thickness | 10-60mm |
Edge Thickness | 0.4-3mm |
Sheet Width | ≥80mm |
Track Trimmed sheet thickness | 10-45mm |
Working Pressure | 0.8Mpa |
Total power | 20kw |
Size | 13000*1000*1680mm |
Net Weight | 4000kg |
Application

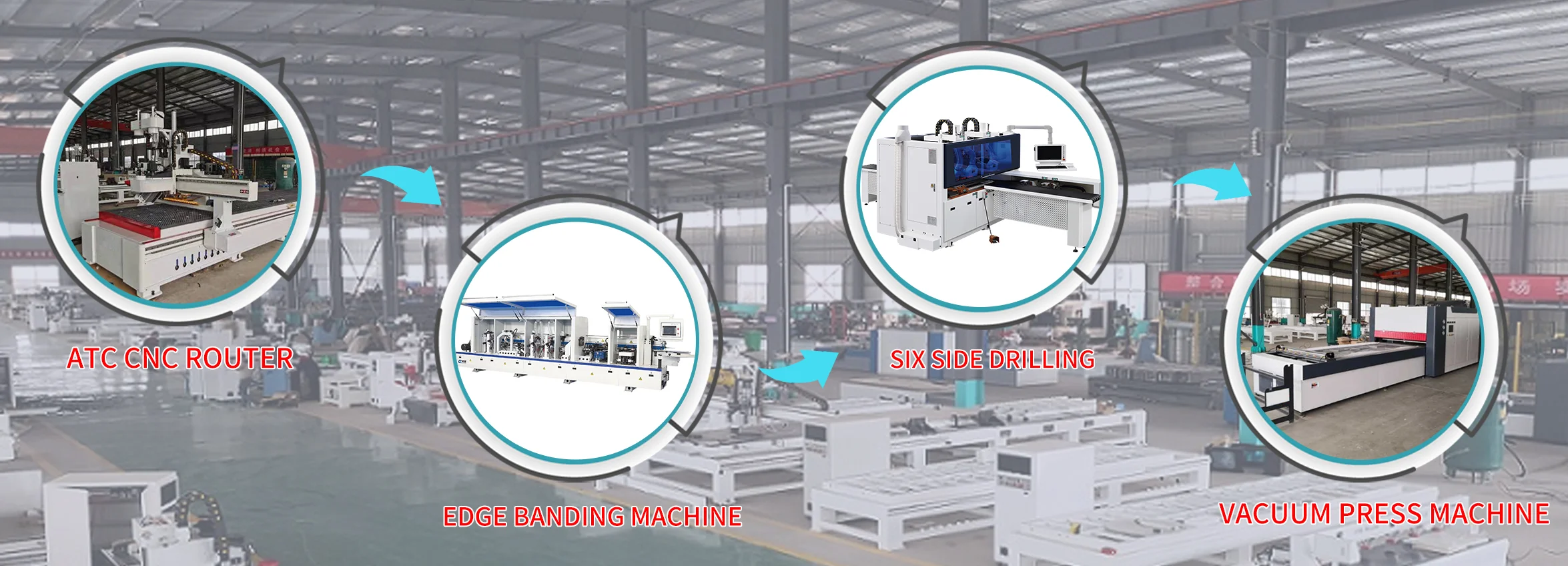

The production Line
Provide the whole production Line
We have many kinds of Furniture Production Line, including CNC Router Machine, edge banding machine, wood drilling machine, auto loading and unloading system, etc.
We can do customized service, so if you are not sure which machine or which production line is suitable for you, we can give you suggestion and support you the whole Furniture Production Line.

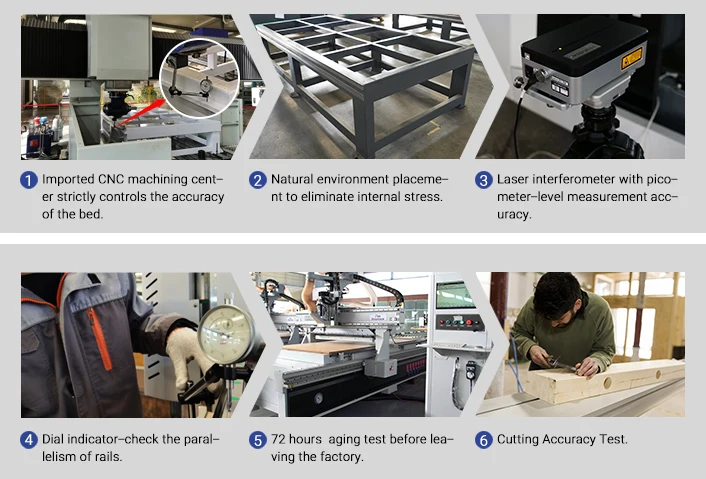

Quality Control
after-sale service

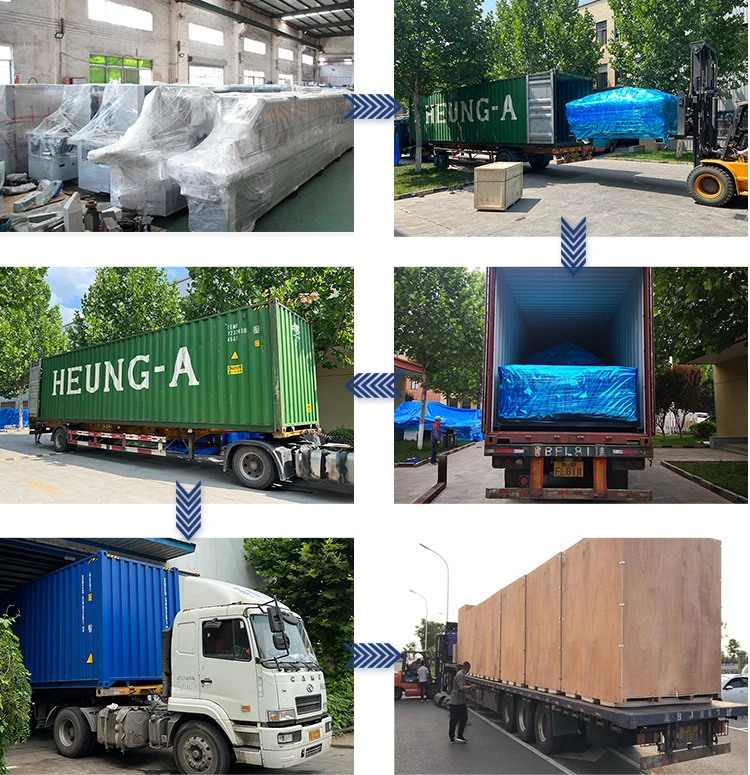

Product packaging

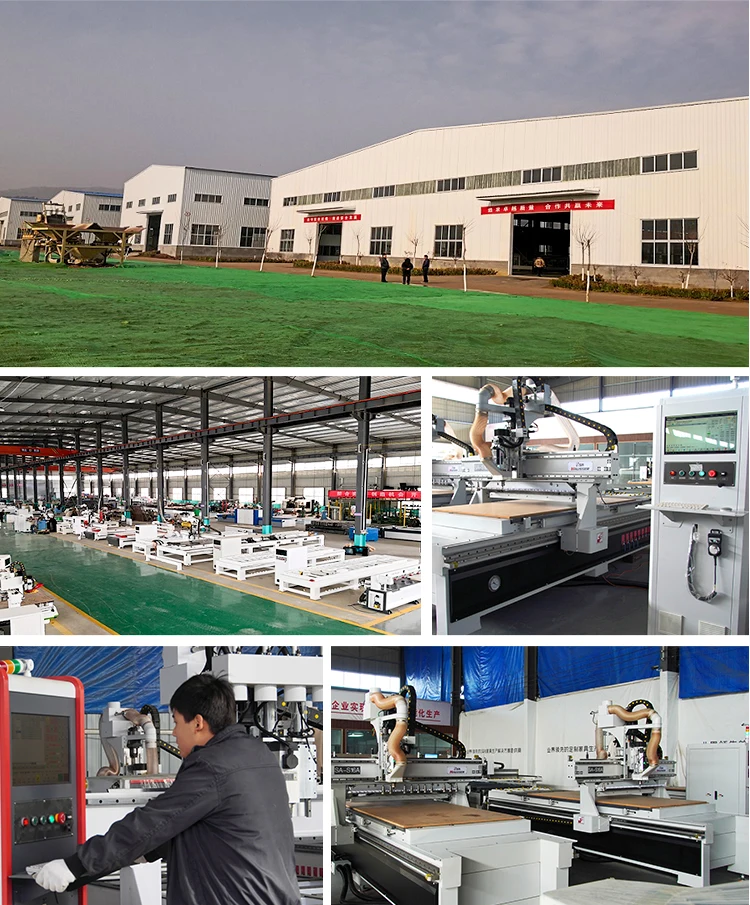

Company Profile
