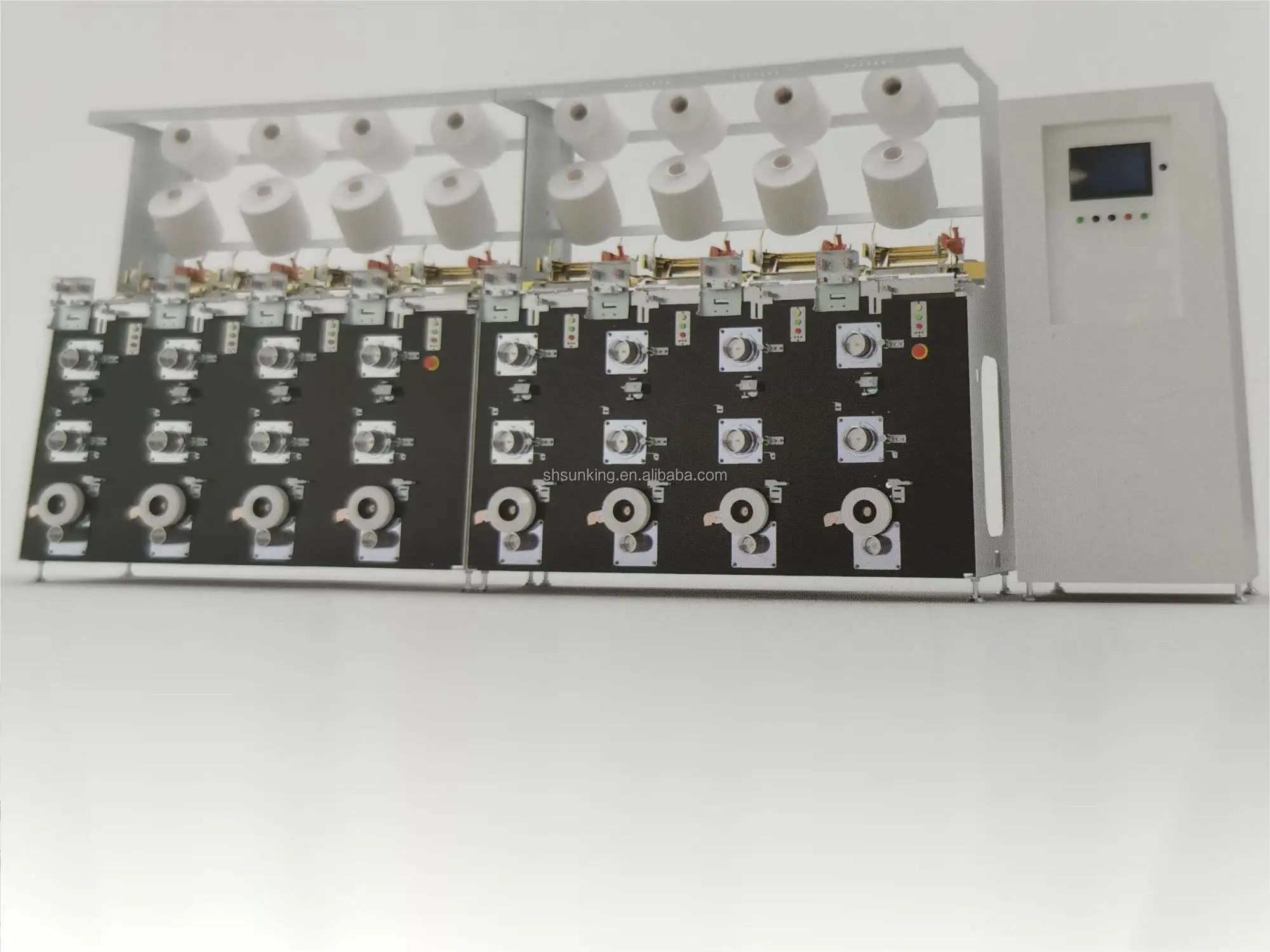

SK-10 air covering machine have optimal yarn path,higher productive flexibility,reliable winding system allows to producehigh quality packages.All processing paramerter can be control setting and modify on the control panel.

TECHNICAL DATA
Applicable textile specification: 20-300 Denier
Spandex Stretch: D/R2=1.4-3.5
Max. Mechanical speed: 900 m/min
Applicable Process Speed:400-800 m/min (The applicable process speed can be selected according to the production variety and quality requirements)
Compressed air consumption: 4-6 m3/h, Pressure 3-5 bar
Model: single side type, 4 spindles per section, Gauge 390mm

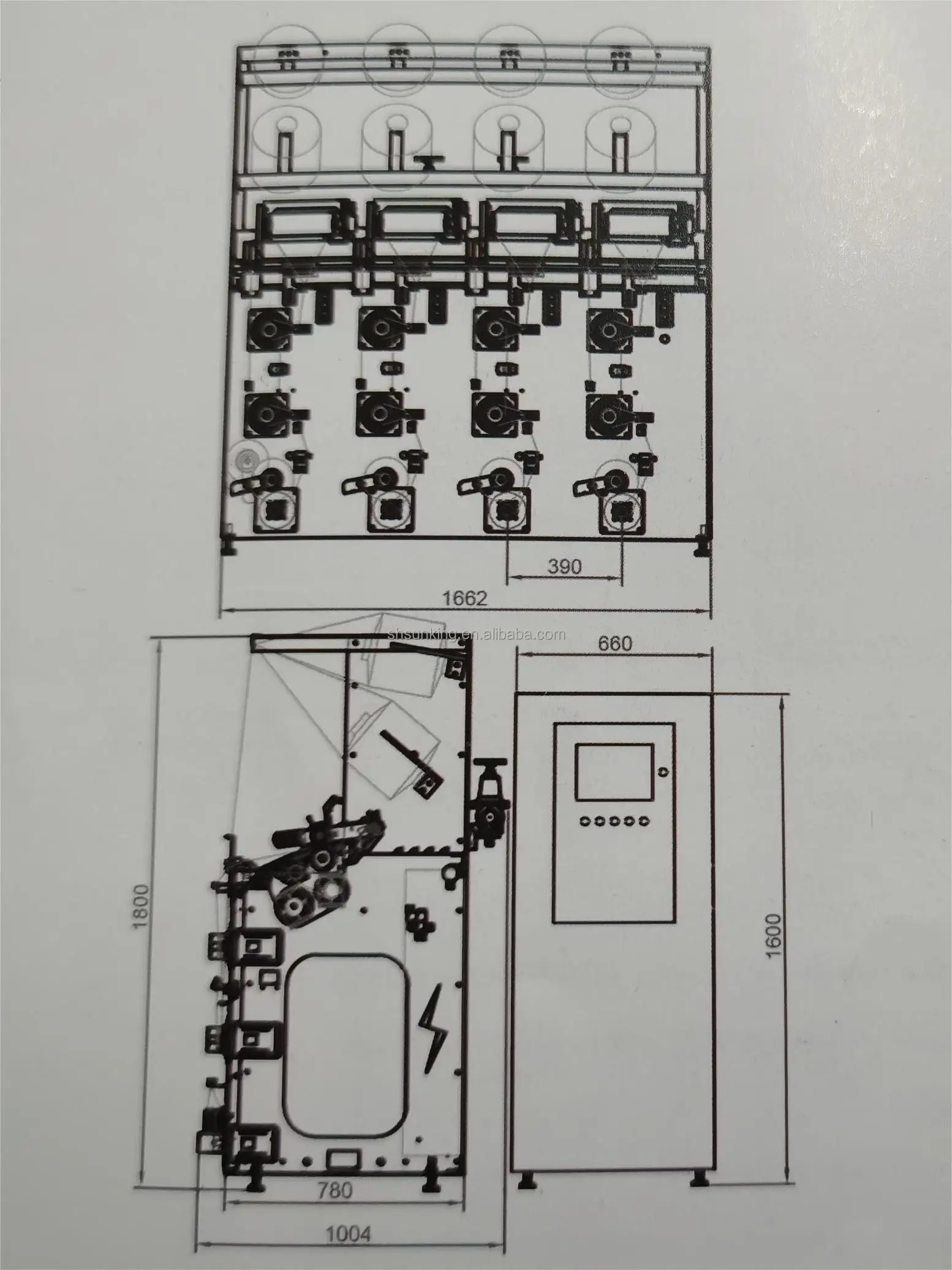

Dimensions of per rack: length 1665× width 985×height 1717mm
No. spindle:According to customer requirements, up to 10 sections (10 sections and 40 spindles are recommended)
Rated power of each spindle: 540W, but the actual power consumption is about 60% of the rated power
Package shape: cylindrical with cone angle/straight
winding cross angle: 23-32adjustable
Package size:160× (190-195) mm
Tube size: 230/290 mm

Wooden cases ,cartons and metal frame pallets suitable for shipment.
