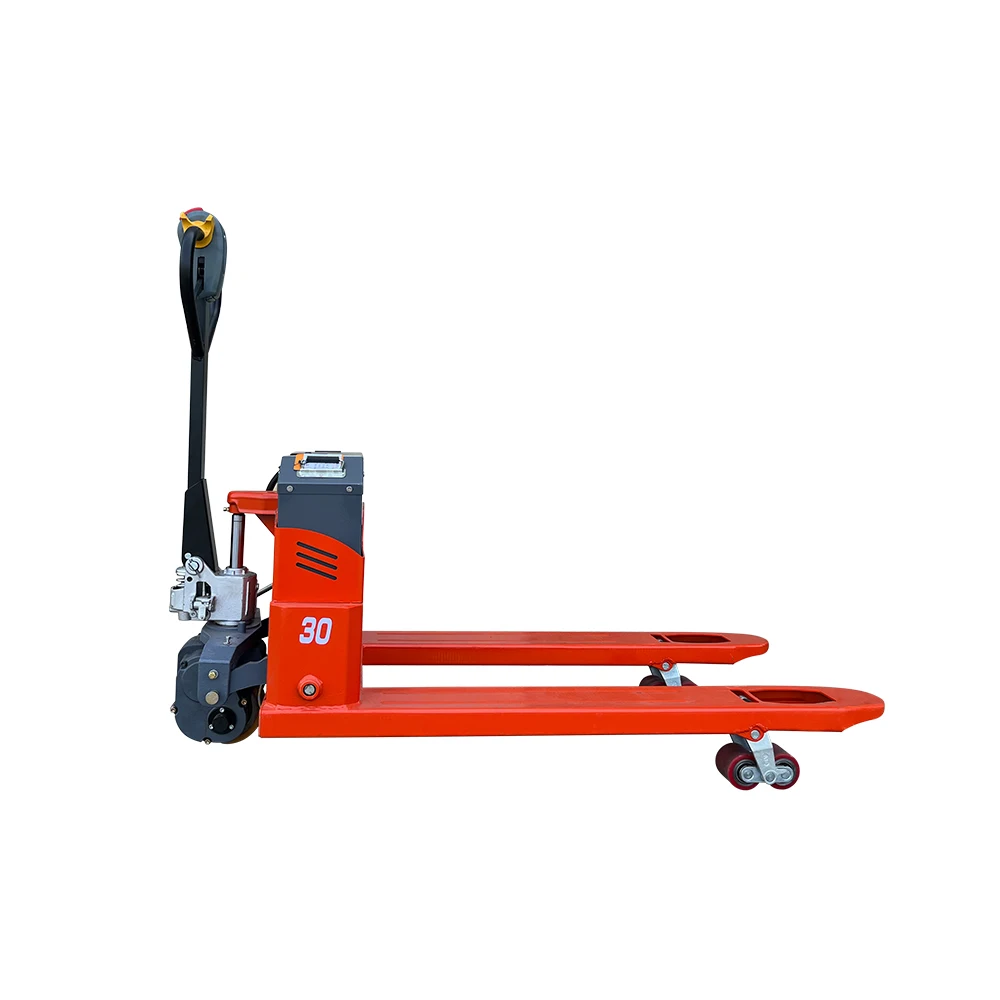

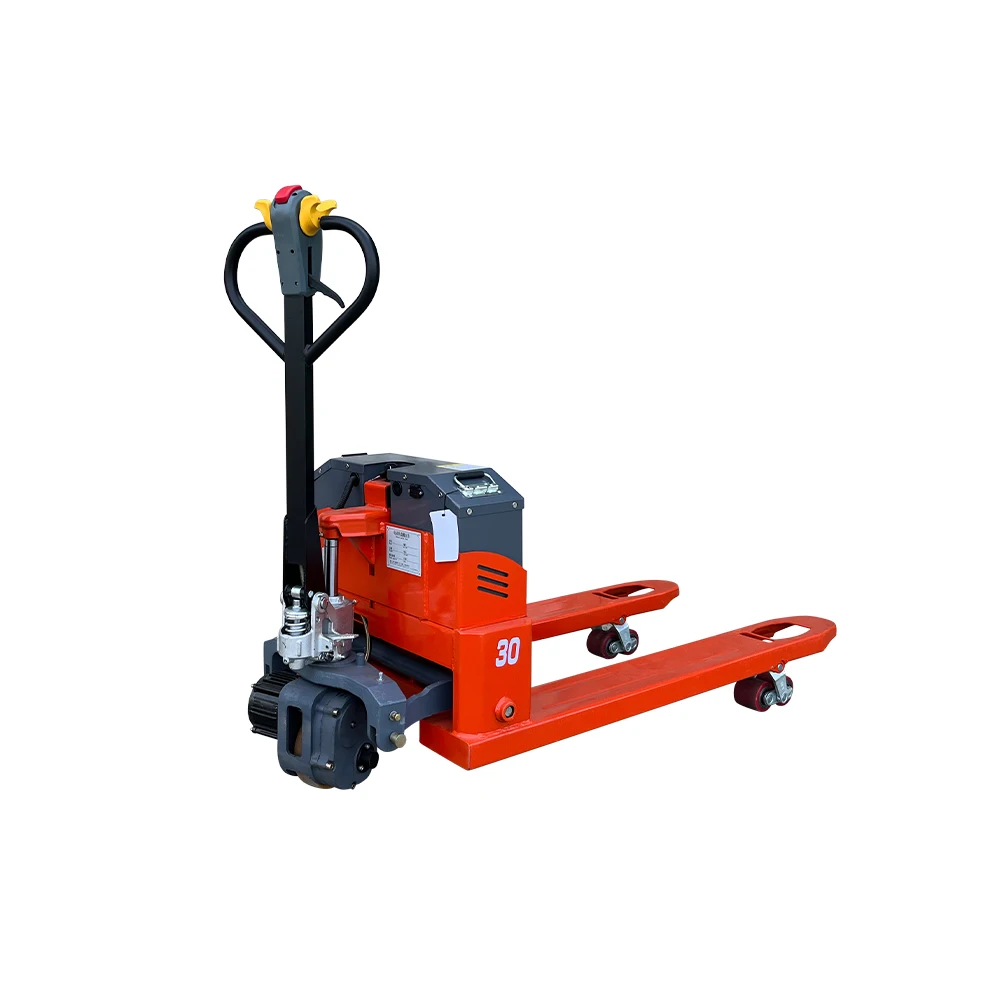

Новый стиль 3t Электрический домкрат поддон с литиевой батареей для
- Категории: Forklifts >>>
- Поставщик: Taixing,Yike,Handling,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Origin | Jiangsu | |||
Model and specification | YK30T | |||
Power type | battery | |||
Rated load | Kg | 3000 | ||
Operation type | Walking type | |||
Load center distance | mm | 600 | ||
Lifting height | mm | 205 | ||

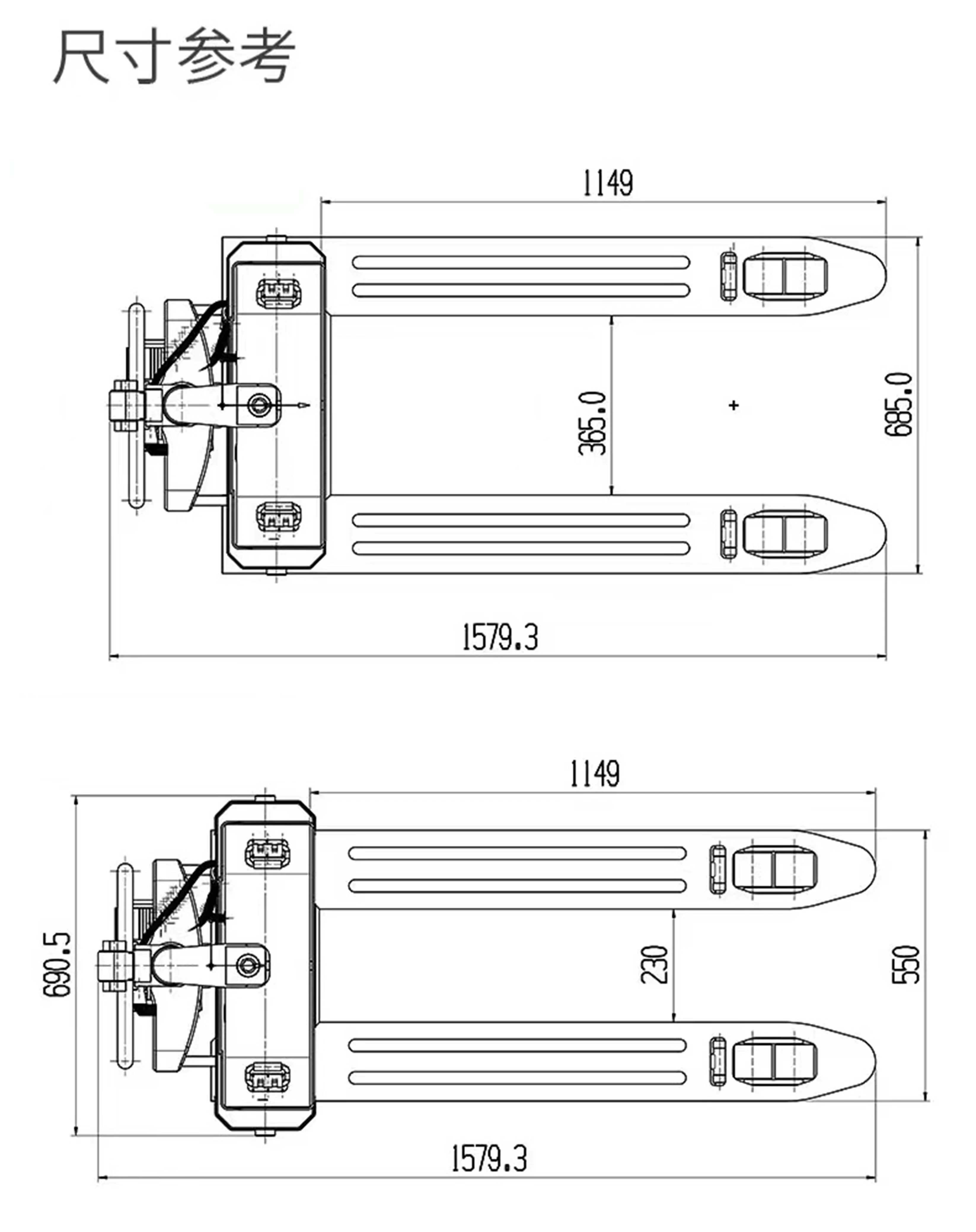

Lifting height | L*W*T | mm | 1150x160x54 | |
Fork spacing（out side） | Min./Max. | mm | 550/685 | |
Overall dimension | Overall length | mm | 1710 | |
Overall width | mm | 700 | ||
Total height (including handle) | mm | 1280 | ||
Minimum turning radius | mm | 1350 | ||
Minimum right-angle passage width | mm | 1560 | ||
Speed | Driving speed (full load) | km/h | 3.5 | |
Lifting speed (full load) | mm/sec | manual | ||
Maximum speed gradient (full load) | % | 10 | ||
Dead weight | Kg | 165 | ||
Tire type Bearing wheel | Bearing wheel | 85x70 | ||
Drive wheel | 170x52 | |||
Battery | voltage | V/Ah | 48V 20Ah | |
Motor | traveling motor | kw(60min) | 48V 0.8Kw | |
Oil pump motor | kw(15min) | -- | ||
Controller | 48V permanent magnet brushless | |||
Product advantages:
1. The product can be equipped with removable pedals and drive wheel shields
2. Standard 20AH battery with strong power. Optional 30AH high-power battery.
3. Optional battery type: lead-acid battery/lithium battery.
4. The actual load is 3.0 tons.
5. Product optional style: semi-electric type (electric walking, manual lifting); Fully electric type (electric walking lifting);
Off-road model.
2. Standard 20AH battery with strong power. Optional 30AH high-power battery.
3. Optional battery type: lead-acid battery/lithium battery.
4. The actual load is 3.0 tons.
5. Product optional style: semi-electric type (electric walking, manual lifting); Fully electric type (electric walking lifting);
Off-road model.
1. Why choose us?
As a manufacturer, LTMG Industries is committed to providing not only high quality, high performance and competitive prices of electric forklifts, but also prompt delivery and comprehensive 7/24 after-sales service.
2. What is the product range of our factory?
LTMG Industries is a large machinery manufacturer specializing in the supply of loaders, forklifts, excavators and related accessories. We can also customize non-standard products according to customers'
requirements.
3. What payment terms can we accept?
Usually 30% deposit is required in advance and 70% balance is required before shipment. 100% irrevocable sight letters of credit and terms agreed by us are also acceptable.
4. What certificates do we have?
All products comply with ISO 9001 quality system and are CE certified.
5. What is our delivery time?
Usually, it takes 15 to 30 days after receiving your deposit. About standard products, we always have stock and can deliver immediately. But customized products will take more time, depending on your requirements
order.
6. Can we provide OEM service?
LTMG Industries can provide customized products according to customers' requirements, OEM and ODM are both acceptable.
As a manufacturer, LTMG Industries is committed to providing not only high quality, high performance and competitive prices of electric forklifts, but also prompt delivery and comprehensive 7/24 after-sales service.
2. What is the product range of our factory?
LTMG Industries is a large machinery manufacturer specializing in the supply of loaders, forklifts, excavators and related accessories. We can also customize non-standard products according to customers'
requirements.
3. What payment terms can we accept?
Usually 30% deposit is required in advance and 70% balance is required before shipment. 100% irrevocable sight letters of credit and terms agreed by us are also acceptable.
4. What certificates do we have?
All products comply with ISO 9001 quality system and are CE certified.
5. What is our delivery time?
Usually, it takes 15 to 30 days after receiving your deposit. About standard products, we always have stock and can deliver immediately. But customized products will take more time, depending on your requirements
order.
6. Can we provide OEM service?
LTMG Industries can provide customized products according to customers' requirements, OEM and ODM are both acceptable.
