Factory direct sale 1500kg 1.5ton 2500KG Full Electric Hand Pallet Truck Electric Pallet Jack
Electric drive and electric lift, increase productivity.
It also combines the compact size of a Hand Truck with ease of movement to make it well-suited for small spaces. It is easy to use and requires virtually no maintenance.
This truck will eliminate the strain from pulling and pushing a Hand Truck. This 1500kg capacity machine is another step towards an ergonomic
Suitable for indoor applications such as stores, back of stores, supermarkets, light industry, hospitals, pharmacies, libraries, etc.

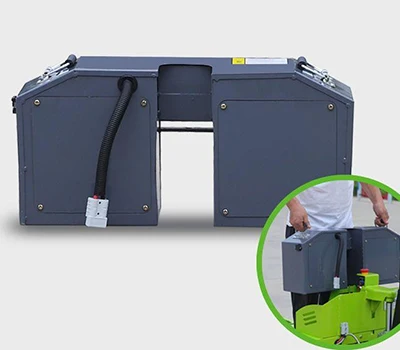

Equipped with maintenance-free Lithium battery 25AH for easy replacement. 2 hours quick charge as an option.
Equipped with an electromagnetic brake, it can stop on the slope.
Tandem fork rollers as standard configuration, and with additional supporting wheels.
It also combines the compact size of a Hand Truck with ease of movement to make it well-suited for small spaces. It is easy to use and requires virtually no maintenance.
This truck will eliminate the strain from pulling and pushing a Hand Truck. This 1500kg capacity machine is another step towards an ergonomic
Suitable for indoor applications such as stores, back of stores, supermarkets, light industry, hospitals, pharmacies, libraries, etc.
Equipped with maintenance-free Lithium battery 25AH for easy replacement. 2 hours quick charge as an option.
Equipped with an electromagnetic brake, it can stop on the slope.
Tandem fork rollers as standard configuration, and with additional supporting wheels.
Products Description
Model | CTX-20 | |
Power Type | Lead Battery/Lithium Battery | |
Operation Type | Standing | |
Rated Capacity | kg | 2000 |
Load Center | mm | 600 |
Lifting Height | mm | 200 |
Overall Dimension(L/W/H) | mm | 1710×700×1280 |
Fork Sizes | mm | 1150×160×50 |
Fork Width Min./Max. | mm | 550/688 |
Min. Ground Clearance | mm | 5 |
Turning Radius | mm | 1400 |
Min.Right Angle Channel Width | mm | 1560 |
Self-weight(with battery) | kg | 295 |
Battery Weight | kg | 20 |
Wheel Type (driving/turning) | Solid PU | |
Driving Wheel Sizes | mm | 210×70 |
Loading Wheel Sizes | mm | 85×70 |

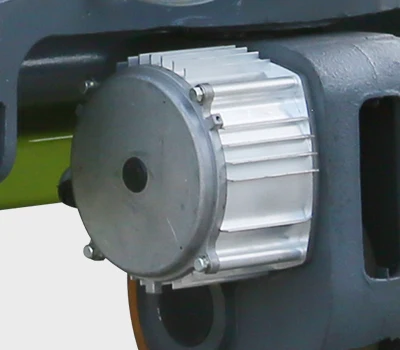

Driving Motor | kw(60min) | 0.85 |
Lifting Motor | kw(60min) | 0.8 |
Battery Dimension | mm | 271×174×213 |
Battery Voltage/Capacity | V/ah | 2×12/60 |
Controller | DC | |
Working Pressure | mpa | 14 |
Travel speed(laden/unladen) | km/h | 4.5/5 |
Lifting speed(laden/unladen) | mm/s | 30/34 |
Max Climbing Ability | % | 4 |
Braking | electromagnetic induction | |
Driving Type | Electric | |
Steering System | Manual | |
Noise Level | 63 | |
Waterproof Grade | IP54 |
Standard Configuration:
* Solid PU tyre
* 24 voltage 60 Ampere Hour Battery
* Working for 6-8 hours
* Over-discharge protection
* Emergency power-off switch
* Electromagnetic brake
* Electric quality display
* Rated capacity 1.5 ton
* Lifting height 200 mm
Selective Configuration
* Fork dimension(+-300mm)
* Remote control
* Lithium battery
* Larger battery capacity
* Solid PU tyre
* 24 voltage 60 Ampere Hour Battery
* Working for 6-8 hours
* Over-discharge protection
* Emergency power-off switch
* Electromagnetic brake
* Electric quality display
* Rated capacity 1.5 ton
* Lifting height 200 mm
Selective Configuration
* Fork dimension(+-300mm)
* Remote control
* Lithium battery
* Larger battery capacity
Product Overview
Details Images
MULTI-FUNCTION HANDLE
The multi-function handle allows the driver to adjust the pallet truck in horizontal and vertical directions. with full
performance, simple operation, and ease to understand.

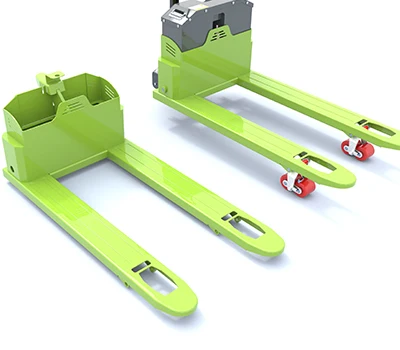

THICK FORGED FORK
The forks are forged and processed with fine materials to improve the carrying capacity of the forks which is convenient,
time-saving and labor-saving

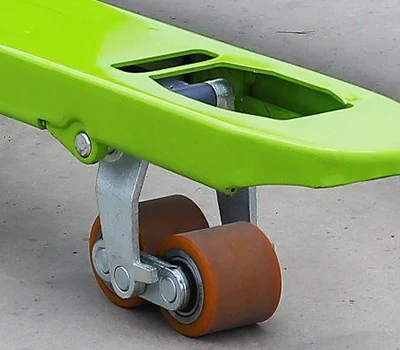

WEAR-RESISTANT CASTERS
The casters are made of nylon material, which produces less noise when moving, lower friction damage, and longer service life.
The multi-function handle allows the driver to adjust the pallet truck in horizontal and vertical directions. with full
performance, simple operation, and ease to understand.
THICK FORGED FORK
The forks are forged and processed with fine materials to improve the carrying capacity of the forks which is convenient,
time-saving and labor-saving
WEAR-RESISTANT CASTERS
The casters are made of nylon material, which produces less noise when moving, lower friction damage, and longer service life.

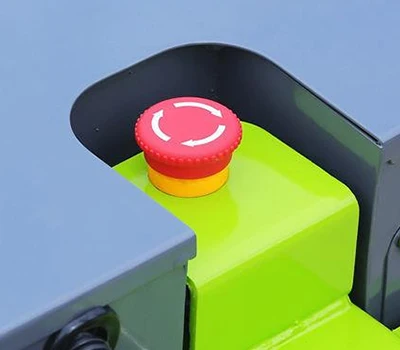

New Emergency Stop Switch
Fewer parts than traditional emergency stop switches, simple and more reliable structure.

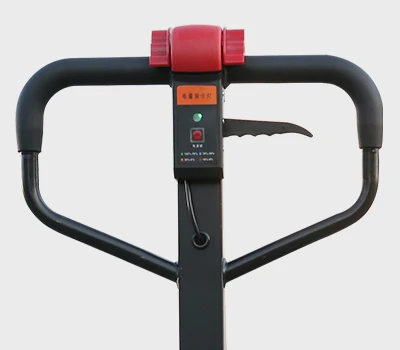

Multi-function Handle Head
It integrates the key, the electricity meter, the control signal light, and the operation button. and the operation is more
concise and convenient
Fewer parts than traditional emergency stop switches, simple and more reliable structure.
Multi-function Handle Head
It integrates the key, the electricity meter, the control signal light, and the operation button. and the operation is more
concise and convenient
Drive Guard Wheel
It can effectively protect the operator from pressing the presser foot and make the operation safer.
Cable Optimization Design
Optimize cable harness layout, which may reduce the active part and reduce the failure rate.
Plane Layout of Electrical Parts
Only need to open the mask, and you can repair and replace the electrical components, and it is more convenient and time-saving for subsequent maintenance
Intelligent Electricity Reminder
When the battery power is less than 10%, the driving speed will slow down and remind the charging. If you forget to turn off the power after use, the vehicle will automatically power off.
It can effectively protect the operator from pressing the presser foot and make the operation safer.
Cable Optimization Design
Optimize cable harness layout, which may reduce the active part and reduce the failure rate.
Plane Layout of Electrical Parts
Only need to open the mask, and you can repair and replace the electrical components, and it is more convenient and time-saving for subsequent maintenance
Intelligent Electricity Reminder
When the battery power is less than 10%, the driving speed will slow down and remind the charging. If you forget to turn off the power after use, the vehicle will automatically power off.
Product packaging
1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
Company Profile
In 2000, “Ideal machinery” started a small workshop in Changge city, assembling rebar cutting machines and bending machines.through 20 years of development and relied on word-of-mouth advertising, our product involved kinds of the light construction machine.In order to push our machines into the overseas market, the Brand “Ideal machinery” is established in 2015 and started export trading. until now, nearly 10,000 sets of our machines are servicing the overseas construction sites now.
FAQ
1. Why choose us?
As a manufacturer, Godwin new energy is committed to offering not only electric pallet trucks with high quality and performance, and competitive prices but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
Godwin new energy is a large-scale new energy manufacturing enterprise that primarily specializes in supplying forklift trucks, warehouse equipment, New energy vehicles, and related attachments. We can also customize non-standard products according to customers' requirements.
3. How long is the Warranty for the GODWIN products?
Godwin provides 12 months or 1000 hours for the whole machine from onboard time.
4. How about the delivery time?
Usually, Godwin producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could deliver immediately.
5. How about the continuous working time for the electric series forklifts? And How long time to charge the battery fully?
Godwin battery's continuous working time is around 5-8 hours (working time depends on battery volume). It needs usually 8 - 12 hours to charge the battery, Godwin's charger is automatic, and after the battery is full, it will stop working automatically.
6. What's the specification of the chargers?
Our charger's voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases, 50/60HZ). The power plug could be
USA/UK/AUSTRALIA/EUROPEAN standard.
7. Could we request our own color for the products?
Yes, of course, you just need to offer us the RAL code.
As a manufacturer, Godwin new energy is committed to offering not only electric pallet trucks with high quality and performance, and competitive prices but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
Godwin new energy is a large-scale new energy manufacturing enterprise that primarily specializes in supplying forklift trucks, warehouse equipment, New energy vehicles, and related attachments. We can also customize non-standard products according to customers' requirements.
3. How long is the Warranty for the GODWIN products?
Godwin provides 12 months or 1000 hours for the whole machine from onboard time.
4. How about the delivery time?
Usually, Godwin producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could deliver immediately.
5. How about the continuous working time for the electric series forklifts? And How long time to charge the battery fully?
Godwin battery's continuous working time is around 5-8 hours (working time depends on battery volume). It needs usually 8 - 12 hours to charge the battery, Godwin's charger is automatic, and after the battery is full, it will stop working automatically.
6. What's the specification of the chargers?
Our charger's voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases, 50/60HZ). The power plug could be
USA/UK/AUSTRALIA/EUROPEAN standard.
7. Could we request our own color for the products?
Yes, of course, you just need to offer us the RAL code.
