Прямая Продажа с завода Электрический вилочный погрузчик насадкой Лидер продаж

Описание и отзывы

Характеристики

Production Description

---------------------------------------------------------------------------------------



1. Original imported world famous brand controller. After professional adjustment, walking and upgrade control is precision and efficiency, excellent performance. The forklift with regenerative braking, ramp braking , fault self-diagnosis and other functions.

2.Using dynamic load sensing priority steering system, steering response more quickly, driving more smoothly.

3. Advanced H-type remote drive unit, compact structure, lower gravity center, more reasonable layout, more stable driving.

4.Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.

5.Equipped with C-series forklift truck special lithium battery cell and module newly developed by Hangfork Group and CATL, the whole machine has the characteristics of high lifting speed, high driving speed, excellent ergonomics, easy operation and safety







Specifications

---------------------------------------------------------------------------------------

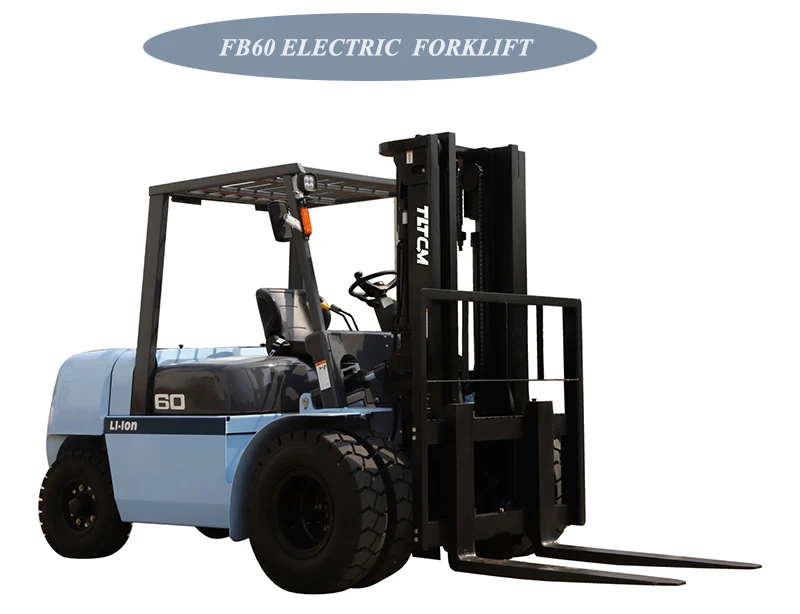

		FB50/FB60 ELECTRIC FORKLIFT SPECIFICATION
General	1	Model		FB50	FB60
	2	Rated Capacity	kg	5000	6000
	3	Load Centre	mm	500	500
	4	Lift Height	mm	3000	3000
	5	Fork Size (L×W×T)	mm	1070×150×50	1070×150×50
	6	Mast Tilt Angle F/R (α°/β°)	Deg	6/9	6/9
Characteristic&Dimensions	7	Length to face of fork (Without fork)	mm	3140	3140
	8	Overall Width	mm	1600	1600
	9	Mast Lowered Height	mm	2270	2270
	10	Mast Extended Height (With backrest)	mm	4165	4165
	11	Overhead Guard Height	mm	2255	2255
	12	Turning Radius (outside)	mm	2817	2817
	13	Front Overhang (Wheel center to fork face)	mm	579	579
	14	Tread (Front/Rear)	mm	1280/1190	1280/1190
	15	Ground Clearance (Bottom of mast)	mm	170	170
	16	Wheelbase	mm	2000	2000
	17	Fork Spread (Min./Max)	mm	300/1380	300/1380
Performance	18	Travel Speed	km/h	14	14
	19	Lifting Speed  (Full load)	mm/s	280	260
	20	Max. Gradeability	%	15	12
	21	Service Weight	kg	7970	8460
	22	Front Tire		2.8×12.5-15	2.8×12.5-15
	23	Rear Tire		7.00-12-12PR	7.00-12-12PR
Driven	24	Driven Motor	kw	11×2	11×2
	25	Lift  Motor	kw	12×2	12×2
	26	Battery Standard	V/Ah	80/700	80/800
	27	Controller Manufacturer		CURTIS AC	CURTIS AC
	28	Operating Pressure for Attachment	Mpa	18	18











Product Details

--------------------------------------------------------------------------------------------------------------------

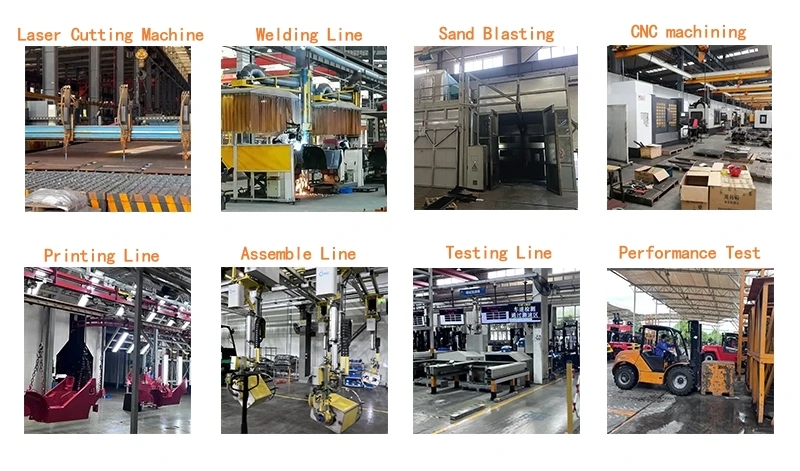

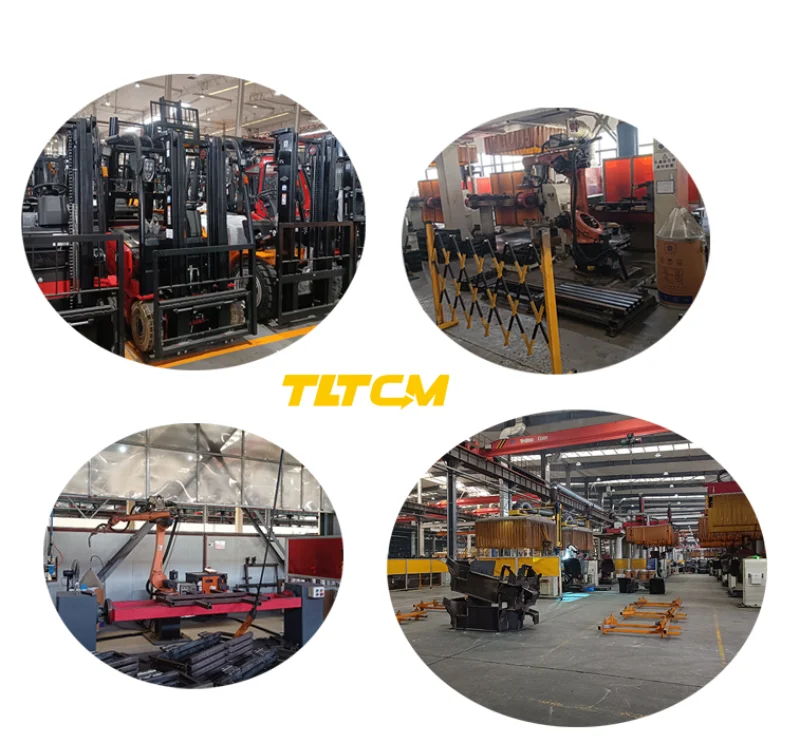

Our Workshop

---------------------------------------------------------------------------------------









About Us

---------------------------------------------------------------------------------------



Packaging &Delievery

---------------------------------------------------------------------------------------









Exhibition

--------------------------------------------------------------------------------------















FAQ

--------------------------------------------------------------------------------------

 Q1: How about the delivery time?

A1: Usually our producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.



Q2: How about the continuous working time for the electric series forklifts ? How long time to charge the battery full?

A2: Our battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, our charger is automatic, after the battery is full, it will stop working automatically.



Q3: Can you provide customized products? OEM products or ODM products?

A3: Yes, we can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.



Q4: Could we request our own color for the products?

A4: Yes, of course, you just need to offer us the RAL code.



Q5: How long is the after-sales warranty?

A5: We can provide video technical support.



Q6. Can I visit your company?

A6: Of course. We always with great pleasure at your service. If you want to order our products and visit our company, please contact us to make an appointment.
