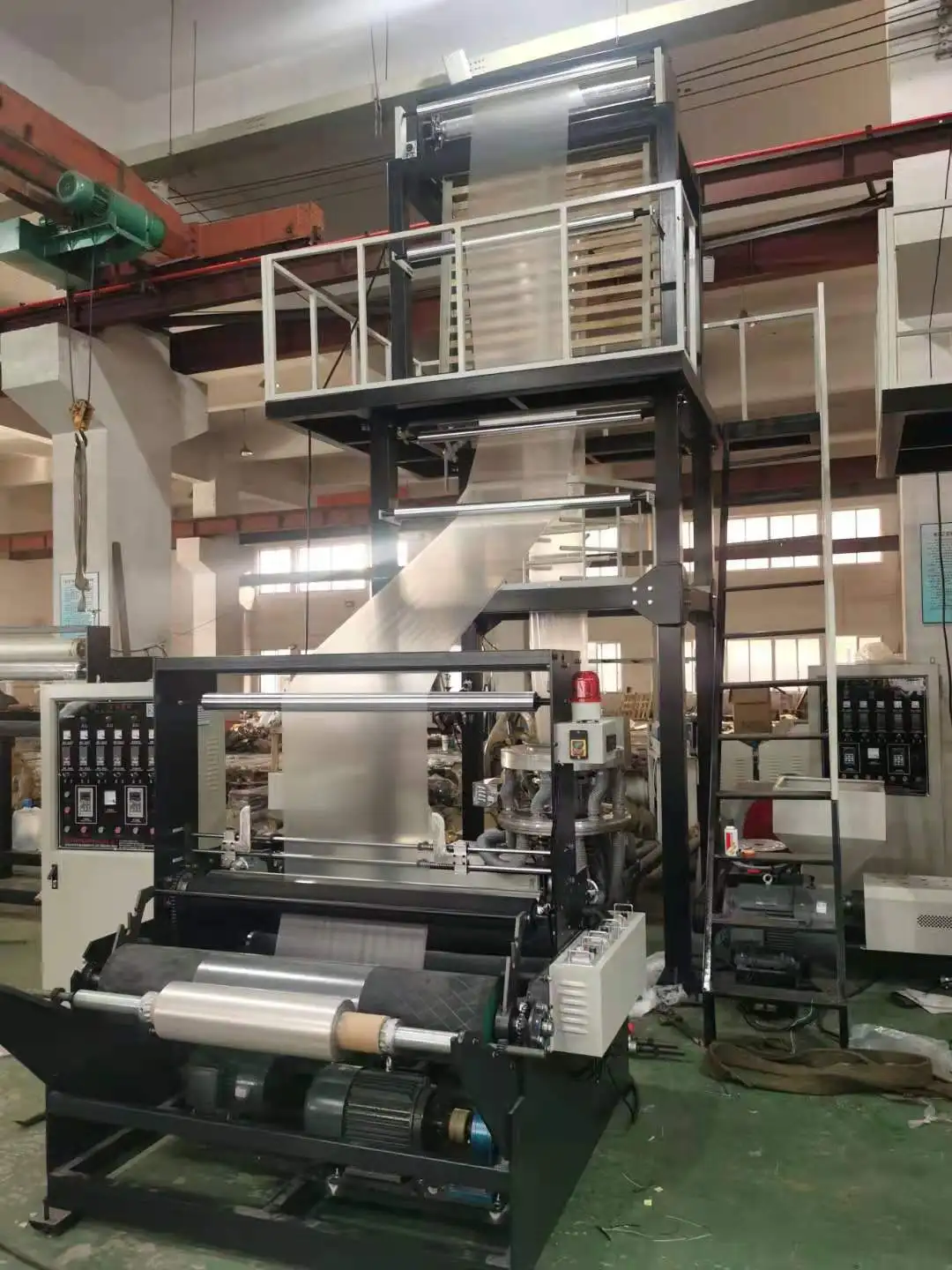

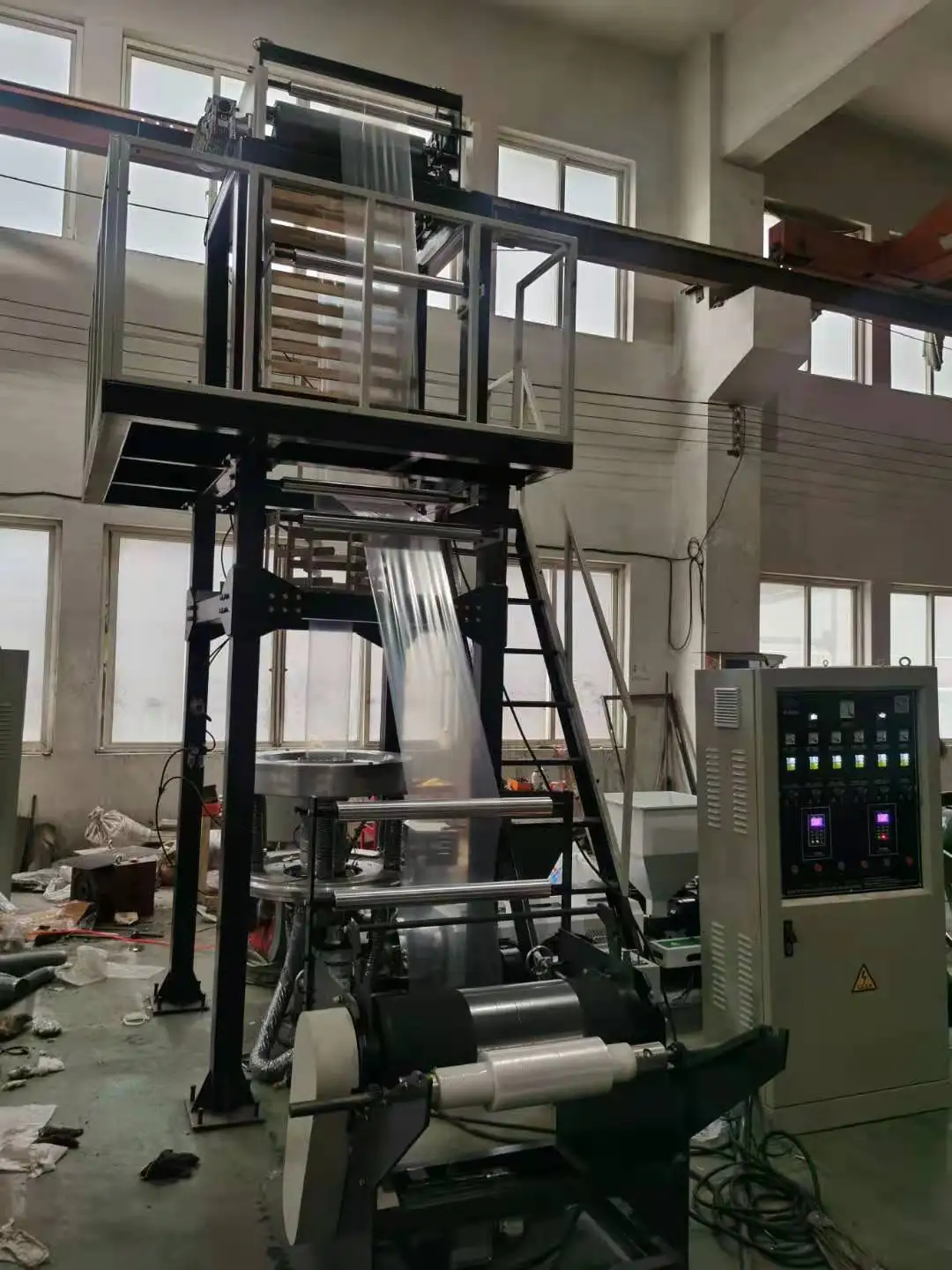

1200 мм высокоскоростной роторный штамповочный двойной станок PE/LDPE/LLDPE Экструзионная пленка HDPE выдувная
- Категории: Blown Film Production Line >>>
- Поставщик: Ruian,Ruipai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
Specification | ||
Model | RP-HL65 | |
Material | LDPE | |
Max. Film width(mm) | 1200 | |
Film thickness (mm) | 0.008-0.1mm | |
Pinch roller width(mm) | 1200mm | |
Max. extrusion output | 70-75kg/hr | |
Weight | 3500kgs | |
Outside dimension (L×W×H) | 5×3×5.5m | |
Extrusion unit | ||
Screw diameter(mm) | Φ65 | |
L/d ratio | 30:1 | |
Gearbox | 200 | |
Screw material | 38CRMOALA , Taiwan design | |
Barrel material | 38CRMOALA ,Taiwan design | |
Barrel’s cooling fan | 250w×2 | |
Barrel heater capacity(kw) | 13 | |
Driving motor | 30kw with inverter | |
Barrel thermo control(zone) | 3 | |
Filter changer thermo zone | 1 | |
Extrusion die | ||
Die size | LDPE:Φ250mm | |
Screen changer | Manual | |
Thermo control(zone) | 2 | |
Air ring | Φ800, double vent air ring | |
Cooling blower(kw) | 3 | |
Take-up unit | ||
Roller width of take up(mm) | Φ150×1300mm | |
Take-up motor | 1.5kw | |
Take-up speed(m/min) | 10-60 | |
Bubble basket | Bakelite type | |
Winding unit | ||
Winding type | Surface friction double winder | |
Winding motor((kg.m) | 0.3kg/m (+reducer) | |
Winding speed(m/min) | 10-60 | |
Voltage | 380v,50hz,3phase | |
Cover dimension(m) | 5×2.8×5.2 | |
Company Profile
Factory view
we are the manufacturer for the film machine, bag making machine, recycling machine, etc
Foreign sales department
We have profession oversea sale team, special for trading, after-sale service.
Film extruder workshop
Bag maker workshop
Printer workshop
pelletizer workshop
Exhibition
Why Choose Us
Our Service
