Горячая Распродажа полиэтиленовая воздушно-пузырьковая пленка 1600 мм пузырьковая PE 5

Описание и отзывы

Характеристики

 Hot sell Polyethylene air-bubble film 1600mm polyethylene bubble film PE 5layers



 Major technology parameter





Product wide:1600mm

Resin applied: LDPE/LLDPE

Capacity of extruding approx 110-120kg/hr

Thickness of sheet approx: 0.045-0.2mm

Speed of the manufacture line:600-1500m/h





Power supply: 3 phase/ 380V/ 50Hz

Total power: About 115kw

Running power:45-55KW

Main motor:22KW  11KW

Compressed air: 0.2~0.4 m³/min,0.6Mpa

Total weight (approx):7.4T

Mounting size: 7m×10m×2.5m



A.Steel Rack Structure



B.  Automatic feeding device(CE standard) 2 sets

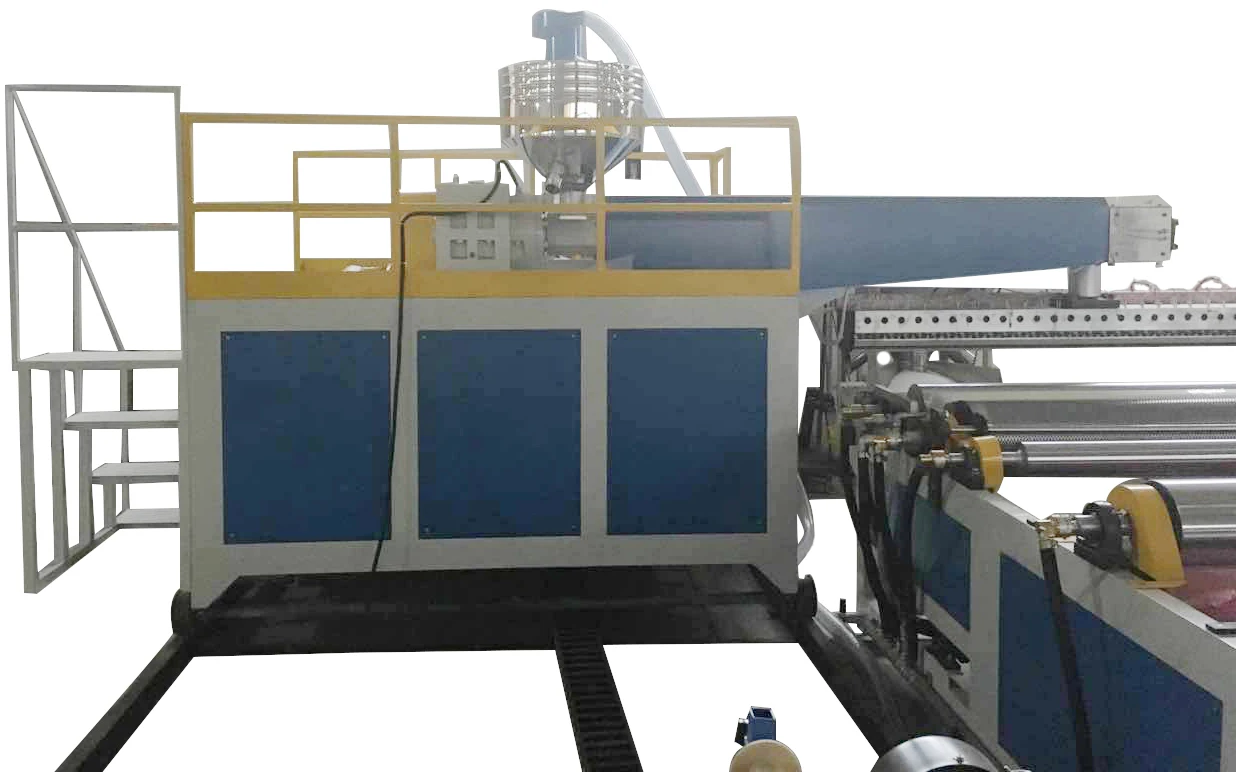

C. Extruding unit

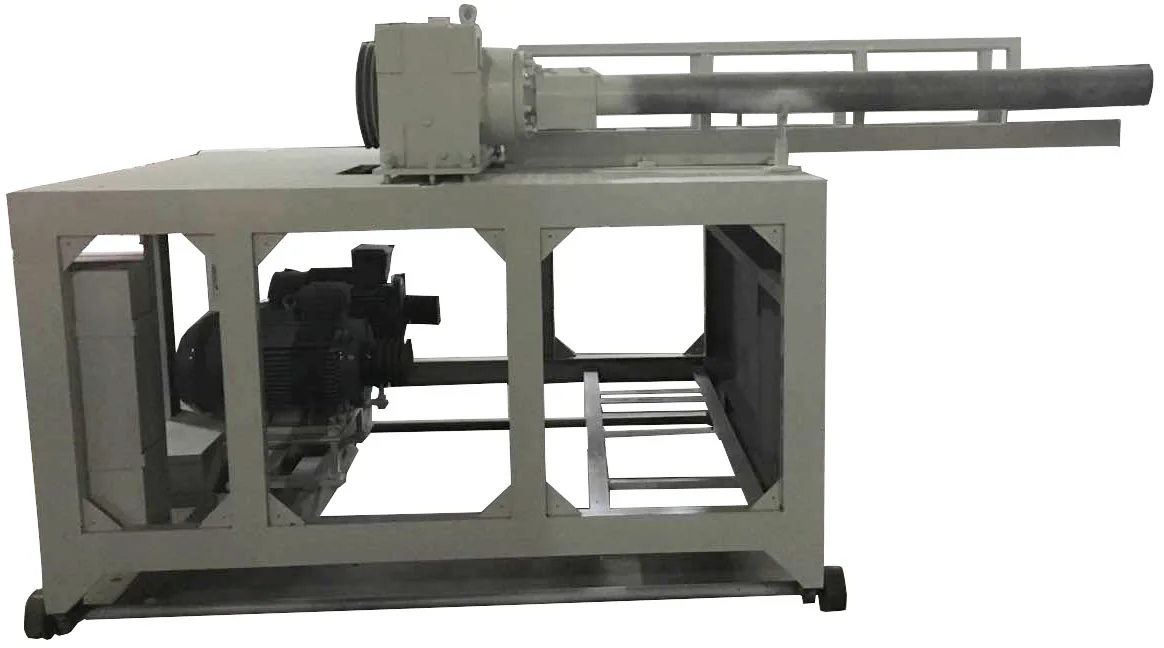

CMain Extruder   1 Set



C Assistant extruder   1 set

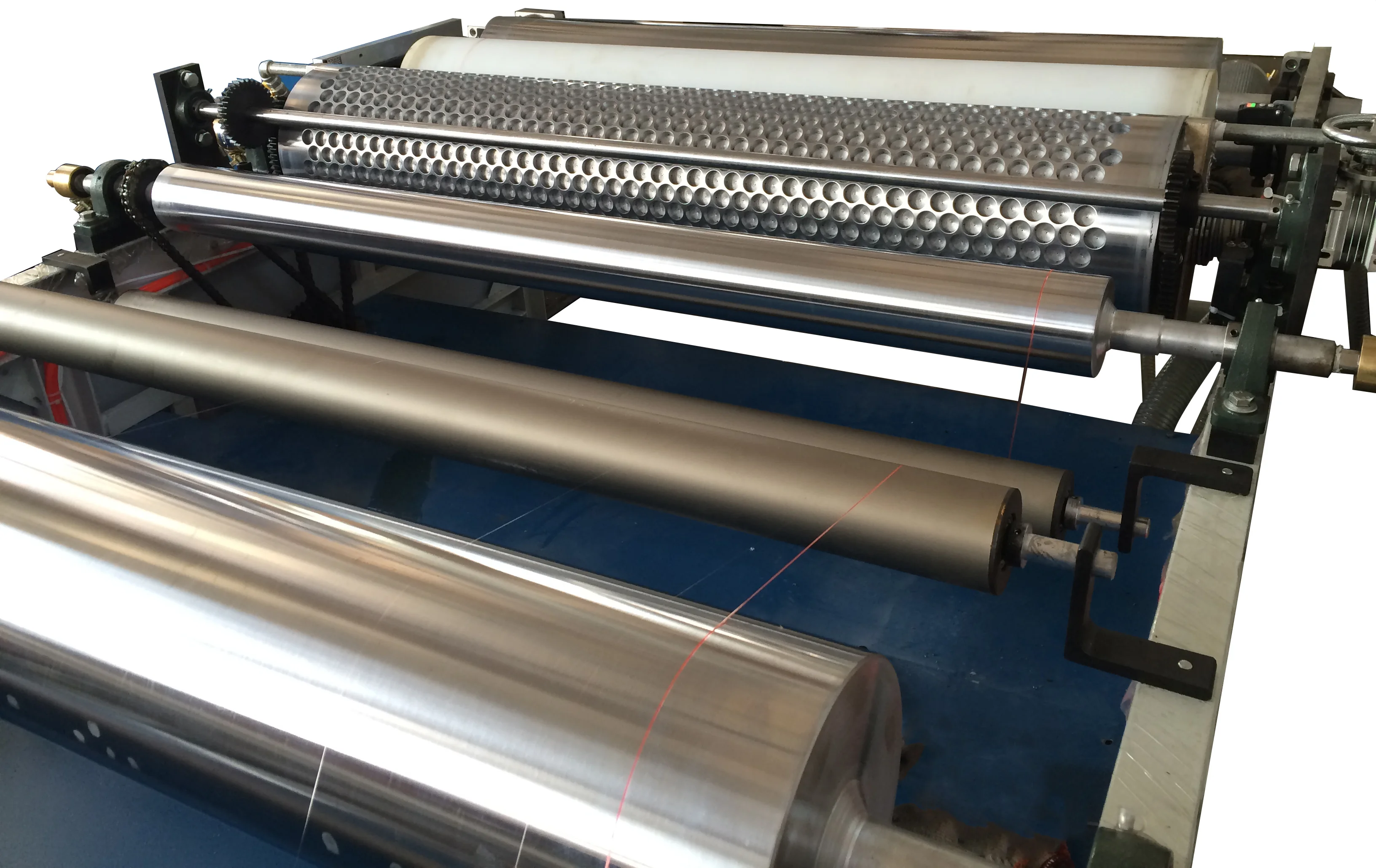

D.  Forming Machine  1 set





E. automatic winding machine (auto winding and cutting)

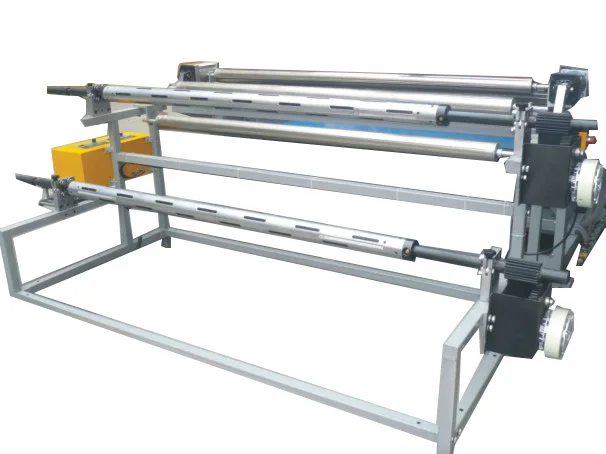

F.Unwinding unit (FOR LAMIANTION MATERIAL)
