Thailand Vertical Hydraulic Guillotine Rubber Bale Cutter With High Quality









Product Model & Specification:





Parameters / Model	XQL-8	XQL-16
Width Of the Cutter(mm)	660	1000
Work Stroke(mm)	800	800
Dia. of the Hydro-cylinder(mm)	140	200
Runtime for Cutting (s )	16-25	16-25
Power(kw)	5.5	5.5
Dimension(mm)	834×550×2310	1410×565×2393
Weight(t)	1	2



Summary:

Thailand Vertical Hydraulic Guillotine Rubber Bale Cutter is used in cutting natural rubber/synthetic rubber blocks into smaller pieces for secondary refining.According to the width of the cutters, there are 2 different sizes of guillotine hydraulic rubber cutting machines, which with the cutter of 660mm width and the other 1000mm. These 2 types of rubber cutting machines are in different sizes, but same construction.



Working principle:

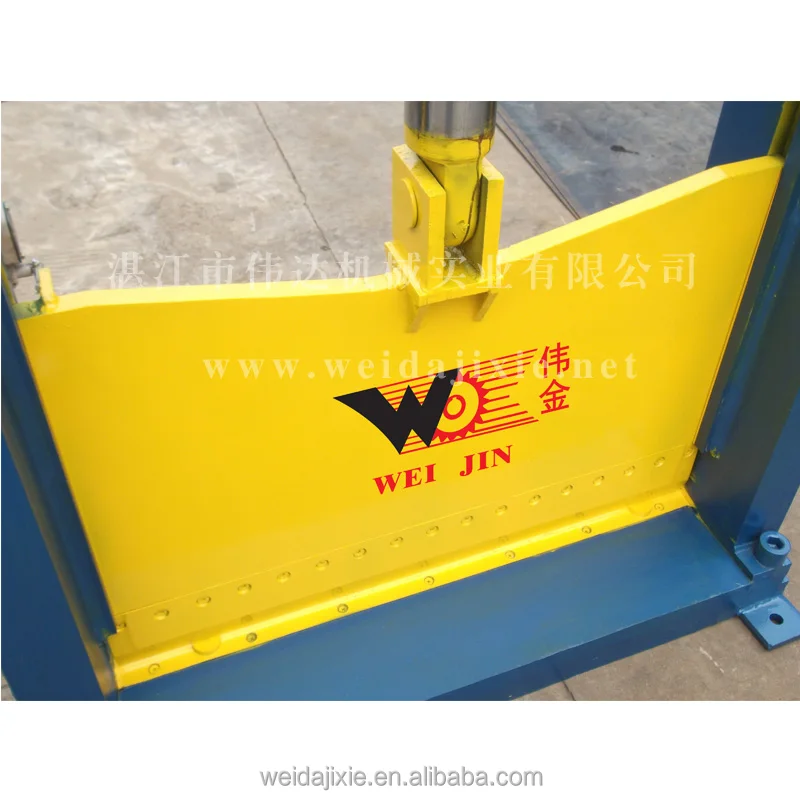

Thailand Vertical Hydraulic Guillotine Rubber Bale Cutter consists of a rack, a cutter, a hydro-cylinder, and the hydraulic system. During operation, the rubber block is put under the cutter, then it will be cut into 2 pieces by the cutter which is moving down by the pressure from the hydraulic cylinder.




Package:



 Outsiade package: Nude packing/standard export wooden cases or as your request.

 Inner packaape:  Nude packing/stretch film or as your request.





Payment Terms:



L/C ,D/A,D/P, T/T, Western Union, MoneyGram and paypal.





  About us:



We are a professional machinery manufacturer, which mainly produces whole rubber ( TSR, SMR, RSS, Compound Rubber) processing production line equipment , such as creper, rubber shedder machine, hammer mill machine packing machine, filling station, drying line, dry prebreaker machine, cooling machine, rubber sheeting machine etc.



We have invented and specially designed patent products, such as TWIN HELIXES BREAKING & CRUSHING AND CLEANING MACHINE, latex coagulation slicer, single cabinet rubber packing machine, to name a few.



What's more ,and according to customers' request, we did design some new rubber machine and improve the rubber machine feature what the other factories' machine do not have and hard compare with ours.



Please tell us ur requirement of the line if you need, so that we could design a suitable rubber production line to you.



 I look forward to your reply and the potential for future business.Thanks.

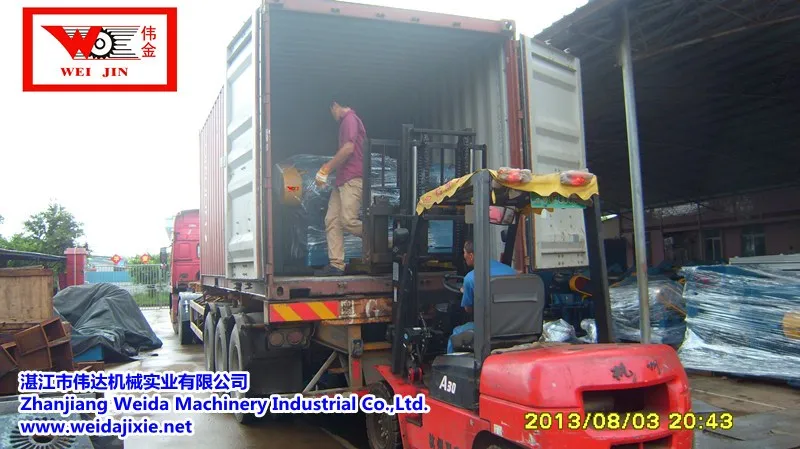

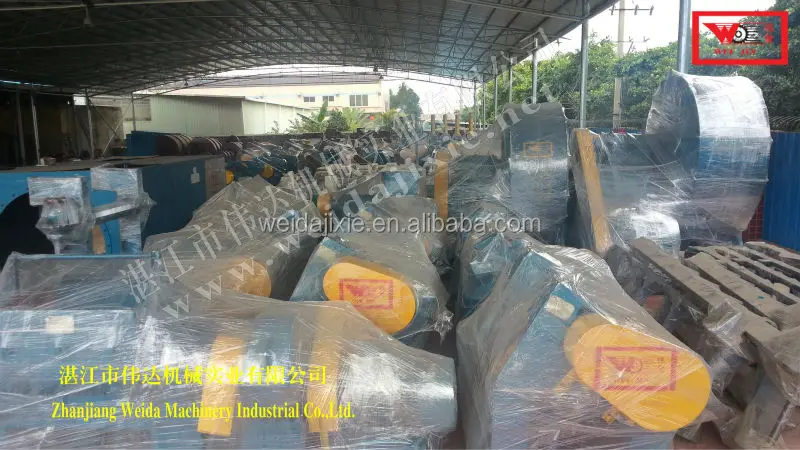

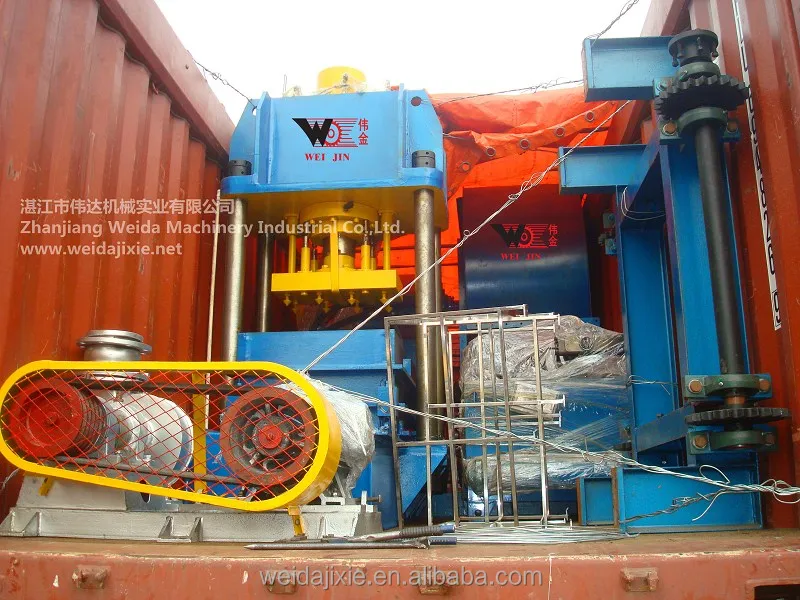

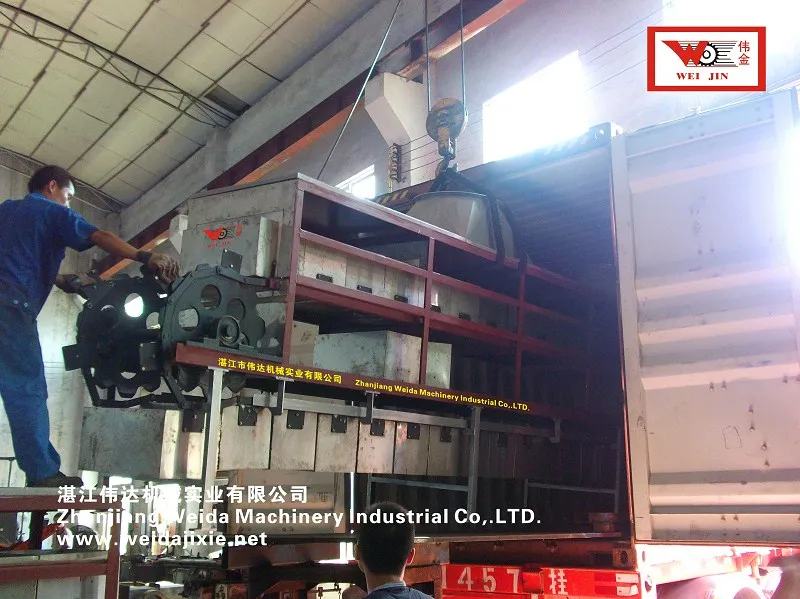

Packaging:

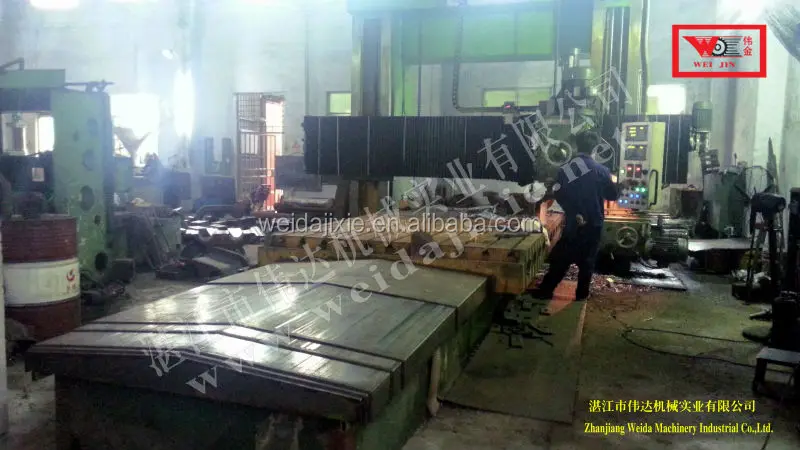

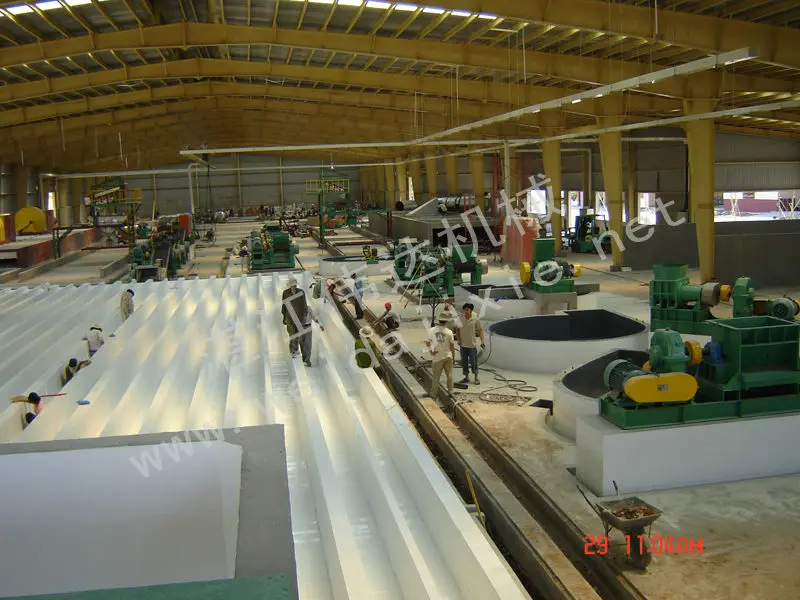

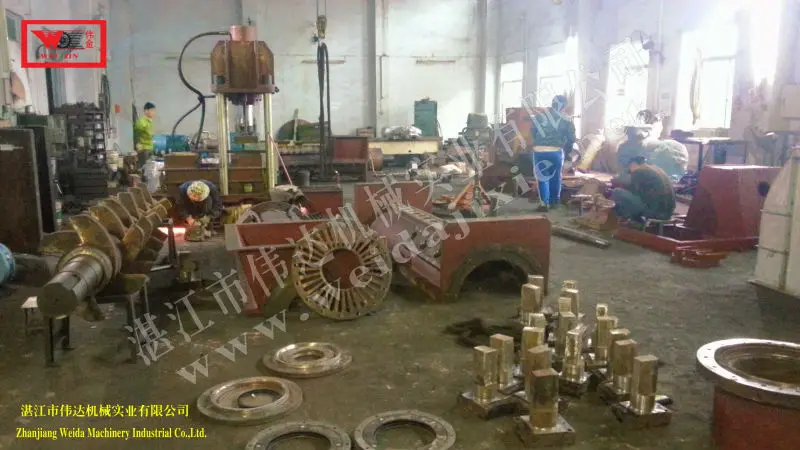

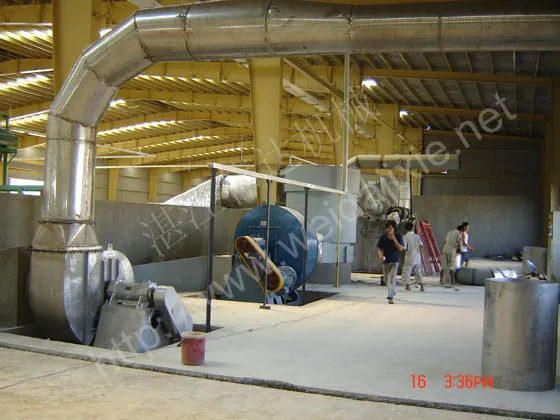

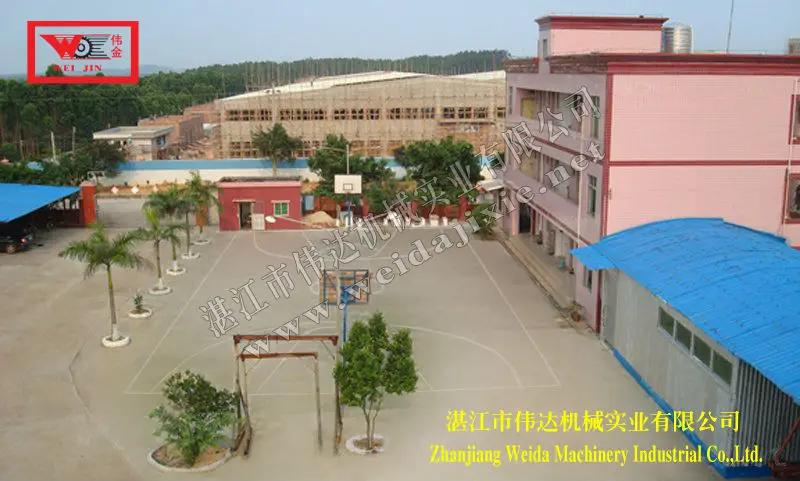

THE PHOTOS OF OUR FACTORY:















Guarantee And after-sale serice

1.one year guarantee for whole machine.

2.24 hours technical support by e-mail.

3.calling or door-to-door service.

4.ues-friendly English software ,user manual and detailed videos/CD.

\\
