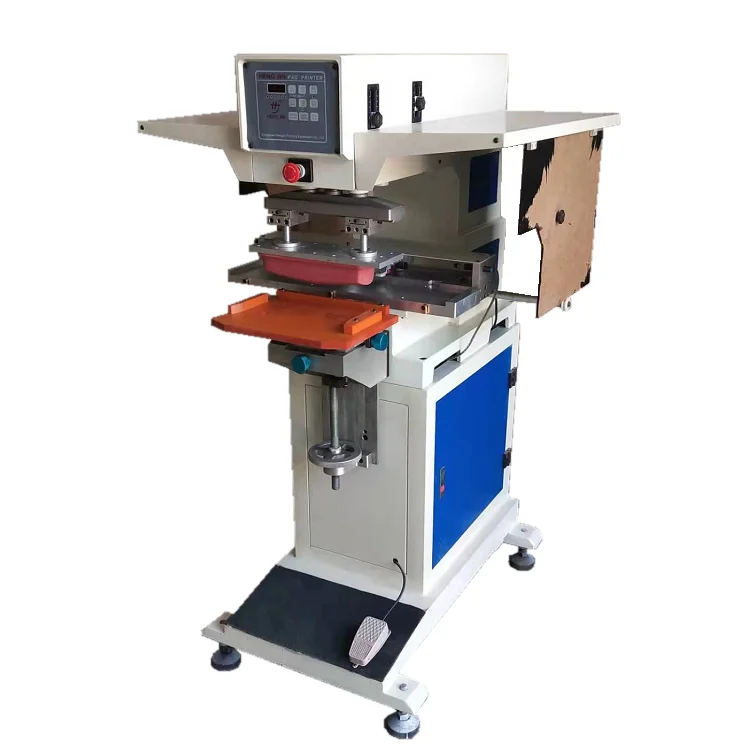

HP-160YX Ink cup sidewards single color pad printer
Pad printing machine Usage:
Necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages logo printing.
Key Features:
- Seal ink cup can save inks, Then have a good work environment and reduce the smell of Thinner.
- Seal ink cup can pausing on two sides, and enhance the printing speed to 1/5.
- This is machine is Semi-automatic, having automatic counter for 4 digits;
- The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;
- The cylinder of Machine is Imported Germany FESTO. The thickness of the screw we used 8.75 Degree. Which have more usage about 20 years;
- The body is Cast Aluminum, then it is light, hardy and fine structure.
- The machine is running agile, steady and low voice.
2. Parameter
Item Number: | HP-160YX | Printing colors: | ONE |
Printing Speed | 1600pcs/ hour | Max height of products | 200mm |
Max metal plate: | 100x500mm(4”x20 ”) | Max printing Size: | 70x 300mm (3”x 12”) |
Stroke of ink cup is adjustable | 400mm | Ink Cup Dia. | 90mm |
Adjustable pads size on target products | 10-60 mm | Adjustable pads size on the metallic plate | 10-60 mm |
Voltage of source | 220 VAC/ 1 Phase 20W or 110 VAC/ 1 Phase | Air consumption | 2.1L/ Cycle |
The stroke of pad | 160mm | Air supply | 6 bar |
Dimension: | 900mm X 775mm X 1420mm | Net Weight | 170 KGS |

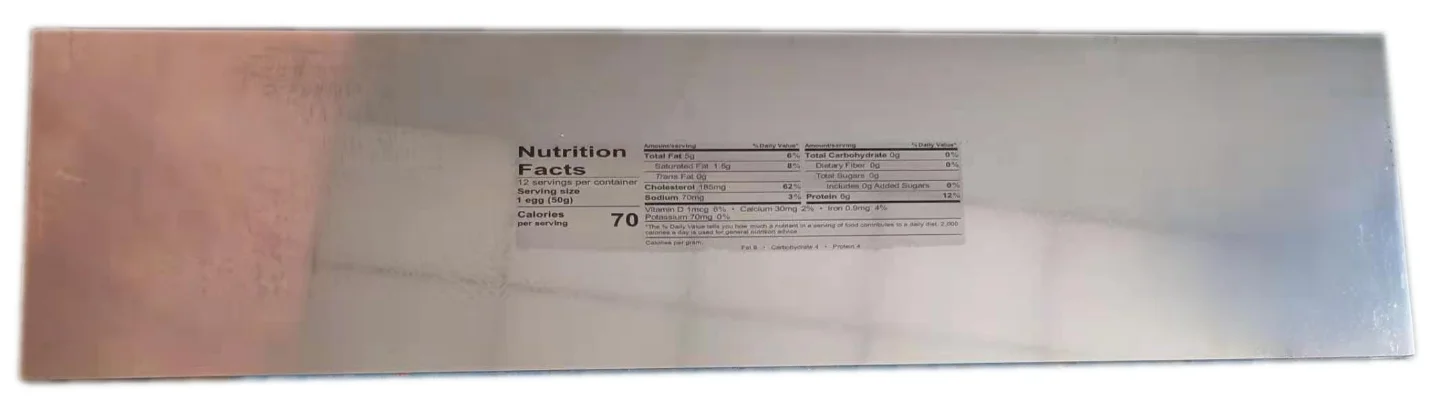

Cliche / pad printing plate size: 100*500mm

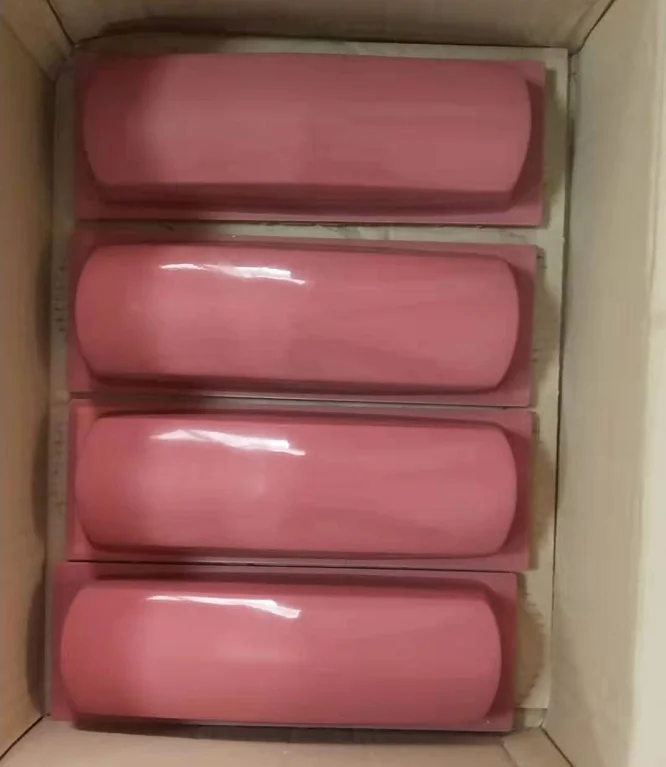

Silicone Pads:

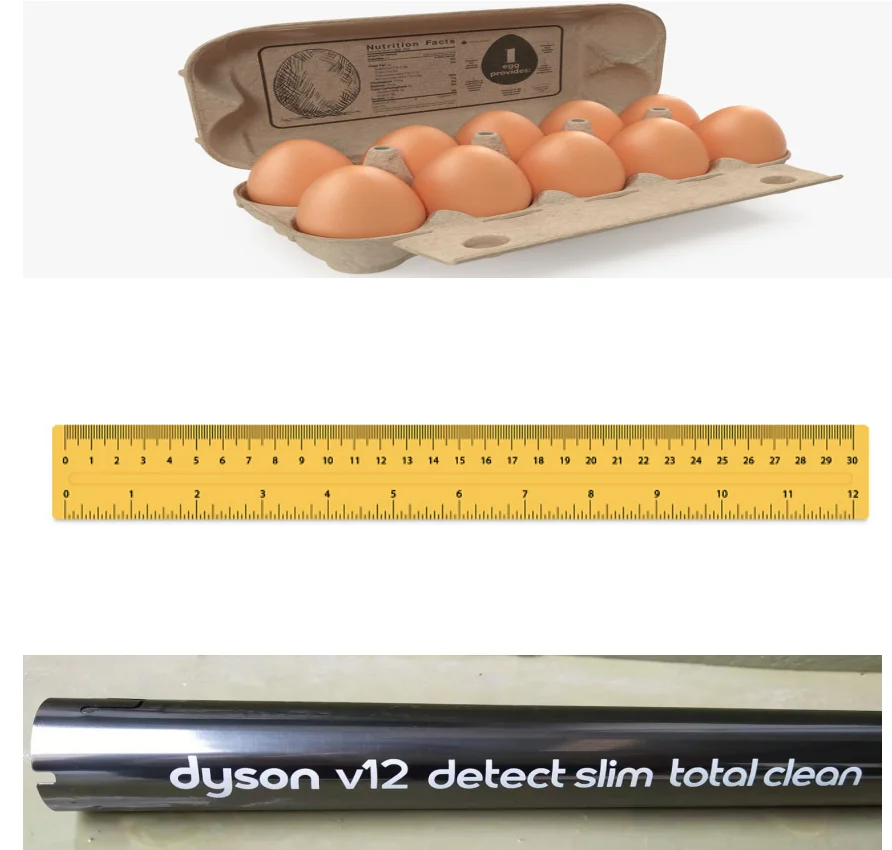

Sample Picture as reference:
Our Services

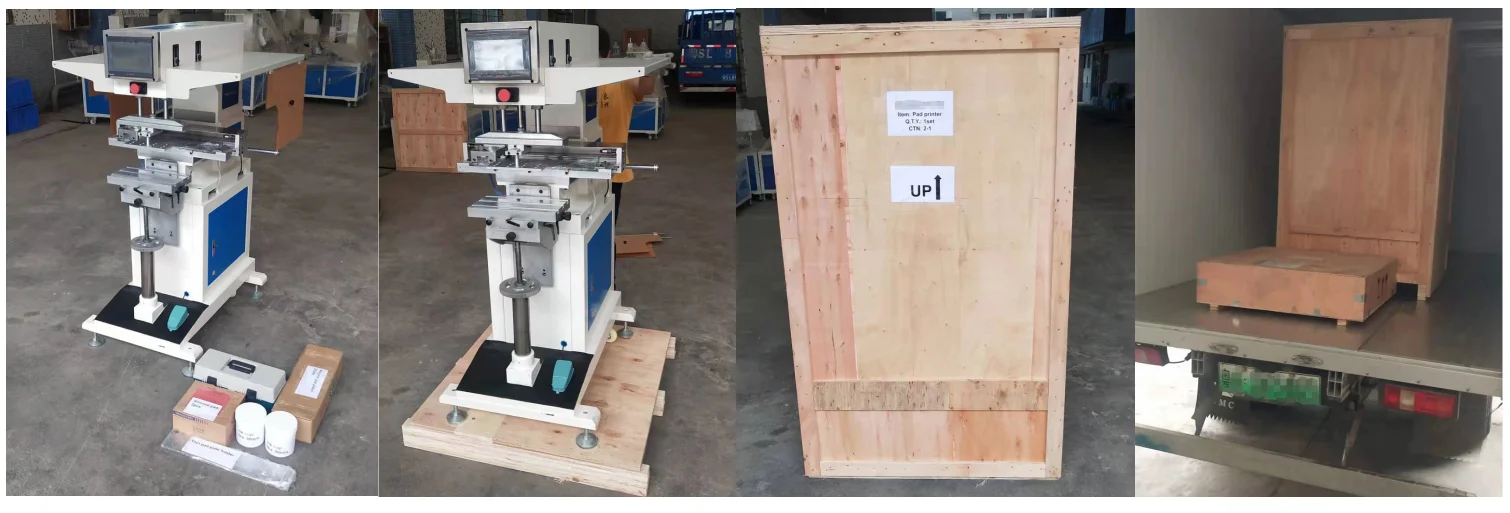

1.package
2.CE certification
Company Information
Name:
Dongguan Hengjin Printing Equipment Co.,Ltd
Address:
6th industrial area,Nance,Humen Town ,Dongguan City,Guangdong Province of China
Main products:
Pad printer,Screen printer,Hot stamping machine,Exposure machine,Printing perpheral equipment
Year Established:
2007
Main Market:
South Asia,Mid East,Oceania,Africa,Sounthest Asia
Profile:
Dongguan Hengjin Printing Machinery Co. Ltd ( HENGJIN) is located in Guangdong Province,Dongguan City. From Guangzhou or Shenzhen about 1.5 hours. Hengjin has been a industry leading supplier of Pad printing machine, Screen printing machine, Hot Stamping Machine and the relative Accessaries supplies for 12 years under the same ownership. We have become well respected by our customers and others in the industry due to our knowlege of the pad print process and the personal attention we give to each and every customer. We offer a complete line of machinery and supplies of top quality and performance.
Hengjin as main an exporting Supplier in China. In order to give our customer more guarantee, avoiding more after-servucecaused. Only we using the spare parts to our machine good quality. The material of our machine is alloy cast aluminium and the surface is Powder spraying. The main parts which cylinder is from Original Germany FESTO.
Hengjin Printing machines which aboved mention have CE approval. And our customer from American, United Kindom, Germany, South American Etc. Sure Hengjin is a satisfying suppiler to you.
Picture :
[1]our factory and customers
