High Speed Film Blowing Machine Unit (Model B)

SJ-50/FM600 SJ-55/FM800 SJ-60/FM1000



1. AUTO LOADER

2. CORONA

3. DIE ROTARY DEVICE

4. HIGH SPEED NET CHANGER





  1.Use:

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which  helps  in crease  the production capacity. It is applied  to blowing  the plastic films like low density polytene  (LDPE),  high density  polytene  (HDPE) and linear low density polytene (LLDPE), It is widely applied  to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.



2.Characteristics:

The cylinders and the screw stems of the above extruders are made of high-quality  alloy steel with  optimum hardness  and strong  corrosion resistance after precision finishing and nitrogen treatment.The auxiliary machine has a platform working  table for making opera-tion easy.

 The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.



3.Main Technical Variables:



Model	SJ-45/FM600	SJ-55/FM800	SJ-60/FM1000	SJ-65/FM1200	SJ-80/FM1500	SJ100/FM2000
Screw Diameter	45mm	55mm	60mm	65mm	80mm	100mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	7.5-11kw	11-15kw	18.5kw	22kw	30kw	55kw
Max. Extrusion output	35kg/h	50kg/h	65kg/h	76kg/h	86kg/h	160kg/h
Max. Folding Width of Film	600mm	800mm	1000mm	1200mm	1500mm	2000mm
Single-sided Thickness of Film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm	0.01*0.10mm
Total Power	18kw	22kw	28kw	32kw	52kw	80kw
Weight of machine	2000kg	2200kg	2800kg	3300kg	4300kg	5800kg
Overall Dimensions(L*W*H)	4200X1800X3600mm	4400X2000 X4000mm	4600X2300 X4200mm	4800X2500 X4500mm	5200X2800X5000mm	5800X3300 X6000mm





The main machine specification  for SJ-60/FM1000





1.Extrusion

1.1 Screw:Diameter Φ60 Made in Zhoushan

Screw Ratio:L/D28:1   Material:38CrMoALA

1.2 Screw Speed:10-100r/min

1.3 Cylinder:Barrel heating :Stainless steel heating ring

    Barrel cooling:The Second zone by wind cooling

    Cooling fan:350W Three pcs

1.4 Speed reducer:180 Gearbox Weili  Made in Hangzhou

1.5 Main Motor of Extrusion: Kwong Inverter

1.6Temperature Sensor: 6 pcs

2.Net Changer

2.1Manual Net Changer

2.2 Net Changer Heating:Stainless Steel Heating ring

2.3 Net Changer Heating:Stainless Heating Ring

3.Die Head

3.1 Structure: Mono-spiral

3.2 Die Head Material:40Cr Die Steel

3.3 Die head :2 pcs  Φ100mm Φ180mmm

3.4 Die Head Heating:Stainless Heating Ring

3.5Temperature sensor:1pcs

4.Air Ring

4.1 Structure Style:Single Tune Air Ring

4.2 Material:Cast Aluminium

4.3 Fan Power:2.2 KW

5. Foam Stabilizer

5.1 Structure:Dancer Arm

6.Haul-off Units

6.1 Structure:Batten Type

6.2 Ajustment Type:Manual

7. Side Gusset device

7.1Structure:Flannelette Type

7.2justment Type:Manually

8.Traction

8.1 Structure: Fixed Mount

8.2 Traction Motor: Kwong Inverter 1.5Kw

8.3 Traction roller clamping :Manually

8.4 Max.Folding Width of Film:1000mm

8.5 Roller Length:1100mm

9.Rewinding Machine

9.1 Rewinder:Single station friction(3 pcs Torque Motor)

9.2 Torque Speed Controller 1 pcs

10. Traction shelf

10.1 Square type with ladder frame

10.2 Output  65kg/h

11.Embossing Roller: Adjust by the Cylinder

12.Digital Corona Treater(3 KW Double -Sided)

13. Meter Counter and 3 Alarms

14.Electric Parts: Schneider

15.Main Motor:22 KW

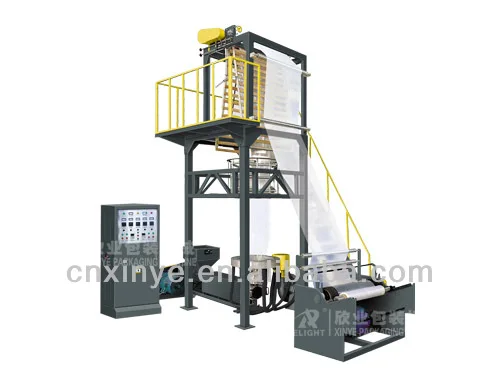

 4.Picture:
