Настольная мини-Графическая панель tampo печатная машина из Китая

Настольная мини-Графическая панель tampo печатная машина из Китая

Категории: Pad Printers >>>
Поставщик: Dongguan,Hoystar,Machinery,Co.,Ltd.

Цена:1 700,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

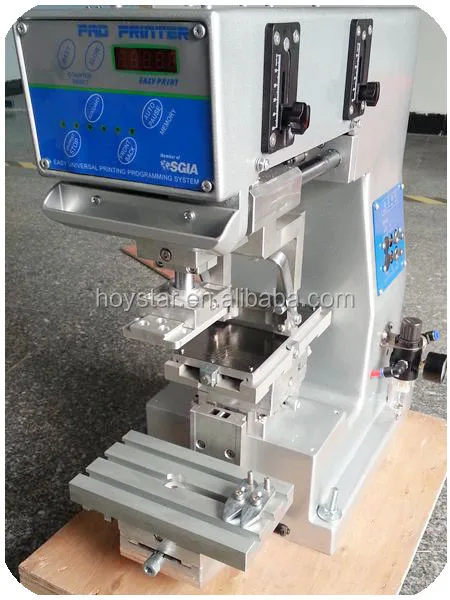

Desktop mini tampo graphic pad printing machinery from China(GW-MINI)

Application

It is suitable for printing kinds of materials irregular surface items:
Metal---trophy,toy,hareware accessories,knife...etc
Plastic--mouse,usb,memory card,key chains,pen,cup,golf ball,lighter,headphone....etc
electronic component,relay,tape,disc and switch,button......etc

Technical Parameter

Steel plate size	100*215mm
Closed ink cup	diameter 90mm
max.printing area	fai 90mm
Air pressure	5-7 Bar
Voltage	220V or 110V
Dimension	560400600mm
Weight	55KG

Details Images

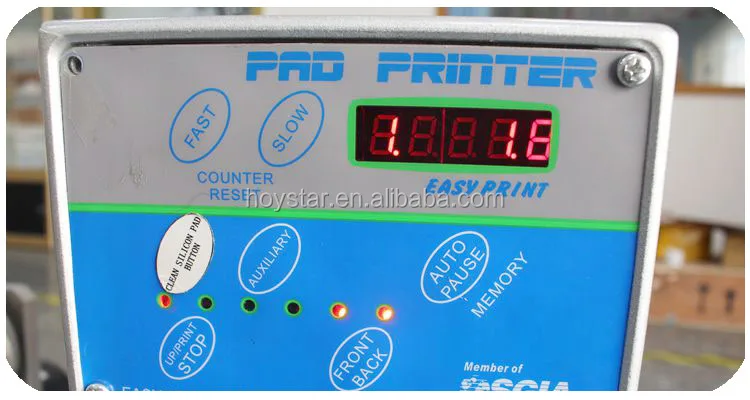

Digital control panel, easy operate

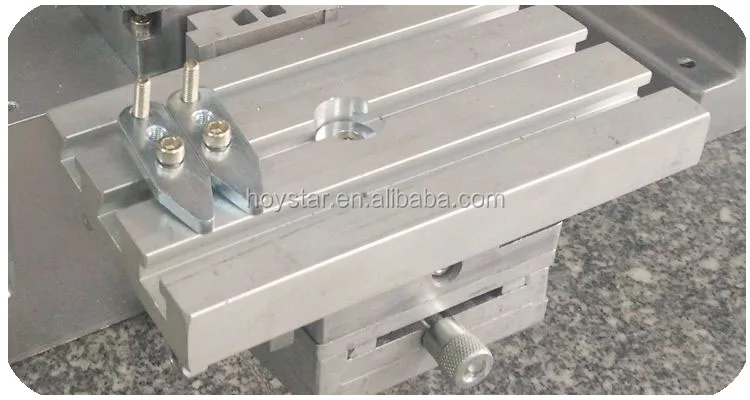

Worktable can be micro adjusted

Closed ink Cup system, save ink cost and environmental

Features

1. Micro soft program controller + Digital control panel
2. Auto 4-digit counter built-in
3. Airframe adopts coin alloy,and metal coating surface
4. Independently adjust below accessories:
    Worktable up/down adjust scope: 100mm
    Printing head with silicon pads moving left/right,front/back
    Silicon pad sucking ink pressure
    Ink-reclaming blade stroke

5.Sucking ink and printing pad's air pressure can be adjusted independently
6. Leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
7. All cylinders speed have an independent regulator intortum
8. It adopts fully Taiwan pneumatic component
9.All electric component of the machine are installed by open,it is convenient to maintain it.
10.installed with emergency stop button,it meets safety standard requirement
