SJ50-400 один слой мини Тип Тайвань Модель ПЭ пленки дуя машина
- Категории: Blown Film Production Line >>>
- Поставщик: Ruian,Hwasen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
SJ50-400 one layer Mini type taiwan model PE blown film extrusion machine
1.Feature:
1.1 The machine take the HDPE or LDPE as raw material, through heating, extrusion, blowing, stretch, winder and final be roll thin film.
1.2 The finished plastic thin film is widely used for supermarket bag, garbage bag, various plastic package bag, farmland film.cote film and compound thin film.
2.Main Technical Specification
MODEL | SJ-50-400 |
Suitable raw material HDPE LDPE LLDPE | |
Width of single film | 400mm |
Film thickness | 0.025-0.1mm |
Max output | 25kg/hr |
power-consumer | 11kw |
Cover dimension | 2.4×2.1×2.8m |
EXTRUDER | |
Screw diameter | Φ50mm |
Screw L/D | 28:1 |
Screw material | SACM-645/38CRMOLA |
Cylinder material | SACM-645/38CRMOLA |
Cylinder cooling | 370w×3 |
Driving motor | 7.5kw |
Temperature control | 3unit |
TYPE OF DIE | |
Die size | 60mm |
Temperature control | 3 unit |
Air ring | 1pcs |
Air blower | 0.75kw |
Center steady stick | 1pcs |

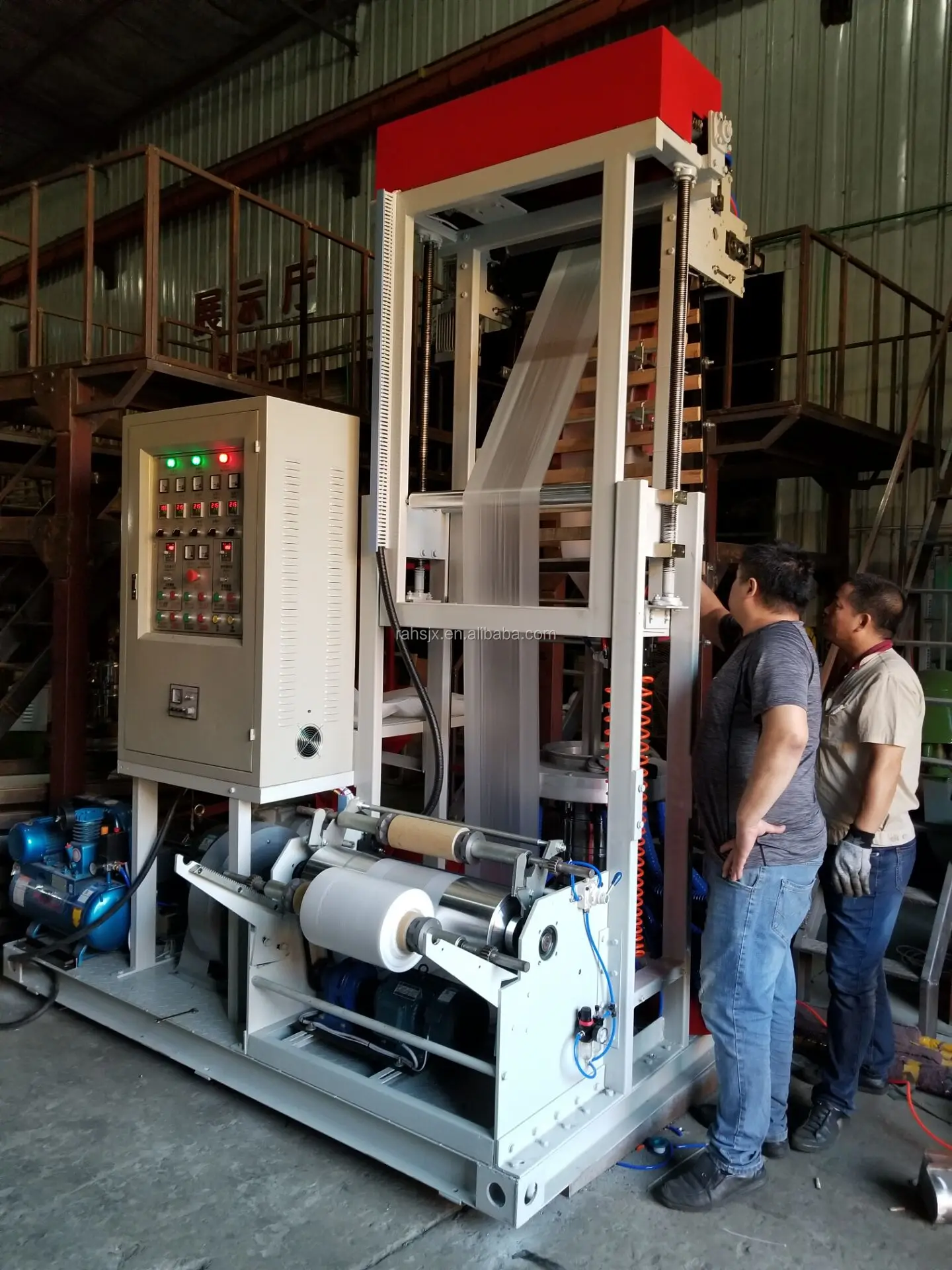

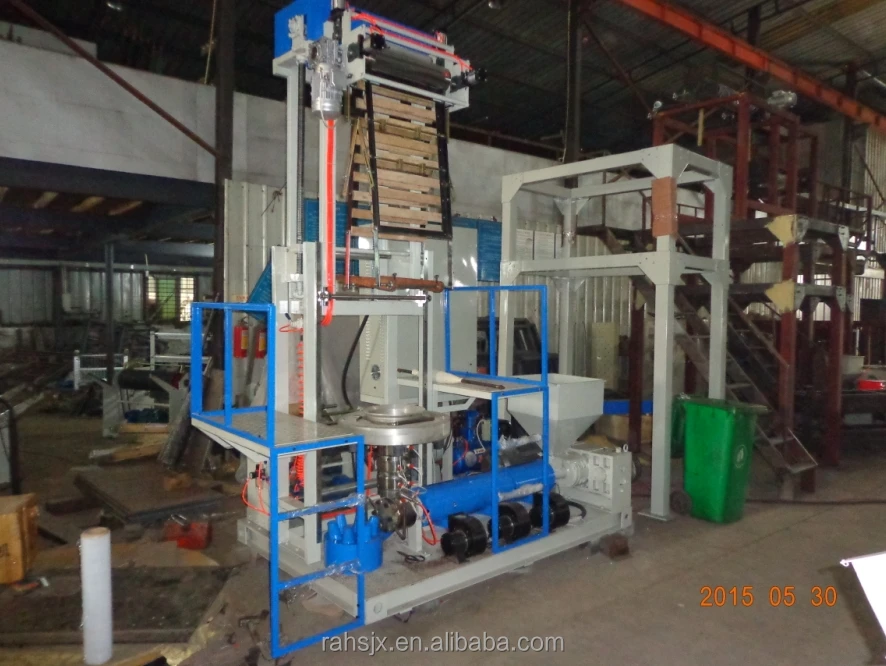

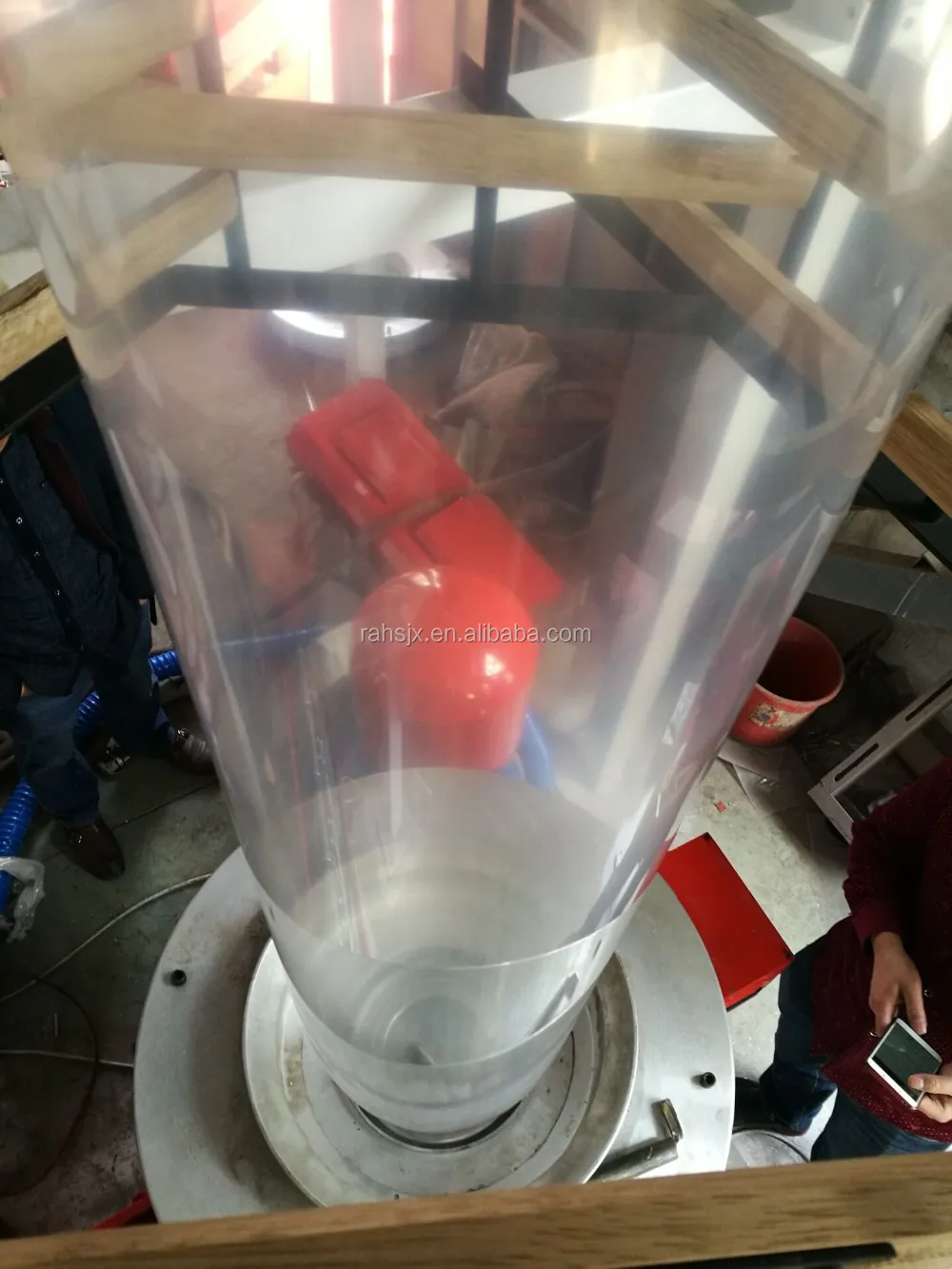

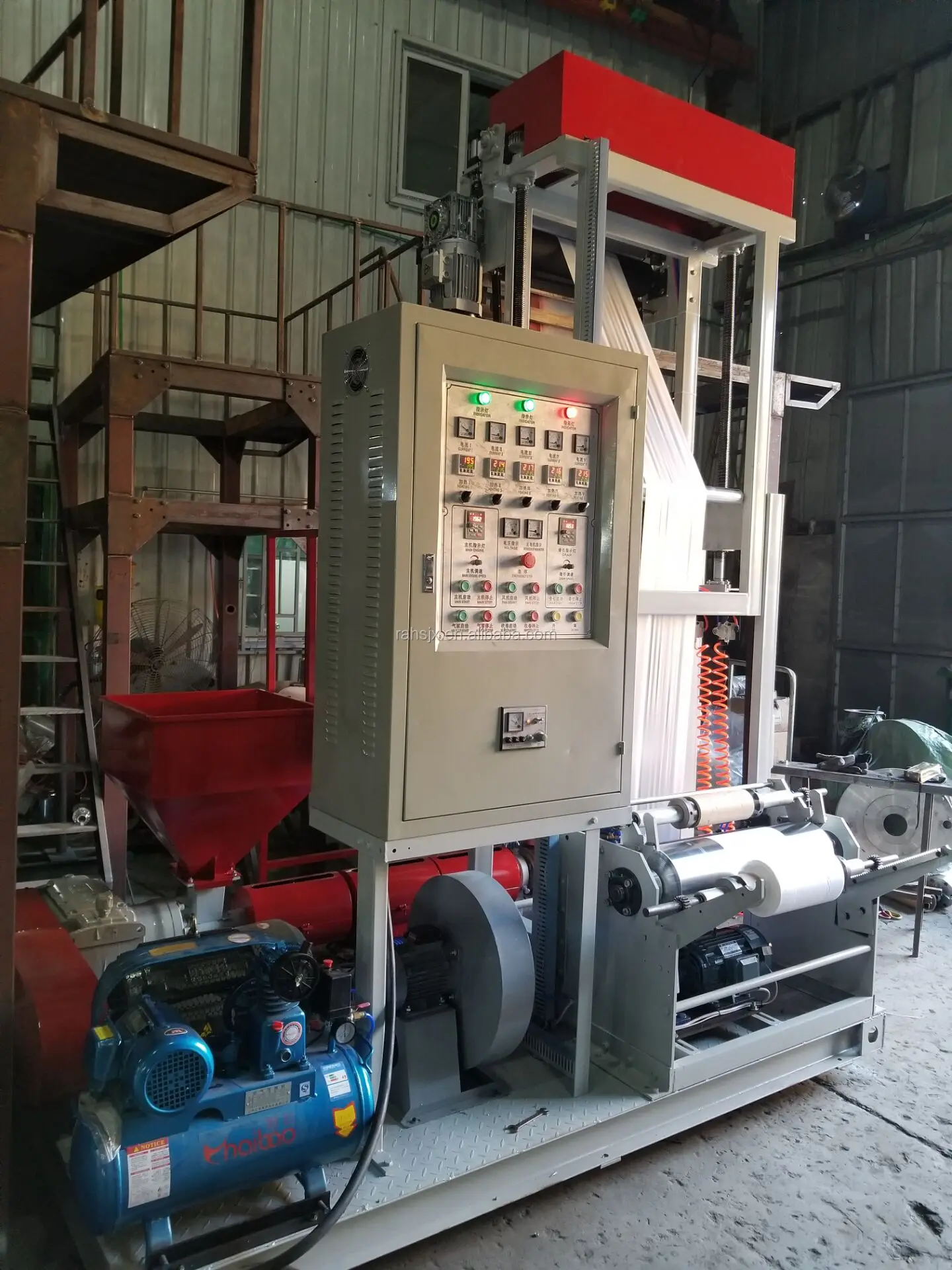

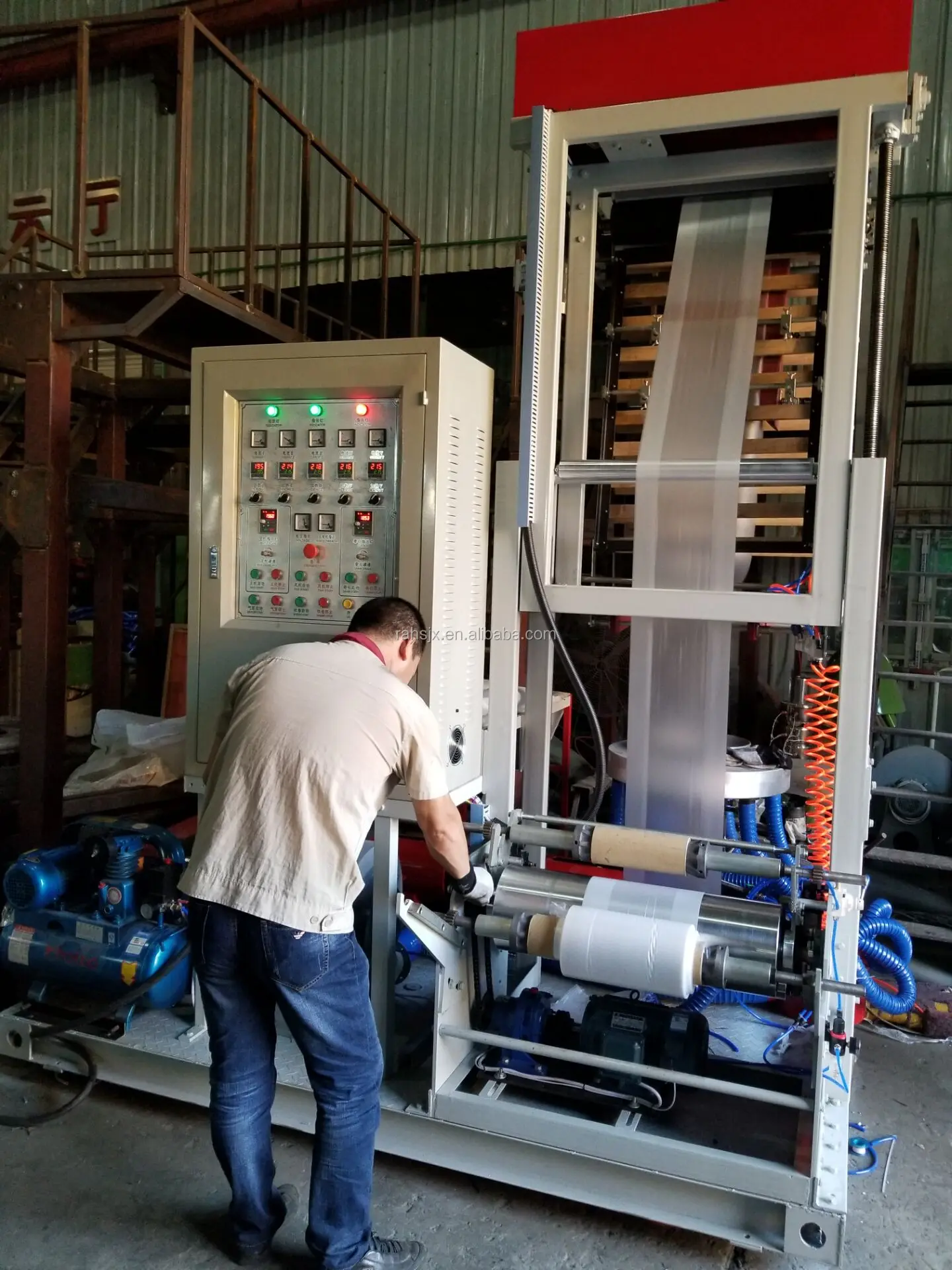

3. picture
