SJ-120 машина для переработки моделей/машина производства катышков из

Описание и отзывы

Характеристики

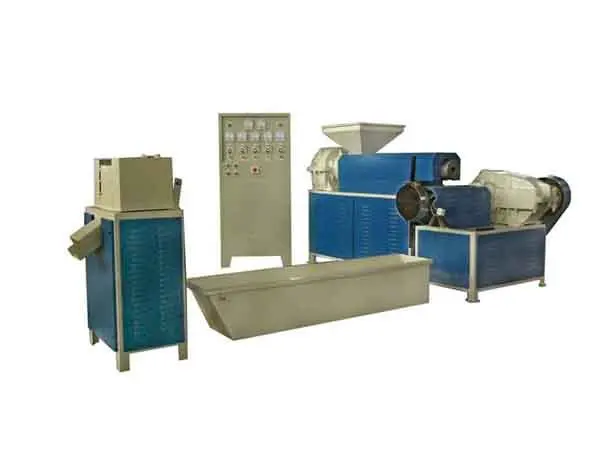

  SJ-120 model recycling machine /  nylon pellets machine

 film granulator

http://www.youtube.com/watch?v=GJ_lVwrQOYw&feature=youtu.be



Product Description

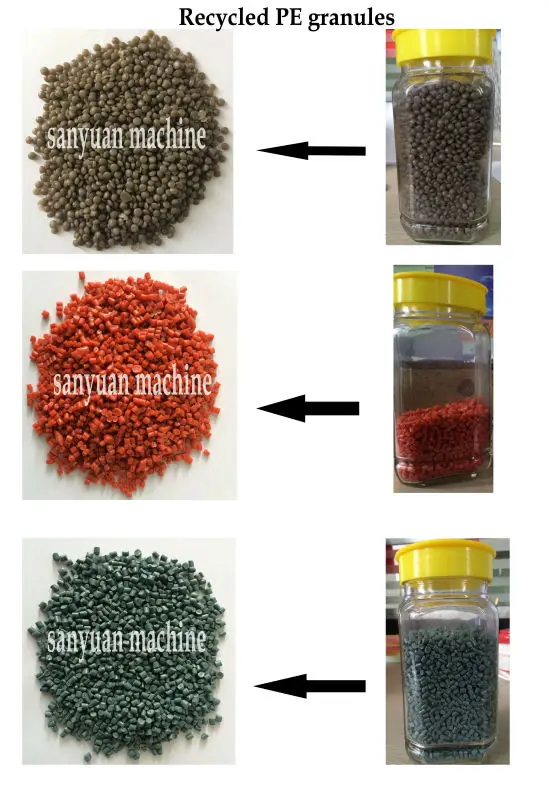

1.pp film granules is equipped with two units of extruders, which is advantaged to moisture evaporation, and with even and smooth regenerative plastic granules.



2.It is also equipped with automatic temperature control system, which is suitable for HDPE. LDPE waste plastic regenerative palletizing.



Main specification of the recycling machine

Output: 50-60 kg/h

 Applicable raw material: HDPE/LDPE, PP materials

  Power supply: 380v, 50Hz 3 Phase

 Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment

 Gear box: Hard Surface Gear

  Automatic temperature controlling system

  Including water-cooling device made of stainless steel

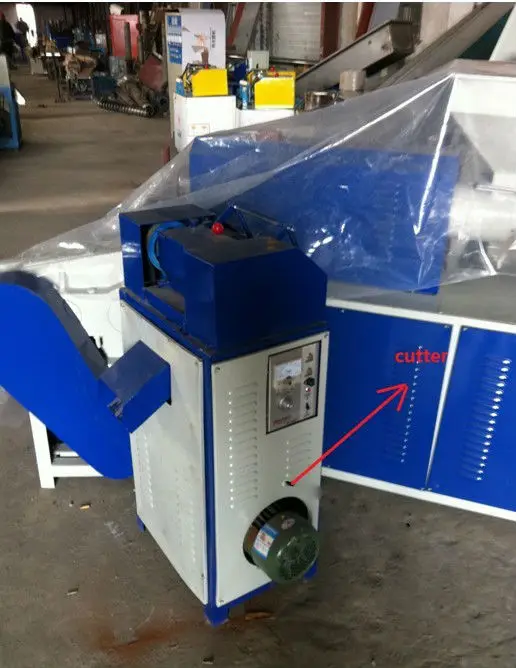

 Including granule cutter

Main Extrusion Unit

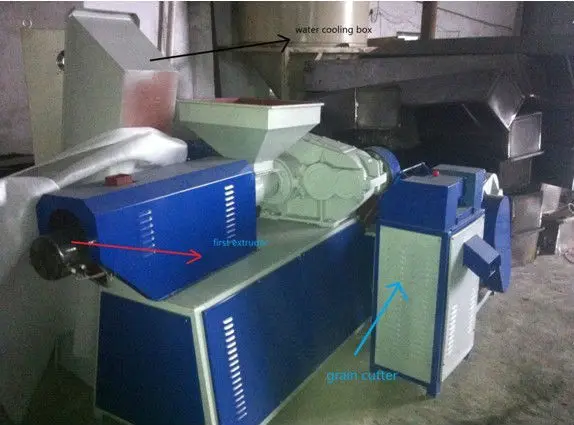

  Main extruder

 Main motor :18.5kw

 Screw Diameter: Φ 120mm

 Screw ratio: L/D 28: 1

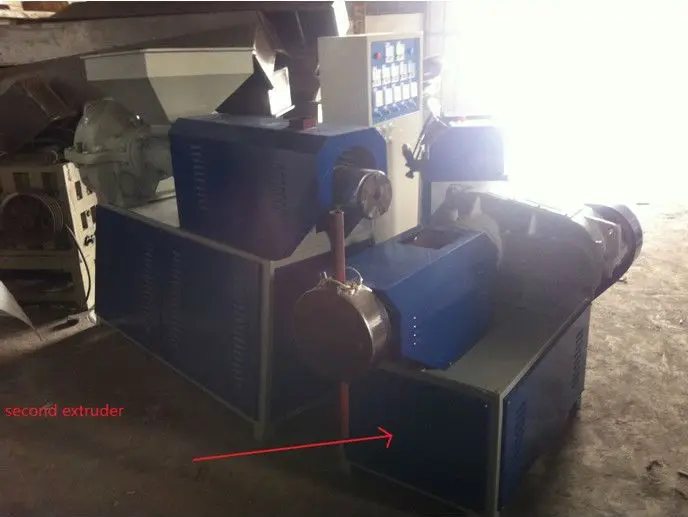

Auxiliary extruder

 Auxiliary motor: 11kw

 Screw Diameter: Φ 90mm

 Screw ratio: L/D 28: 1

 Heating



Main Technical Parameters:
Model type	SJ-100	SJ-110	SJ-120
Diameter of Screw Stem	Φ 95mm	Φ 105mm	Φ 115mm
Major Diameter Ratio of Screw Stem	18: 1-22: 1(L/D)	18: 1-22: 1(L/D)	18: 1-22: 1(L/D)
Rational Speed of Screw Stem	10-110rpm	10-110rpm	10-110rpm
Main Motor Power	11kw	15kw	18.5kw
Main Motor Power	7.5kw	7.5kw	7.5kw
Max: Output	50kg/h	60kg/h	80kg/h
Machine Weight	0.8t	1.2t	1.5t
(L*W*H) Overall Dimensions(L*W*H)	6000*2250*1500	6600*2350*1500	6800*2550*1550



Free Spare Part

No.	Spare parts name	Quantity	Notes
1	Temperature meter	1set
2	Electric Sensor	2 pcs
3	Heating ring	3 pcs
4	Tool box	1set
5	English manual	1pc
