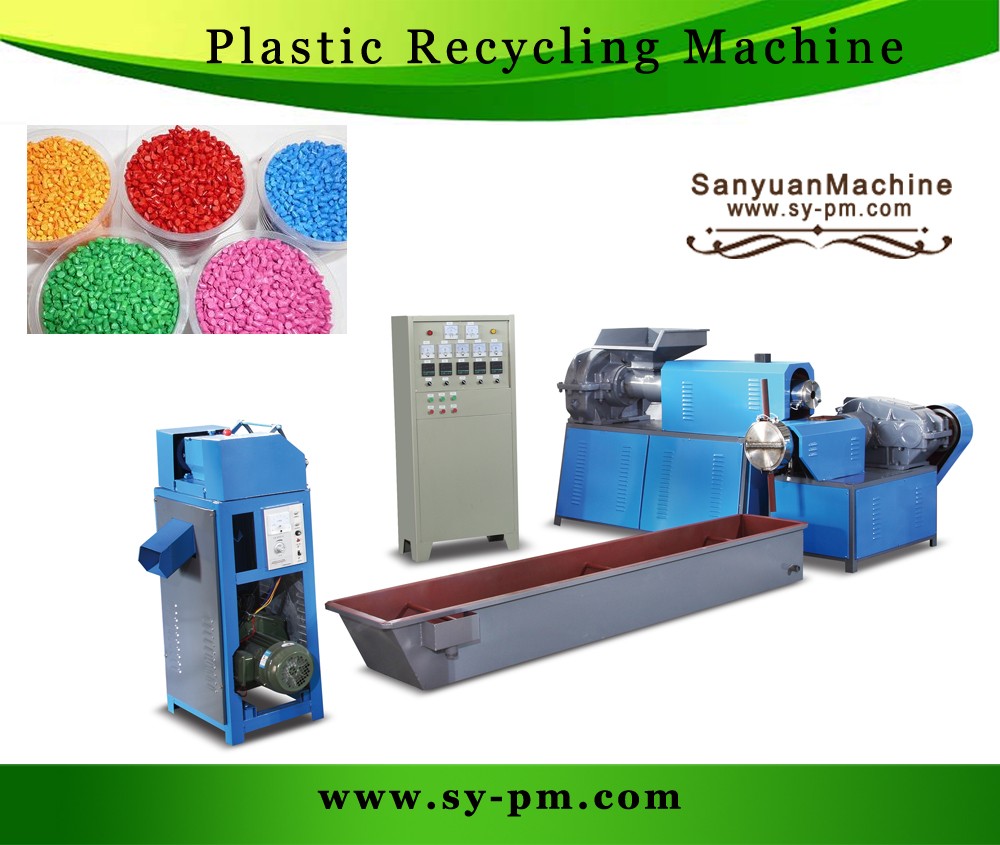

ld plastic recycling machine /SJ-120 model recycling machine
Banner
Main specification
http://www.youtube.com/watch?v=GJ_lVwrQOYw&feature=youtu.be
Application:

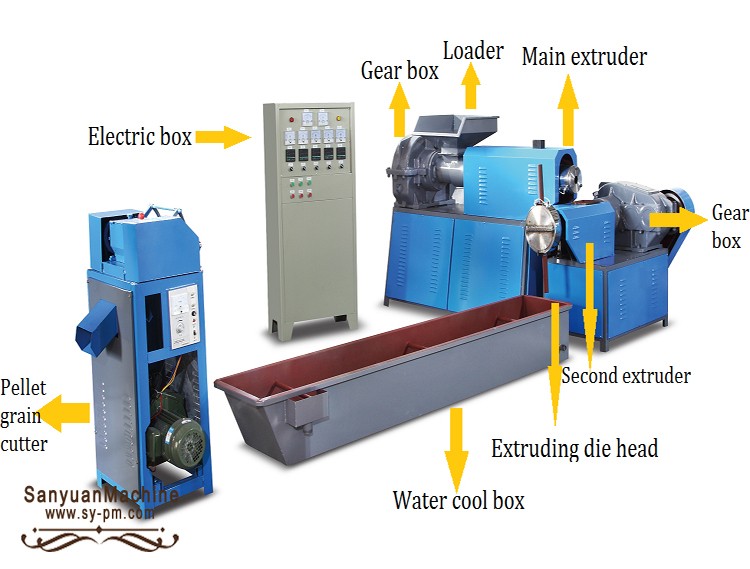

SJ-120 Double-stage Waste Plastic Regenerative Pelletizer is equipped with two units of extruders, which is advantaged to moisture evaporation, and with even and smooth regenerative plastic granules. It is also equipped with automatic temperature control system, which is suitable for HDPE. LDPE waste plastic regenerative palletizing.
Main specification:
Output: 70-100kg/h
- Applicable raw material: HDPE/LDPE, PP materials
- Power supply: 380v, 50Hz 3 Phase
- Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
- Gear box: Hard Surface Gear
- Automatic temperature controlling system
- Including water-cooling device made of stainless steel

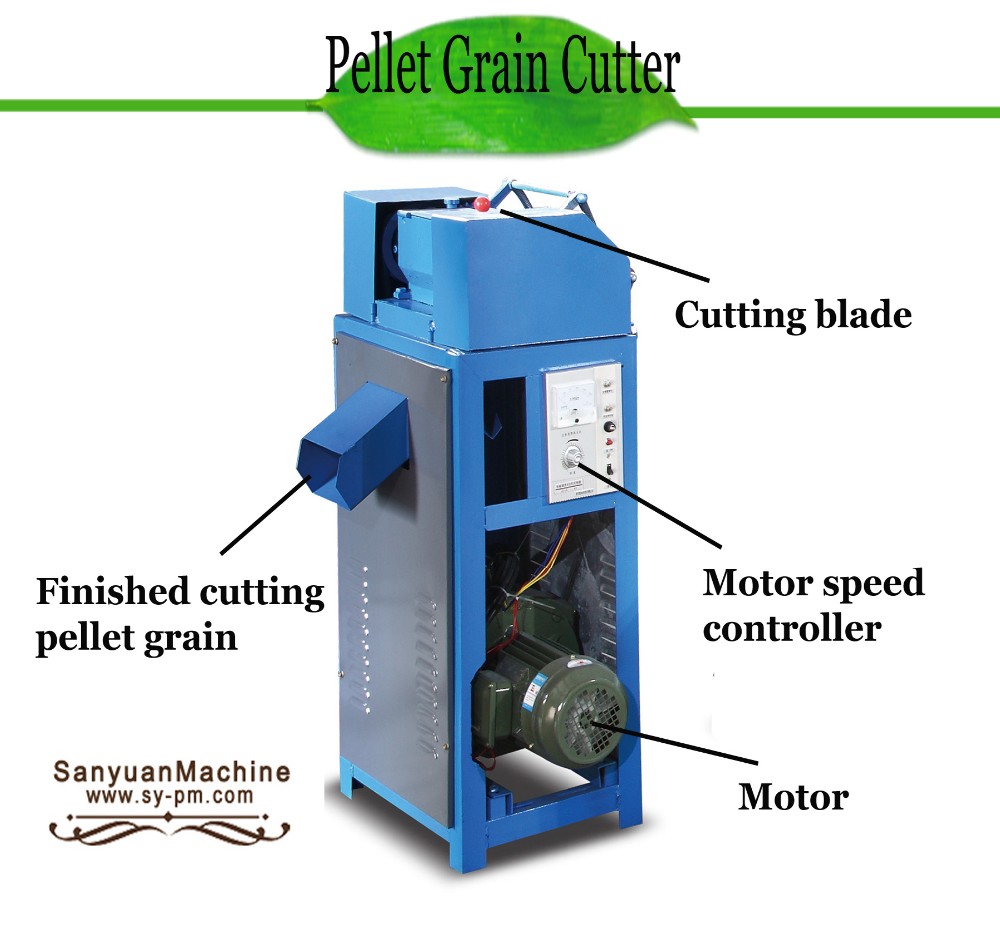

- Including granule cutter

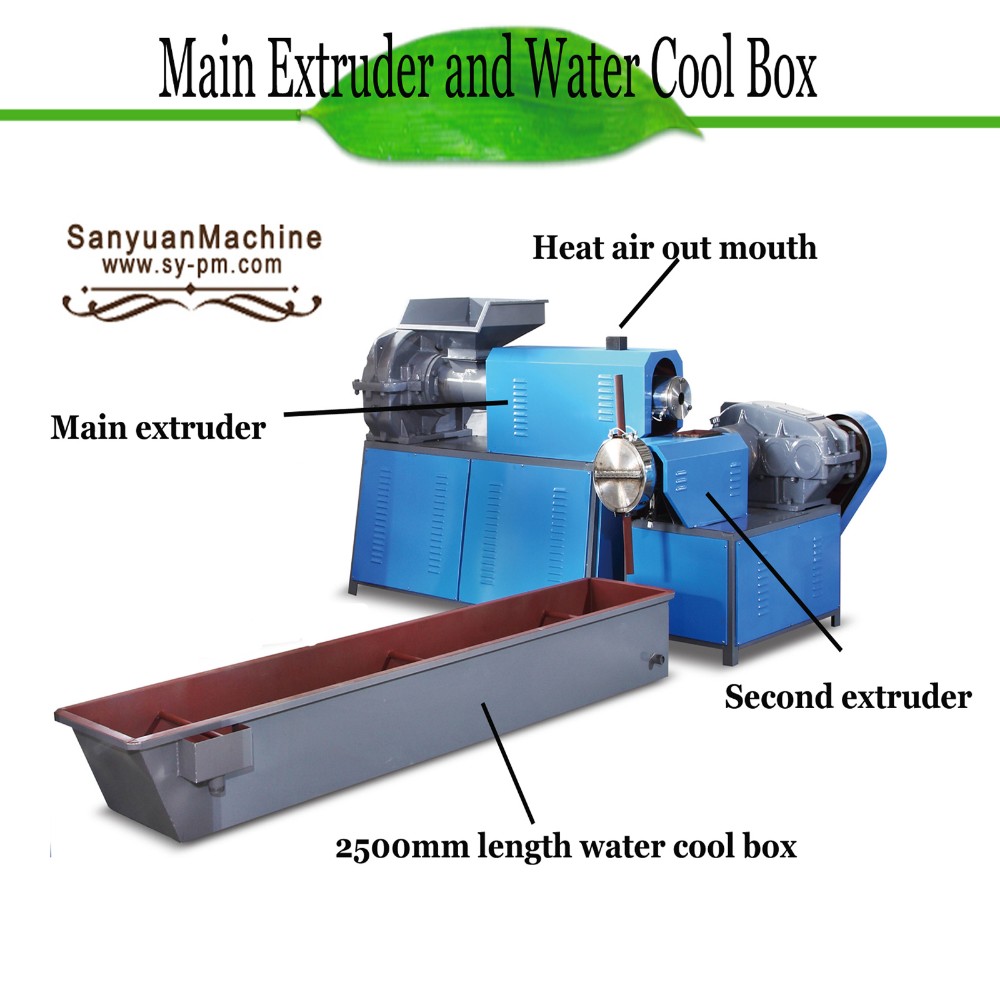

Main Extrusion Unit
- Main extruder
- Main motor :18.5kw
- Screw Diameter: Φ 117mm
- Screw ratio: L/D 14: 1
Auxiliary extruder
- Auxiliary motor: 7.5kw
- Screw Diameter: Φ 105mm
- Screw ratio: L/D 7: 1
- Heating
Main Parameters
Main Technical Parameters:
Machine Model | SJ-100 | SJ-120 | SJ-130 | |
Production | LDPE | 60-70kg/h | 100kg/h | 105kg/h |
HDPE | 40-50 kg/h | 70 kg/h | 75 kg/h | |
PP | 60-70 kg/h | 100 kg/h | 105 kg/h | |
Main Extruder Screw Size | 97mm | 117mm | 127mm | |
Second Extruder Screw Size | 97mm | 105mm | 115mm | |
Hydraulic Screen Changer | Optional | Optional | Optional | |
Force Feeder | Optional | Optional | Optional | |
Main Motor Size | 15kw | 18.5kw | 30kw | |
Second Motor Size | 7.5kw | 7.5kw | 11kw | |
Heating Power | 15kw | 20kw | 30kw | |
Main Extruder LD | 14:1 | 14:1 | 14:1 | |
Second Extruder LD | 7:1 | 7:1 | 7:1 | |
Main Motor Inverter | Optional | Optional | Optional | |
Second Motor Inverter | Optional | Optional | Optional | |
Cutter Motor | 1.5kw | 1.5kw | 1.5kw | |
Force Feeder Motor | Optional | Optional | Optional | |
Main Extruder Gear Box Hard Teeth | 350 Model | 400 Model | 500 Model | |
Second Extruder Gear Box Hard Teeth | 350+bearing seat | 350+bearing seat | 350+bearing seat | |
Ceramic Heating Ring | 4pcs | 6pcs | 6pcs | |
Aluminum Heating Ring | 6pcs | 6pcs | 6pcs | |
Machine Production Dimension | 5000*2500*1600 mm | 5000*2600*1600 mm | 6000*3500*1600 mm | |
Free Spare Parts:
No. | Spare parts name | Quantity |
1 | Temperature meter | 1set |
2 | Electric Sensor | 2 pc |
3 | Heating ring | 3 pc |
4 | Tool box | 1set |
5 | English manual | 1pc |

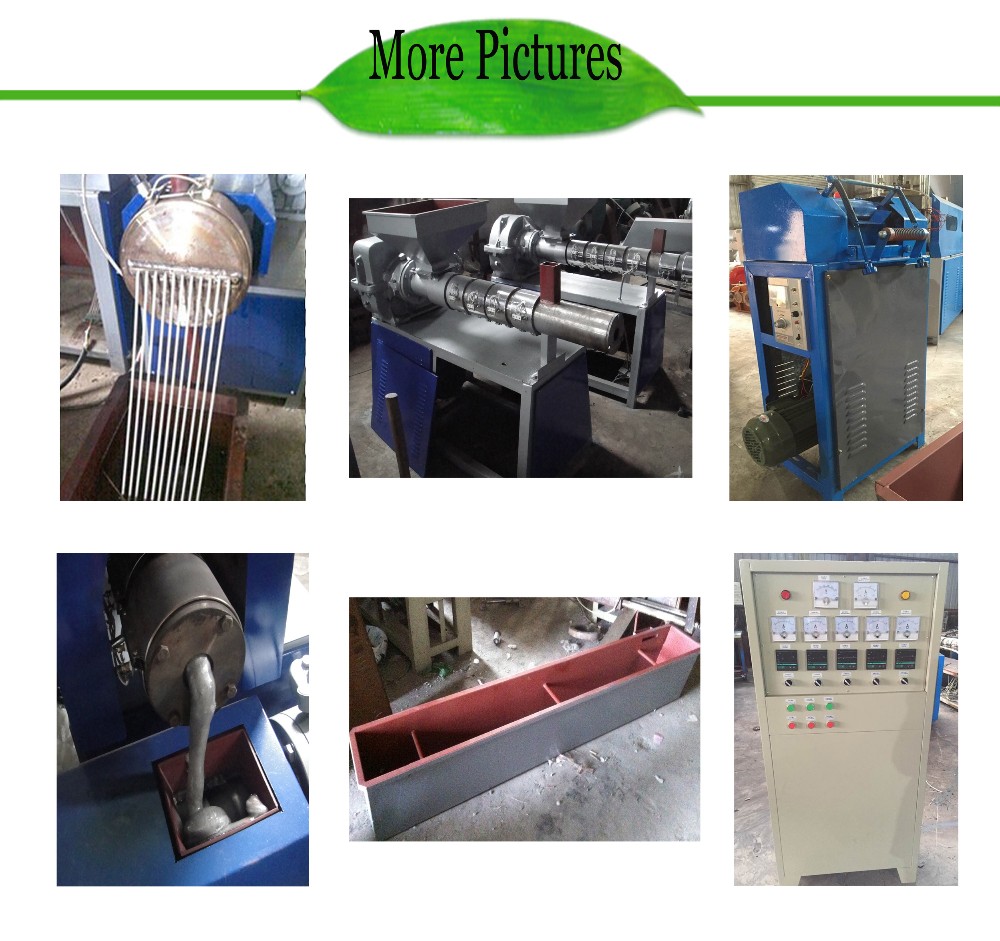

Detailed Images
Company Information
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
