SJ-55 машина для экструзии выдувной пленки
- Категории: Blown Film Production Line >>>
- Поставщик: Ruian,Chuangli,Machinery,Factory
Поделиться:
Описание и отзывы
Характеристики
Product Description
blown film extrusion machine
The machine is used to produce plastic film made of low density polyethylene(LDPE),high jdensity polyethylene(HDPE).Linear low density polyethylene(LLDPE)and metallocene linear low density of package of civil and industrical products such as food,garment,tectile and daily necessities etc.
Model | SJ-45 | SJ-50 | SJ-55 | |
Features | Raw Material | HDPE, LDPE, LLDPE; Virgin and Recycled | ||
Film Width | 400mm | 600mm | 800mm | |
Output | 25Kgs | 35Kgs | 45Kgs | |
Film Thickness | 0.008mm-0.15mm | |||
Power supply | 380V, 3Phase, 50Hz | |||
Weight | 1300kg | 1400kg | 1600kg | |
Dimension | 5×2.3×4M | 5×2.3×4M | 5×2.5×4.5M | |
Extrusion Unit | Screw&Barrel Diameter | 45mm | 50mm | 55mm |
Screw&Barrel L/D ratio |
| |||
Motor | 11KW | 11KW | 15KW | |
Gearbox | 133 | 133 | 146 | |
Die Head Type | Fixed Die Head | |||
Die Size | 50/80 | 60/100 | 120/160 | |
Heating | 11KW | 11KW | 13KW | |
Blower | 2.2KW | |||
Film Taking-up Tower | Upper Tower Type | Rise and Fall | ||
Roller Length | 700mm | 700mm | 900mm | |
RollerWorking Way | Opened and Tightened By Air Cylinders | |||
Take Up Motor | 1.5KW | |||
Winding Station | Winder Type | Single winding station | ||
Rollers | 700mm | 700mm | 900mm | |
Torque Motor | 5N/M | |||
Max. Winding Diameter | 600mm | |||
Control Panel | Temperature control | 5 zone | ||
Electronics | TopChinaBrand | |||
Inverter Capacity | 11KW/1.5KW | 11KW/1.5KW | 15KW/1.5KW | |
Optional Equipment | Hopper loader | |||

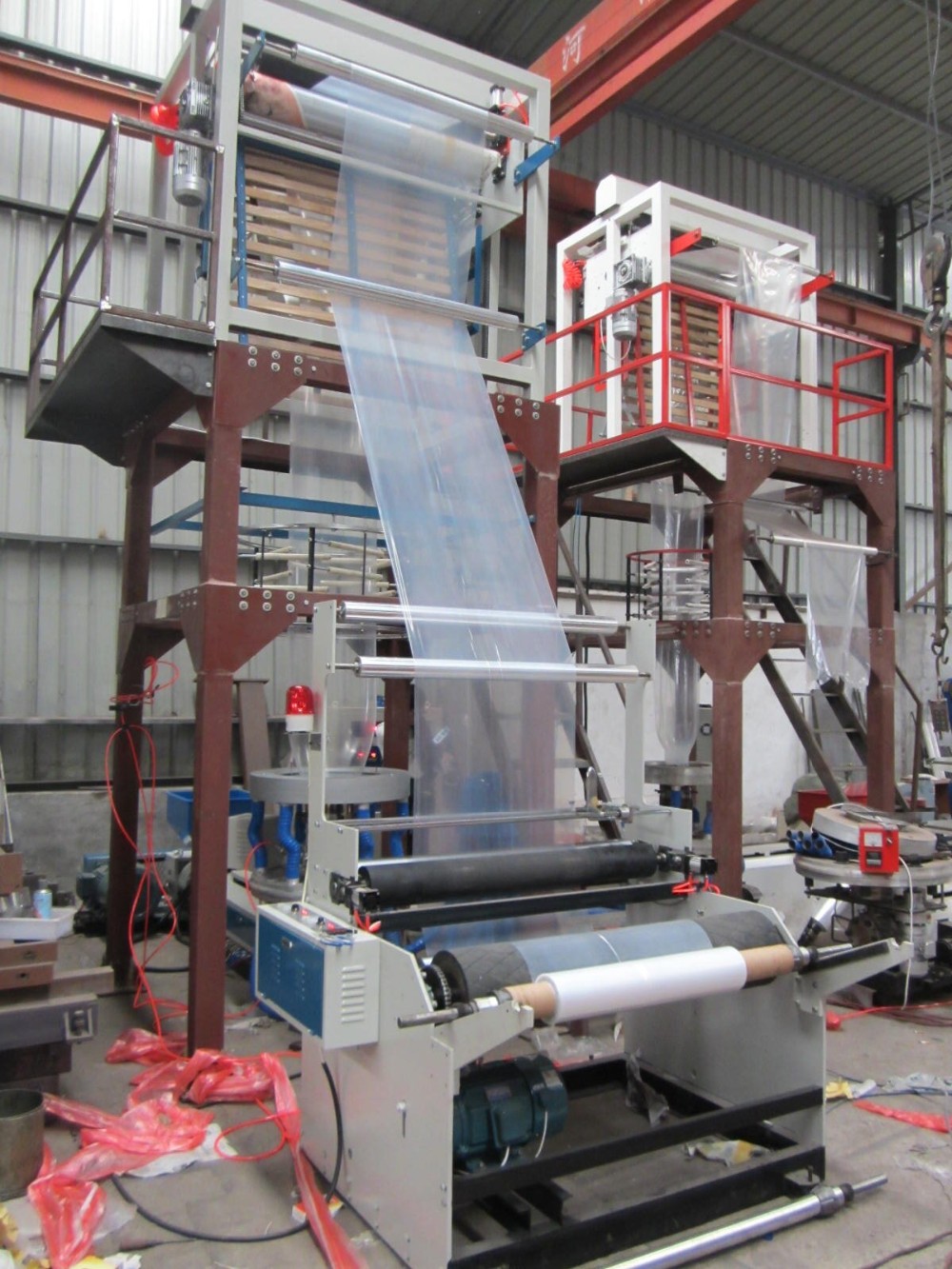

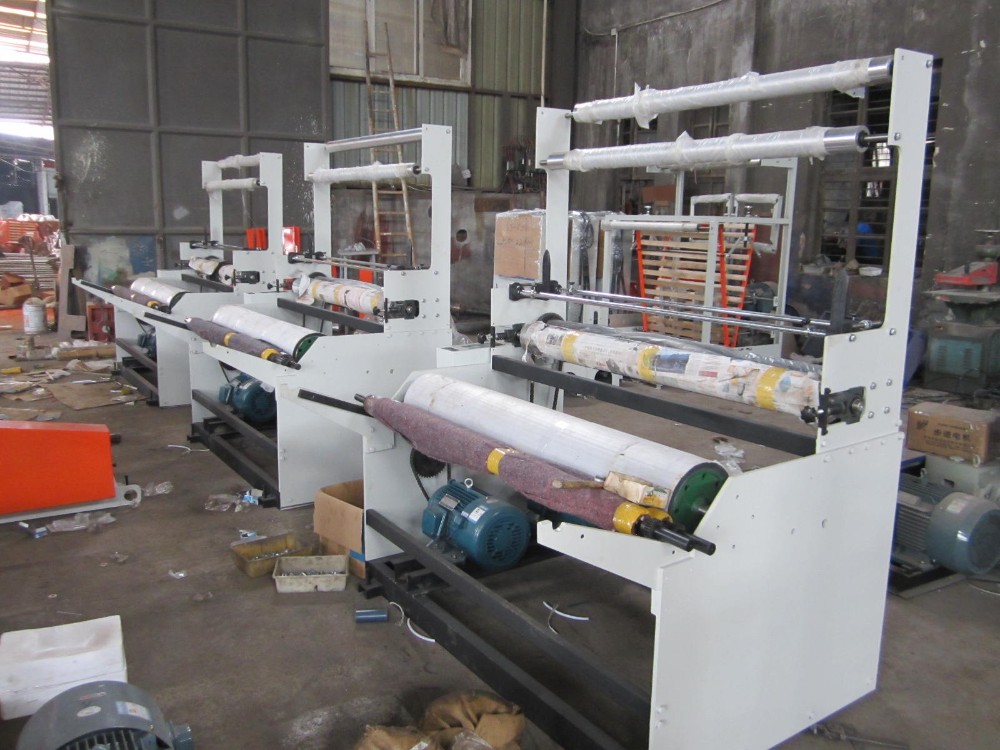

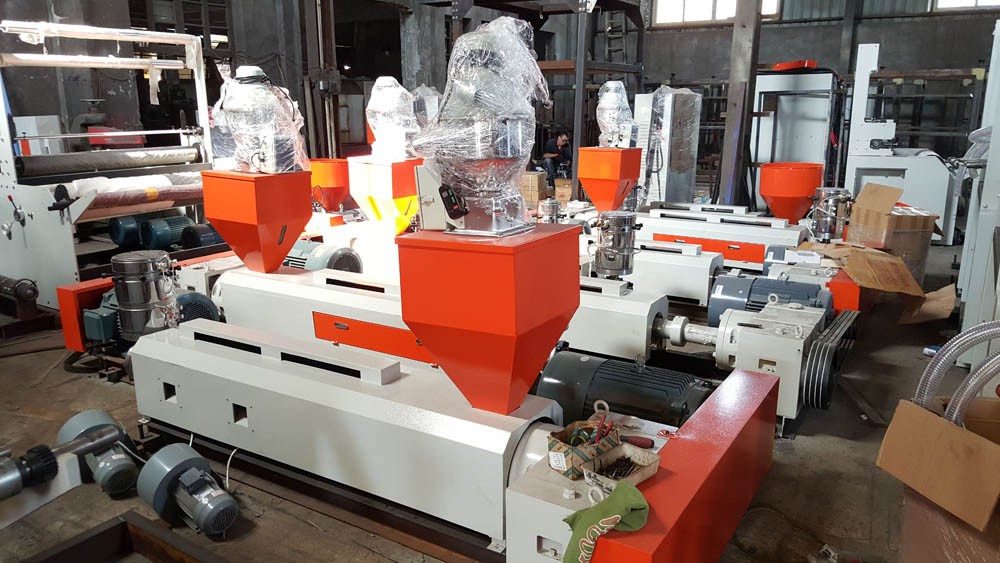

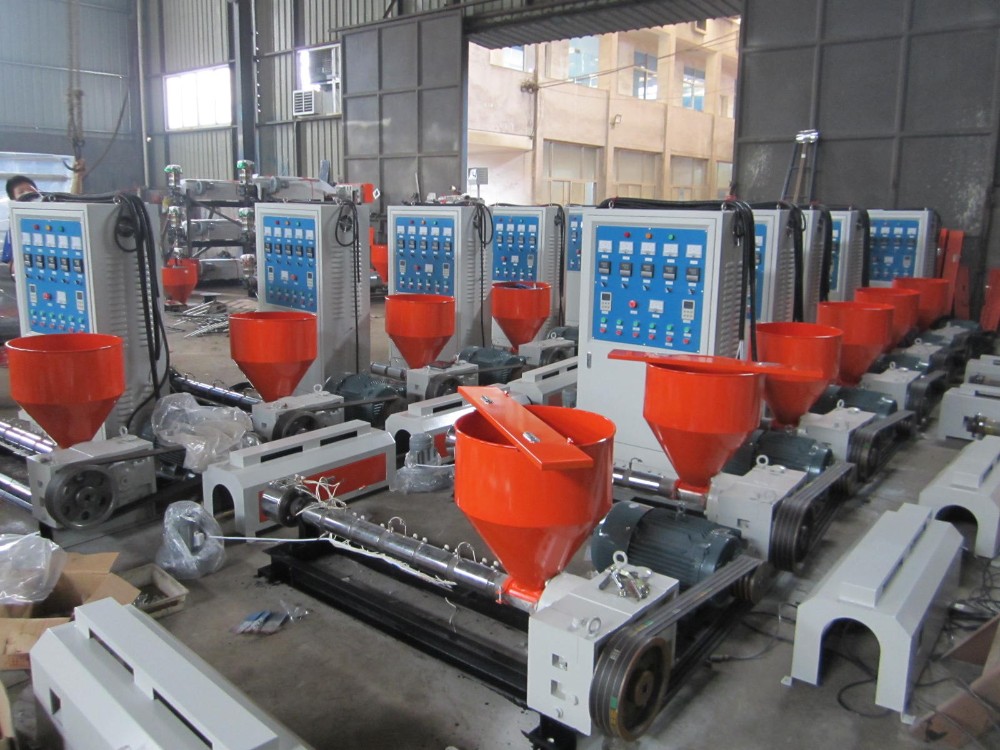

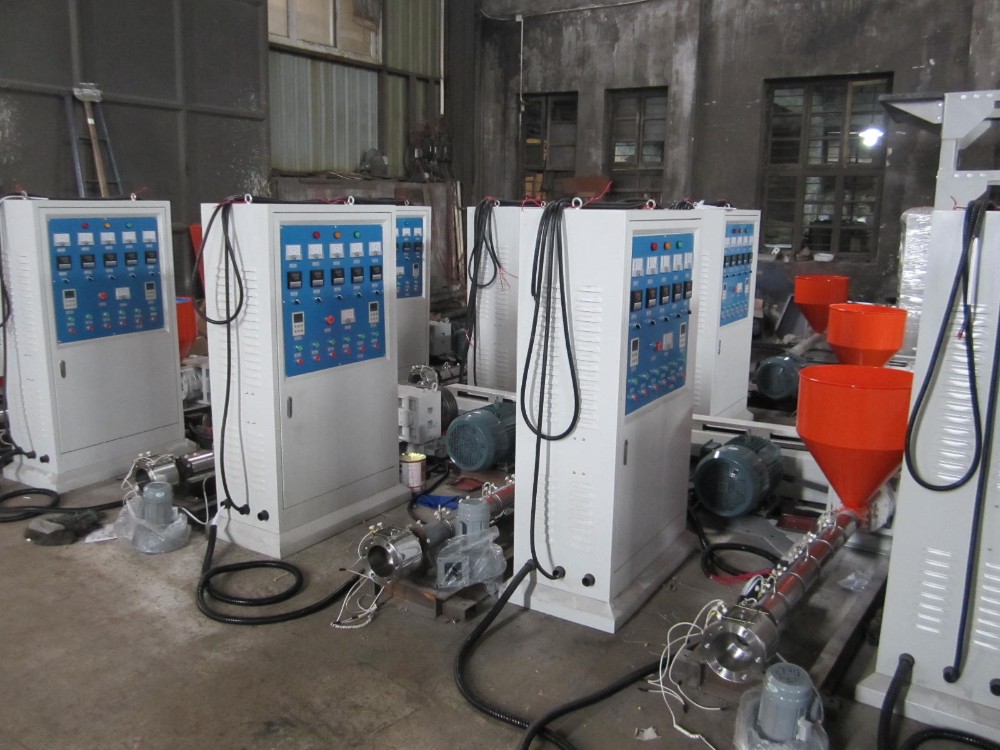

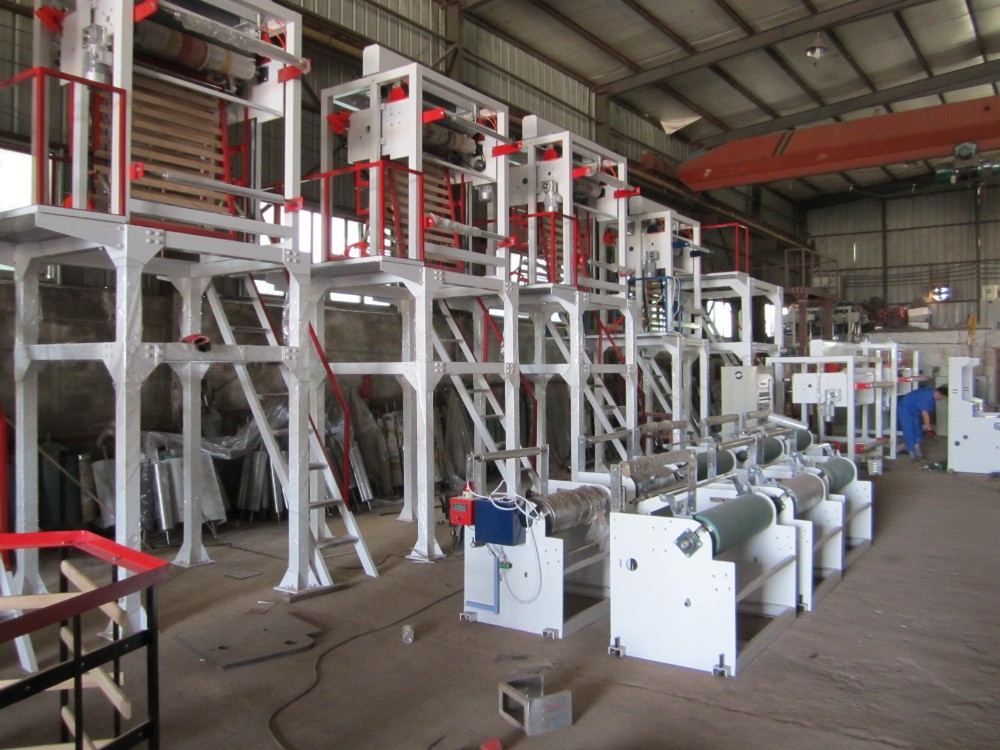

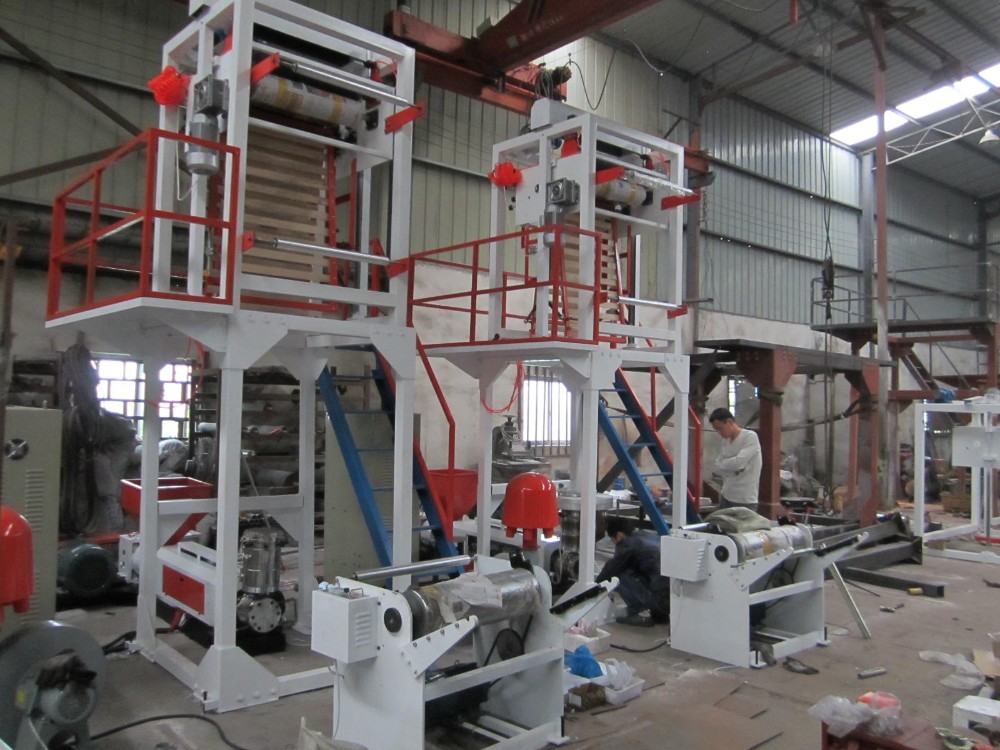

Detailed Images

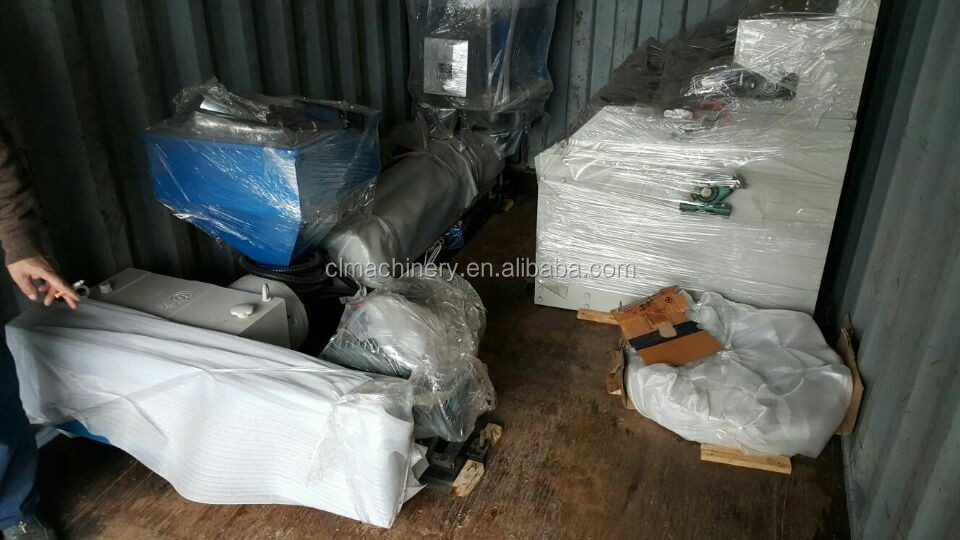

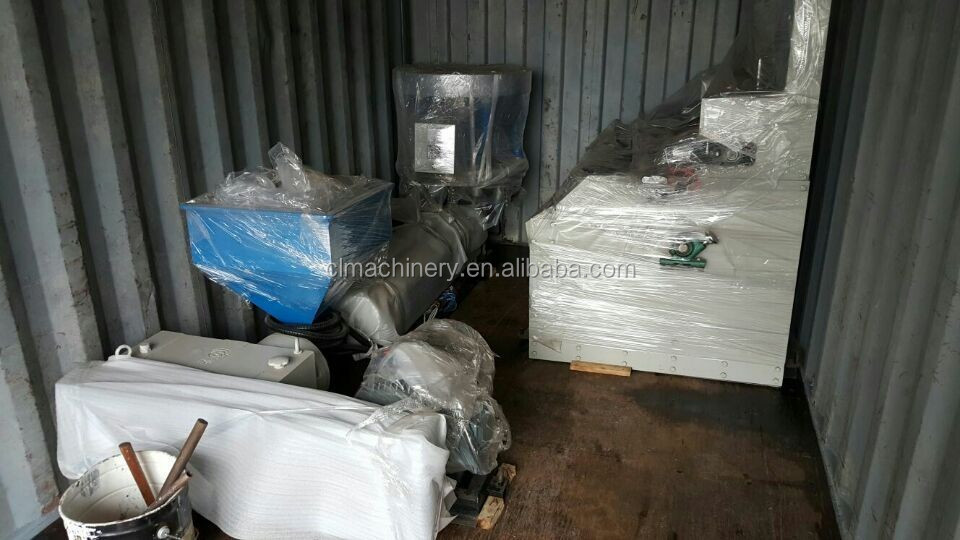

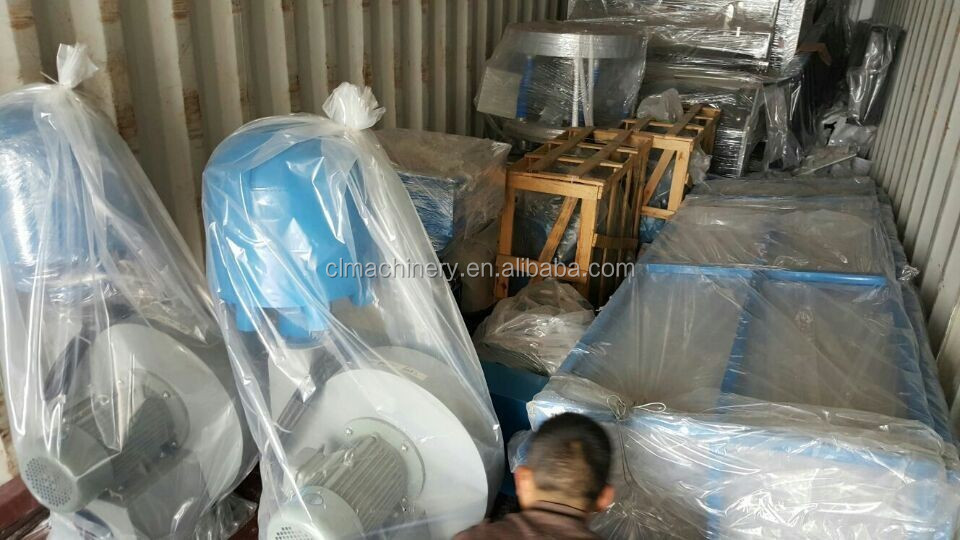

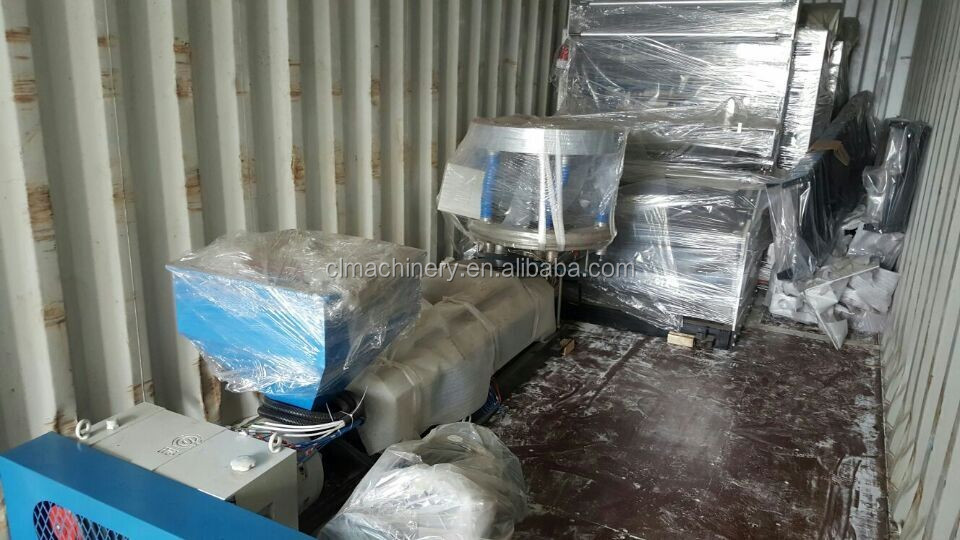

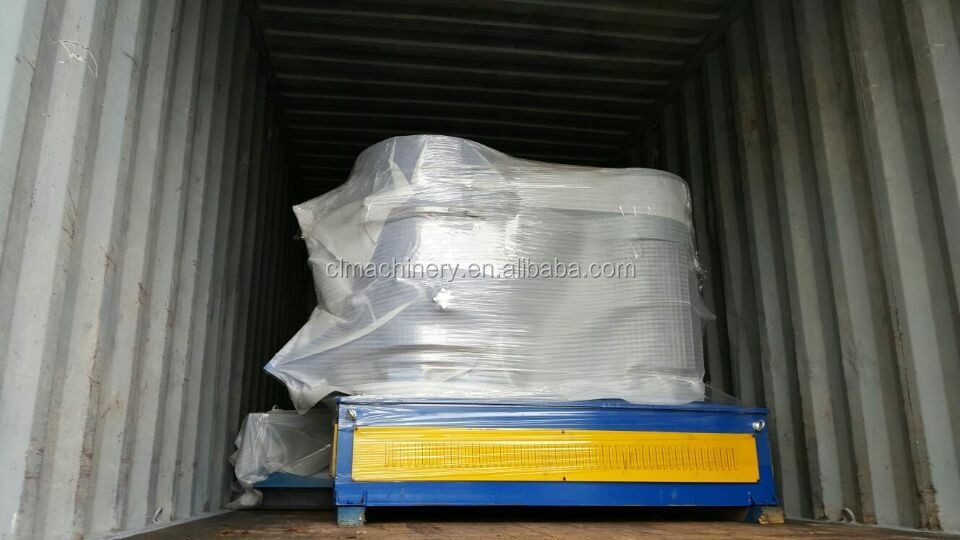

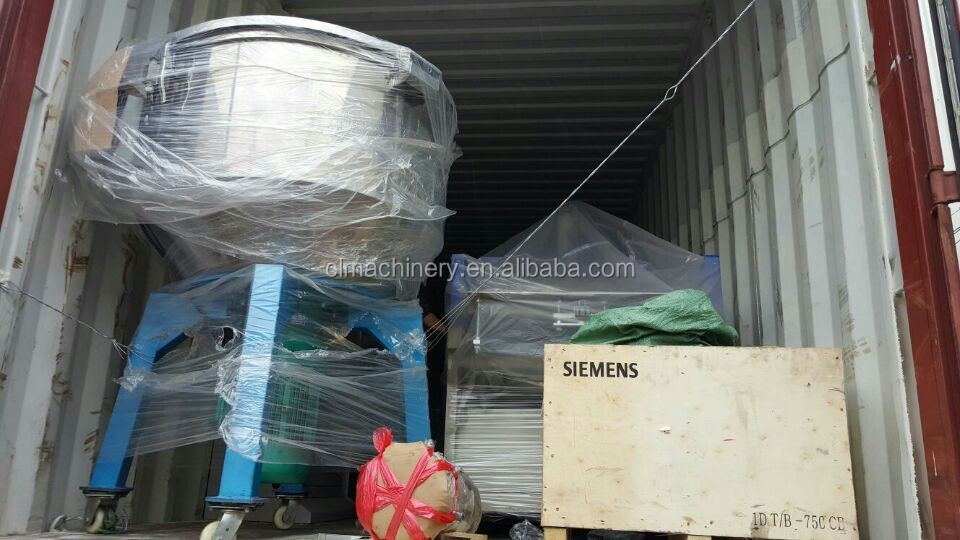

Packaging & Shipping
Our Services
1.We have 24hours hot line for Technical Support.
2.We get 18hours internet line for technical support.
3.Video camera in workshop to help you adjust and solve machine problem in working situation.
FAQ
For more information's, please feel free to contact with us by mail or telephone call.
ChuangLi,Your best Plastic Machinery Manufacturers!
