Product Description
Electric Quartz Infrared Heating Element
Quartz emitter has a shorter wavelength than ceramic infrared emitter.The quartz glass is heated by he heating coil inside the emitter and then emits heat energy to heat the product.Quartz infrared has shorter reaction time because of their lower mass.Due to the features of medium wave infrared radiations, quartz emitters are very effective in rapid heating response and zone controlled heating.
Size (mm) | Available Wattage | Useful wavelength range | Average weight | Average Operating Life |
247 x 22.5 x 62.5 | 150 – 1000W | 1.5 – 8 microns | 403g | 10,000 hrs depending on conditions |
123.5 x 22.5 x 62.5 | 150 – 500W | 210g | ||
62.5 x 62.5 x 22.5 | 150 – 250W | 144g | ||
123.5 x 123.5 x 22.5 | 150 – 1000W | 401g | ||
247 x 62.5 x 59 | 150-1000W | 403g | ||
123.5 x 62.5 x 59 | 125-500W | 268g |
Products Show
Feature
* Fast heat up and quick cool down
* Uniform heating
* Durability
* Frequently interrupted heating process
* Directional-controlled heating
* Uniform heating
* Durability
* Frequently interrupted heating process
* Directional-controlled heating

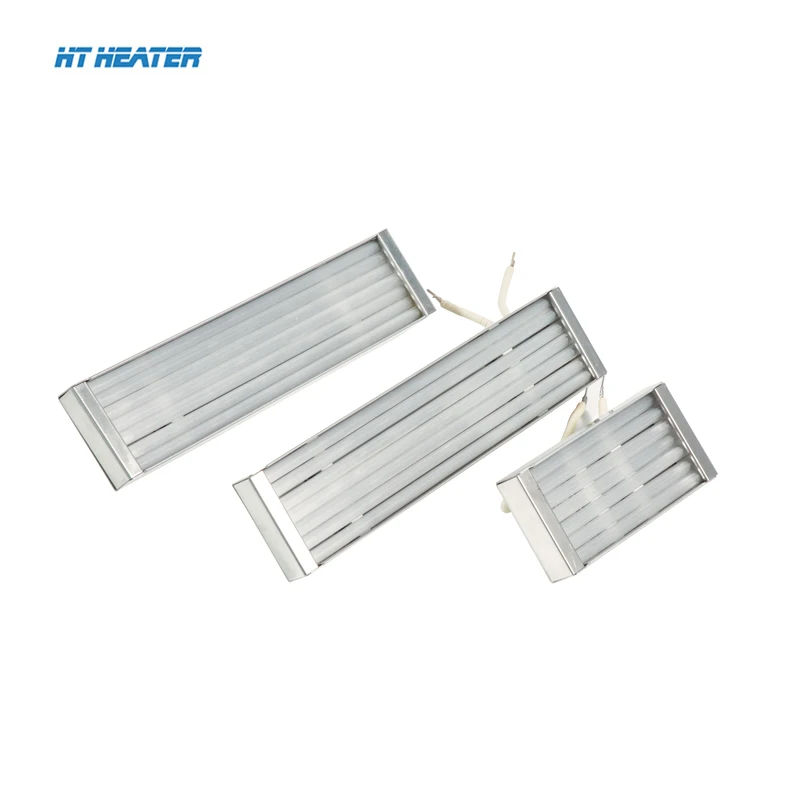

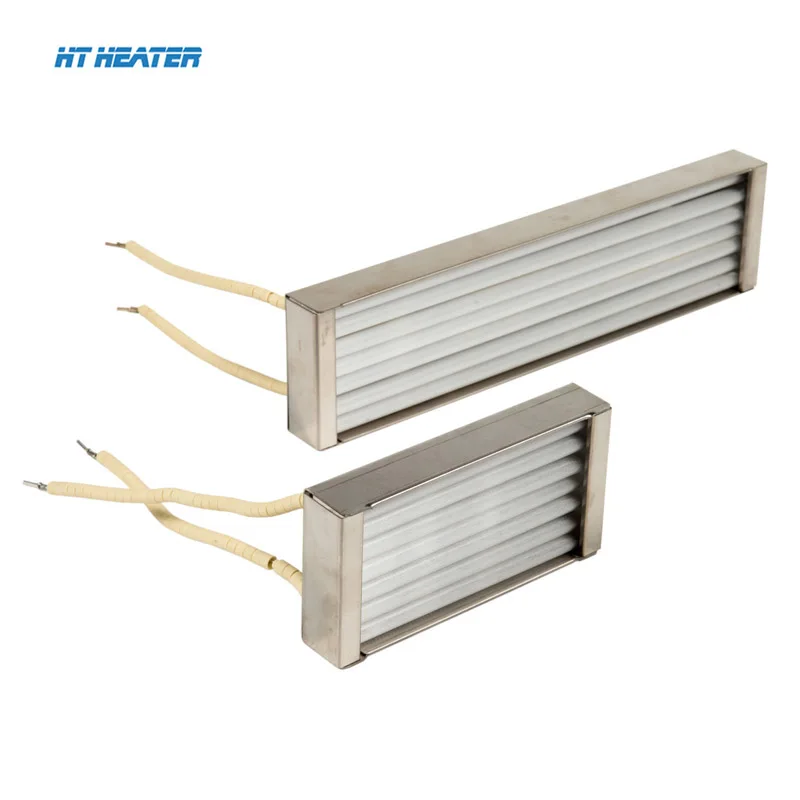

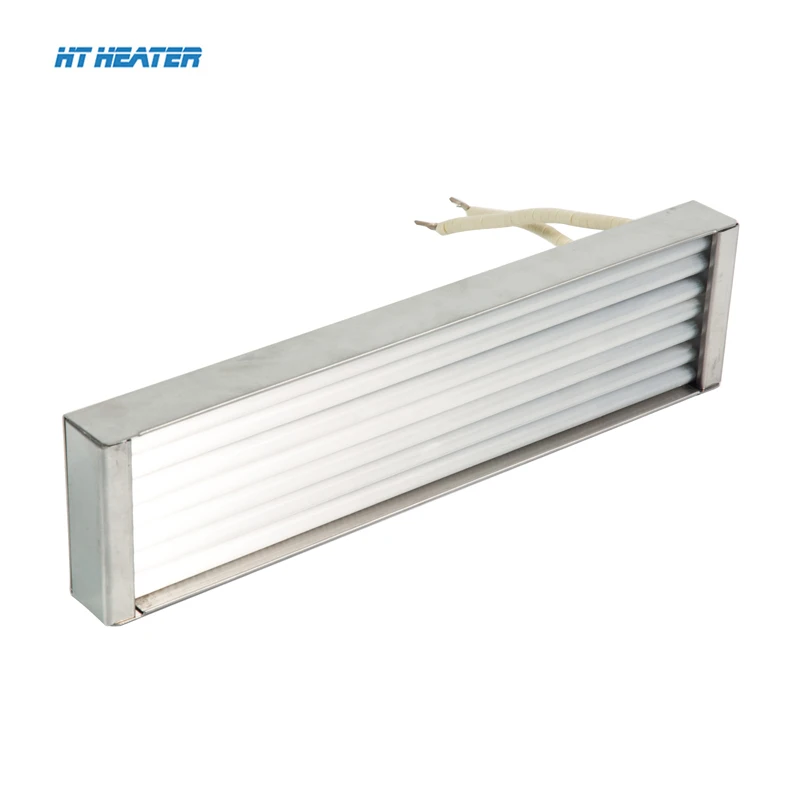

Full Quartz Element
Size:247 x 22.5 x 62.5mm
Available Wattage: 150 – 1000W
Average weight: 403g

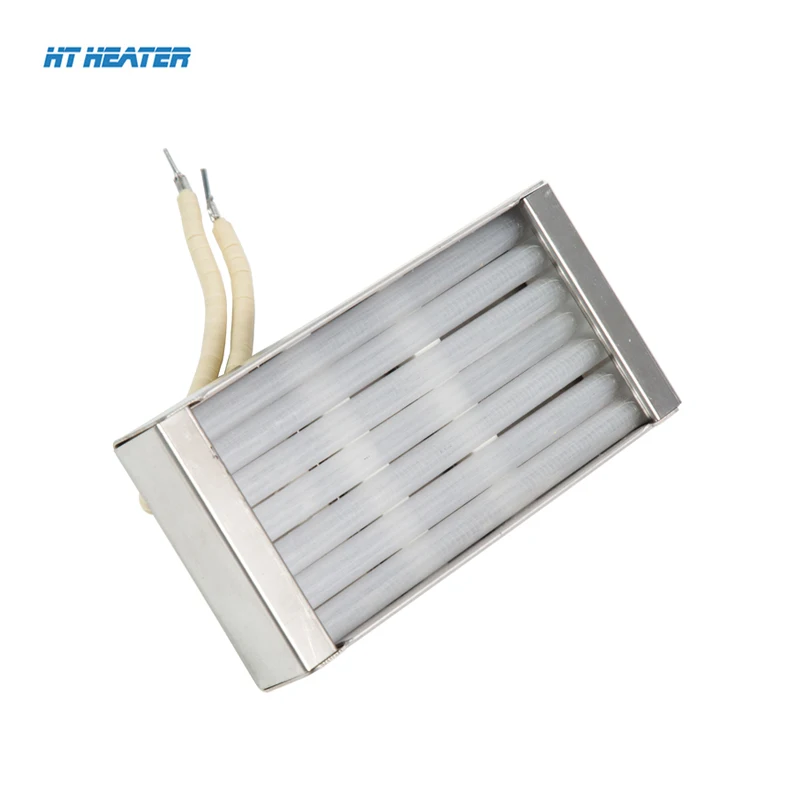

Half Quartz Element
Size:123.5 x 22.5 x 62.5mmAvailable Wattage: 150 – 500W
Average weight: 210g
Quarter Quartz Element
Size:62.5 x 62.5 x 22.5mmAvailable Wattage: 150 – 250W
Average weight: 144g
Square Quartz Element
Size:123.5 x 123.5 x 22.5mmAvailable Wattage: 150 – 1000W
Average weight: 401g
Pillared Full Quartz Element
Size:247 x 62.5 x 59mmAvailable Wattage: 150-1000W
Average weight: 403g
Pillared Half Quartz Element
Size:123.5 x 62.5 x 59mmAvailable Wattage: 125-500W
Average weight: 268g

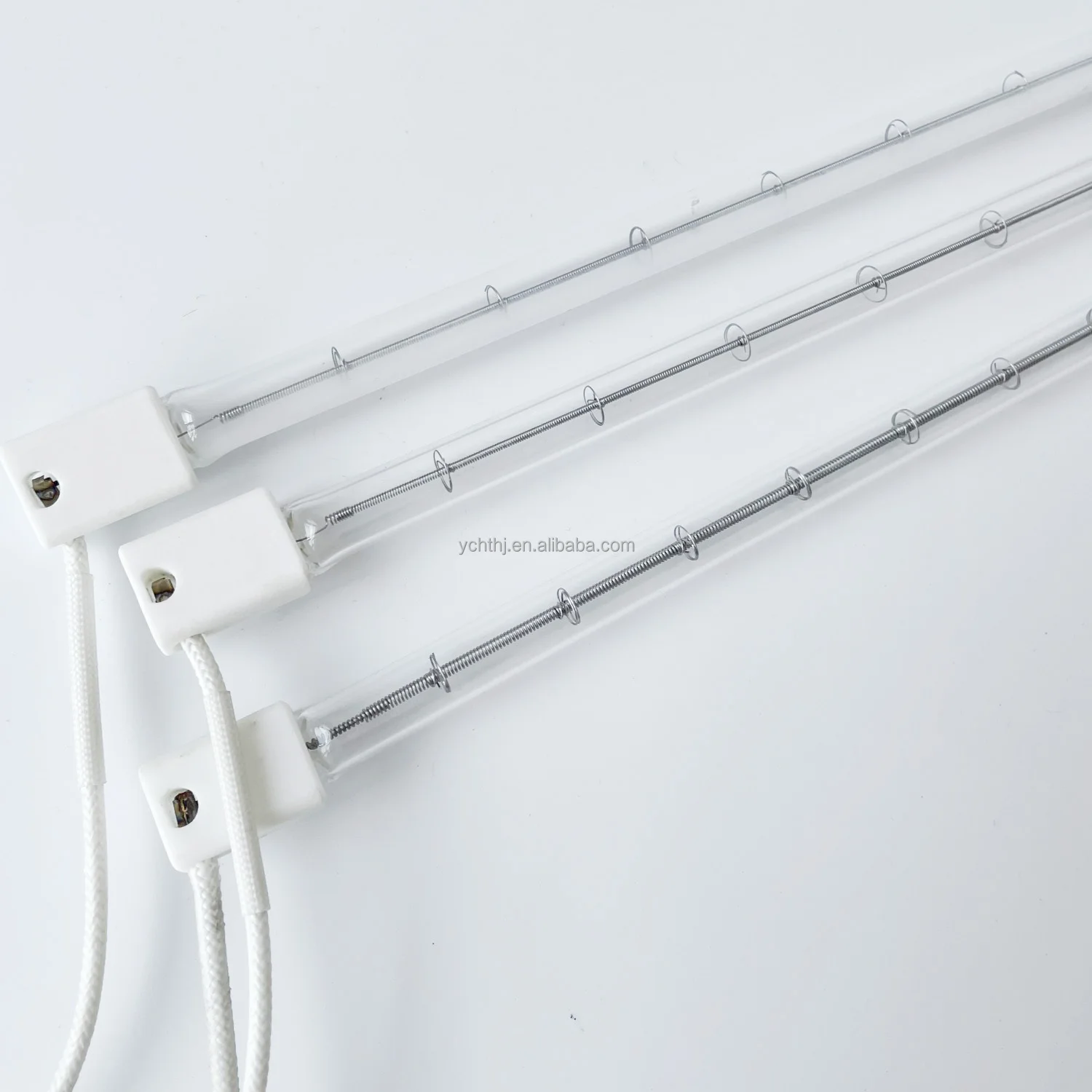

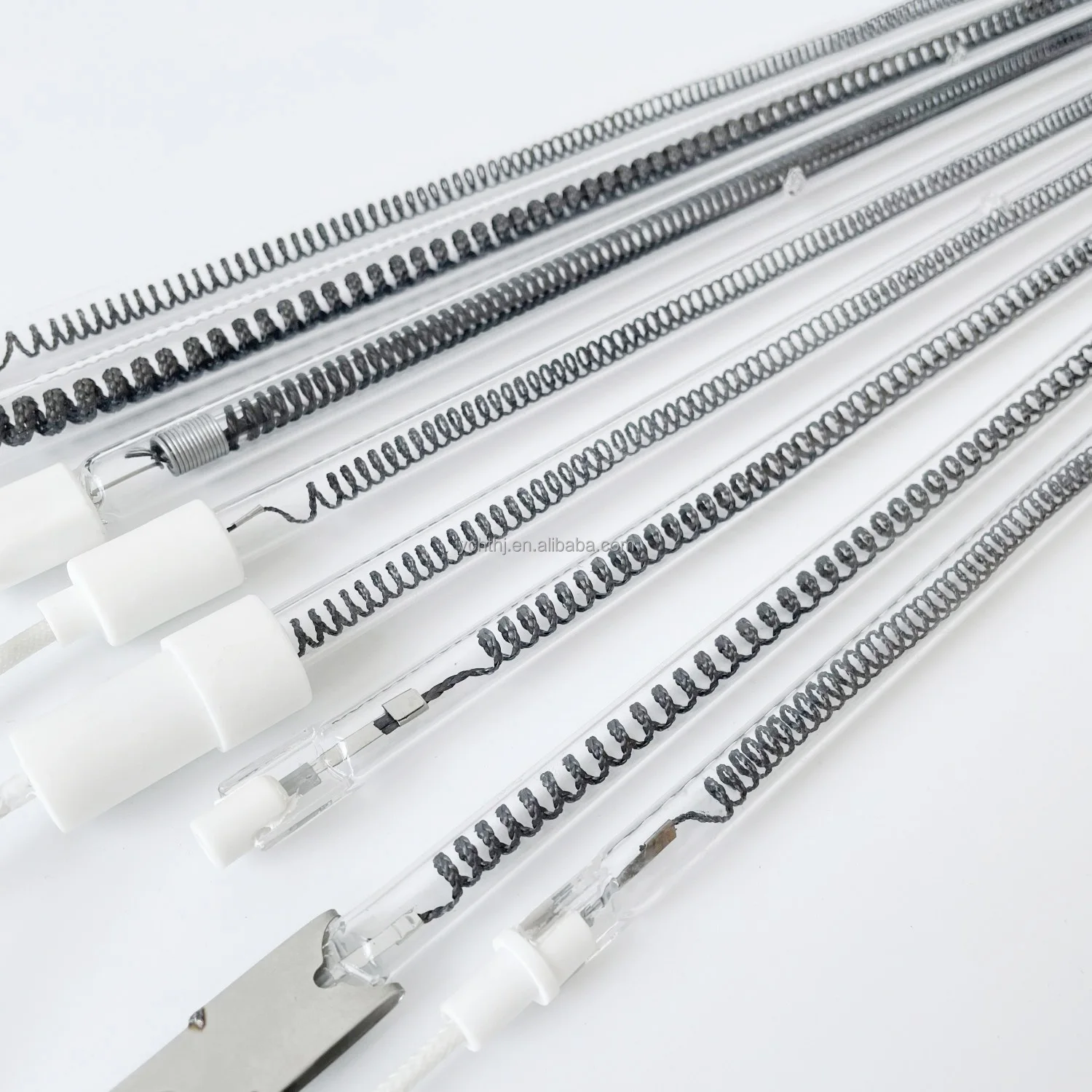

The other type Quartz Heating Lamp

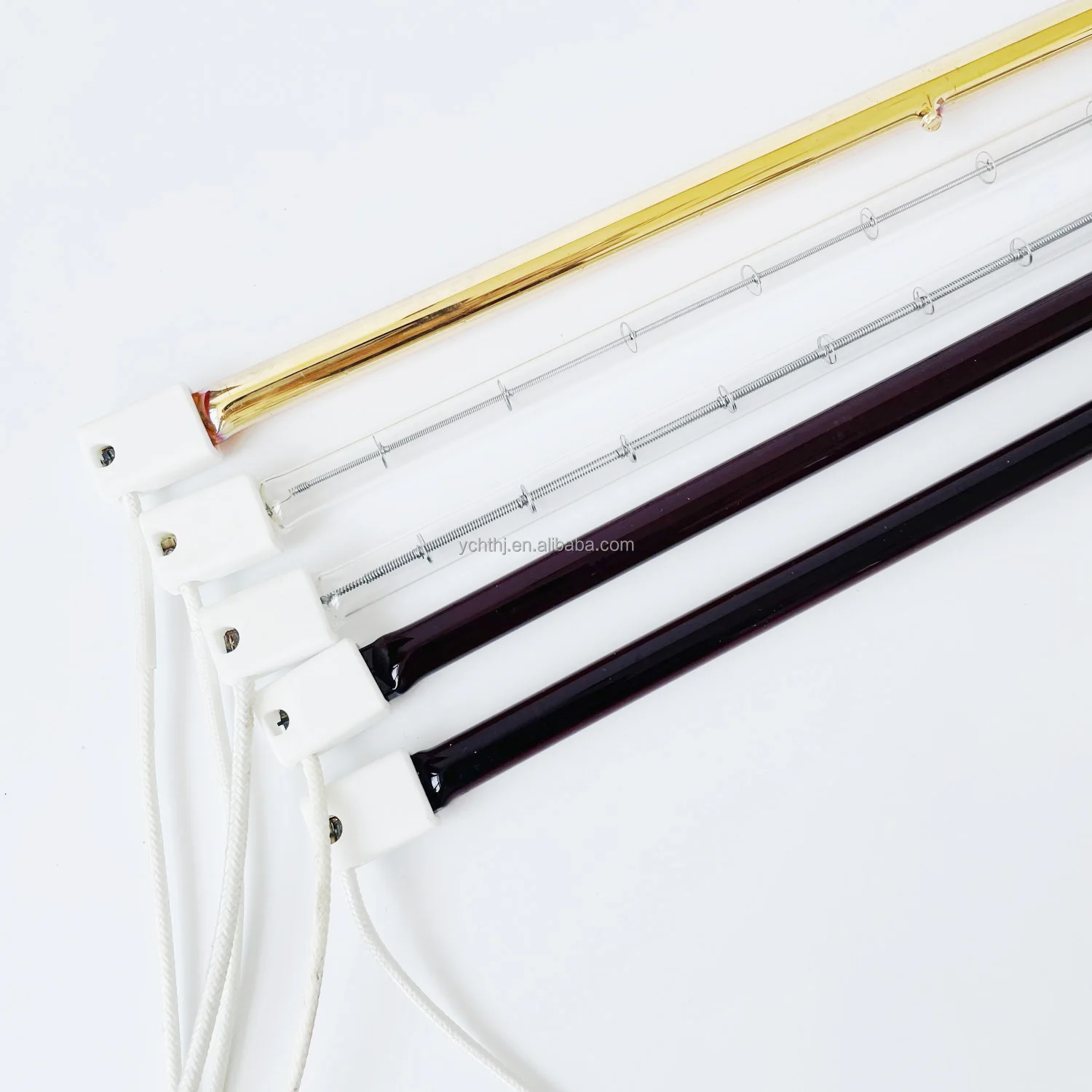

half white coated halogen quartz heater
size customized
Half Gold coated halogen quartz heater
size customized
Twin type gold lamp
size 12*24MM 16*33MM
APPLICATION
Used for powder curing of metal coatings, paint, moisture drying,
Such as: car paint, oven, glass, sintering furnace, plastic spray baking room, paper, circuit board, etc.
Such as: car paint, oven, glass, sintering furnace, plastic spray baking room, paper, circuit board, etc.
How to order ?
Pls provide this informations:
1. Heater length : the total length of the heater
2. Heater Reflector :gold/ceramic/clear
3.Vottage :380V,240V, 220V,200V,110V and other can be customized.
4.Wattage :200W,250W and other can be customized.
5.Heater Tube Diameter.
if have the heater photos, pls send first
Related Products
Our Service
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Effective
Well-trained & experienced Sales team offer best and careful services before and after sales
Fast Shipping
Sample:3-4 days Lead time for the order:10-12working days depend on the quantity
Our Company
Factory
Office
Sales Team
Engineer Team
Our Certifications
Packing & Delivery
Packaging for quartz infrared heater
1) plastic bag + carton for quartz infrared heater
2) wooden box for quartz infrared heater
Shipping for quartz infrared heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
Each heater use bubble bag and wrapped first
Choose the right box for the lamp. use bubble for whole
Exported Wooden case can protect the heaters very well
