Product Description
120v 220v 230v 380v 480v Electric stainless steel/ incoloy sheath cartridge heater for injection mold is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Name | 120v 220v 230v 380v 480v Electric stainless steel/ incoloy sheath cartridge heater for injection mold |
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Voltages available | 380V,480v,230V, 220V,120v |
Max operating temp | 870ºC(1600F) |
Length tolerance | ± 2% or 3.2mm (1/8”), whichever is greater. |
Camber tolerance | 1.7mm per meter (0.020” per foot). |
Diameter tolerance | Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004") |
Standard Unheated Area | 5-10mm; |
Internal thermocouple | type J or K; |
Thermocouple Location | Disc End, Sheath, Center of Heater; |
Insulation resistance (cold) | ≥ 500 MΩ; |
Maximum leakage current (cold) | ≤ 0.5 mA; |
Diameter | from 3.0mm to 30mm; |

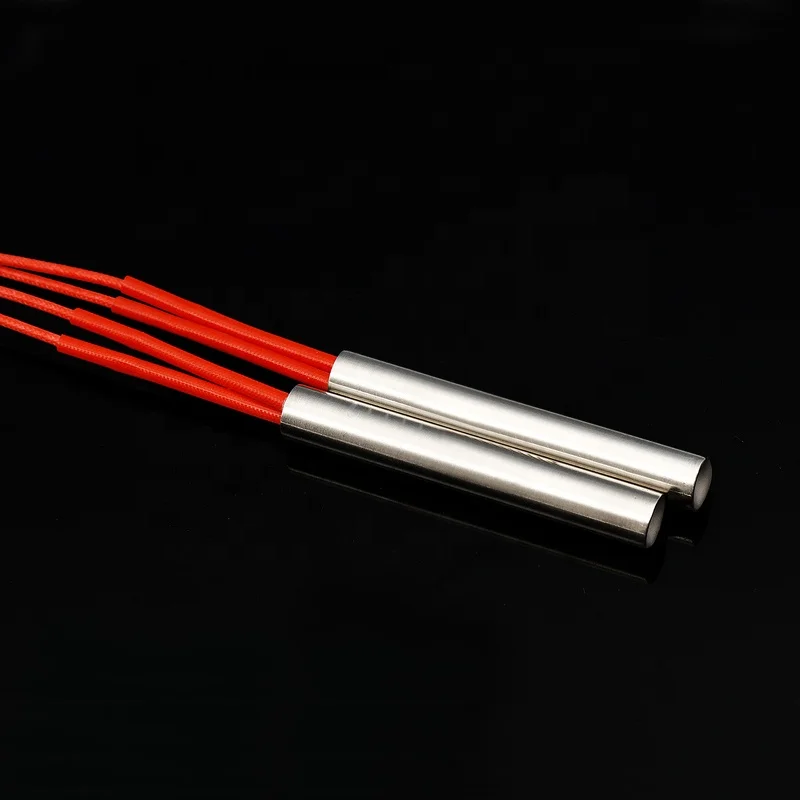

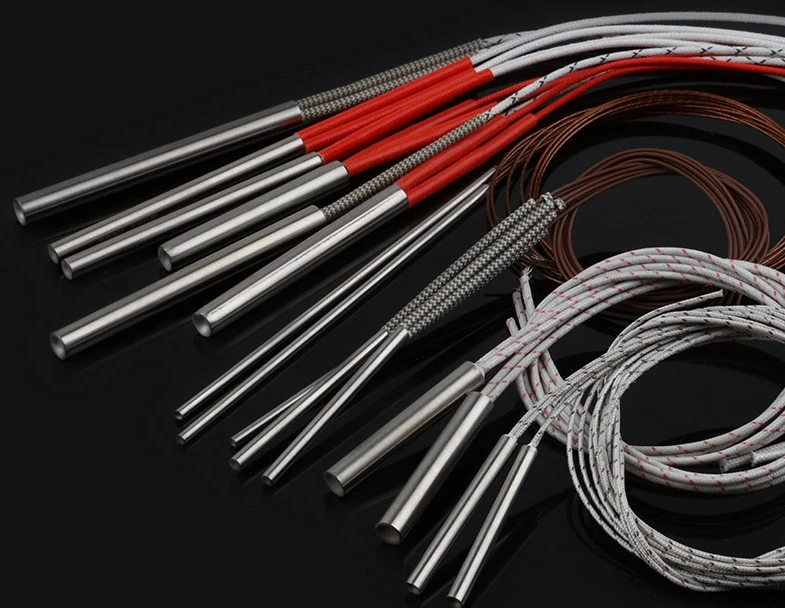

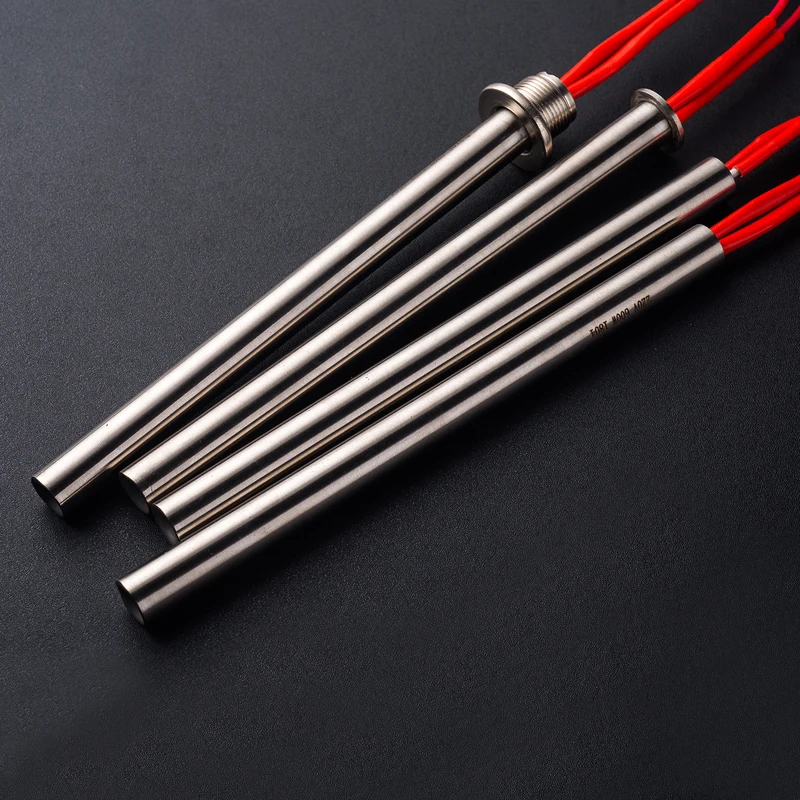

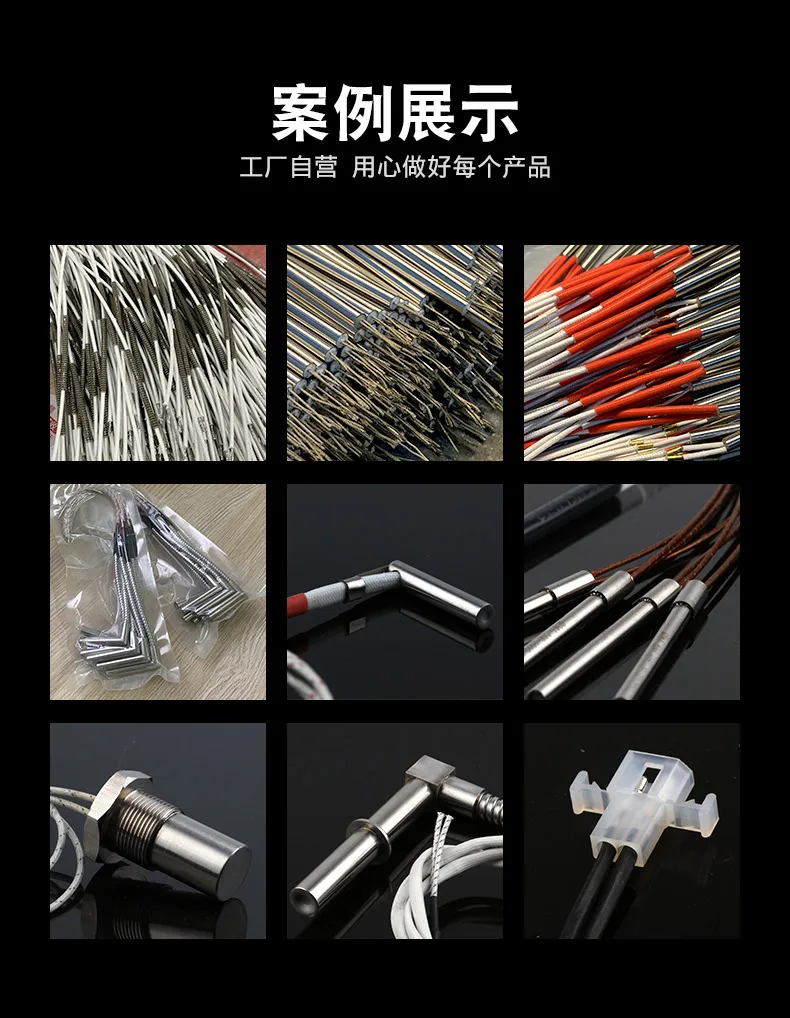

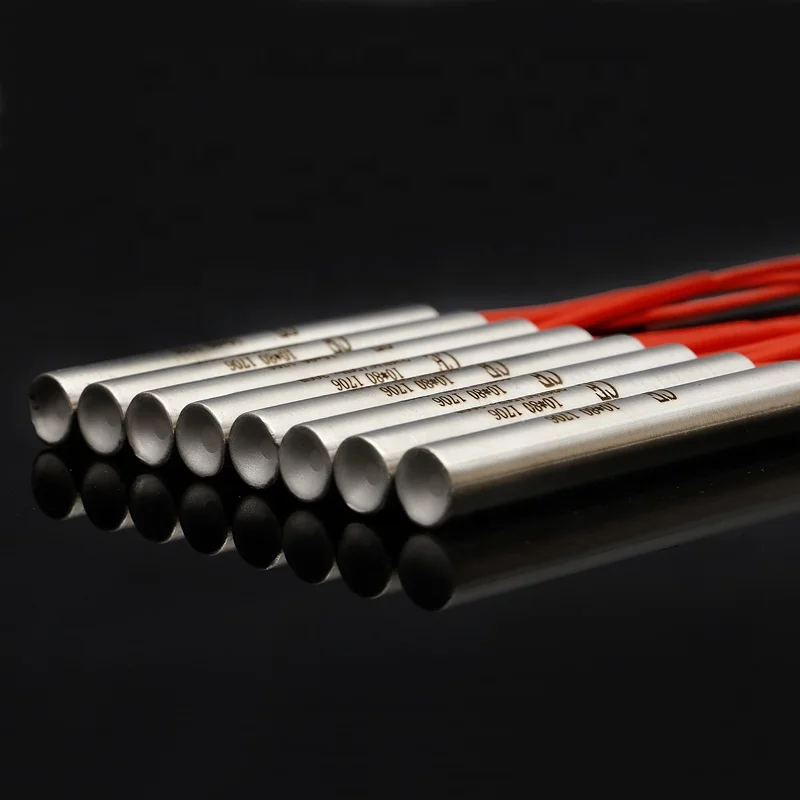

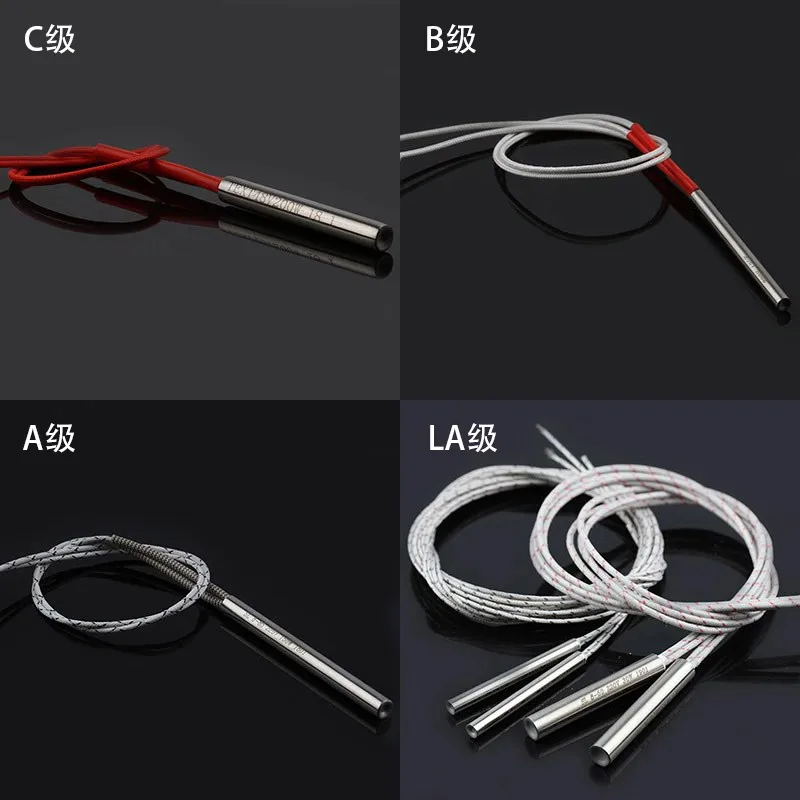

Products Show

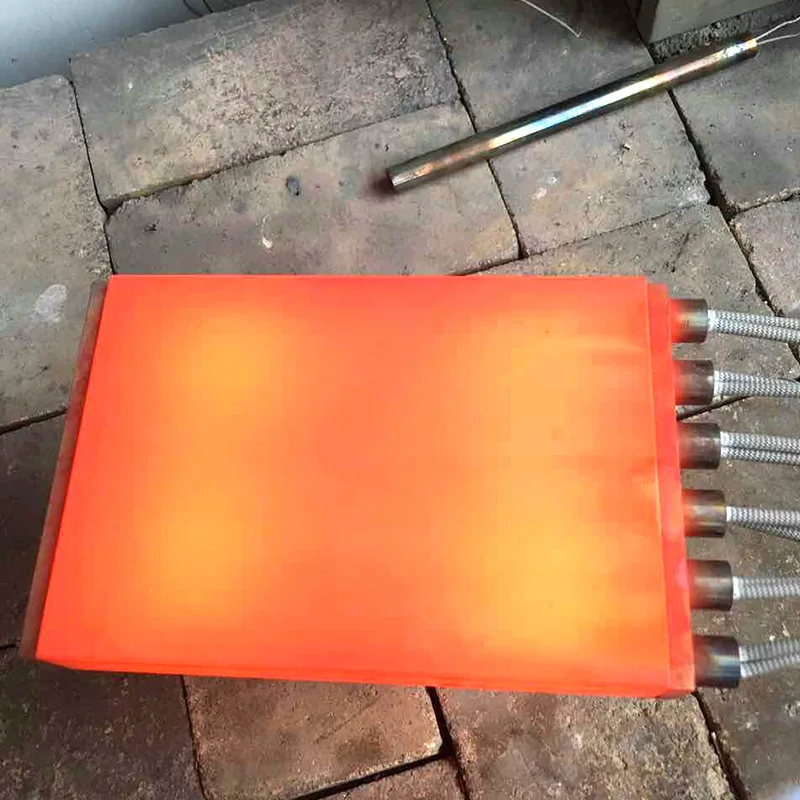

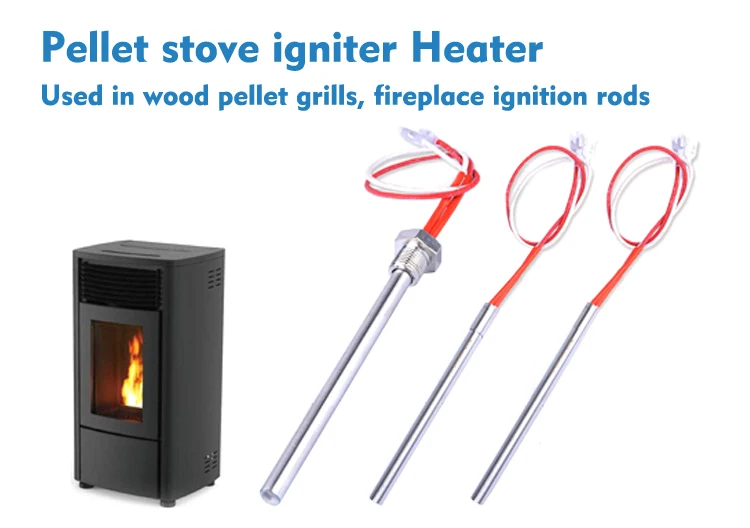

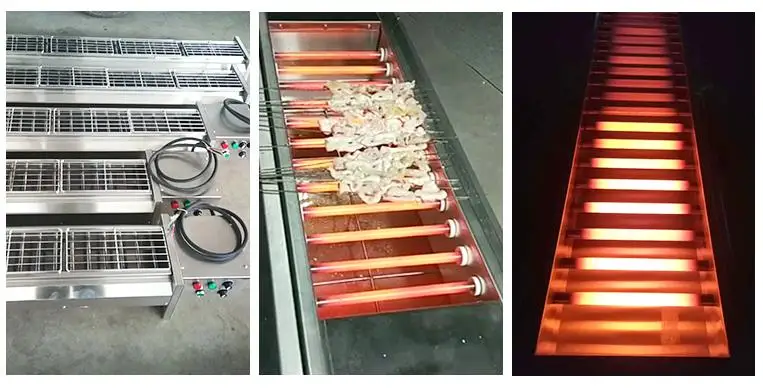

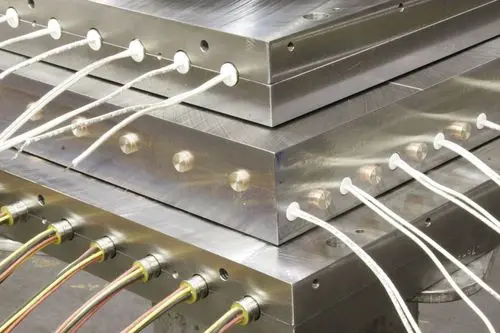

Application
* Injection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
Related Products
Our Company
Factory
Office
Sales Team
Engineer Team
Heater Plant
Heater plant
Our Certifications
Packing & Delivery
Packing Details : bubble bags+cartons+wooden case
Delivery Details : 10-15days after order confirmed
10 pcs bag
Suitable carton
Wooden case
