Product Description

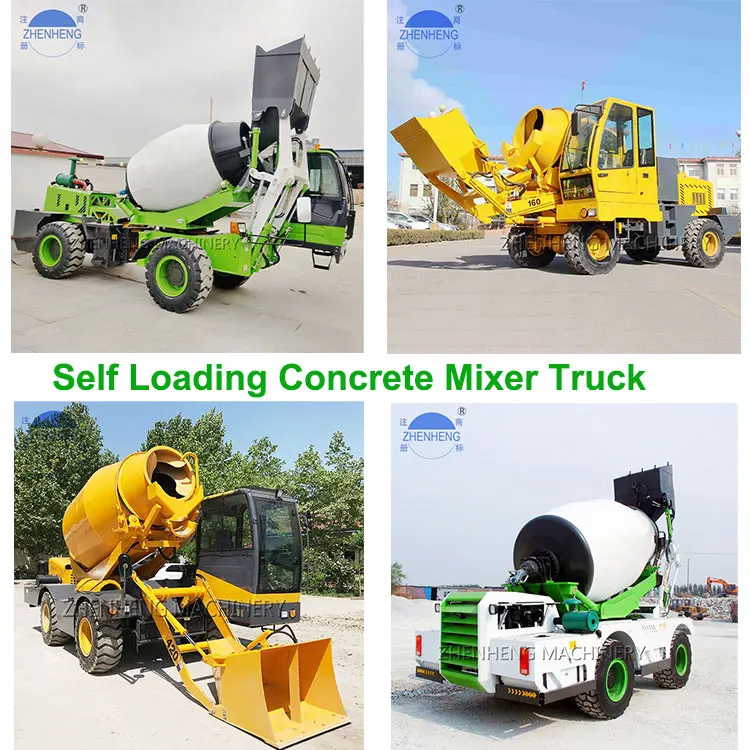

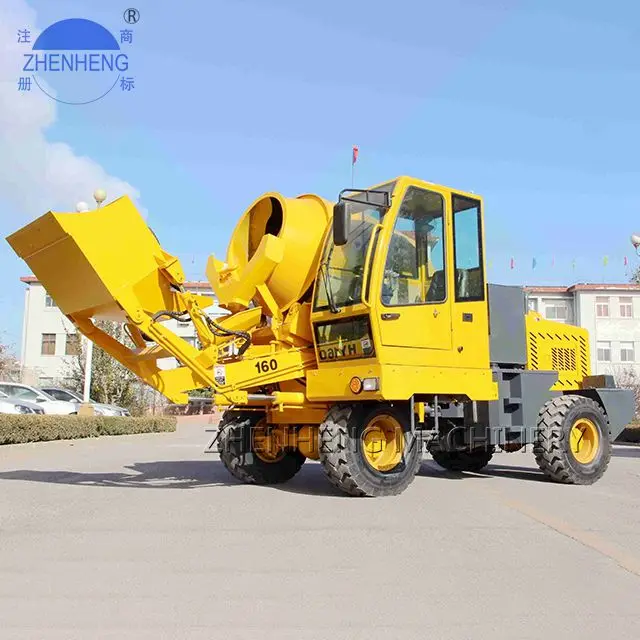

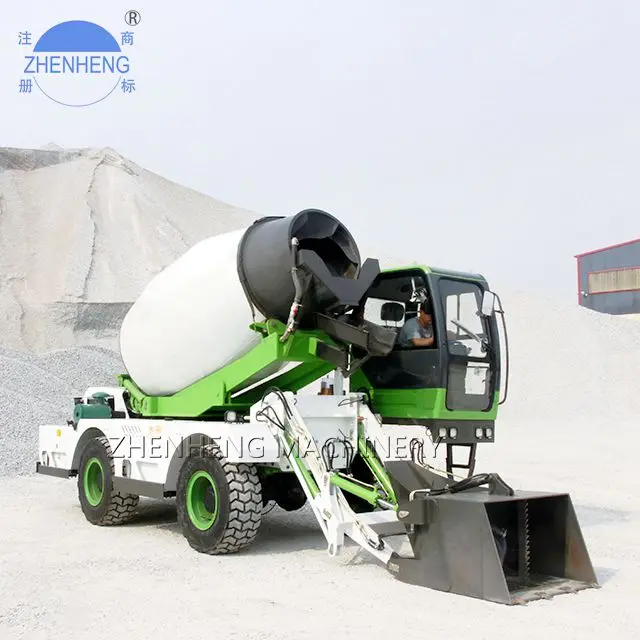

3m3 4.5m3 5.5m3 6.5m3 CBM Concrete Mixer Truck self loading truck For Sale


1.Simple and convenient operation. High efficiency output, save time and labor, save cost
2. Mixer drum can be lifted up 20° to make concrete discharge easier.
3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires.
4. The external water pump is equipped with change-over switch of water suction so that water can be into water tank and mixer drum respectively.
5. The discharge chute can be tilted and rotate 90°. It is also removable so that concrete is to anywhere directly. Two sets of chute extenders are provided as standard.


Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mixing and discharge concrete mixture. The self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate,stone,etc .
Self-loading concrete mixer is equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is easy to operate and go everywhere needed.It’s the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture.


Specification


Mixing volume
4.0 M3
Concrete output
4.0 M3 / batch, 16 M3 / hour
Drum rotation speed
16 rpm
Fuel tank volume
100L
Loading times to full drum
3 times
Total hydraulic system capacity
120 L
Water tank capacity
900 L
Max. travel speed
35 km/h
Gradeability
30°
88Operating weight
8800KG
Overall Dimension (L×W×H)
6900x2850x3400mm


We can provide different capacity 0.8m3 ,1.2m3 ,1.8m3 ,2.0m3 ,2.4m3 ,3.5m3,4m3 ,etc~~~~


Actual mixing capacity
m³
1.2
2.0
2.4
3.2
Rotary drum capacity
m³
1.4
2.3
2.6
3.4
Degree of bias
°
16
16
16
16
Rotational speed
r/min
0-14
0-14
0-14
0-14
Slump of concrete
mm
70-260
70-260
70-260
70-260
Max running speed
km/h
24
24
24
24
Min steering radius
mm
5000
4250
4500
4500
Climbing capacity
%
26
26
26
26
Weight
kg
4580
4880
5550
7500
Whole machinery weight
kg
7380
7680
11150
15300
Overall size(L*W*H)
mm
6100*1850*3000
6700*2300*2900
6350*2510*2850
6650*2600*3200




~~~~~Hi! We offer a 24-hour online service. ~~~~
~~~~~~~If you are interested in our products, please contact our online customer service .~~~~~~~~~~~~
~~~~~ It is our pleasure to serve you~~~~~~!

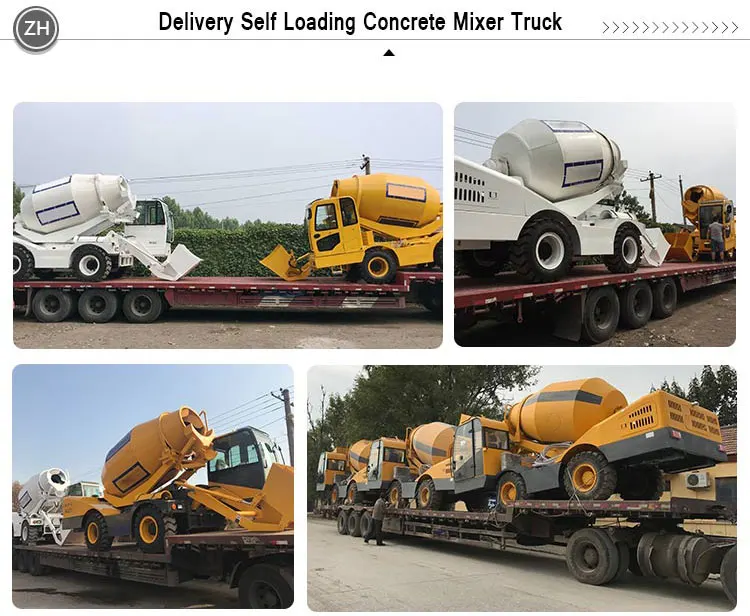

Product packaging

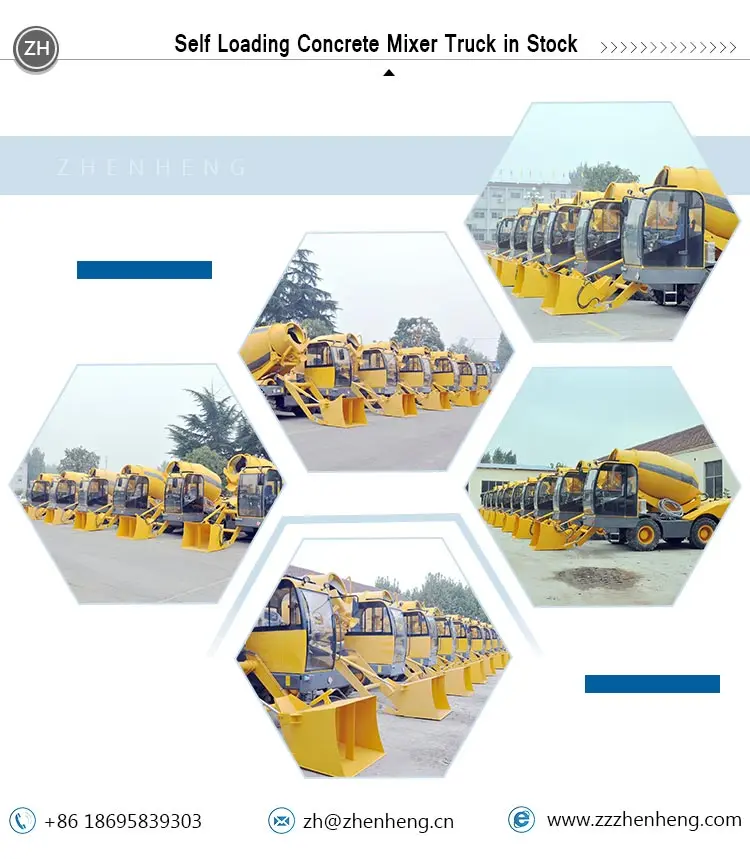

Factory




Product Recommend




Company Information


Zhenheng Machinery was established in 1 9 8 2, covers an area of 7 3, 3 7 0 square meters, has 3 production bases and more than 3 0 0 employees.After several years’ development,We have achieved great progress.We produce 3 series of concrete machinery, including concrete batching plant, concrete block production line, concrete pump, etc.
The machinery produced by zhenheng has obtained I S O 9 0 0 1 certificate, C E certificate and more than 20 patents. The company has complete facilities and a strict quality control system. We have a variety of processing lathes and precision processing centers:advanced laser cutting machines,laser welding machines,robotic welding machines,CNC rolling machines, wire cutting machines and other equipment.






Exhibition




FAQ


Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
