Advantages:



1.All machines before shipment, we will examin and test it.(if customer come, we will waiting for you coming).

2.Our after-sale service is perfect. We have some engineer to test machine in foreign all over year. If you need engineer to test, we can arrange it.

3.Prompt Reply Within 12 Hours.

4.Production quantity about 200-300sets each year.

 Product Description

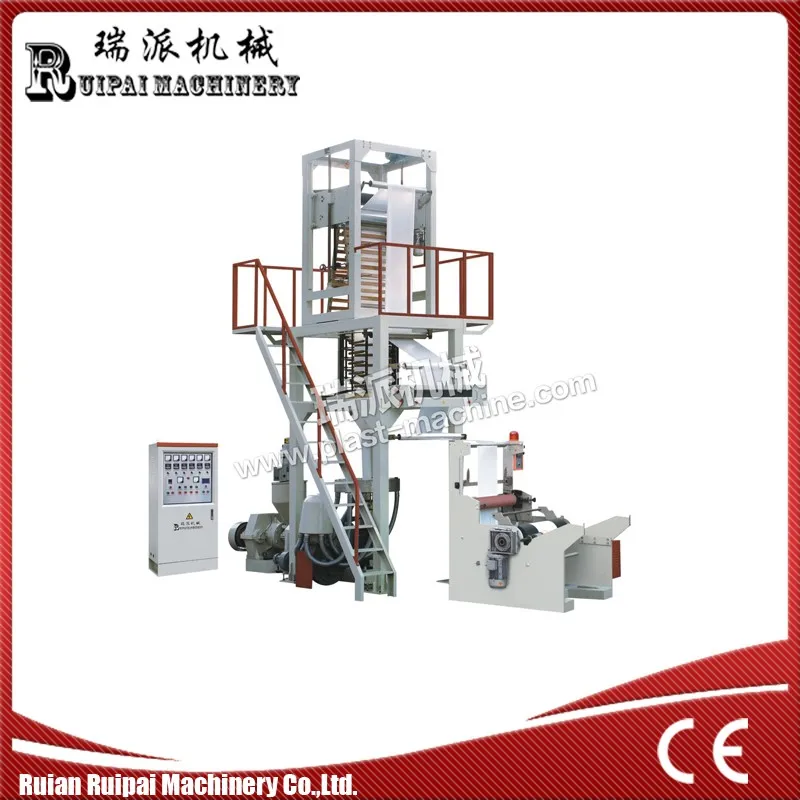

The cylinder and screw rods of extruder of this type are all made from high-quality alloy steel through nitriding and precision machining, so as to ensure optimal hardness and corrosion resistance. The extruder is lifted to 3 meters according to the technological requirements, and the machine unit adopts a lower blowing method. The winding device adopts the torque motor, and can keep suitable tension, orderly winding and convenient roll replacement. The polypropylene film blowing machine unit with rotary machine head is used to blow polypropylene (PP) films as well as low-density and high-density polyethylene (LDPE, HDPE) films. The films can be widely applied in packages of food, apparel, textiles, commodities, industrial products and the like.



Main Technical Variables:





Main Technical Variables :
Model	SJ-60/FM600	SJ-75/FM800
Screw diameter(mm)	60mm	75mm
Screw L/D Ratio	L/D28:1	L/D28:1
Screw rotation	10-100r/min	10-100r/min
Power of main motor	15kw	18.5kw
Max Output	38kg/h	46kg/h
Rotational Mode of Machine Head	360 degree rotary	360 degree rotary
Film Thickness	0.015-0.08mm	0.015-0.08mm
Max Film Folding width	600mm	800mm
Total Power	28kw	36kw
Machine of weight	2900kg	3500kg
Overall Dimension(L×W×H)	4800×2000×4000mm	5000×2200×4200mm
Design and specifications are subject to change without notice.
