Горизонтальная шлифовальная машина LBH100

Описание и отзывы

Характеристики

Horizontal Line Honing Machine  LH50



 MACHINE SPECIFICATIONS
• Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in) Special tooling required for 127 – 178 mm (5.000 to 7.000 in)
• Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm (45 in) long, 710 mm (28 in) from head deck to main bearing centerline.

FEATURES & BENEFITS
• Minimum stock removal, usually less than .003" (.076 mm) off the caps compared to as much as .010" (.254 mm) with boring
• Maximum precision, corrects distortion caused by warpage and cap stretch
• Meets or exceeds original factory accuracy for alignment, roundness and size
• Fast, easy setup
• Ease of operation, no special training required
• Profitable: Make $90-$120 in 30 minutes on a typical V-8 block
• Lifetime application service with every machine purchase





Model	LBH100 (LH50)
Diameter of honing hole	46-178mm
Rotational speed of spindle	150r/min
Electric motor power of spindle	1.5KW
Cooling pump power	0.12KW
Inner working area size(L*W*H)mm	1140*710*710(mm)
Overall dimensions(L*W*H) mm	3200*1480*1920(mm)
Max travel of spindle	660mm
Minimum amount of Coolant	130L
Maximum amount of Coolant	210L
Weight of main machine(approx)	N.W 670kg        G.W800kg

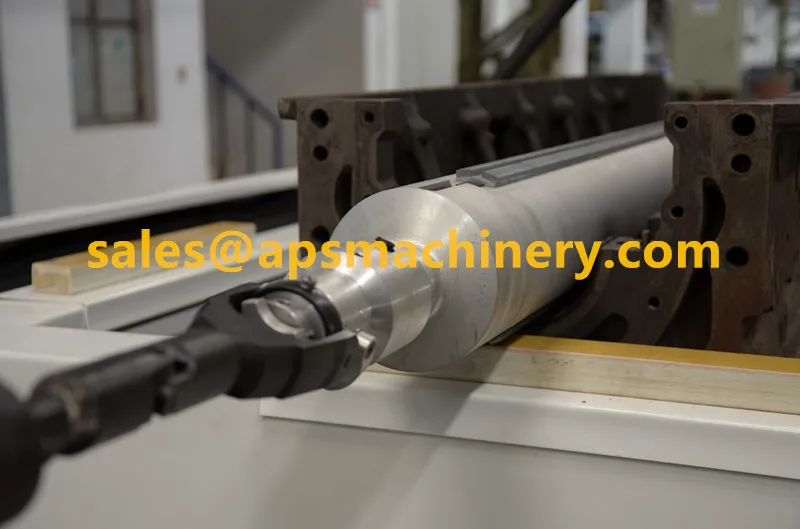

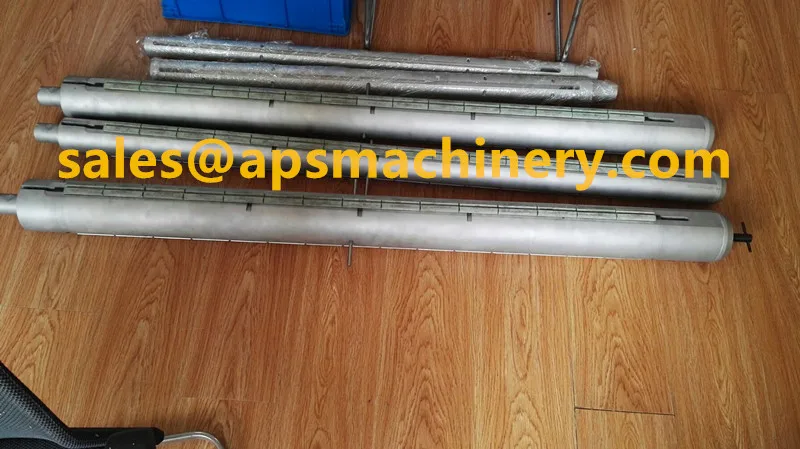

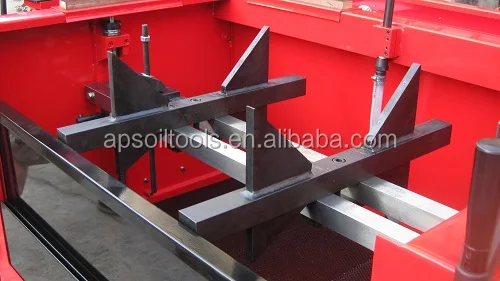

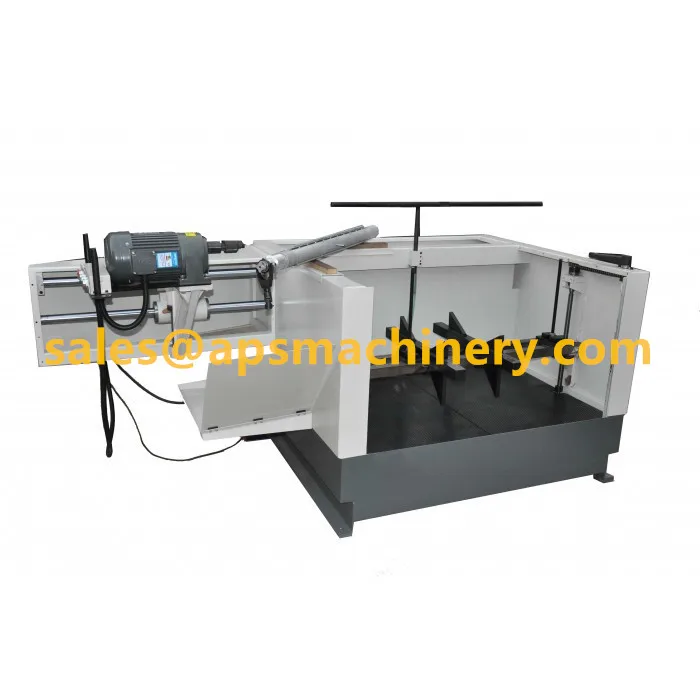

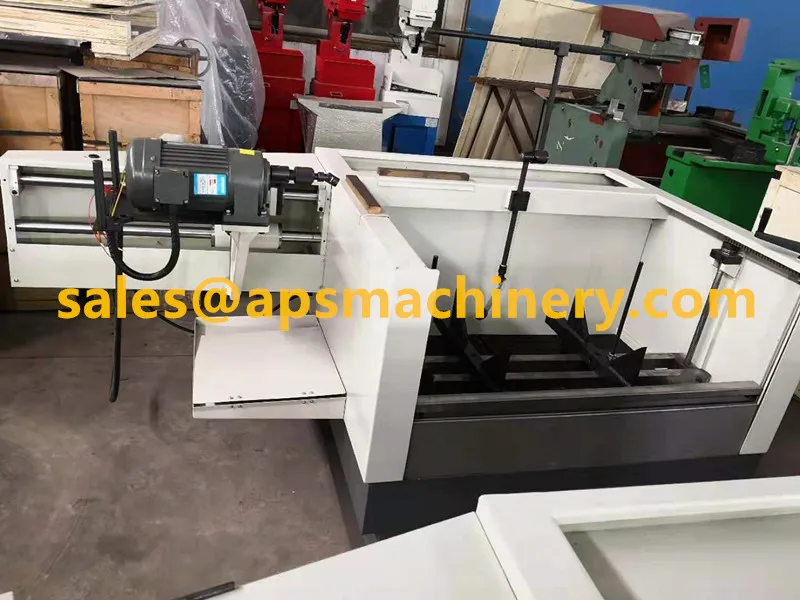

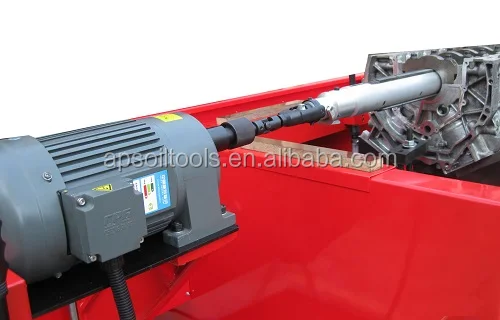

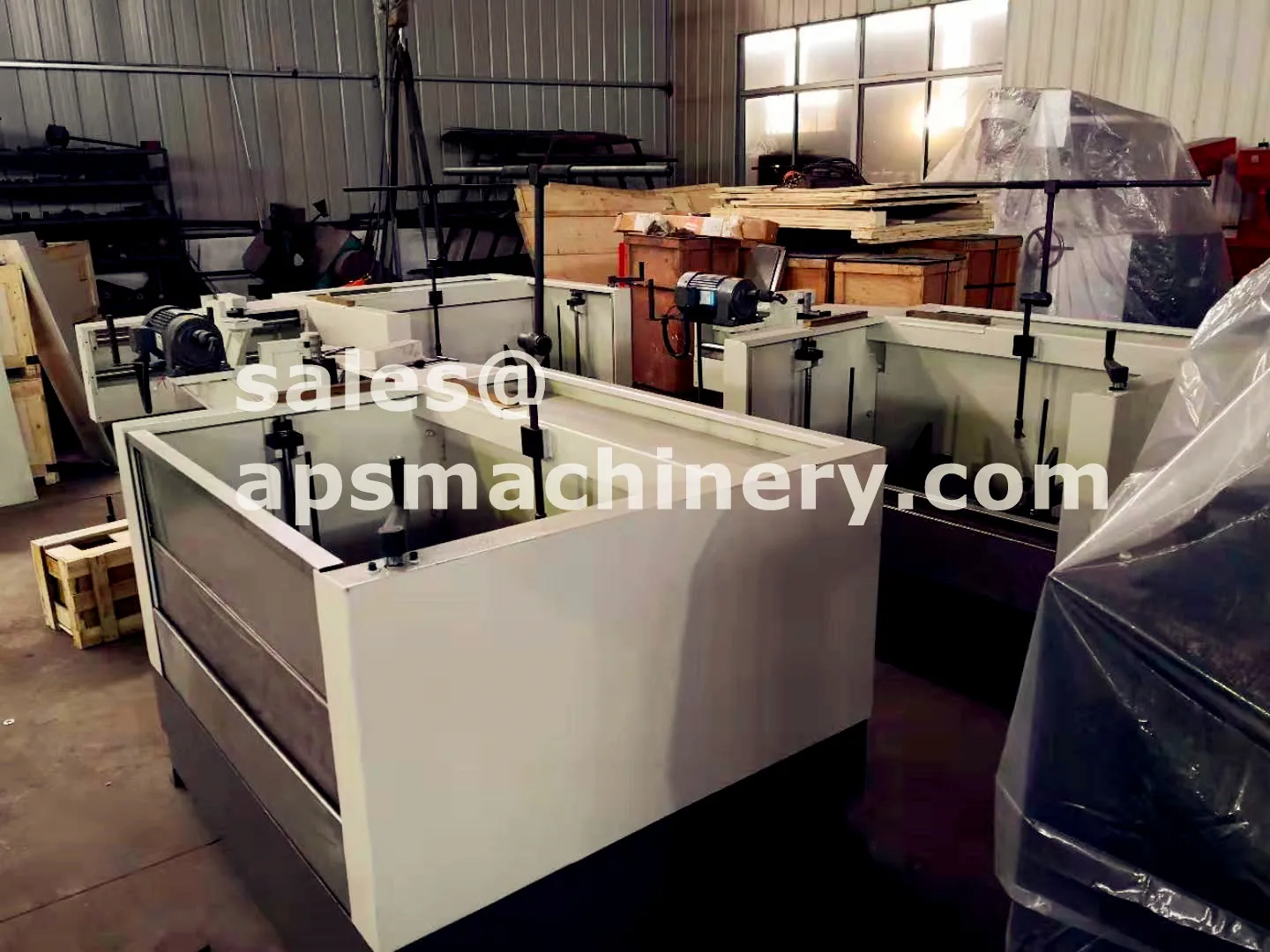

Machine photos:

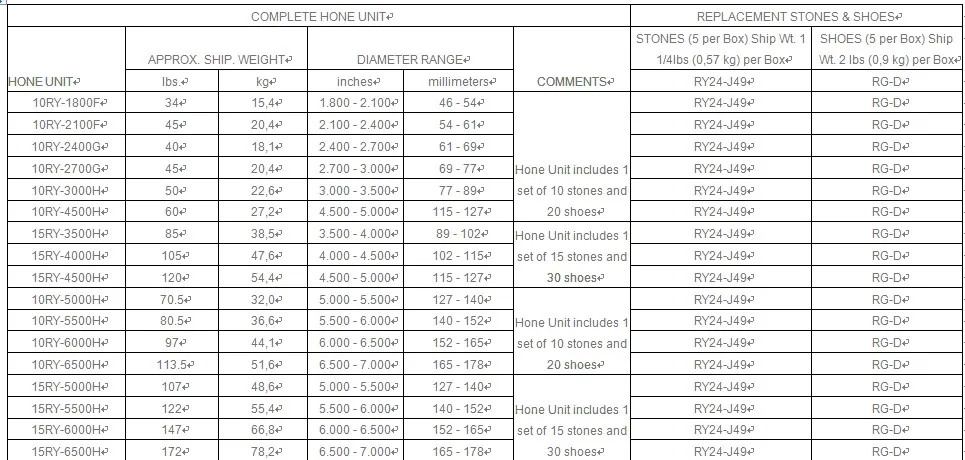

Hone Unit Selection
