wooden ruler pad printing machine, pad printing machine
wooden ruler pad printing machine application:
This item is well-designed and universal type which apply for necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages ETC
Material:
Plastic, ceramic, metal, glass, wood, Painting surface etc.
wooden ruler pad printing machine Feature:
1 The printing speed is swift. A few pieces of machine can make up a produce line.
2 Having a good location. The worktable as adjustable for its front/black, left/ right and any angles.
3 This is machine is Semi-automatic, having automatic counter for 4 digits;
4 The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

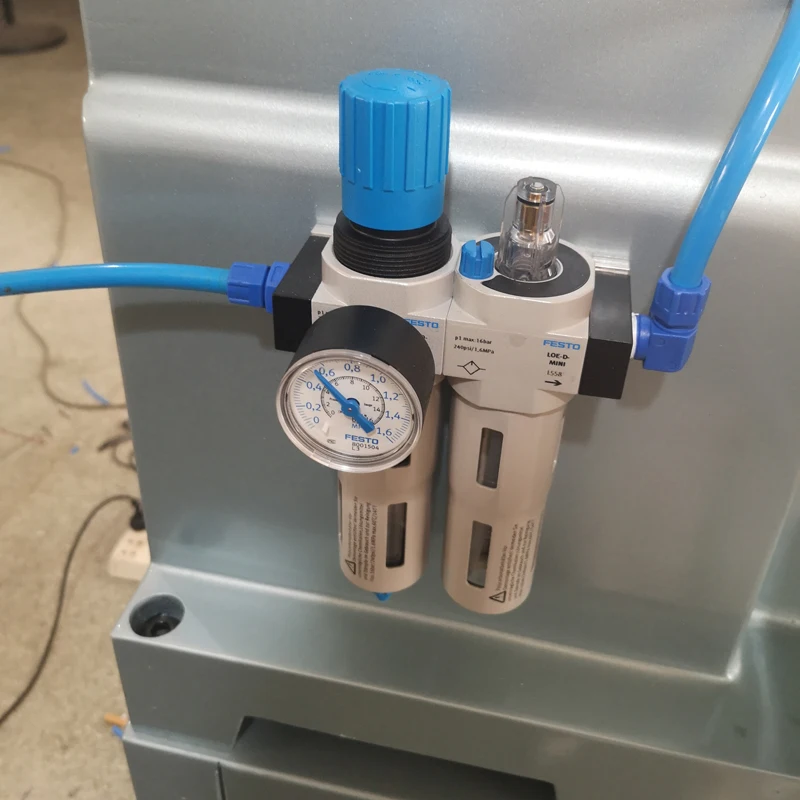

5 The cylinder of Machine is Germany FESTO.
6 The body is Alloy Cast Aluminum, then it is lighter and durable. The color of body is by powder spraying, which is precise and more nice;
wooden ruler pad printing machine Parameter:
Item Number: | UP-160AEF |
Printing colors: | ONE |
Printing Speed | 1200pcs/ hour |
Max metal plate: | 75x 600mm |
Max printing Size: | 50x 400mm |
The stroke of pad | 160mm |
Ink Cup Dia. | 60mm |
Max height of products | 200mm |
Stroke of ink cup is adjustable | 400mm |
Air consumption | 2.1L/ Cycle |
Air supply | 6 bar |
Voltage of source | 220V/ 110V 50/60HZ 1 Phase 20W |
Net Weight | 116 KGS |
Dimension: | 900mm X 775mm X 1420mm |
