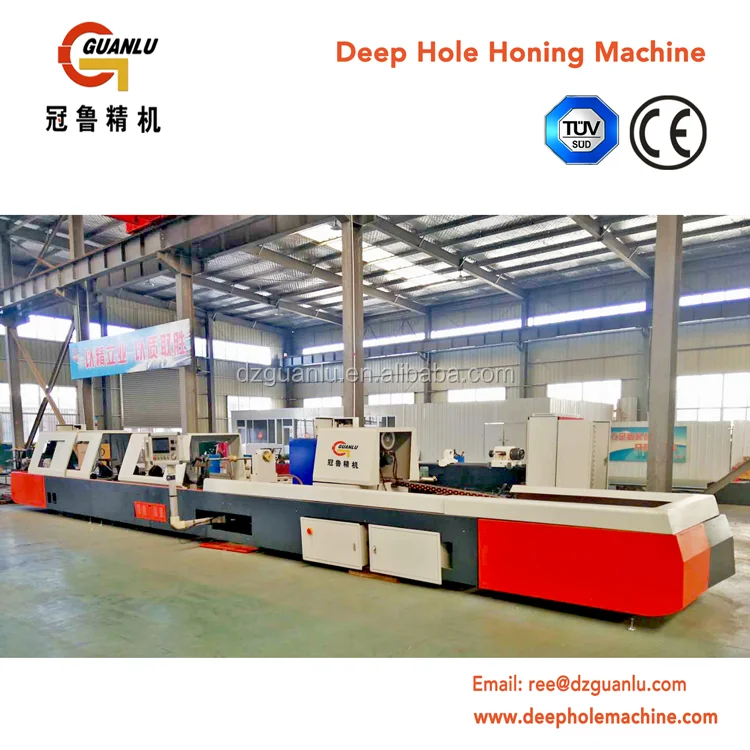

Хонинговальный станок с ЧПУ для гидравлической цилиндрической

CNC honing machine for hydraulic cylinder pipe

 Machine character:

2M2120 deep hole honing machine is suitable for cylindrical jobs honing and polish process, and also works for precision parts, after work by the machine, the hole accuracy can be up to IT6~IT7, surface roughness can be up to Ra0.2-0.4μm.It adopts partial honing, the parts can be modified by processing the taper, ellipticity and local aperture error, the honing machine is an ideal device for high precision and high efficiency, we adopt PLC control of Delta, running steady, easy to adjust the speed. It is easy to warranty the hole size accuracy and reduce labor intensity.

When working, the machine use honing stone to hone, the honing bar box reciprocating move, which can make sure the efficient.

Machine main technical parameters:

Cylinder Honing Machine Production Process:

Machine structure:

Honing box:

We use 7.5kw motor drive spindle box to send turning and torque to the honing bar, tuning speed is 25~250r/min.

Carrier reciprocates system:

Carrier reciprocates movement driven by servo motoring gearbox.

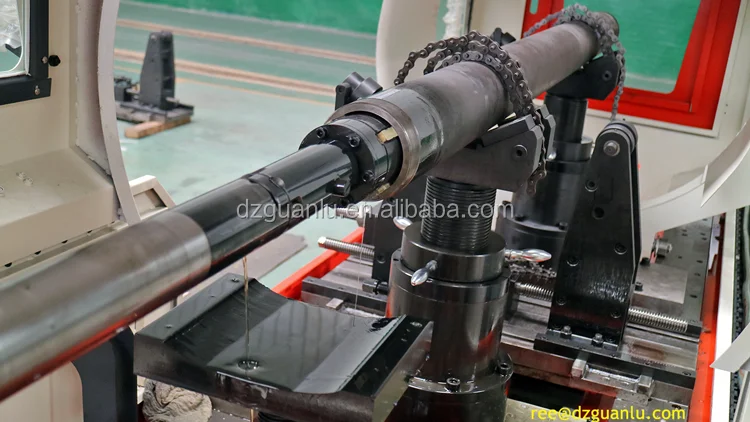

Honing head support rest :

Position in front of the carrier working table, installed on the railway, height can be adjusted.

Coolant system:

Coolant system use three grades filtering, filtering size is less than 30μm.

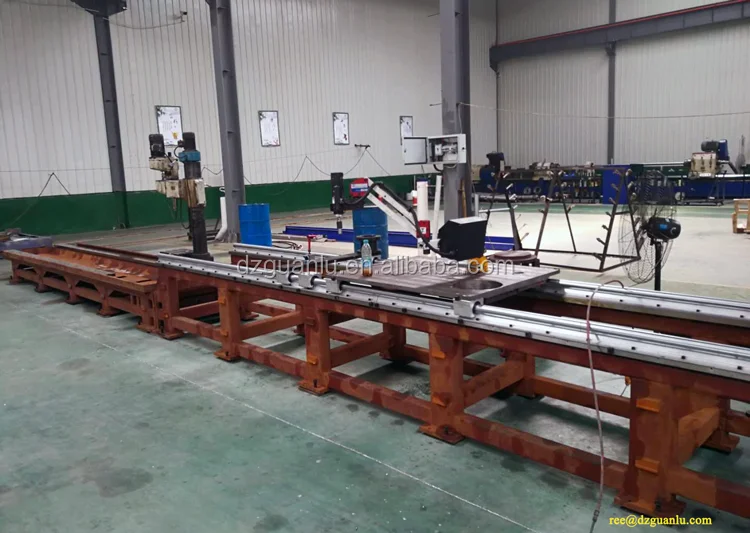

Machine bed body:

Use strongly machine body, carrier body installed linear guide rail, with a long lifespan and high accuracy.

Electric part:

The machine uses PLC system control, automatically control.

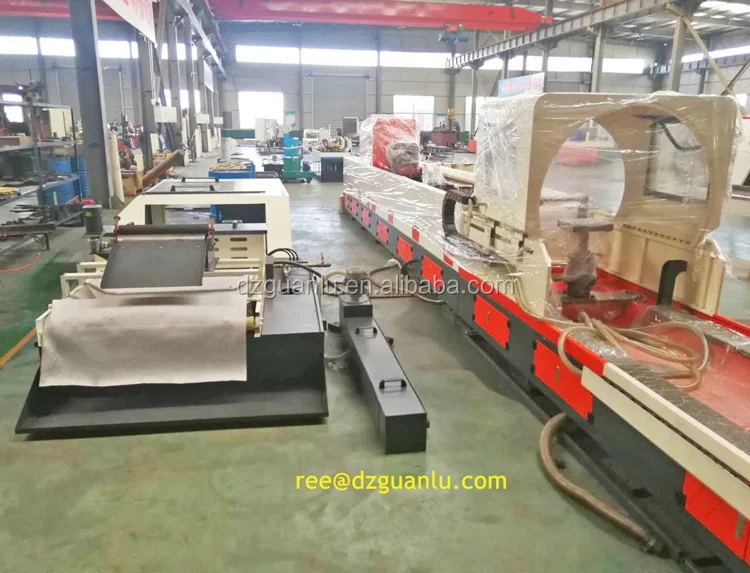

Deep Hole Honing Machine Assembling:

Cylinder honing machine tools(As per buyer’s processing range)

 Machine main parts and quantity:

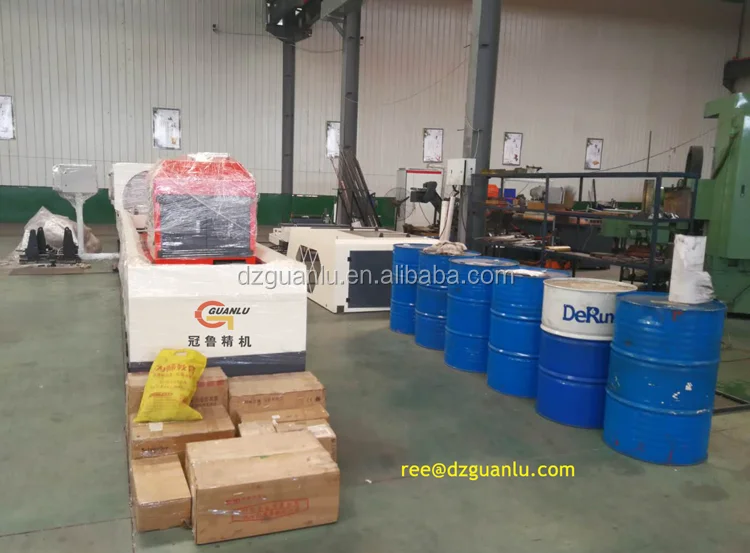

 Cylinder Honing Machien Packing:

Cylinder honing machine transporting:

Guanlu Precision has been engaged in the Deep Hole Processing Machine Tools manufacturing and exporting since 2009. Our machines are running well in more than 20 countries all over the world( including France, Singapore and etc).

We have built very good and long-term business relationships with our customers. And they are satisfied with our machine’s high performance very much. too.

Our experienced engineering design team can work out the best solutions as per the customer’s processing requires. We have one well-trained fitters team and qualified inspectors for machine assembling quality controlling.

The after sales team consists of 1-2 machinists/engineer and 1 translator(Chinese vs English), can supply on-site machine commissioning, maintaining and operators training services all over the world.

Customers Factory Visiting:

Now for more details, welcome send me inquiry below!
