Хонинговальный станок для гидравлических цилиндров с глубоким

Machine character:

2M2120 deep hole honing machine is suitable for cylindrical jobs honing and polish process, and also works for precision parts,after worked by the machine,the hole accuracy can be up to IT6~IT7,surface roughness can be up to Ra0.2-0.4μm.It adopts partial honing,the parts can be modified by processing the taper, ellipticity and local aperture error, the honing machine is an ideal device for high precision and high efficiency ,we adopts PLC control of Delta,running steady,easy to adjust the speed. It is easy to warranty the hole size accuracy and reduce labor intensity.

When working, the machine use honing stone to hone,the honing bar box reciprocating move,which can make sure the efficient.

Machine structure :

• Honing box:We use 7.5kw motor drive spindle box to send turning and torque to the honing bar,tuning speed is 25~250r/min.
• Carrier reciprocate system:Carrier reciprocate movement driven by servo motoring gear box.
• Honing head support rest :Position in front of the carrier working table,installed on the rail way,height can be adjusted.

•  Coolant system:Coolant system use three grades filtering,filtering size is less than 30μm.

• Machine bed body:Use strongly machine body,carrier body installed linear guide rail, with long lifespan and high accuracy .

• Electric part:The machine use PLC system control,automatically control.

Machine main technical parameters :

Honing machine tools:

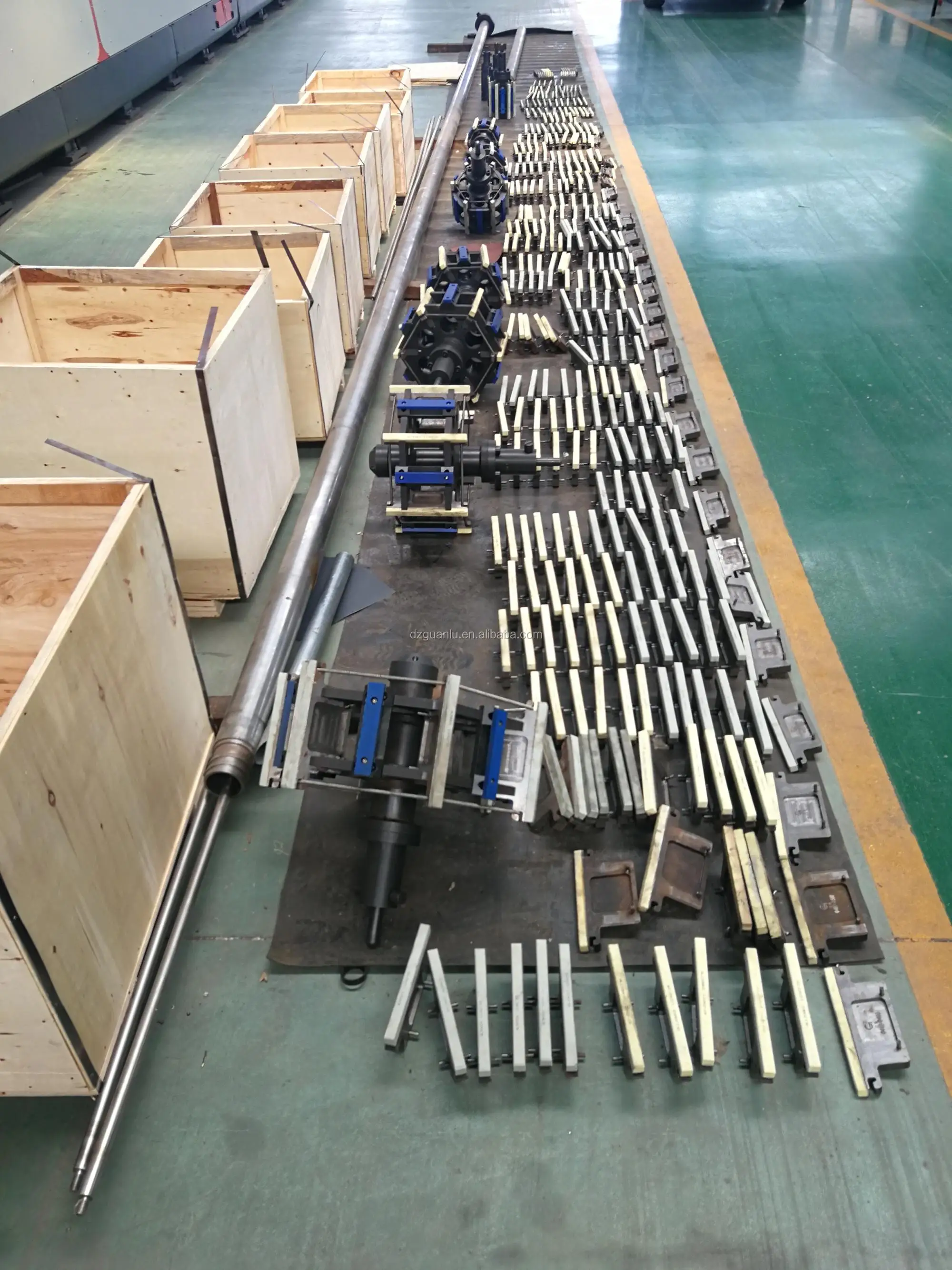

Machine main parts and quantity:

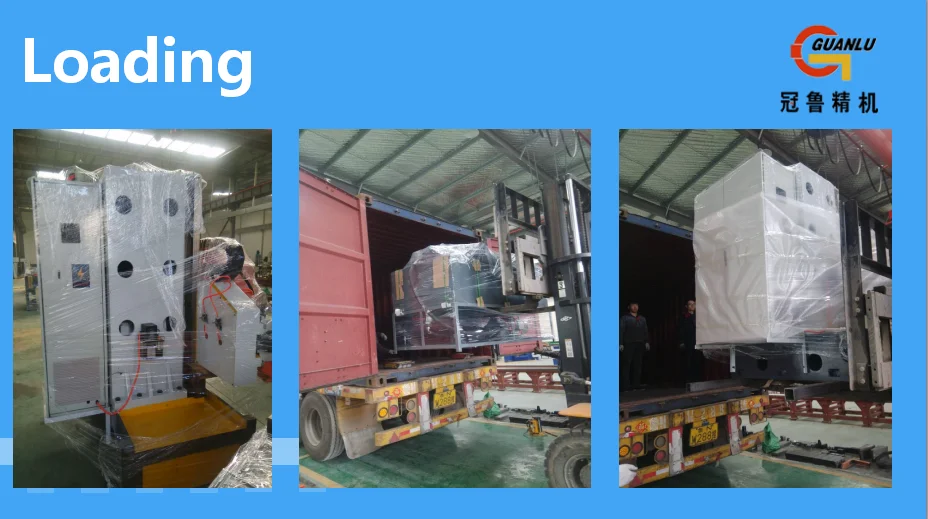

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.

1. Q: How about the payment terms?

   A: We accept T/T 30% prepaid when ordering, the balance paid before shipping.

2. Q: How about the delivery time?

A: Normally, 4-6 months after the deposit.

3. Q: How about the after-sale services?

A: We supply on-site commissioning, operators training, and maintaining services.

4. Q: How about the technical supports?

A: While the customer is meeting the technical problems in processing, our engineer will try their best to give them suggestions and supporting. This is for free to our customers.

Dezhou Guanlu Precision Machinery Co., Ltd. located in Dezhou, Shandong, is a professional manufacturer of deep hole drilling machine (gun drilling machine), deep hole boring machine, deep hole drilling and boring machine, deep hole honing machine, deep hole skiving roller and burnishing machine as well as their relative accessories, such as gun driller sharpen device, BTA deep hole indexable drill head, deep hole boring head, deep hole pressing head and so on. Our company can also offer the customized deep hole machine solutions according to the customers' requirement.

In order to equips suitable deep hole machine tools for our customers, we have workshop to manufacture the cutting tools and accessories. So customer can inform the exactly deep hole diameter and workpiece dimension, we can provide the cutting tools and accessories to them accordingly.

Welcome to visit our factory. And thanks for choosing our deep hole machinery

Any question about deep hole driilling machine, feel free to ask me!
