Brief Introduction
INTRODUCTION

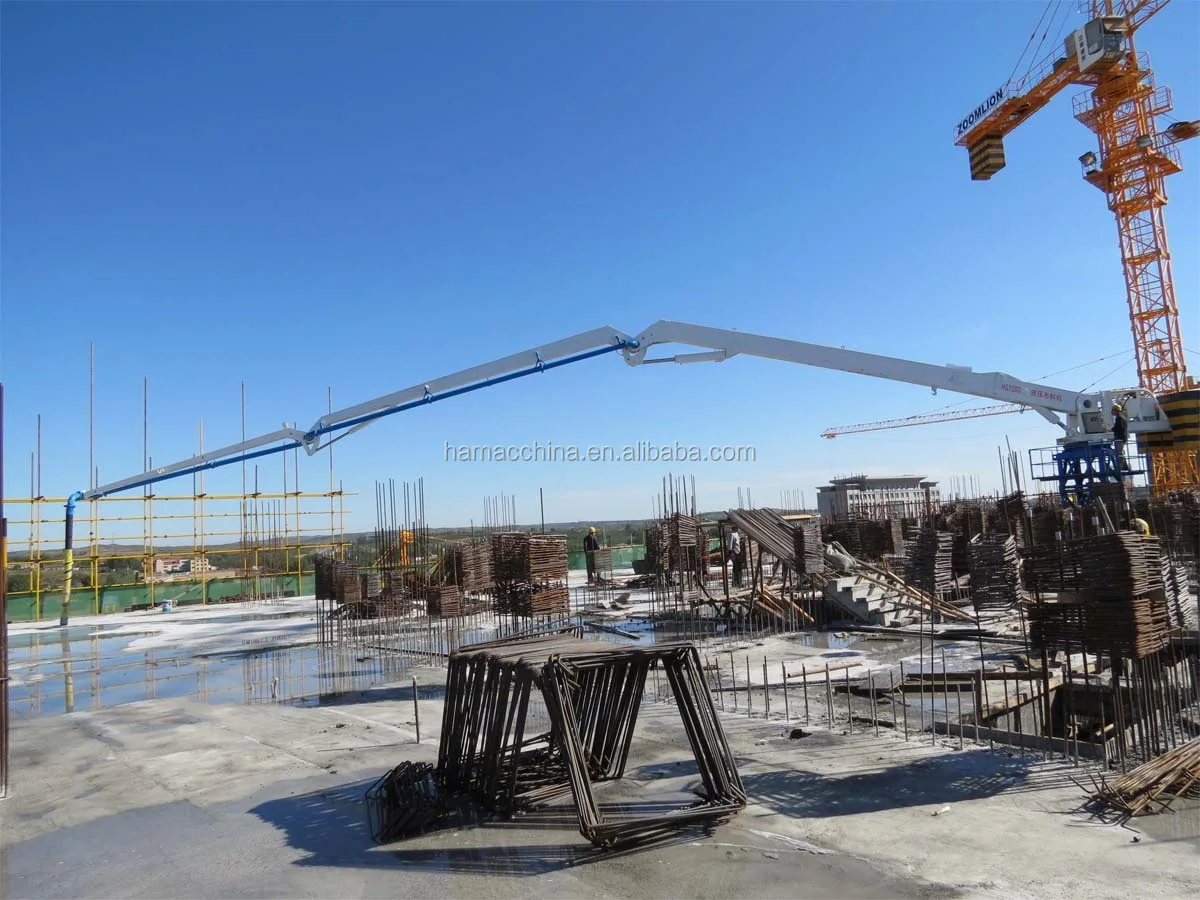

Concrete placing boom is the end equipment for concrete pumping, its effect is place the concrete from concrete pump into the mould or different places via the pipe which is installed on the boom. It is widely used in the high-rise building construction. It is fixed in the elevator shaft, equipped with automatic climbing device. It will be elevated in the elevator shaft by the hydraulic oil cylinder accompany with the floor rises.
PERFORMANCE
1. Reasonable design, stable structures and reliable work performance;
2. Adopt 360° full rotary placing boom, the rotation is flexible;
3. Improve the placing precision and reduce the hose shaking. Apply to the elevator shaft and floor can open the hole of high-rise building construction.
Manufacturing

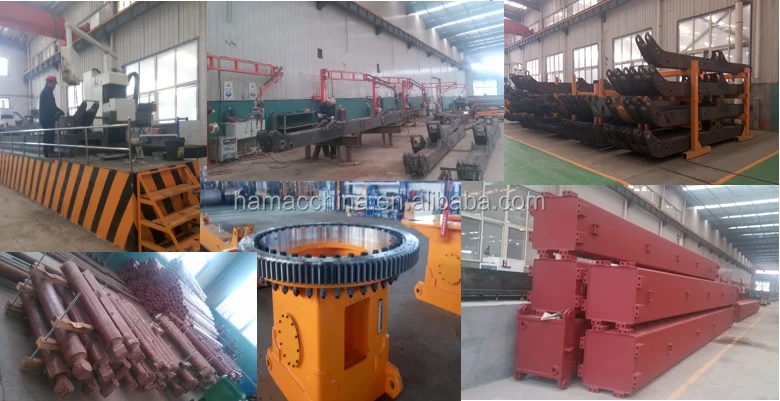

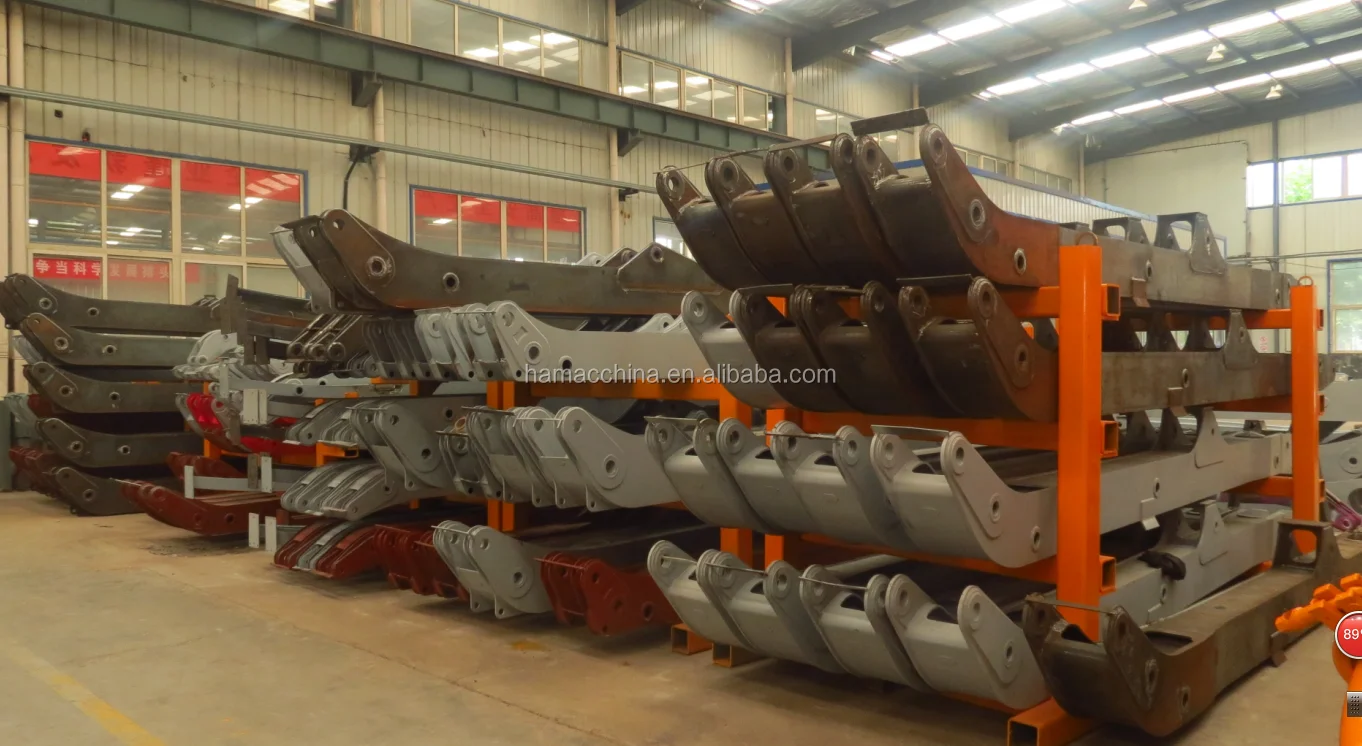

MANUFACTURING PROCESS

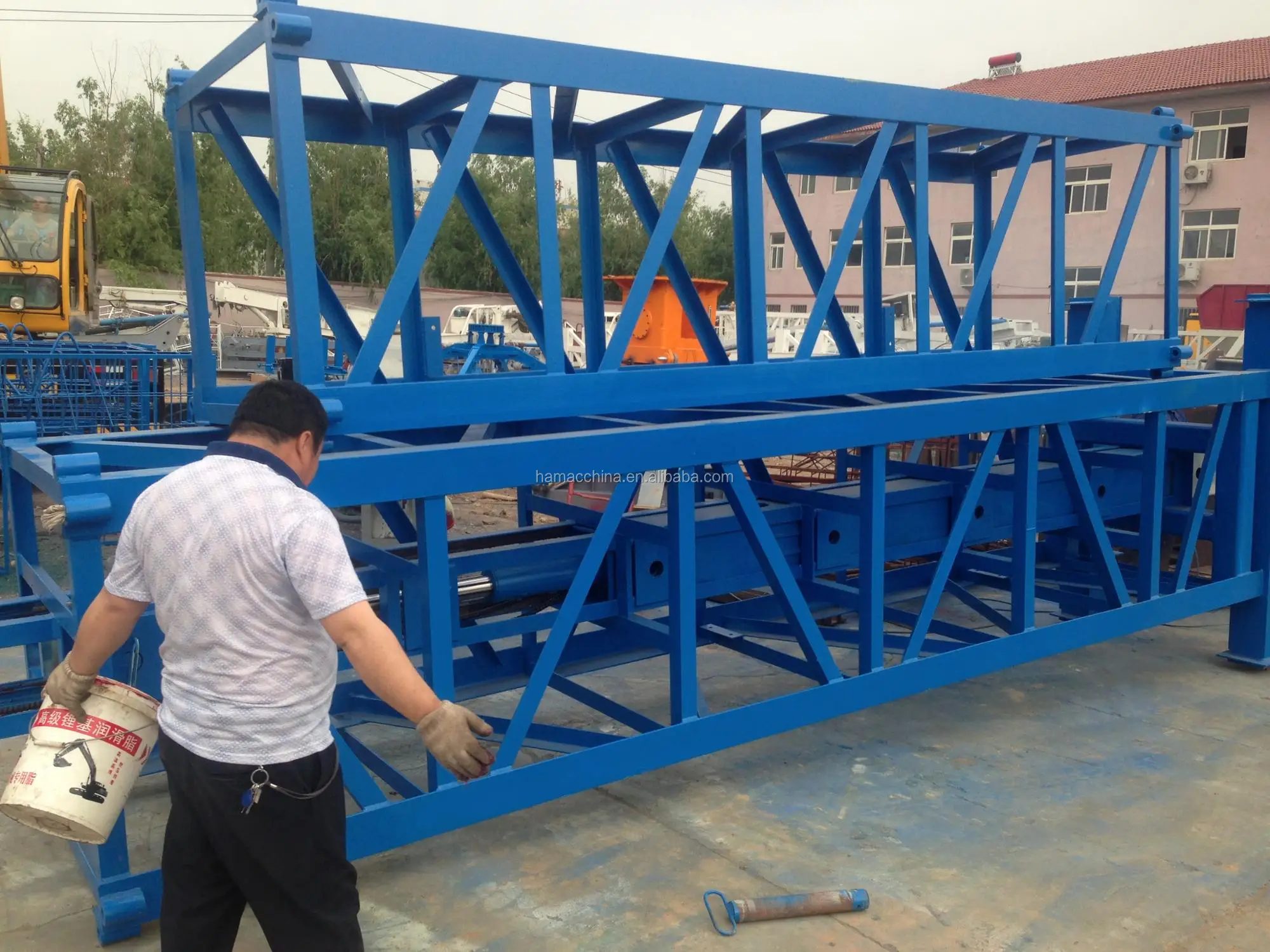

For every concrete placing boom production procedure, we have a strict quality control and assurance to confirm all the concrete placing boom from HAMAC is good quality. You can see the manufacturing procedure and quality control process from the below pictures.

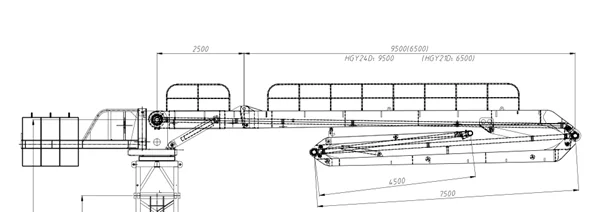

Specification
SPECIFICATION
Item | HGY24D |
Max. placing radius（m） | 24 |
Big arm length（m） | 12 |
Big arm elevation（°） | 0～65 |
Medium arm length（m） | 7.5 |
Medium arm elevation（°） | 0～180 |
Small arm length（m） | 4.5 |
Small arm elevation（°） | 0～180 |
Hose length（m） | 3 |
Concrete delivery pipe（mm） | ø125×6 |
Tail Rotary radius（m） | 3.9 |
Total Power（Kw） | 5.5 |
System Pressure (Mpa) | 24 |
Rotary speed（r/min） | 0.3—0.8 |
Rotary range（°） | 0～360 |
Lifting speed（m/min） | 0.65 |
Lifting height(m/time) | ≤4 |
Overall height（m） | 13.3 |
Bare machine weight（kg） | 9500 |
Balance weight（kg） | 3×2000 |
Control mode | Panel/ Wireless remote control |

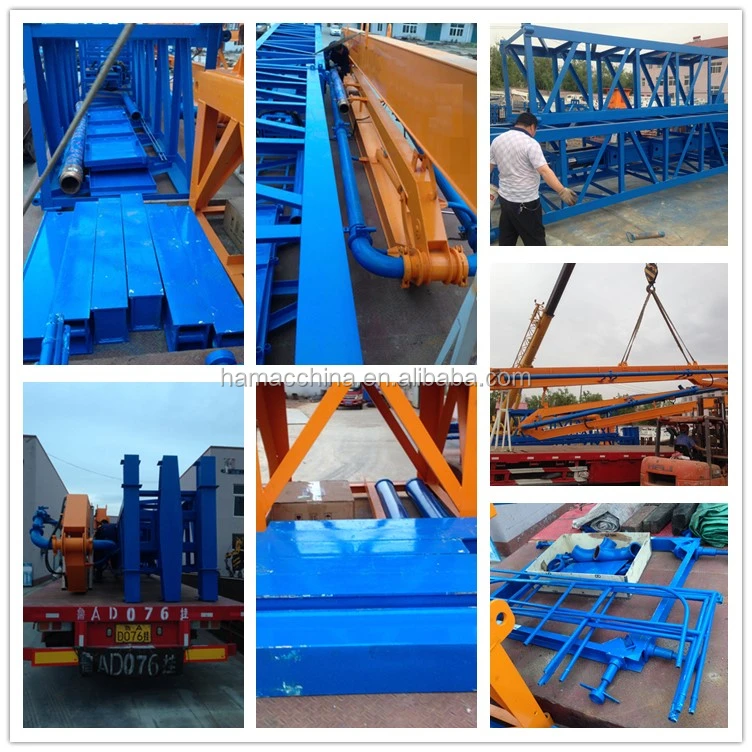

Packing &Shipping
GOODS DELIVERY

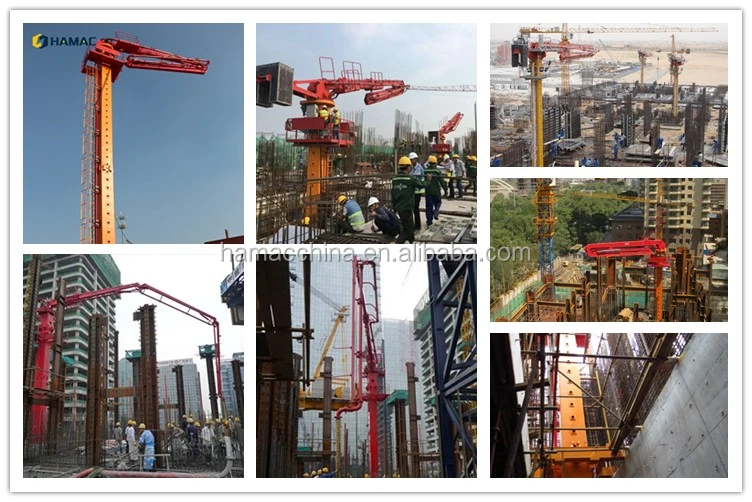

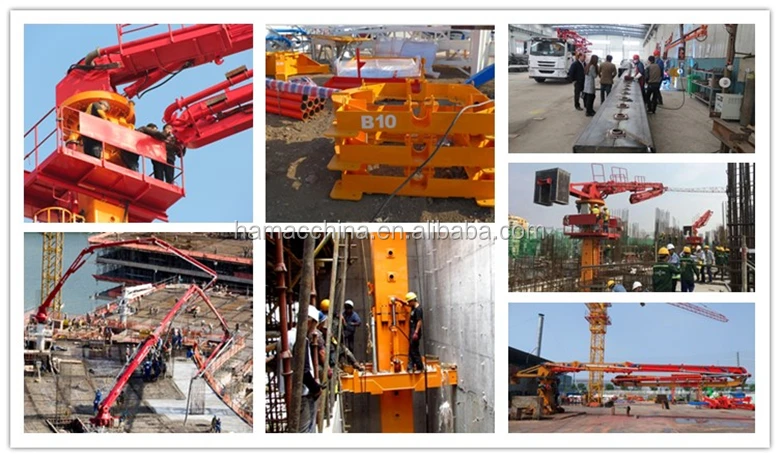

Global Cases
SUCCESSFUL CASES
CUSTOMER VISIT US
Why Choose Us
ABOUT HAMAC
HAMAC follows its strict Quality Control system obediently which guarantees the premium quality of our products. Oriented by the requirements from our clients, we are able to customize the products to fit the demand. With over decade experience on international business trade on machinery of our staff, we are able to provide the solutions to all your problems regarding to the international trade.
PRODUCTION BASES
We have different products bases in different cities in China. Our main products are concrete batching plant, different concrete mixers, concrete pumps, concrete placing boom, truck mounted concrete boom pump etc. In addition to this, we also provide clients with complete solutions which cooperates with our sister companies.
Inquiry
CONTACT US
You can contact our head-office directly, also you can contact the oversea-offices which is near you. Of course, free live-chat is available and you can get help immediately.
