 17m Concrete tower placing boom







FOCUS Hydraulic Drive Concrete Placing Boom:

Mobile Placing Boom: It can be placed in suitable construction sites required without being fixed. It features compact structure, light weight and can be lifted as a whole by a crane. With excellent maneuverability, it can meet the requirements for concrete placement on different jobsites, and is ideal for concrete pumping and placing. Easy operation, reliable safety and economical purchase.

Wheels Walking Type Concrete Placing Boom: This type is compased of the parts as placing boom unit, slewing bearing, body, support, concrete pipeline, hydraulic system, electric control system and traction chassis, etc.

With 3 section R-type placing arm structure, achieving 3 arms actions and slewing bearing rotary by hydraulic system, by clewing bearing rotating and arms acting, it can delivery concrete to the required construction site.

It is widely used in concrete pouring construction projects owing to easily moving, The wheels walking type concrete placing boom has dragged mechanism, can quickly and easily move to palcing concrete, and it also can do the tranitions between short distances by tranctor pulling, in a relatively short time to complete the transfer of the machine.

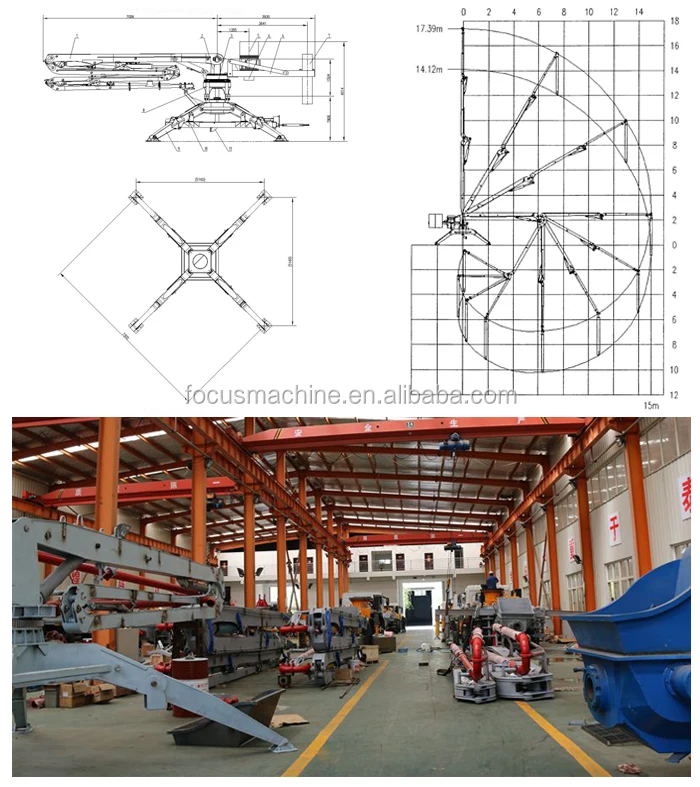

FOCUS Concrete placing boom Technical Parameters:

Item	Unit	Models and parameters
		HGY15	HGY17	HGY18
Max. placing radius	m	15	17	18
Big arm length	m	6	6.66	7.66
Big arm elevation	°	0~70	0~65	0~65
Medium arm length	m	5	5.73	5.73
Medium arm elevation	°	0~180	0~180	0~180
Small arm length	m	4	4.61	4.61
Small arm elevation	°	0~180	0~180	0~180
Hose length	m	3	3	3
Concrete delivery pipe	mm	ø 125×6	ø 125×6	ø 125×6
Tail rotary radius	m	2.81	3.51	3.93
Total power	Kw	4	5.5	5.5
System pressure	Mpa	24	24	24
Rotary speed	r/min	0.3—0.8	0.3—0.8	0.3—0.8
Rotary range	°	0~360	0~360	0~360
Mast section	m	1.2×1.2×3	1.2×1.2×3	1.2×1.2×3
Bare machine weight	kg	3000	4800	5200
Balance weight	kg	2×1100	2200	2×1100
Control mode		Panel/ Wireless remote control

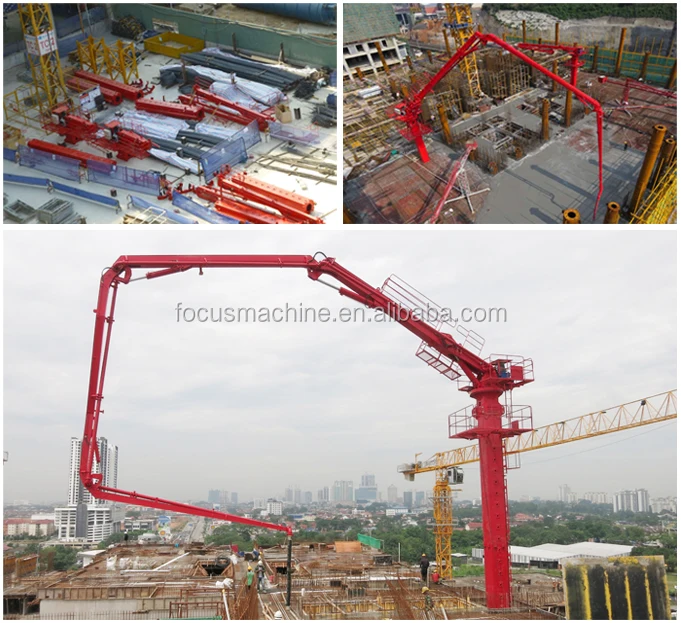

Our Concrete Placing Boom have been installed and operated all over the world:

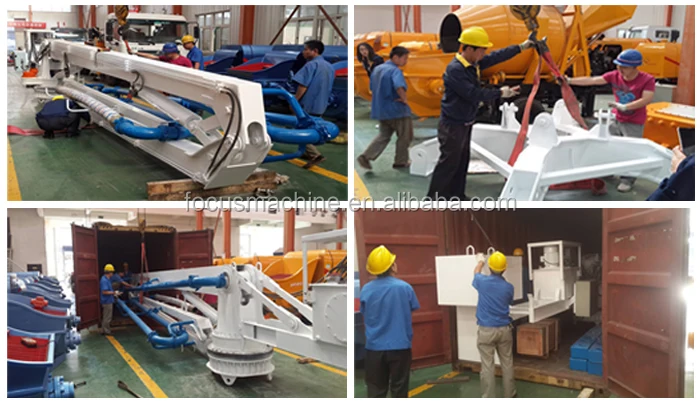

Our Concrete Placing Boom have been delivered /distributed to the world and received high reputation-it’ll be such a great honor if you can join us:

Concrete Placing Boom

1.High quality and good price

2.Great after-sale service

3.ISO CE and CE certified,12 months warranty
