China Supplier Factory 18m mobile electric concrete boom placer trucks made in China
It can be placed in suitable places required without being fixed.
It features compact structure, light weight and can be lifted as a whole
by a crane.With excellent maneuverability, it can meet the requirements
for concrete placement on different job sites, and is ideal for concrete
pumping and placing. Easy operation, reliable safety and economical purchase.
Main technology parameters of HG36 :
Model | HG36 | |
Delivery pipe dimension (outside diameter × thickness) (mm × mm) | Φ133×4 | |
Radius of placing boom (m) | 35.7 | |
Stationary height (m) | 40 | |
Max. attached height (m) | 150 | |
Three hydraulic foldable arms | 1st section | 8.85 |
2nd section | 7.62 | |
3rd section | 7.74 | |
4th section | 7.79 | |
Boom articulation | 1st section | -4°~+87° |
2nd section | 0°~180° | |
3rd section | 0°~180° | |
4th section | 0°~270° | |
Slewing range (°) | 360 | |
Power of motor (kW) | 15 | |
Pressure of hydraulic system (MPa) | 35 | |
Type of hydraulic oil | ESSO NUTO H46 | |
Interval of climbing frame (m) | Climbing | 3.0 |
Placing concrete | 6.0 | |
Resting | 6.0 | |
Mode of operation | 1. cable remote control | |
2. radio remote control | ||
Power | 380V/50Hz | |
Wind speed | Placing concrete | ≤60 km/h |
Climbing | ≤28 km/h | |
Working temperature | 0~48°C | |

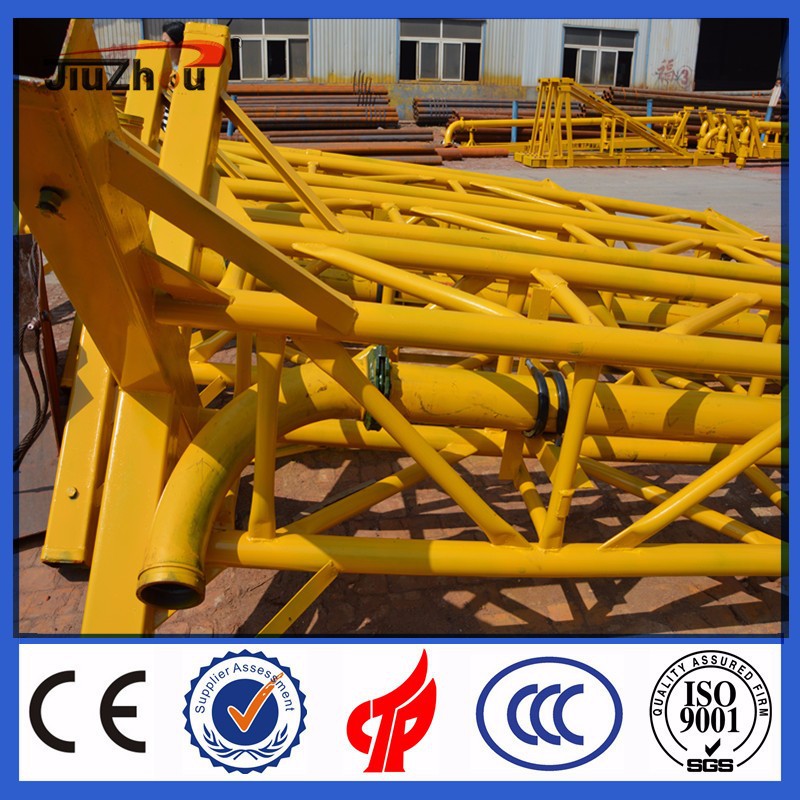

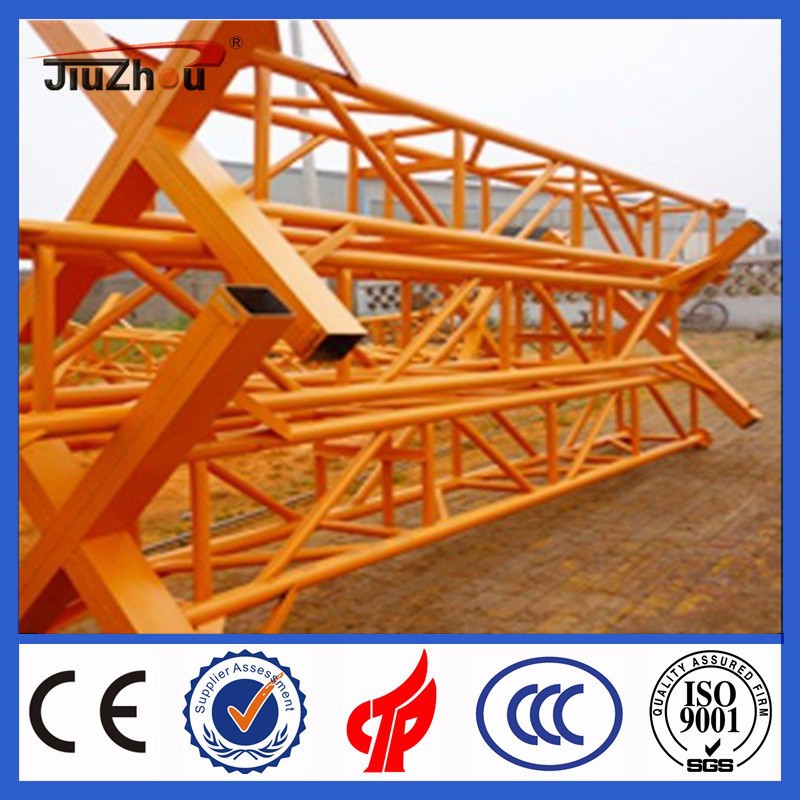

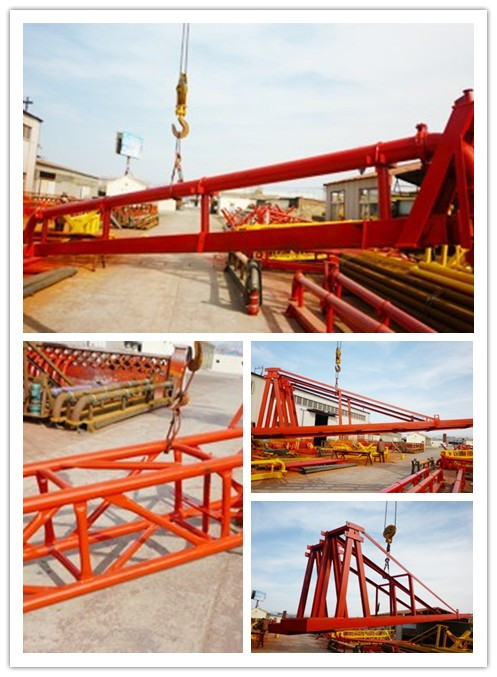

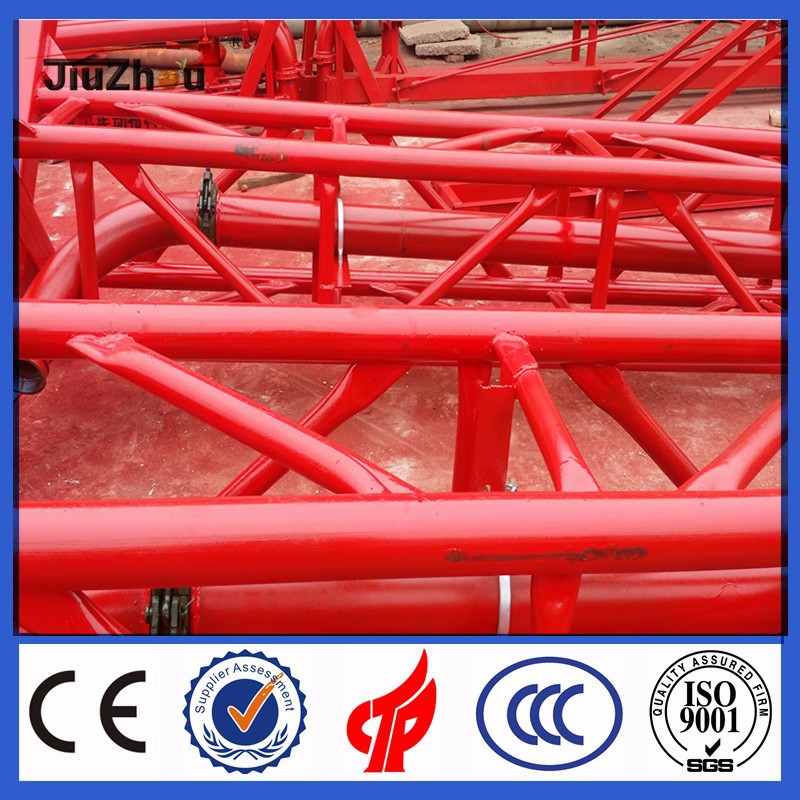

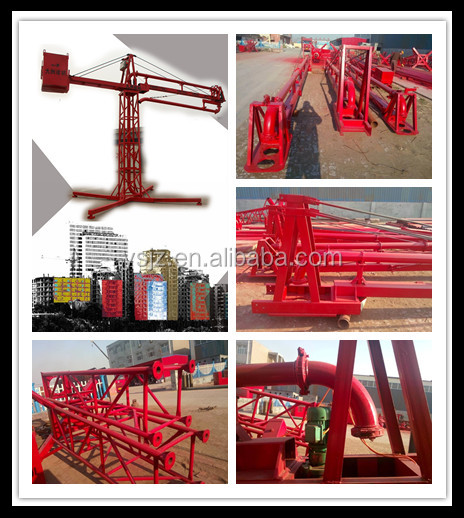

Sample pictures & Usage:

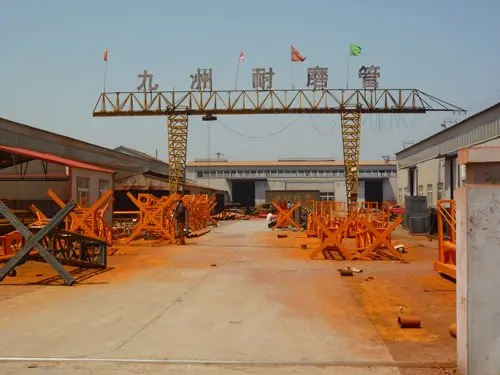

Company Information
Estabilish Year: in 1998 - 18 years experience
Factory square meters: About 20,000 square meters
Export Market: Main markets are Asia,North America, Europe, Africa and South America

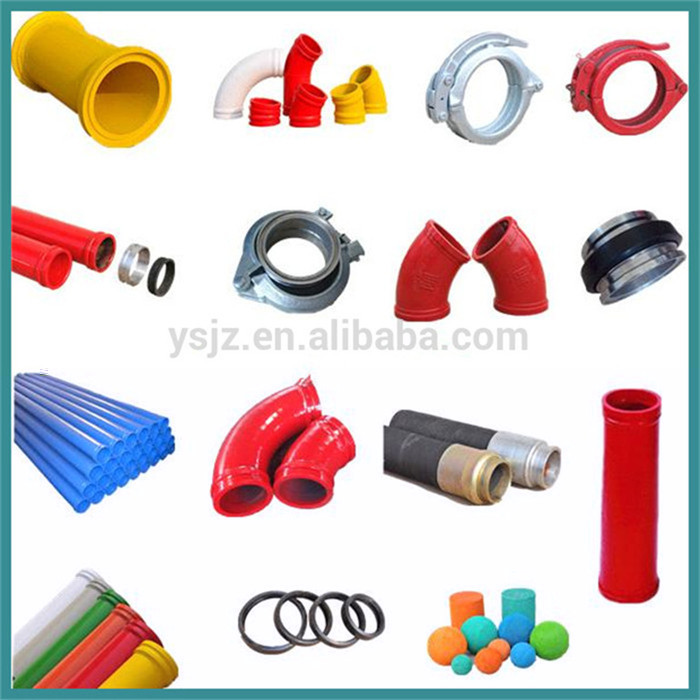

Types of Products: Concrete Pump Pipe, Elbow, Flange, Clamp, Cleaning Sponge Ball, Concrete Placing Boom, etc.
Brand of Pump Parts: Sany, Zoomlion, Putzmeister, Schwing, Kyokuto, Sermac, Xugong, etc.
FAQ
1.Are you a manufacturer or a trading company?
We are a manufacturer.
2.What is your advantage?
First we are a manufacturer, so the product price is more competitive than that of a
trading company. Second, it’s much effective to communicate with the factory, and that
will save you more time. Third, we also have several partners, supplying related products
so that can meet your need.
3.How do you regarding your product quality?
As our principle is more safety to save more. In China, there are lots of manufactures of
this line, but we are the first one that use the forging technic in producing, firmly meet the
PM standard.
4.Can I get some samples?
Of course you can. Small sample for free, but you pay the express. For some products are
not small, like concrete pump pipe, it’s very difficult to deliver one pipe of 3000mm. If it’s
possible, we’d like that you can come here to visit our factory. Welcome!
5. Where is your factory location?
Our factory is in Cangzhou city, Hebei province, China. It’s near Tianjin port, so the transportation is very convenient, 30mins by train.
6. I want to make our logo on the products, is that ok?
Yes, it’s totally ok. OEM is available from us.What you should do is send your logo,
brand name, or picture to us. And let other things leave on us.
