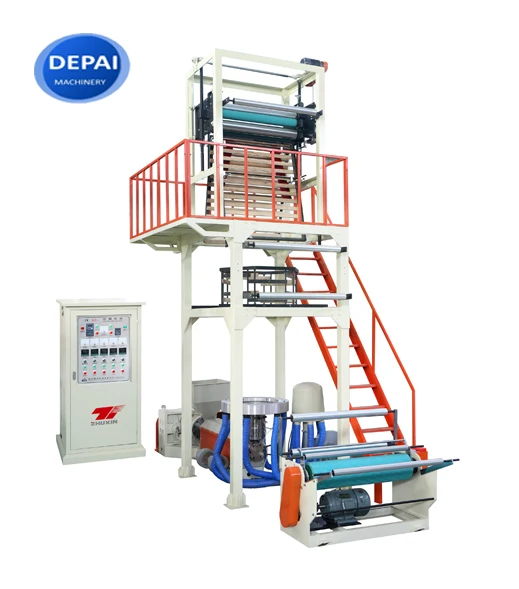

LDPE HDPE LLDPE Rotary Die Head Rotating Semi Automatic Polyethylene Pe Film Blown Machine

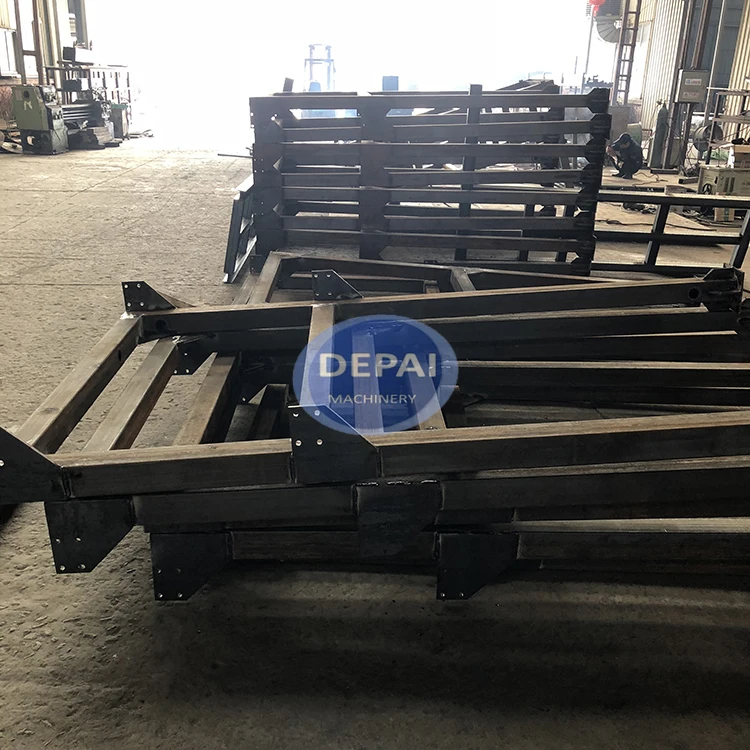

The machine body is made of square steel, with frequency converter controlled traction, friction single winder and elevator, which is suitable for blowing HDPE/LDPE industrial and agriculture film.







Model	DP-L45	DP-L50	DP-L55	DP-L60	DP-L65	DP-L70
Suitable material	HDPE,LDPE,LLDPE
Reduced diameter of film(mm)	200-500	300-600	400-800	300-900	300-1000	400-1200
Film thickness of (mm)	HD:0.009-0.05  LD:0.02-0.15
Max.output(kg/h)	HD40	HD 45	HD 55	HD 60	HD65	HD70
	LD45	LD 50	LD 60	LD65	LD70	LD75

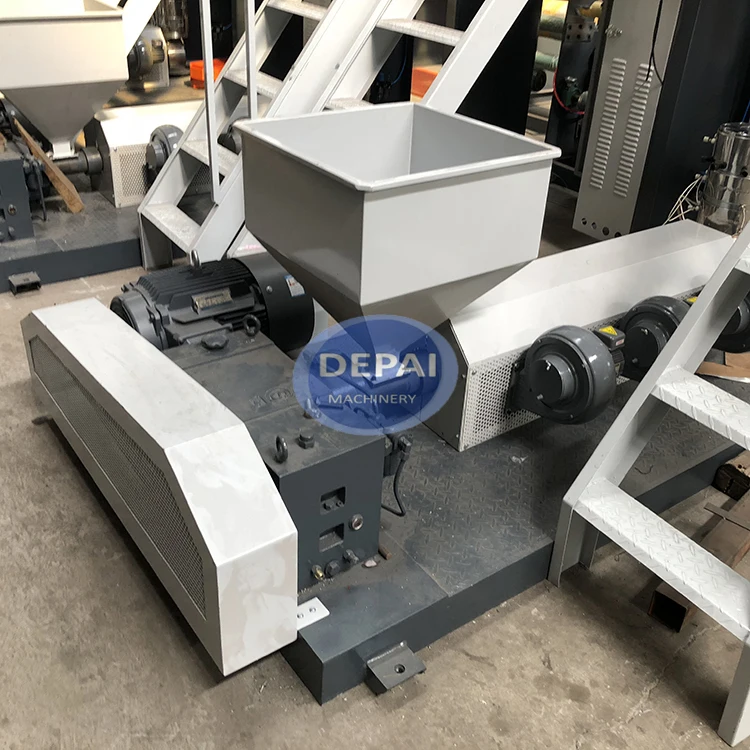

Extruder
Screw diameter	45	50	55	60	65	70
Screw L/D	28:1/30:1
Screw material	Sacm-645/38 crmoala
Cylinder material	Sacm-645/38 crmoala
Cylinder cooling(w)	250*2	250*2	370*2	550*2	550*3	550*3
Main motor(kw)	7.5	11	15	18	22	25
Cylinder temperature control	3	3	3	3	3	3
Average power consume(kw)	10	12	18	25	30	32
Type of die
Die size(mm)	HD60/80  LD100/120	HD60/100  LD120/150	HD80/100  LD180/200	HD100/120  LD200/220	HD120/150  LD220/250	HD150/180  LD250/280
Temperature control	3	3	3	3	3	3
Air ring	1	1	1	1	1	1
Air blower power (kw)	1.5	2.2	3	3.2	4	4.5
Center steady stick	1	1	1	1	1	1
Take up unit
Roller width(mm)	160*650	160*850	165*1100	165*1200	165*1400	160*1800
Effective width(mm)	500	600	800	1000	1200	1500
Height adjustable Type(mm)	800	800	800	800	800	800
Take-up speed(m/min)	10-100	10-100	10-100	10-100	10-80	10-80
Take-up motor(2.2)	0.75	0.75	1.1	1.1	1.5	1.5
Winding Unit
Type	Surface friction type
Winding motor(N.m)	10	10	10	10	10	10
Winding speed(m/min)	10-100	10-100	10-100	10-80	10-80	10-80
Voltage	380V,50HZ,3PHASE
Outline diameter(L*W*H)(mm)	5000×1800×4200	5500*2200*4500	5500*2500*5200	5000*2400*4200	5500*2500*5200	5800*7800*6300
Weight(kg)	2000	2200	2500	2800	3000	3200

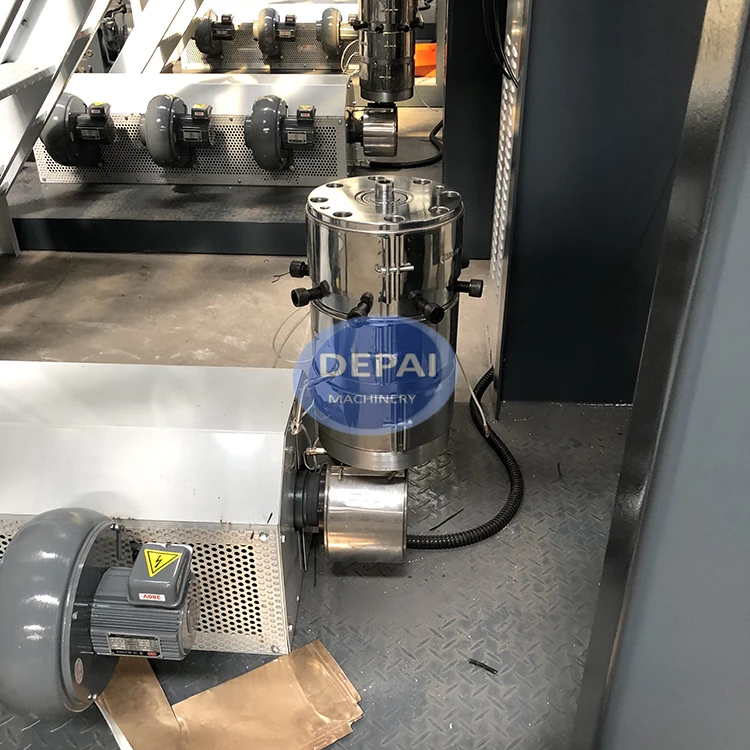

1. Auto Loader

2. Film Corona Surface Treater

3. Rotary Die Head

4. Air Compressor

5. Mechanics Screen Changer

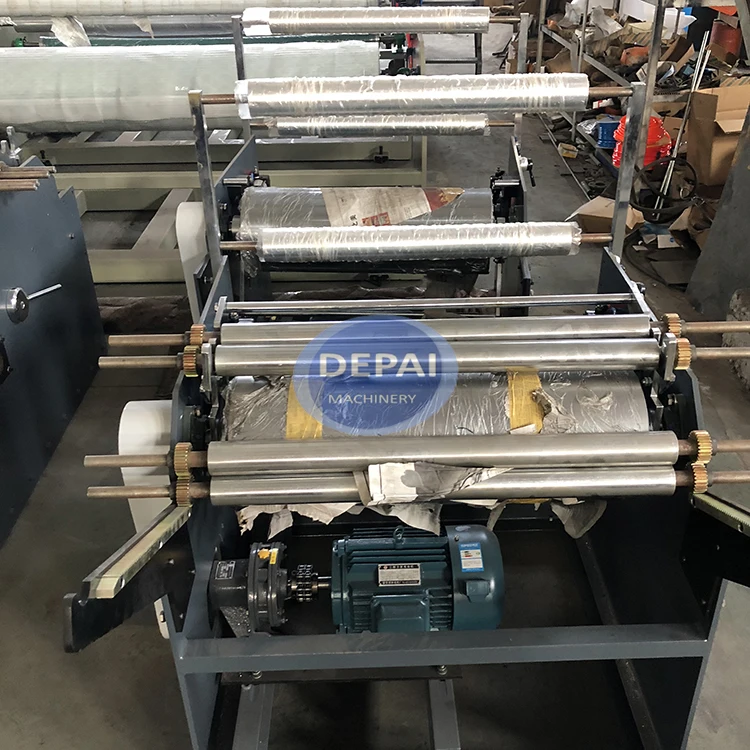

6. Double Winder

7. Air shaft

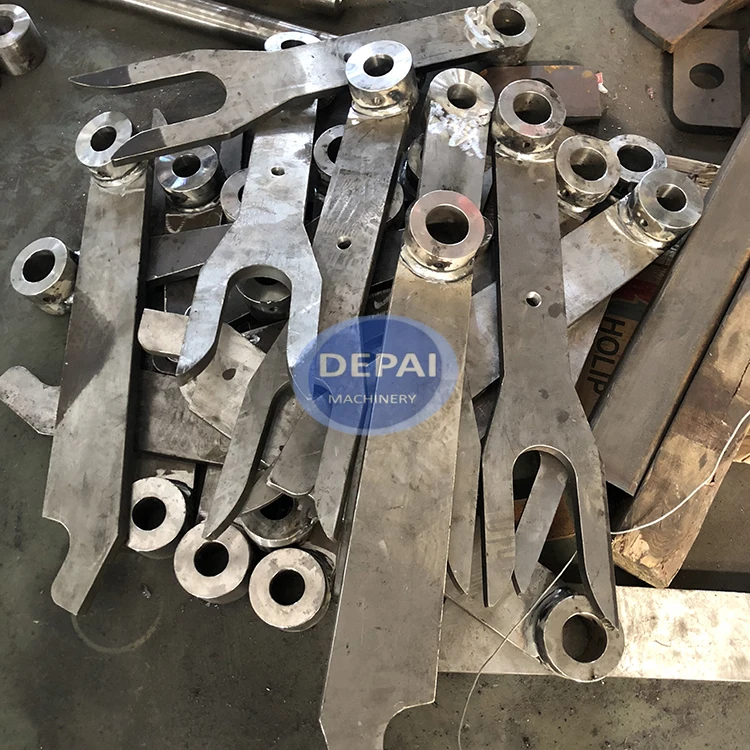

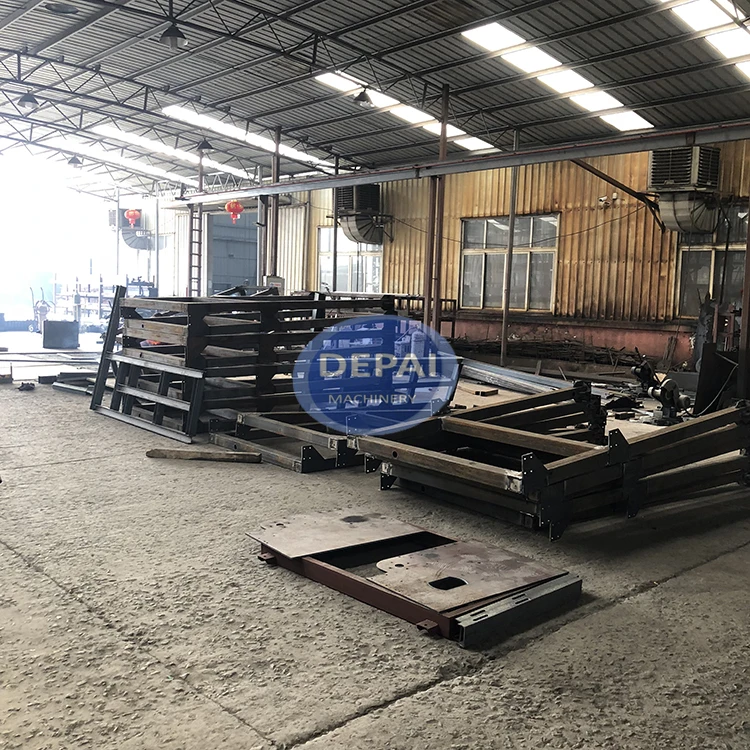

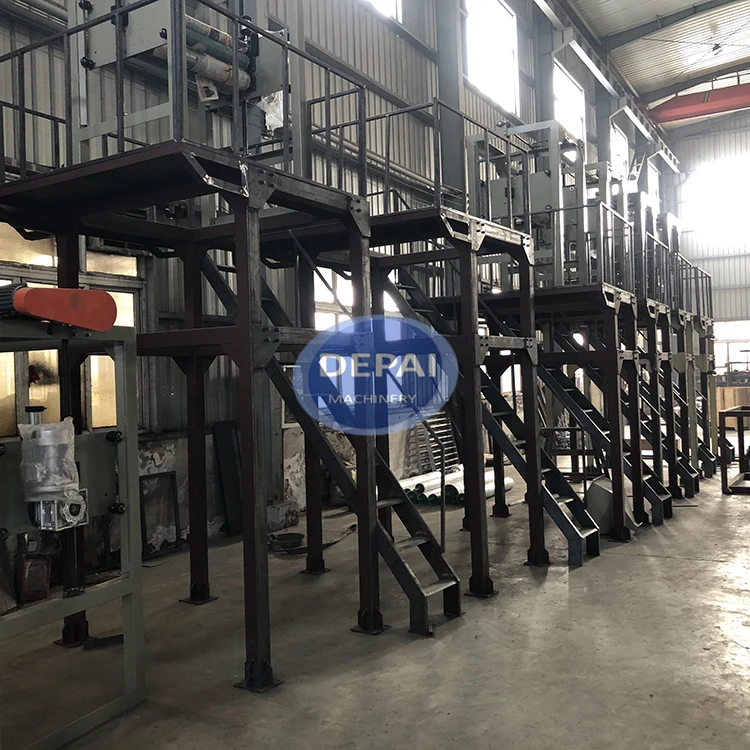

Factory Details
