Biodegradable High Speed LLDPE/LDPE/HDPE Small Pe Mini Film Blowing Machine For Corn Starch
- Категории: Blown Film Production Line >>>
- Поставщик: Wenzhou,Aoxiang,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Application

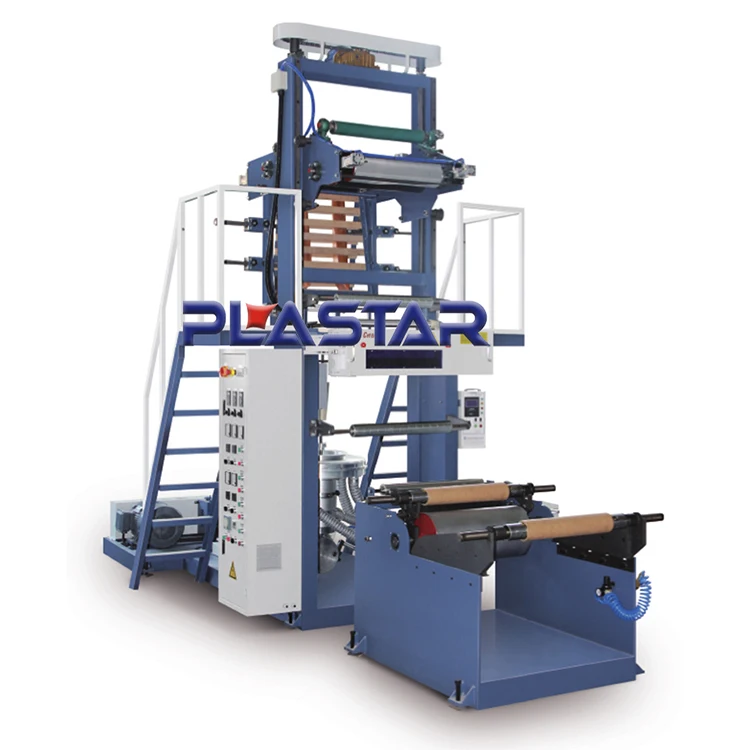

PLASTAR Mini type film blowing machine is very high output(max.55kg/h), with good energy saving performance. simple and nice design, easy to operate and save your labor cost. it can work for a long time few problem.
The extruding parts, cylinder, screw rods are made of high-quality alloy steel, nitrided treatment and precision designed. It has the best hardness and corrosion resistance. With special designed screw, it has high output and good plasticization.
It is suitable for blowing low density polyethylene (LDPE) and high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) plastic film, which is widely used in the packaging food, garbage bag, clothing, bags, T-shirt bags and other packing area.
Model | MSD-45 | MSD-50 |
Suitable Material | HDPE, LDPE, LLDPE, EVA | HDPE, LDPE, LLDPE, EVA |
Film Width | 100-500mm | 300-600mm |
Film thickness | HDPE: 0.006-0.06mm LDPE: 0.01-0.15mm | HDPE: 0.006-0.06mm LDPE: 0.01-0.15mm |
Max. Output | HDPE: 45kg/h LDPE: 50kg/h | HDPE: 50kg/h LDPE: 55kg/h |
Screw Diameter | 45mm | 50mm |
Screw L/D | 30:1 | 30:1 |
Screw Material | SACM-645 /38 CRMOALA | SACM-645 /38 CRMOALA |
Average Power-consumption | 10kw | 12kw |
Die Size | HDPE: 60/80mm LDPE: 100/120mm | HDPE: 60/100mm LDPE: 120/150mm |
Take-Up Speed | 20-110m/min | 20-110m/min |
Winding Type | Surface friction type | Surface friction type |
Winding Speed | 20-110m/min | 20-110m/min |
Voltage | 380V, 50HZ, 3Phase | 380V, 50HZ, 3Phase |
Dimension (L*W*H) | 4.8*1.8*3.6m | 5.0*2.0*3.7m |
Main Features
1) High output, Max. output can reach 55kg/h
2) Lower power consumption
3) Simple in design, simple installation
4) Good plastify, good stability, lower noise, lower maintaince cost
5) Max. Winding diameter: 1300mm
Company Profile
Factory pictures
Certifications
Exhibition
Packing & Delivery
FAQ
Question 1. Why should buy from us not from other suppliers?
We are famous and professional blown film machines factory from China. we have very well experiences can ensure our machine is quality controlled and reliable. we also have our own CNC center for making die head for machine.
Question 2. What certificates do your blown film machines have?
Our factory fully implements the ISO9001:2015 quality management system and has passed the TUV certification, which covers the design, production, and delivery. We also have the Swiss SGS certification and EU safety CE certification, which can meet the safety requirements of most countries in the world.
Question 3. What are the main markets of your blown film machines?
As of December 2019, our blown film machines had been sold to 93 countries around the world, mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.
Question 4. What is the general delivery time of blown film machines?
The production of a blown film machine usually takes about 30 to 60 working days, depending on the size and configuration of the machine.
Question 5. How long is the warranty period of blown film machines?
All our blown film machines have a one-year warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.
Question 6. Can I visit the blown film machine production plant and watch the commissioning process?
Of course you can. we welcome you to visit us at any time. We will pick you up at Wenzhou Longwan Airport or Rui’an Railway Station.
Question 7. Where is the blown film machine factory?
Our factory is located in Wanquan Industrial Zone, No. 104 National Road, Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province, China. You can take a plane to Wenzhou Longwan Airport or take a train to Rui’an Station. Please make an appointment with us in advance, and our driver will pick you up when you arrive.
Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?
We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.
Question 9. What is the payment method for blown film machine orders?
We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
Question 2. What certificates do your blown film machines have?
Our factory fully implements the ISO9001:2015 quality management system and has passed the TUV certification, which covers the design, production, and delivery. We also have the Swiss SGS certification and EU safety CE certification, which can meet the safety requirements of most countries in the world.
Question 3. What are the main markets of your blown film machines?
As of December 2019, our blown film machines had been sold to 93 countries around the world, mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.
Question 4. What is the general delivery time of blown film machines?
The production of a blown film machine usually takes about 30 to 60 working days, depending on the size and configuration of the machine.
Question 5. How long is the warranty period of blown film machines?
All our blown film machines have a one-year warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.
Question 6. Can I visit the blown film machine production plant and watch the commissioning process?
Of course you can. we welcome you to visit us at any time. We will pick you up at Wenzhou Longwan Airport or Rui’an Railway Station.
Question 7. Where is the blown film machine factory?
Our factory is located in Wanquan Industrial Zone, No. 104 National Road, Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province, China. You can take a plane to Wenzhou Longwan Airport or take a train to Rui’an Station. Please make an appointment with us in advance, and our driver will pick you up when you arrive.
Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?
We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.
Question 9. What is the payment method for blown film machine orders?
We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
