Product Description
\t
MAIN SPECIFICATIONS
\t
Applied to injection molding machine
\t
Ton
\t
250~450
\t

Stroke
\t
vertical stroke
\t
mm
\t
1100
\t
crosswise stroke
\t
mm
\t
crosswise stroke 300mm,
sub-crosswise stroke 200

\t
horizonal travel
\t
mm
\t
1750
\t

 Time
\t
Take-out
\t
sec
\t
2.5
\t
Dry cycle time
\t
sec
\t
10
\t
gripper rotation angle(degree)
\t
.
\t
90
\t
max load(including ceiling fixture)
\t
kg
\t
5
\t
 power consumption

\t
kva
\t
1.1
\t
\t
\t

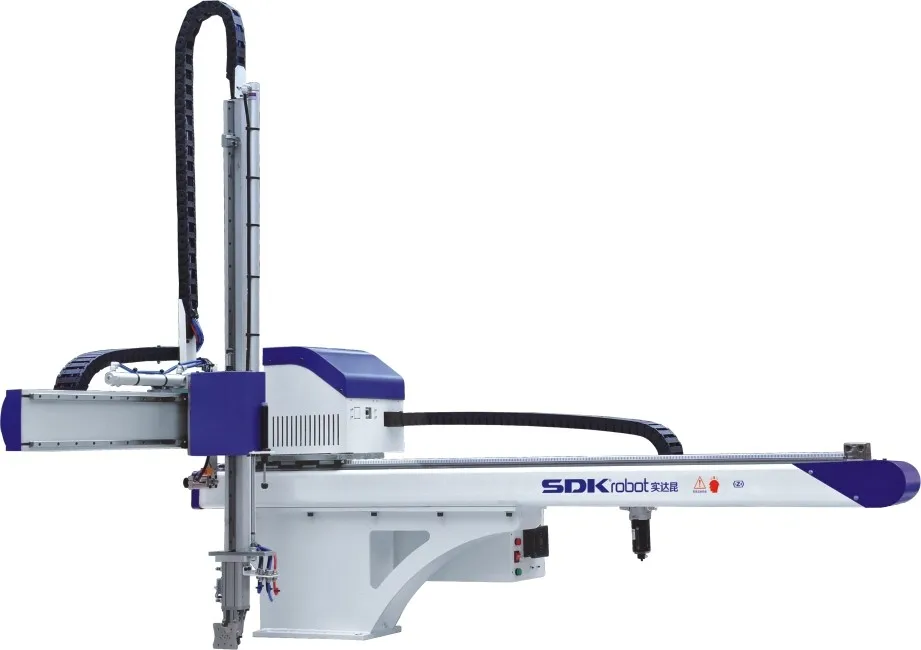

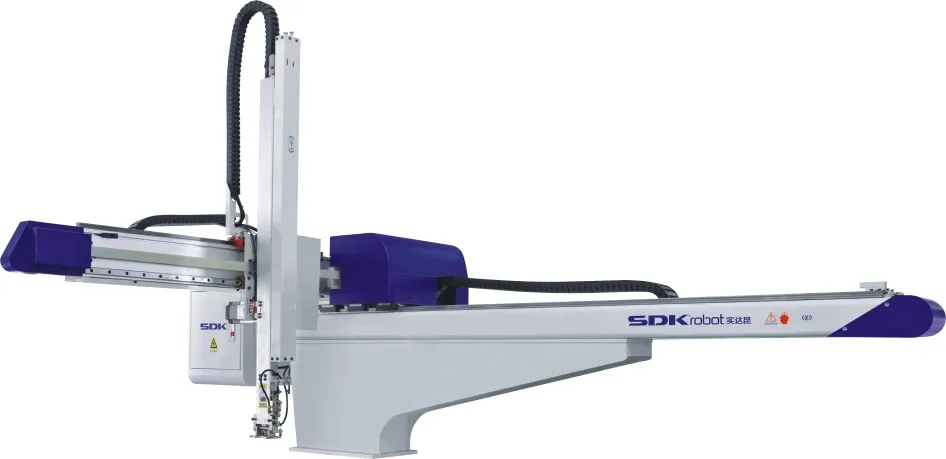

A-series Horizontal walking manipulator series is mainly suitable for 100~700T horizontal injection molding machine to take out the finished product.

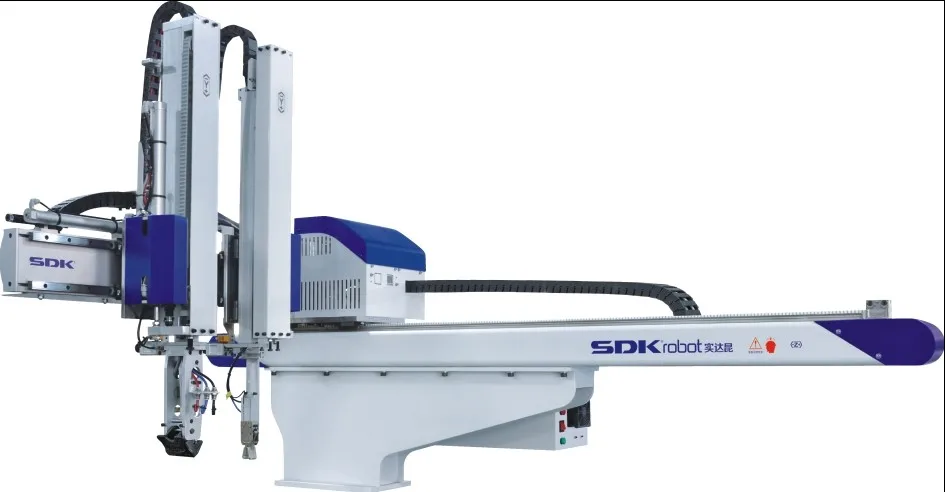

Double stages are used to increase the auxiliary arm for removing the material head of the three-piece die.
X-AC servo morto drive, Y,Z pressure drive.
the stroke adjustment and position adjustment mode with manual adjustment(standard) and electric adjustment(optional),equipped with standard suction and holding fixture.


SDK products sell well at home and abroad.

Product Application

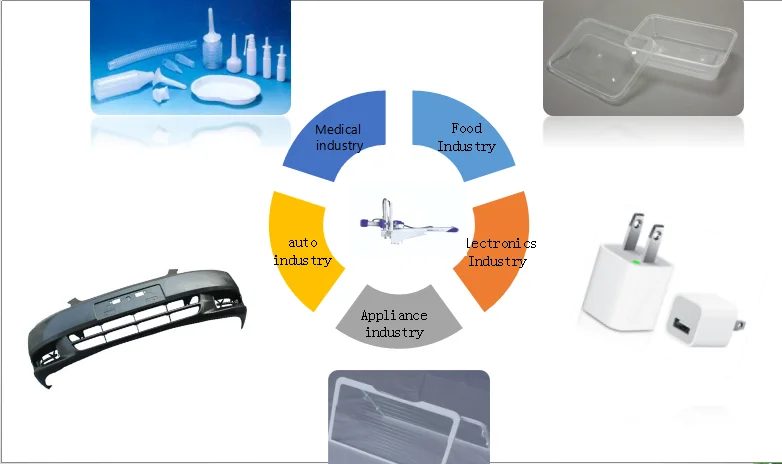

SDK products are widely used in: household appliances, computers and peripheral industries, photoelectric industry, cosmetics packaging, automobile and parts, machine parts, precision gear, household necessities, mobile phone, communication, medical supplies, food packaging, etc.

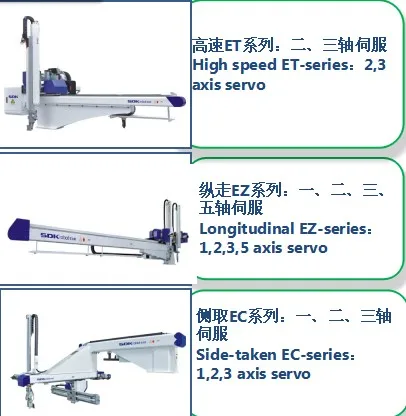

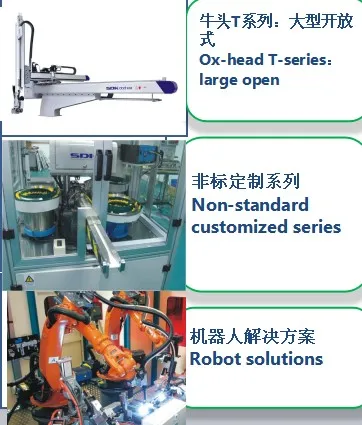

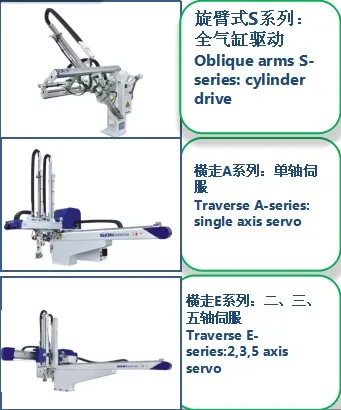

Product series:

Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution

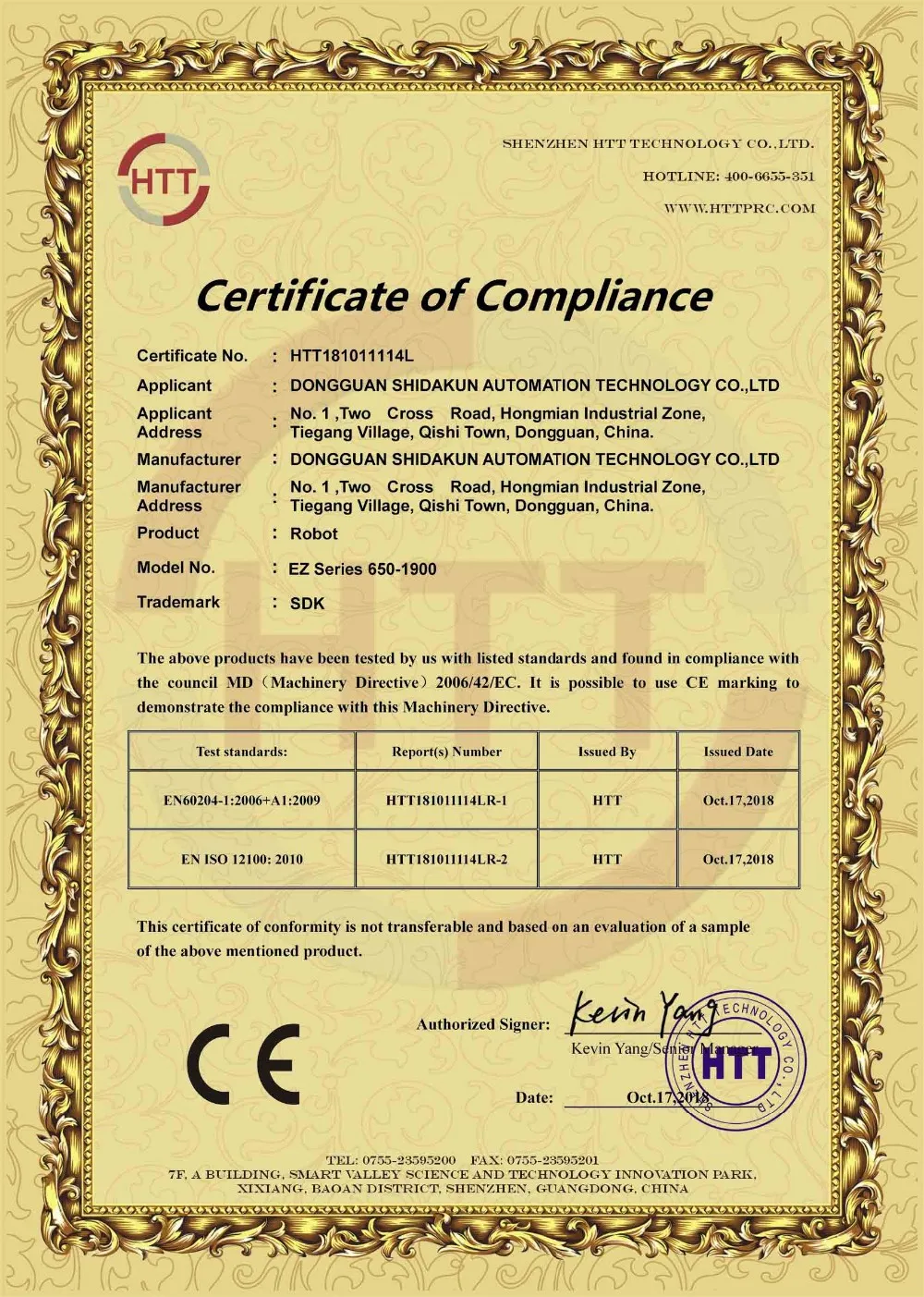

Certifications
Detailed Images

The accessories are all high-end.

Machine Parts

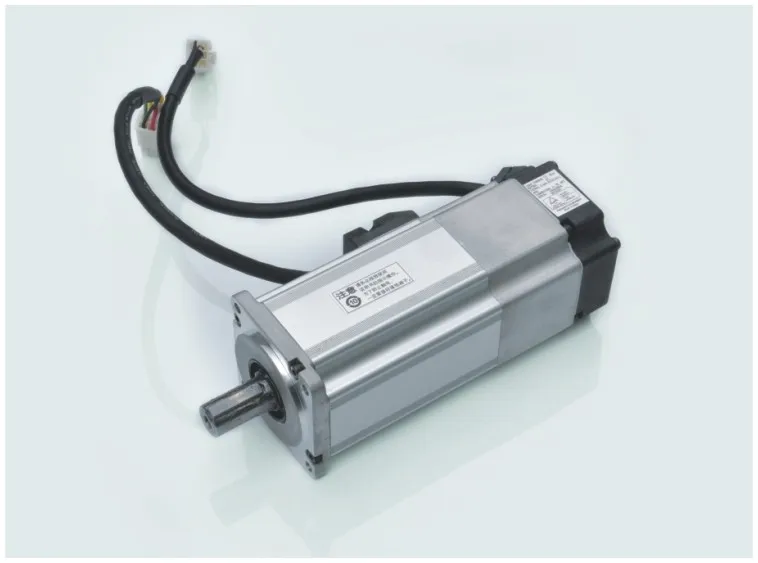

Name: motor

Brand: Panasonic

Original: Japan

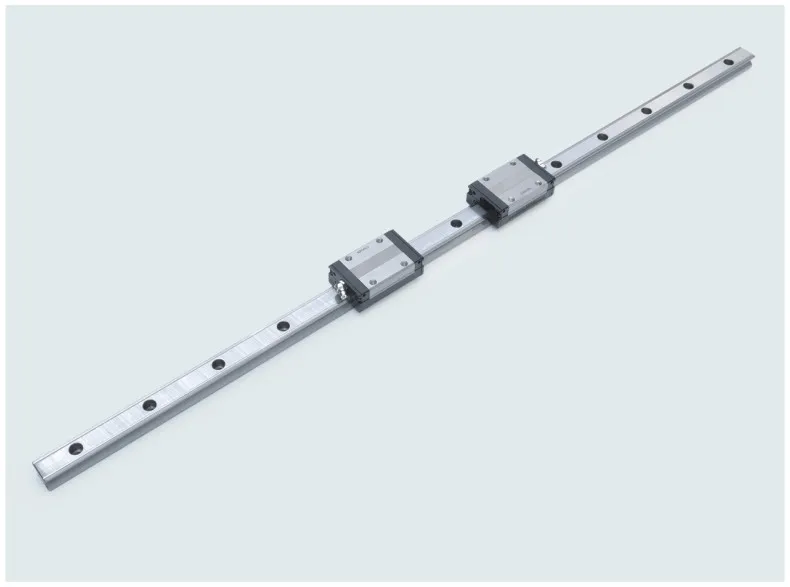

Machine Parts

Name: slideway,slider
Brand: THK
Original: Japan

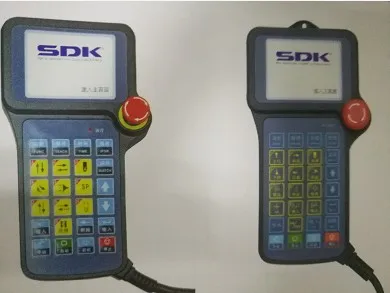

One Axis robot arm - Accessory
Name: Control System
Brand: SDK
Original: China
-Color screen, single-sheet multi-line display, making it easy for users to set parameters and signal monitoring
-32-bit double-CPU control, fast action response, smoother page switching
-Open program teaching mode, easy to learn, provide common fixed programs, users can also self teach a variety of complex mold processes.
-Ac servo direction can have multi-point placement, up to 99 sets.

Our Service

Your satisfactory, our pursuit.


Pre-Sales Service

* Your inquiry will be replied in 24 hours

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t

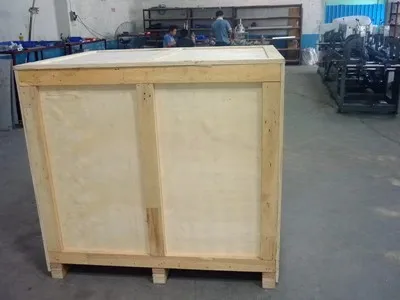

Packaging
\t
Size
\t
2100(L) * 1400 (W) * 1700(D)
\t
Weight
\t
200
\t



Packaging Details
\t
If export to european countries,the wooden box will be fumigated.

The package size is customized according to the size of the goods
\t
Packaging
\t
Size
\t
2100(L) * 1400 (W) * 1700(D)
\t
Weight
\t
100
\t



Packaging Details
\t
The package size is customized according to the size of the goods

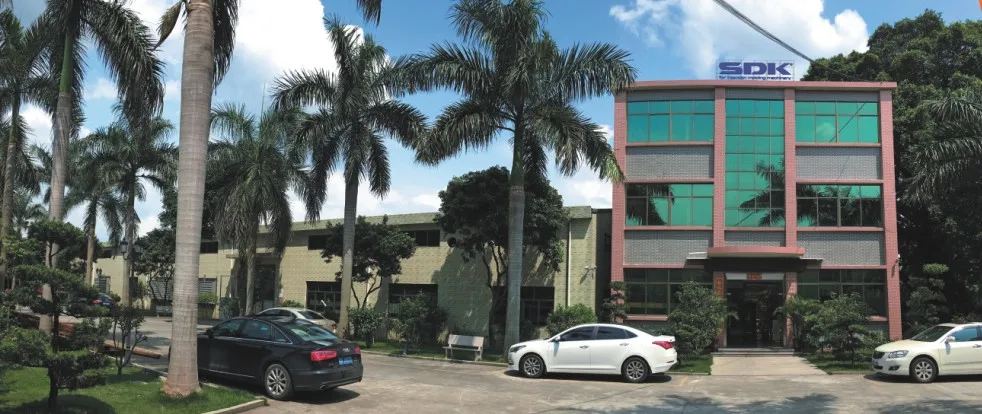

Our Company

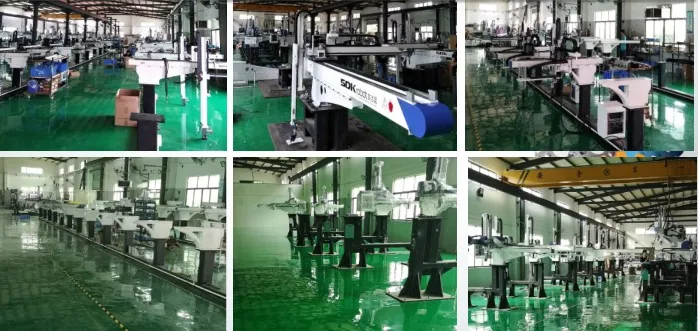

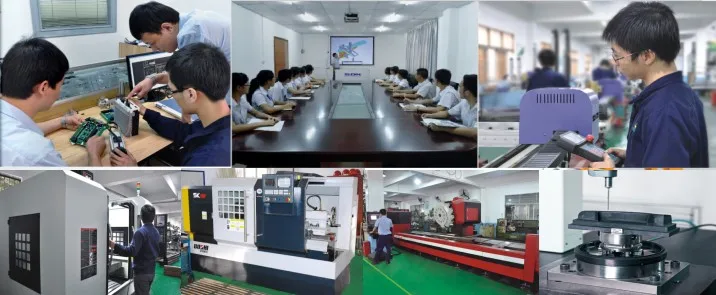

Dongguan Shidakun Automation Technology Co., Ltd. was established in 2003 with years of manufacturing experience of automation equipment. We specialize in the production of more than three axis linkage injection molding special robot arm and peripheral automation equipment, focusing on product design, manufacturing, sales service, etc.

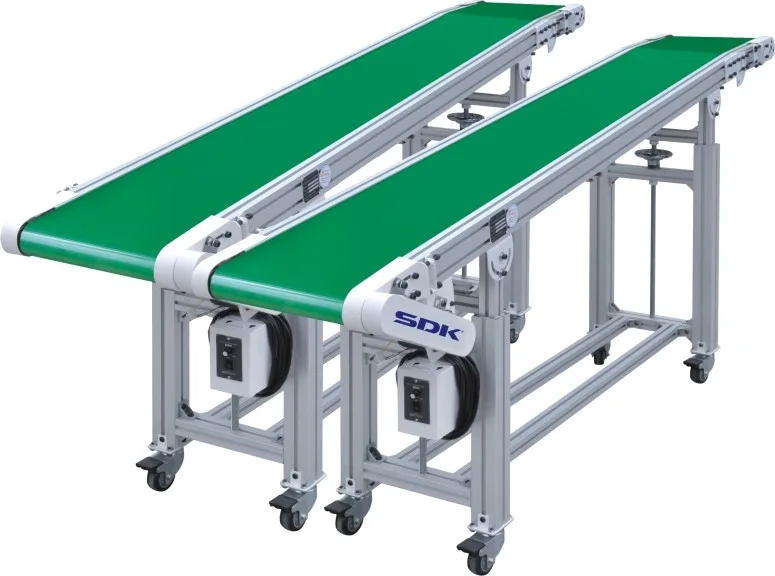

We produce oblique arm robot, horizontal robot, high-speed tau robot, large five-axis servo manipulator, conveyor belt, recriving station and other peripheral, fully meeting the demands of injection molding machine from 50 to 4,000 tons.


Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ


Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.

Q: How long is your delivery time?
A: Generally it is 15-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: No. Customers can visit our factory and view samples.

Q: What is your terms of payment ?
A: 50% T/T in advance. balance before shippment.
If you have another question, pls feel free to contact us.

WHY CHOOSE US?

1.The robot arm can be labeled as specified by the customer.

2.Color can follow the requirements of customers.

3.The consignee and consignor on the B/L can be decided by the customer.

4.Follow the principle of mutual benefit, all prices can be accommodated.
5.If you intend to wholesale manipulator, then please come to me, wholesale prices are very attractive.
