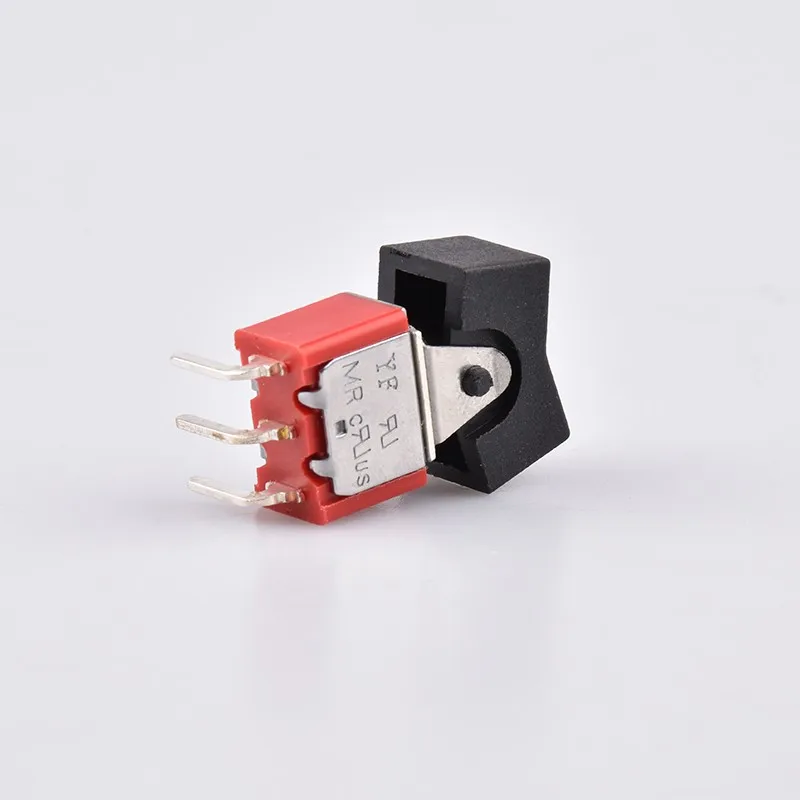

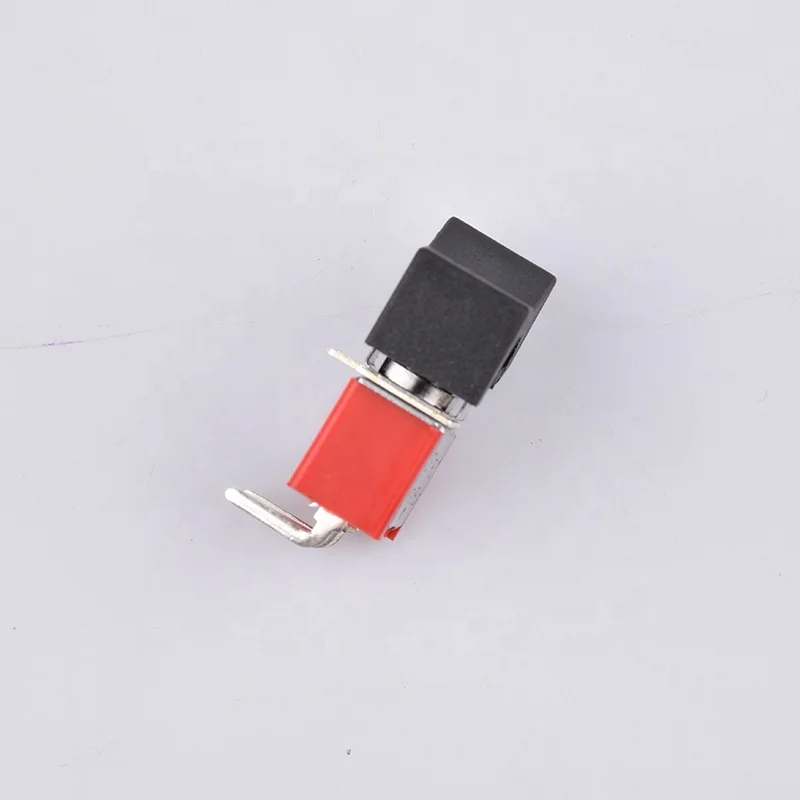

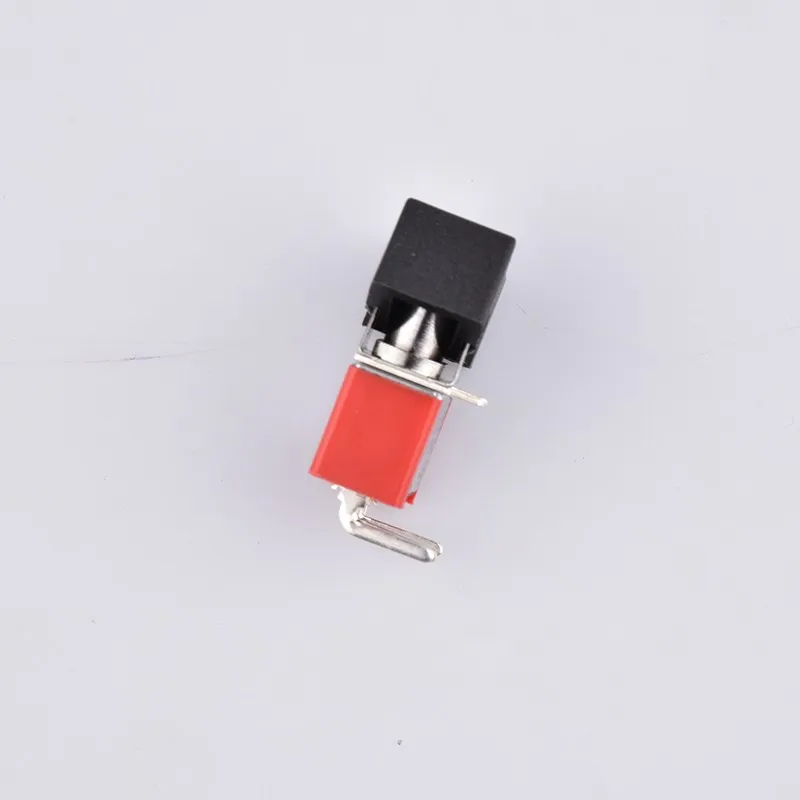

RLS-102-A3-RS 2 5A максимальный ток 250V максимальное напряжение на SPDT кулисный
- Категории: Toggle Switches >>>
- Поставщик: Yuenfung,Eelctronics,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specifications | |
Rating | 5A 125VAC, 2A 250VAC |
Contact Resistance | 20MΩ Max |
Insulation Resistance | 500VDC 1000MΩ Min |
Dielectric Strength | 1000VAC， 1 Minute |
Operatiing Temperature | -25ºC~+85ºC |
Electrical Life | 10000 cycles |
Mechanical Life | 40000 cycles |
Circuit | SPDT |
Switch function | ON ON |
Materials: | |
Case | PPA(UL94V-0) |
Actuator | PA66(UL94V-0) |
Bushing | Brass, Aluminum alloy，Nickel or chrome-plated |
Housing | Stainless Steel |
Support Bracket | Brass,Tin-plated |
Contact/Terminals | Copper Alloy, Silver or gold-plated |
NOTE: Specifications and Materials listed above are for switches with standard options. For information on specific and custom switches, Please feel free to contact us.
Typical Applications:
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
Typical Applications:
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
