Беспроводной робот-манипулятор с Wi-Fi для робототехнической камеры образовательный комплект управлением Ios Android
- Категории: Manipulator >>>
- Поставщик: Anno,Robot,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Poduct Parameters:
Body Weight | 15KG | ||
Vertical Stroke | 834.7mm | ||
Horizontal Stroke | 886.7mm | ||
Voltage | 110V/220V | ||
Power | 360W | ||
Max Working Radius | 482.3mm | ||
Specified Load | 1KG | ||
Repeat Positioning Accuracy | ±0.5mm | ||
Application | Welding, Polishing, assembly, picking | ||
Working Range | Axis 1 | ±180° | |
Axis 2 | ±115° | ||
Axis 3 | ±130° | ||
Axis 4 | ±180° | ||
Axis 5 | ±165° | ||
Axis 6 | ±180° | ||
Max Speed | Axis 1 | 200°/s | |
Axis 2 | 200°/s | ||
Axis 3 | 200°/s | ||
Axis 4 | 200°/s | ||
Axis 5 | 200°/s | ||
Axis 6 | 200°/s | ||
Structure Type | Series Connection | ||
No. of aixs | 6 Axis | ||
Controller | Singel Chip | ||
Body Shell Material | Plastic | ||
Install To | Desktop | ||
Speed Reducer | Synchronous Belt Deceleration | ||
Motor | Stepping Motor | ||

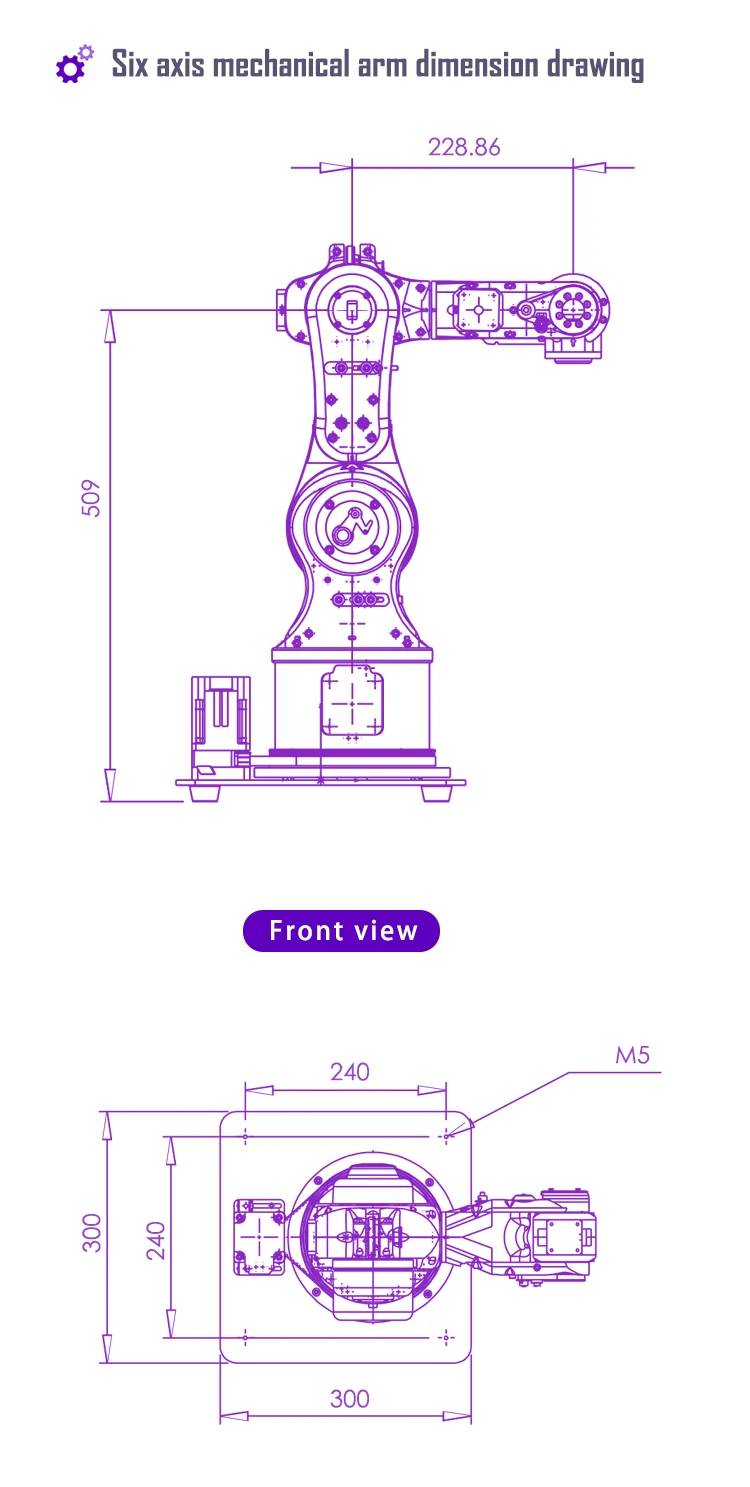

Working Range：

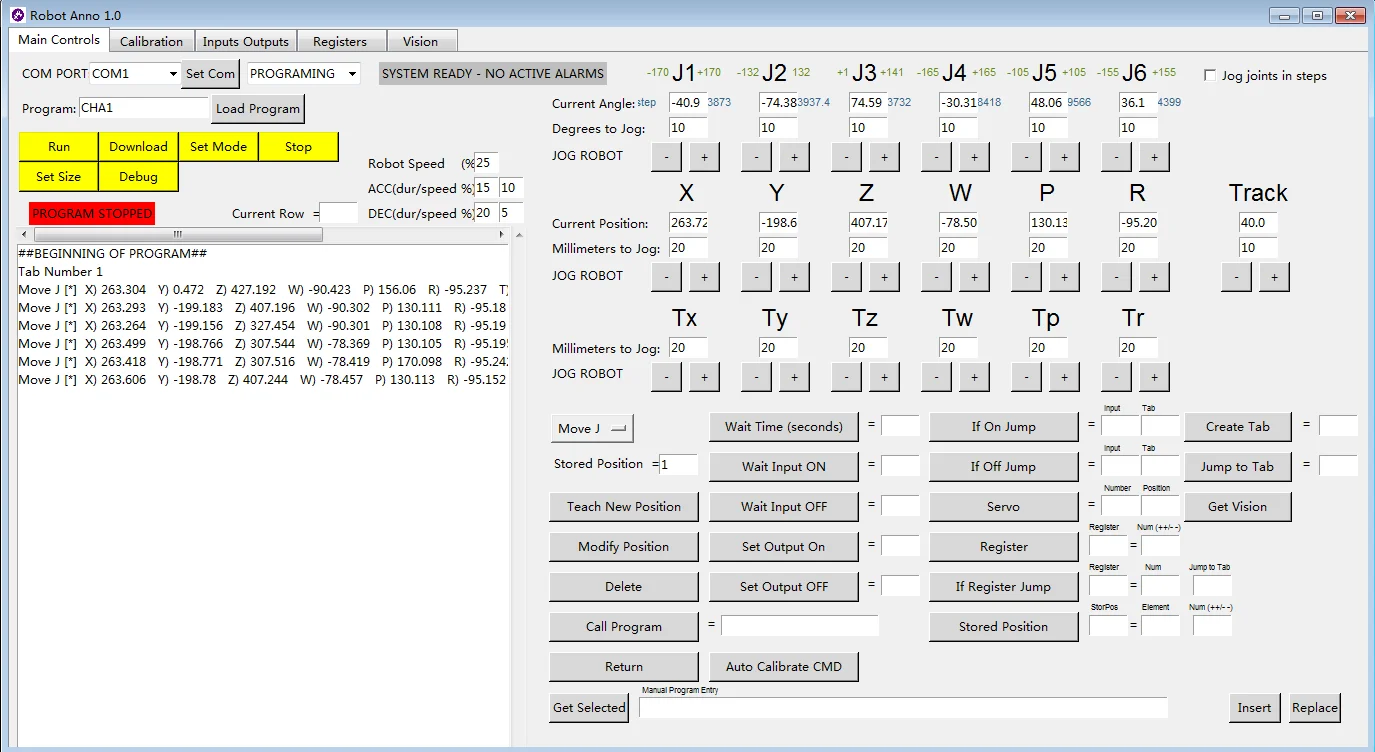

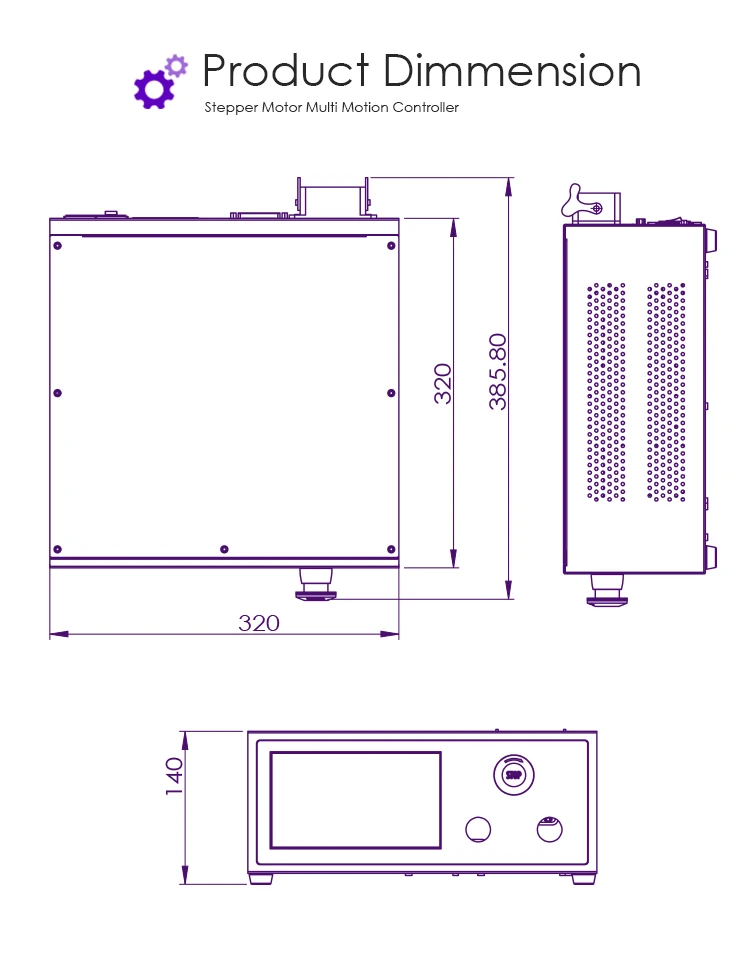

Controller System:
Features:
- 6 dof series joint manipulator control algorithm.
- In addition to general functions, provide control interface API description and sample, suitable for automatic production line integration and development of their own characteristics of the operating software users.
- Provide DLL function interface, facilitate secondary development, and provide routine source code.
- It supports Window operating system.
- In addition to general functions, provide control interface API description and sample, suitable for automatic production line integration and development of their own characteristics of the operating software users.
- Provide DLL function interface, facilitate secondary development, and provide routine source code.
- It supports Window operating system.
Detailed Images

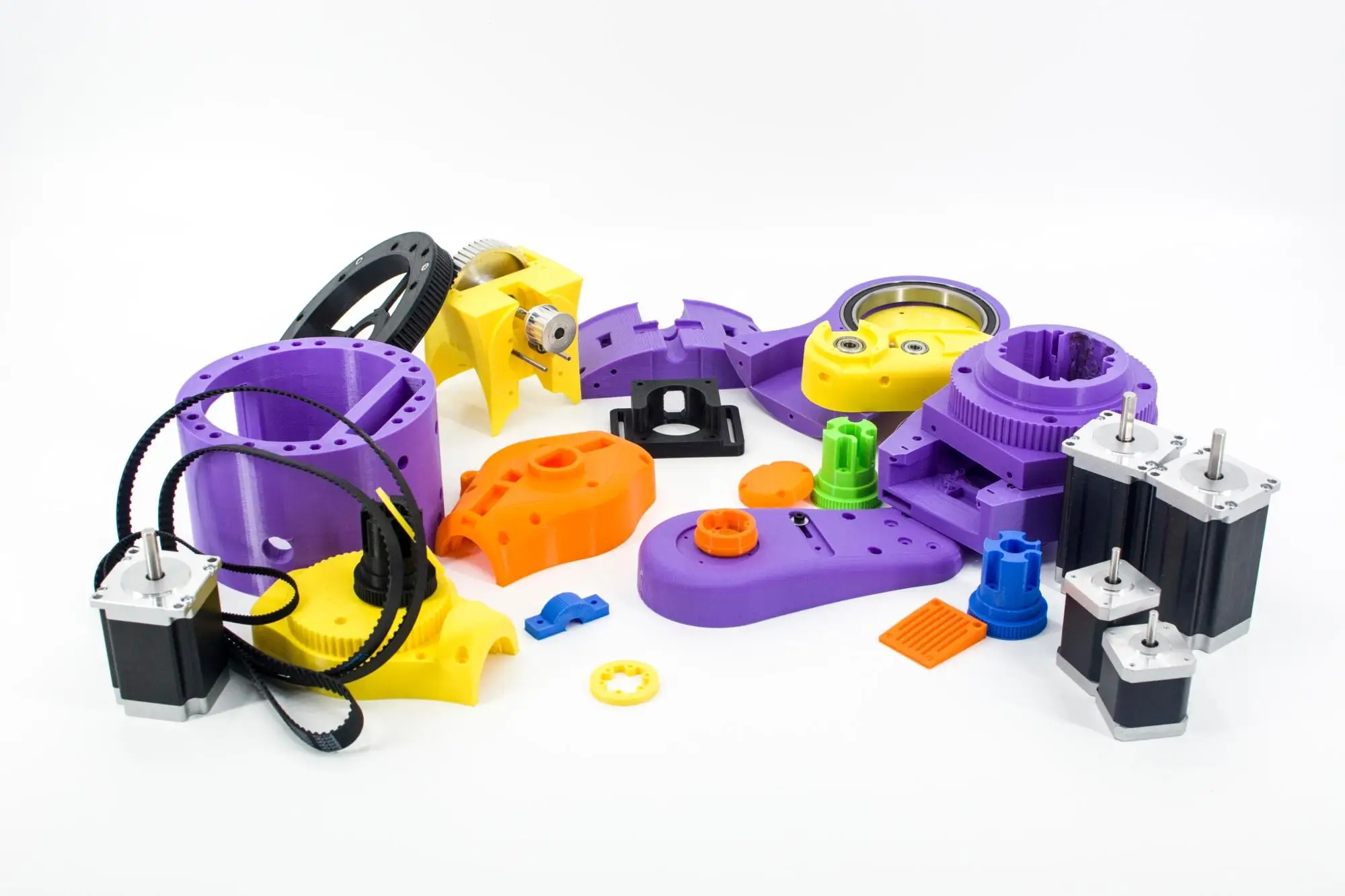

Plastic Shell
It is made by 3D painting technology, accelerate body processing speed and reduce costs
The Step Motor
Step Motor Driver
Power

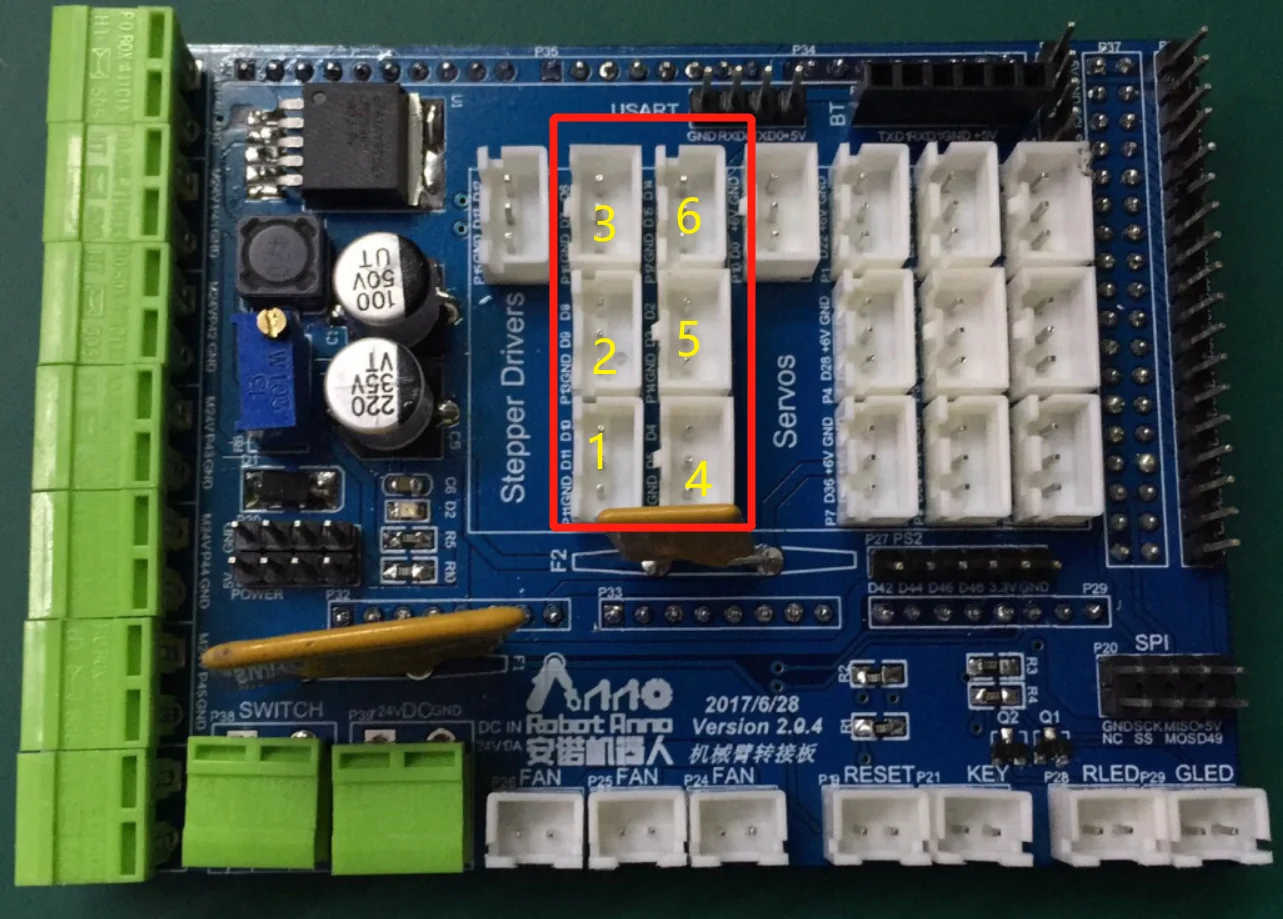

Controller Board
Motor driver output (6):
Motor driver signal line interface: XH2.54-4P connector
Drive 1 pin: STEP1_PIN D2 DIR1_PIN D 3 GND
Drive 2 pin: STEP2_PIN D4 DIR2_PIN D5 GND
Drive 3 pin: STEP3_PIN D6 DIR3_PIN D7 GND
Drive 4 pin: STEP4_PIN D8 DIR4_PIN D9 GND
Drive 5 pin: STEP5_PIN D10 DIR5_PIN D11 GND
Drive 6 pin: STEP6_PIN D12 DIR6_PIN D13 GND
Drive 7 pin: STEP7_PIN D14 DIR7_PIN D15 GND
Motor driver signal line interface: XH2.54-4P connector
Drive 1 pin: STEP1_PIN D2 DIR1_PIN D 3 GND
Drive 2 pin: STEP2_PIN D4 DIR2_PIN D5 GND
Drive 3 pin: STEP3_PIN D6 DIR3_PIN D7 GND
Drive 4 pin: STEP4_PIN D8 DIR4_PIN D9 GND
Drive 5 pin: STEP5_PIN D10 DIR5_PIN D11 GND
Drive 6 pin: STEP6_PIN D12 DIR6_PIN D13 GND
Drive 7 pin: STEP7_PIN D14 DIR7_PIN D15 GND
Steering gear output (10 channels):
Steering gear power supply independent power supply (6V), shared with Arduino.
D22 D24 D26 D28 D30 D34 D36 D38 D40
VCC(6V)
GND GND
Steering gear power supply independent power supply (6V), shared with Arduino.
D22 D24 D26 D28 D30 D34 D36 D38 D40
VCC(6V)
GND GND
Bluetooth interface:
Cooperate with HC-06 Bluetooth module
Empty 5V GND D18 (TX1) D19 (RX1) empty
Cooperate with HC-06 Bluetooth module
Empty 5V GND D18 (TX1) D19 (RX1) empty
Main Applications
Product packaging
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Package Included:
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Specifications:
- Model: 6 Axis Robot Arm V6PLUS
- Outer Shell Material: Engineering Plastic
- Volume Weight: 24 kg
- Model: 6 Axis Robot Arm V6PLUS
- Outer Shell Material: Engineering Plastic
- Volume Weight: 24 kg

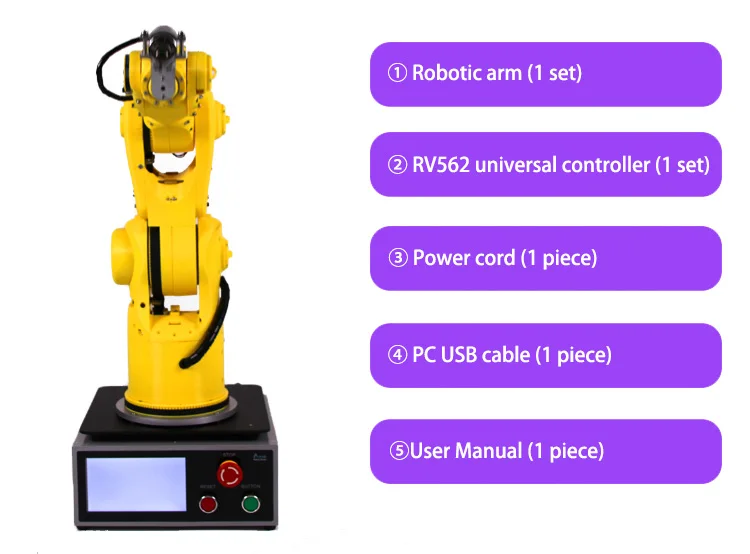

Package Included:
Carton Box 1 (43 cm*43 cm*53 cm, 15 kg):
- 1* Robotic Arm Body
Carton Box 2 (43 cm*43 cm *23 cm, 9 kg):
- 1* Robotic Controller
- 1* Power Cable
- 1* USB Cable
- 1* USB Disk( including the user manual and information)
- 1* Robotic Controller
- 1* Power Cable
- 1* USB Cable
- 1* USB Disk( including the user manual and information)
Company Information
RobotAnno (ShenZhen) Co., Ltd. is a professional R & D and manufacturer of desktop robotic arm solutions. Through continuous innovation, RobotAnno is committed to providing educational robots, light industrial robots and commercial robots with cost-effective, easy-to-operate, and experiential revolutionary desktop robotic products and solutions.
Aiming to provide high quality products and great service for buyer,we are strict on product quality control and offer instant communication service.Welcome to contact us!
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-10 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-10 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-10 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-10 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
