Product Overview

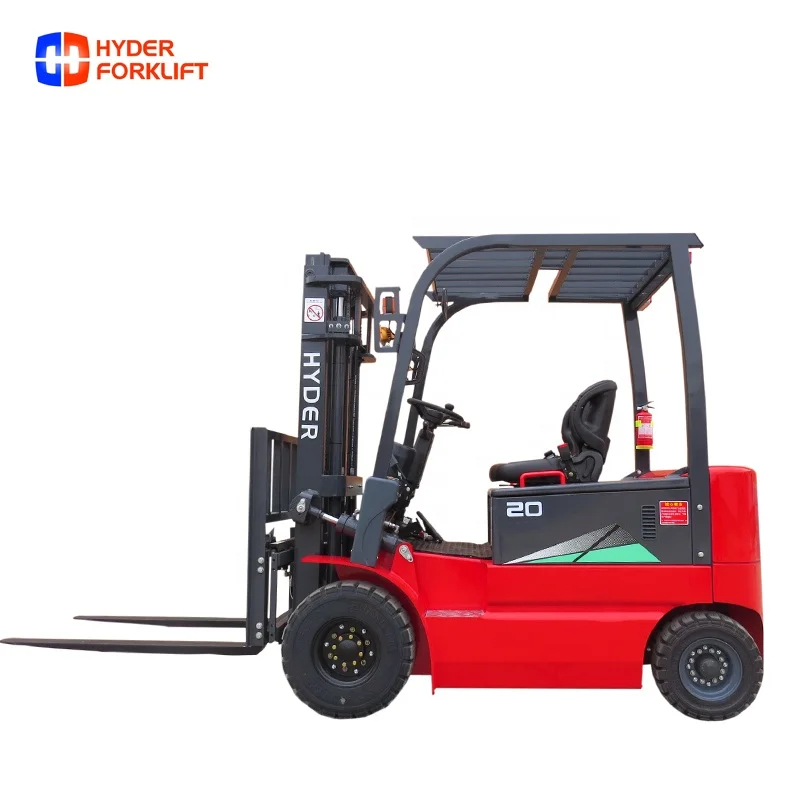

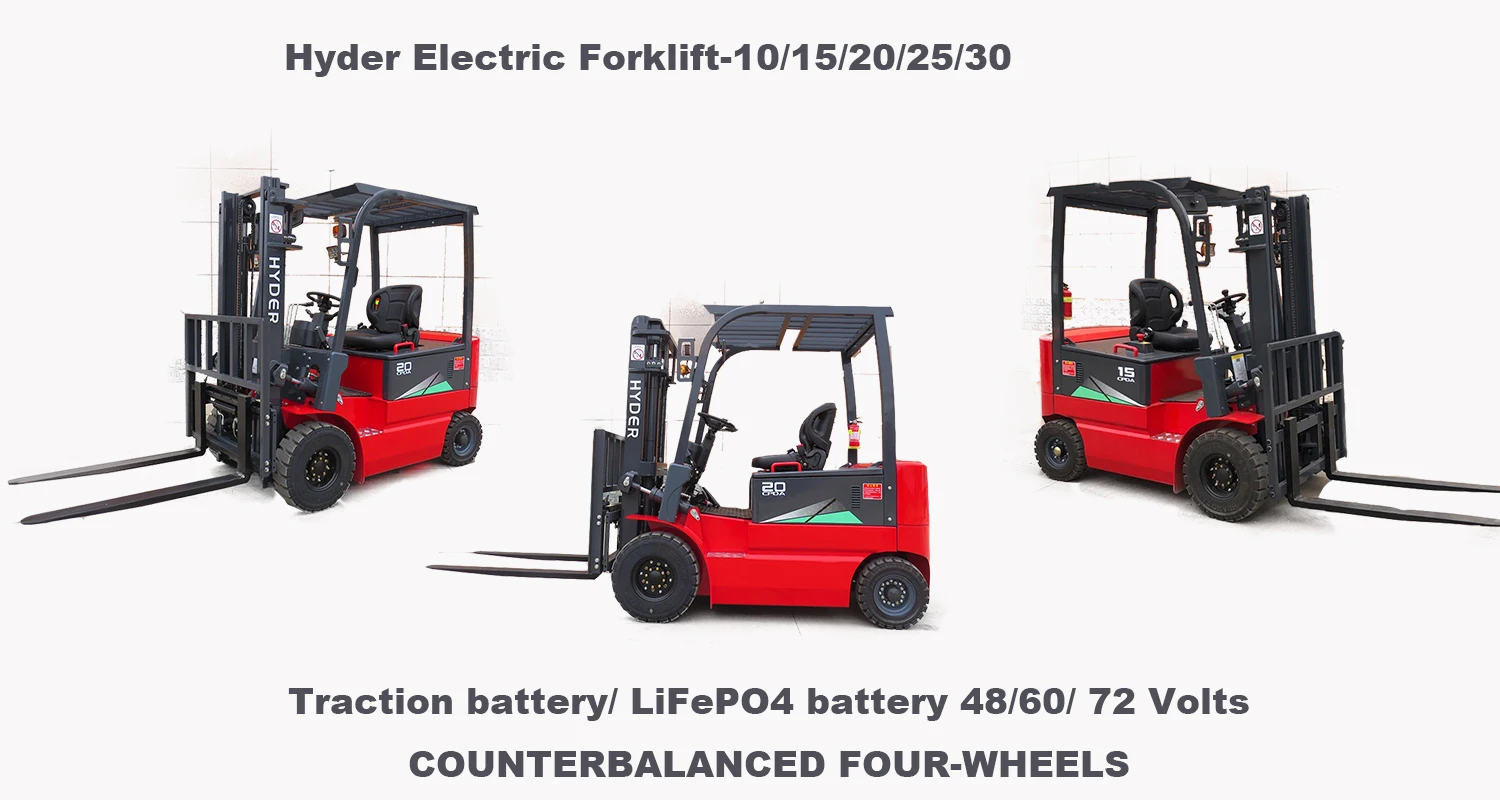

Top 10 forklift manufacturer 1-2 tons new mini battery forklift truck electric forklift/folklift
1-----With advanced technology and design;
2----- High quality steel for frame and mast, not easy to deform
3----- LED lights for all working lights, easy to see in night
4----- Thickened height guard
5-----Wear-resisting solid tire
6-----Double AC motor , less noise
2----- High quality steel for frame and mast, not easy to deform
3----- LED lights for all working lights, easy to see in night
4----- Thickened height guard
5-----Wear-resisting solid tire
6-----Double AC motor , less noise
7-----powerful branded batterym,optional for lead acid battery, lithium battery and traction battery
8-----High voltage ,low current design , prolong the lifespan of electric components
9-----Powerful in climbing to climp slop, with gradeability over 20%.
10----Comfortable seat with safety belts,with large operation space.
8-----High voltage ,low current design , prolong the lifespan of electric components
9-----Powerful in climbing to climp slop, with gradeability over 20%.
10----Comfortable seat with safety belts,with large operation space.
FEATURES AT A GLANCE
Why choose electric forklift?
1. environmental friendly , zero emission ;
2. AC motor , less noise
3. Powerful battery, working for 6-6.5hours
4. Gradeability over 20%
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Manufacturer | -- | -- | HYDER | HYDER | HYDER | HYDER |
Model | -- | -- | FB10 | FB15 | FB20 | FB25 |
Load capacity | -- | kg | 1000 | 1500 | 2000 | 2500 |
Load center | -- | mm | 500 | 500 | 500 | 500 |
Power unit | Battery / Diesel / Gasoline | -- | Battery | Battery | Battery | Battery |
Operator type | -- | -- | Driver / seat | Driver / seat | Driver / seat | Driver / seat |
Tire type | Front / Rear | -- | Solid | Solid | Solid | Solid |
Wheel (X=driven) | Number Front / Rear | -- | 2 X 2 | 2 X 2 | 2 X 2 | 2 X 2 |
Tire model | front | 16 X6-8 | 650-10 | 650-10 | 650-10 | |
Rear | 15 X4.5-8 | 500-8 | 500-8 | 18*7-8 | ||
Max. lifting height | -- | mm | 3000 | 3000 | 3000 | 3000 |
Free lift | -- | mm | 120 | 160 | 160 | 160 |
Fork size | L*W*T | mm | 1070*100*30 | 1220*100*35 | 1220*100*40 | 1220*125*45 |
Tilt range | Mast forward / backward | deg | 8 / 8 | 8 / 8 | 8 / 8 | 8 / 8 |
Overall length(without fork) | -- | mm | 1800 | 2200 | 2250 | 2320 |
Total width | -- | mm | 1040 | 1150 | 1160 | 1160 |
Mast height (fork lowering) | -- | mm | 1970 | 2040 | 2040 | 2040 |
Overall height fork raised | With backrest | mm | 4010 | 4010 | 4010 | 4010 |
Height to head guard | -- | mm | 2000 | 2050 | 2050 | 2100 |
Turning raduis(outside) | -- | mm | 1850 | 2180 | 2230 | 2230 |
Speed | Max travelling Full / No load | km/h | 10 / 12 | 10 / 11 | 9/ 11 | 10 / 11 |
Lifting Full / No load | mm/s | 120/220 | 180/220 | 180/220 | 180/220 | |
Lowering Full / No load | mm/s | 350 / 320 | 350 / 320 | 350 / 320 | 350 / 320 | |
Gradeability | Full load | % | 15 | 18 | 18 | 18 |
service weight | -- | kg | 1900 | 2500 | 2900 | 3100 |
Wheelbase | -- | mm | 1200 | 1350 | 1450 | 1540 |
Tread | Front / Rear | mm | 1020/1040 | 1050/935 | 1050/935 | 990/950 |
Ground clearence | At lowest point (mast) | mm | 90 | 120 | 120 | 120 |
Brake | Service brake | -- | Hydraulic-foot pedal | Hydraulic-foot pedal | Hydraulic-foot pedal | Hydraulic-foot pedal |
Parking brake | -- | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
Battery | Voltage / Capacity | v-ah/6hr | 60V/150Ah | 60V/230Ah | 60V/260Ah | 72V/260Ah |
battery weight | kg | 200 | 350 | 350 | 420 | |
Electric motor | Driving motor | kw | 3 | 5.5 | 5.5 | 7.5 |
Hydraulic motor | kw | 2.5 | 3 | 4 | 4 | |
Control type | driving | AC motor | AC motor | AC motor | AC motor | |
lifting | -- | DC motor | AC motor | AC motor | AC motor |

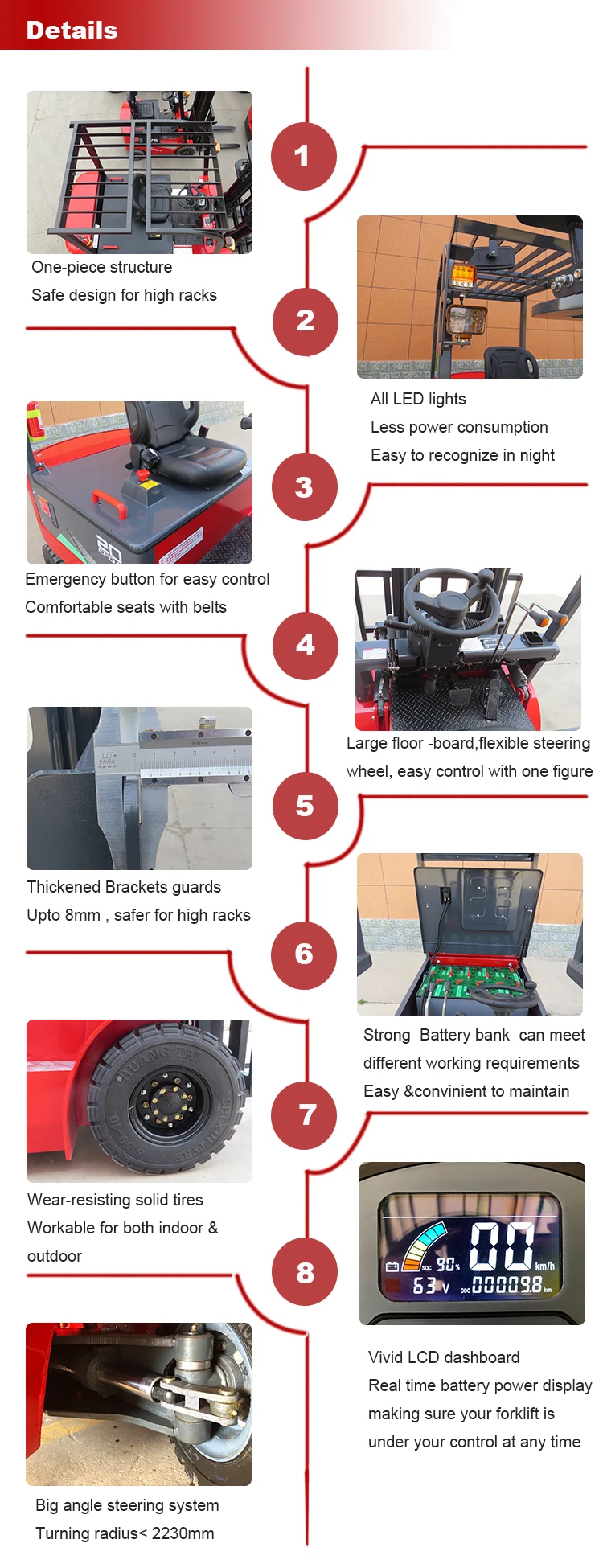

PRODUCT CONFIGURATION
Compact wire
LED lights
Battery cabinet
Vivid Dash Board
AC motor
Large Operation space
Product packaging
