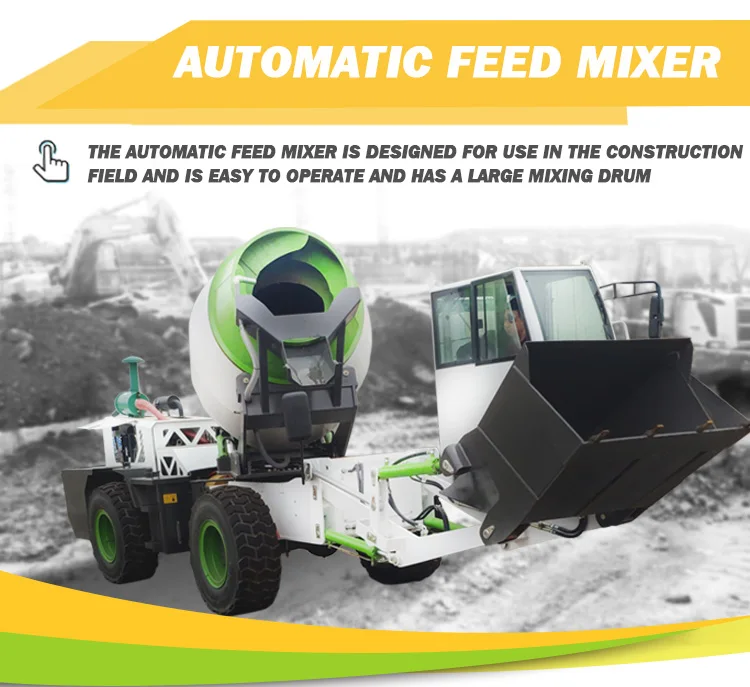

China mini mobile concrete mixer truck self-loading concrete mixing station
Self loading concrete mixers are used to produce and transport concrete, because of self-loading design, productivity is highly improved! During project, it loads materials by self, don’t need any other auxiliary equipment, and it has small volume, four wheels-driving and steering. What’s more, it can discharge concrete at 270 degrees, which is much more convenient in all kinds of concrete production construction site, particularly small and narrow construction sites, very cost-saving for the majority of users. Self loading concrete mixer truck is widely used to mix plastic concrete and semi-plastic concrete. Our self loading concrete mixers have many types for your reference:1.6cub,2.6cub,3cub,4cub.
HAOHONG Self-loading concrete mixer truck
Vehicle
Mobile
HH-1.6
Net
5500kg
Transmission
Hydraulic
4X4
Brake
Pneumatic brake
Front and rear independent system
Wheelbase
2000mm
Loader capacity
450L
Loader control
Hydraulic
Tilt angle
30°
Speed
High 0-10km/h
Low 0-30km/h
Tire
20.5/70-16
Voltage DC
24V DC
Hydraulic tank
140L
Diesel tank
100L
Dimensions(L*W*H)
6300*2300*2700mm
Loader weighing mode
Computer control
Loader control
Hydraulic 4 way stick
Diesel engine
Type
YUCHAI 4102 Supercharged
Rated power/rpm
76KW/2200rpm
Cylinder
4-cylinder
Starter
Electric
Emission standard
China II
Mixing drum
Drum capacity
1.6cbm,8-12cbm/hr
Angle of drum rotation
270°
Discharge height
1.6m
Chute
Swing angle
120°
Angle control
Hydraulic
Hydraulic system
Hydraulic driving pump
40Mpa,90ml/r
Hydraulic driving motor
40Mpa,63ml/r
Hydraulic mixing pump
40Mpa,71ml/r
Hydraulic mixing motor
40Mpa,63ml/r
Water tank
Supply
Hydraulic water pump
Water tank
2*300L
Product Description
Advantages Of Self Loading Concrete Mixer Truck
1. Self loading concrete mixer truck can rotate 270 degrees;
2. Self load, meter, mix and discharge;
3. Compact structure and easy movement;
4. High working efficiency and less energy consumption;
5. Cost and time-saving;
6. One-stop service, full automatic feeding, weighing, stirring and discharging;
7. High stirring quality and short stirring time.
8. The main hydraulic components are imported!
9. At least 5 workloads are saved per day!
10. Save electricity 100 degrees everyday without a blender!
FAQ
Q1. Are you manufacturer or trader?
A: We are manufacturer of construction machines. Actually, we produce most of the parts in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of B/L.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
China mini mobile concrete mixer truck self-loading concrete mixing station
