Hoystar 2 лента для печати на печатной плате подошва ботинка машина с трансфером в

Technical Parameter

Max steel plate size:                             100*200mm
Printing speed:                                       1200pcs/hour
Max ink cup diameter:                           90mm
Max printing size:                                  diameter 90mm
Voltage:                                                   220V 50HZ
Air pressure:                                            5-7 bar
Net weight:                                               125KG
Machine size:                                           720*660*1350mm
Package size:                                           870*800*1470mm

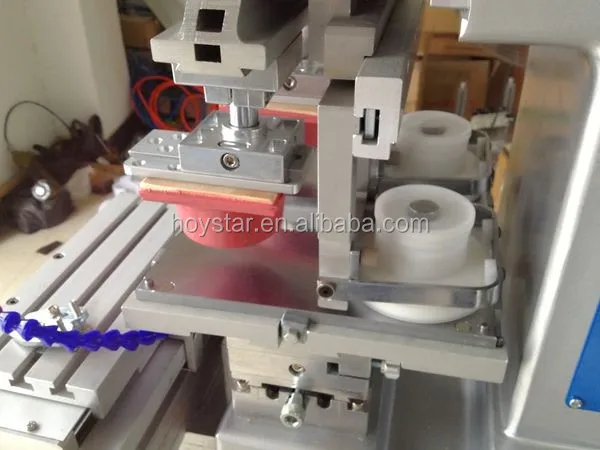

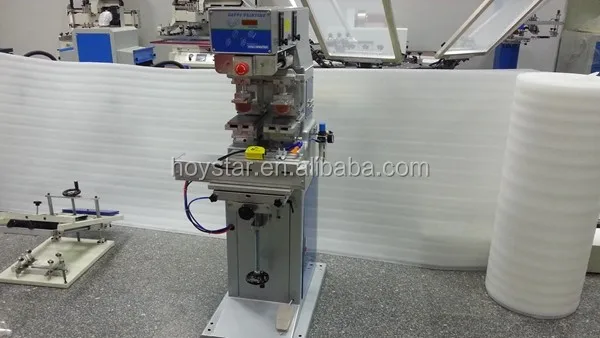

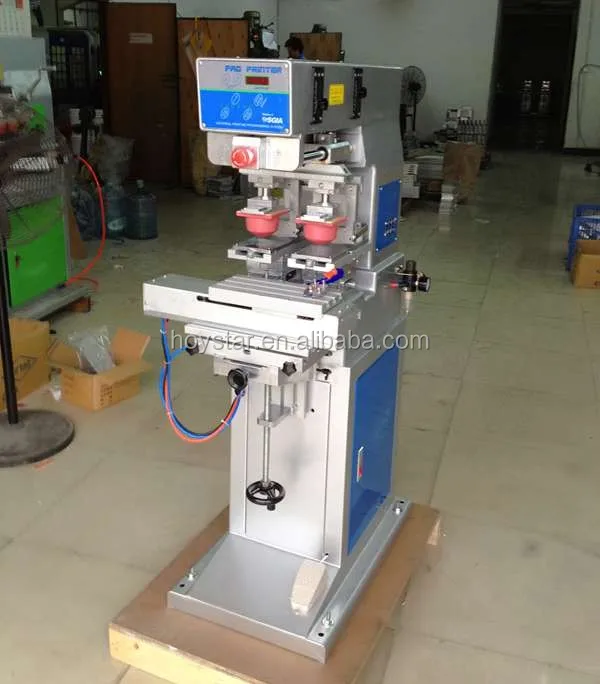

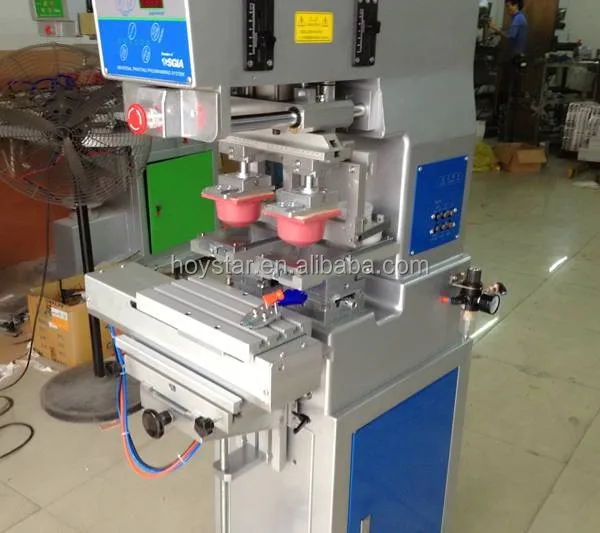

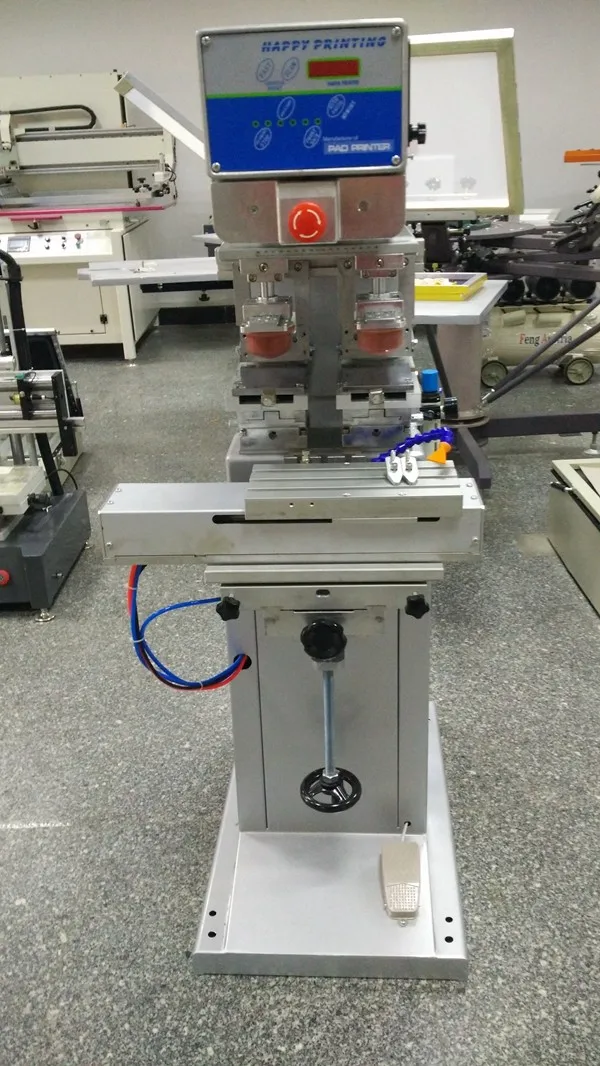

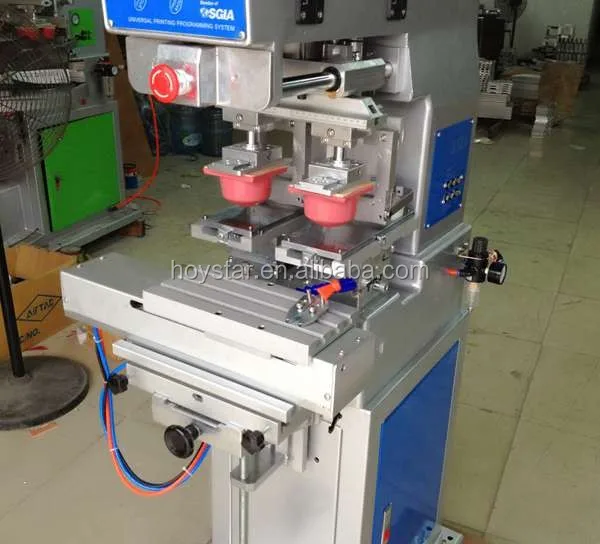

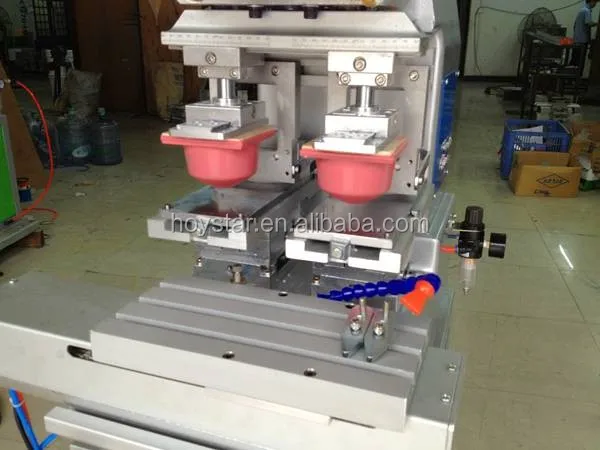

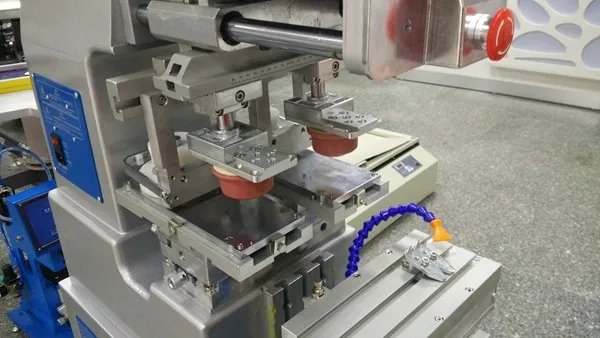

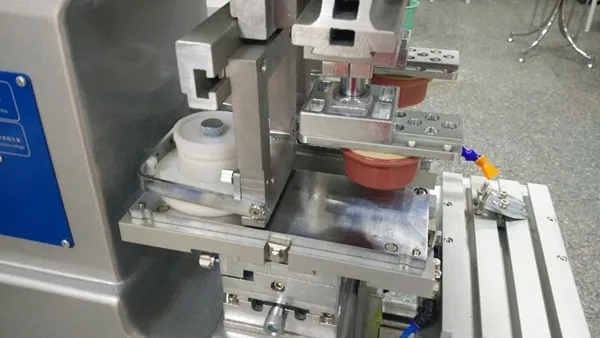

Hoystar 2 color pad printing sole shoe machine with shuttle table

What is this Pad Printing Machine use for?

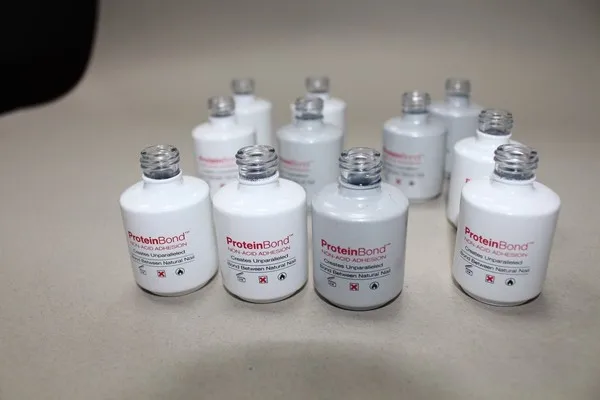

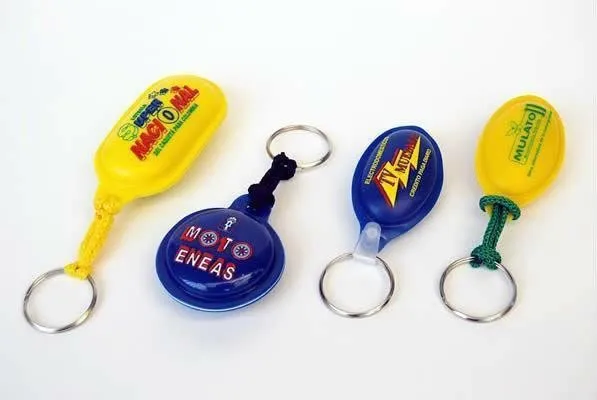

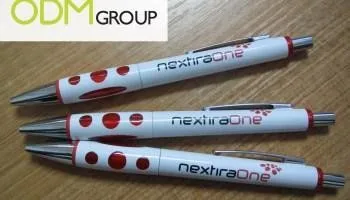

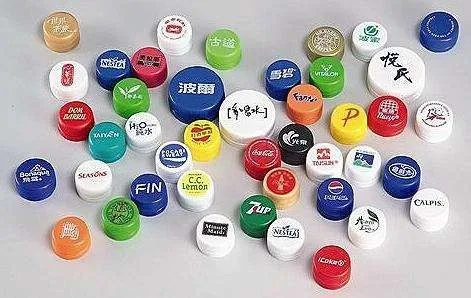

This machine suitable for printing promotional items such as pen barrel,golf ball,mouse,cup,mug,toy,key chains,dog tag,web camera,fan parts,tooth brush,save energy light,lighter,USB,memory card, calculator, garment neck label,mobile phone cover,toy,trophy....etc

Features

1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable,plastic head can be adjusted X.Y.Z direction.
5. the pressure of Sucking ink and printing pad and distance of scrapping ink can be adjusted independently
6. leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
7. The speed of all the cylinders have an independent regulator intortum
8. Front/back distance is long,and it can print bigger size product
9. It adopts fully Japan SMC and Taiwan MINDMAN pneumatic component
10. Every adjustment station has graduation marked
11. All the machine is running steadily,and high printing precision
