Titanhi TL2500 Бетономешалка 2.5cbm с CE ISO OEM
US $17999-$18999
Самозагружающаяся Бетономешалка Mini Mobile
- Категории: Бетоновоз >>>
- Поставщик: China,National,Heavy,Duty,Truck,Group,Jinan,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
80 km/h 6 cubic meter 4x2 used concrete mixer truck for sale
CHASSIS SPECIFICATION | |||
Dimension(Lx W xH)(unloaded)(mm) | 6900×2300×2800 | ||
Cubage (m³) | 4/6 | ||
Approaching angle/Departure angle(°) | 15/16 | ||
Overhang(front/rear) (mm) | 1500/2240 | ||
Wheel base (mm) | 3800 | ||
Max speed(km/h) | 90 | ||
Curb weight(kg) | 9500 | ||
Rated Weight(kg) | 7000 | ||
Engine (Steyr technology, made in China) | Model | MC05.180-40 | |
Fuel type | Diesel | ||
Power, max(kw/rpm) | 180HP | ||
Emission | EURO IV | ||
Dislacement | 4.58L | ||
Fuel tanker capacity (L) | 200L | ||
Transmission | HW90510. | ||
Front axle | 1090 | ||
Rear axle | 9T | ||
Tire | 9.00R20 | ||
Brake System | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Electrical system | Battery | 2X12V/165Ah | |
Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V | ||

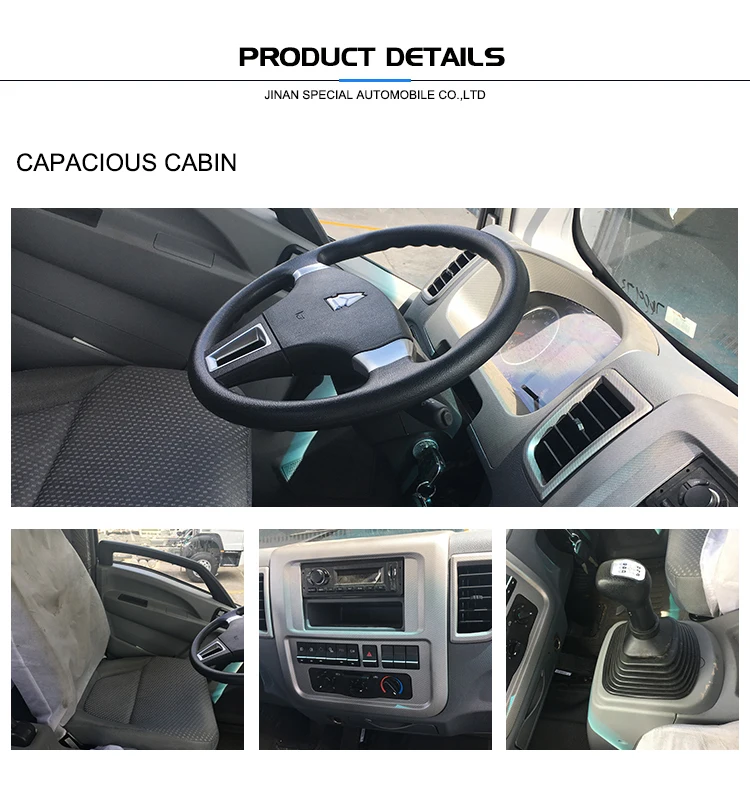

Cab | 2080 with half bed and with air condition | ||

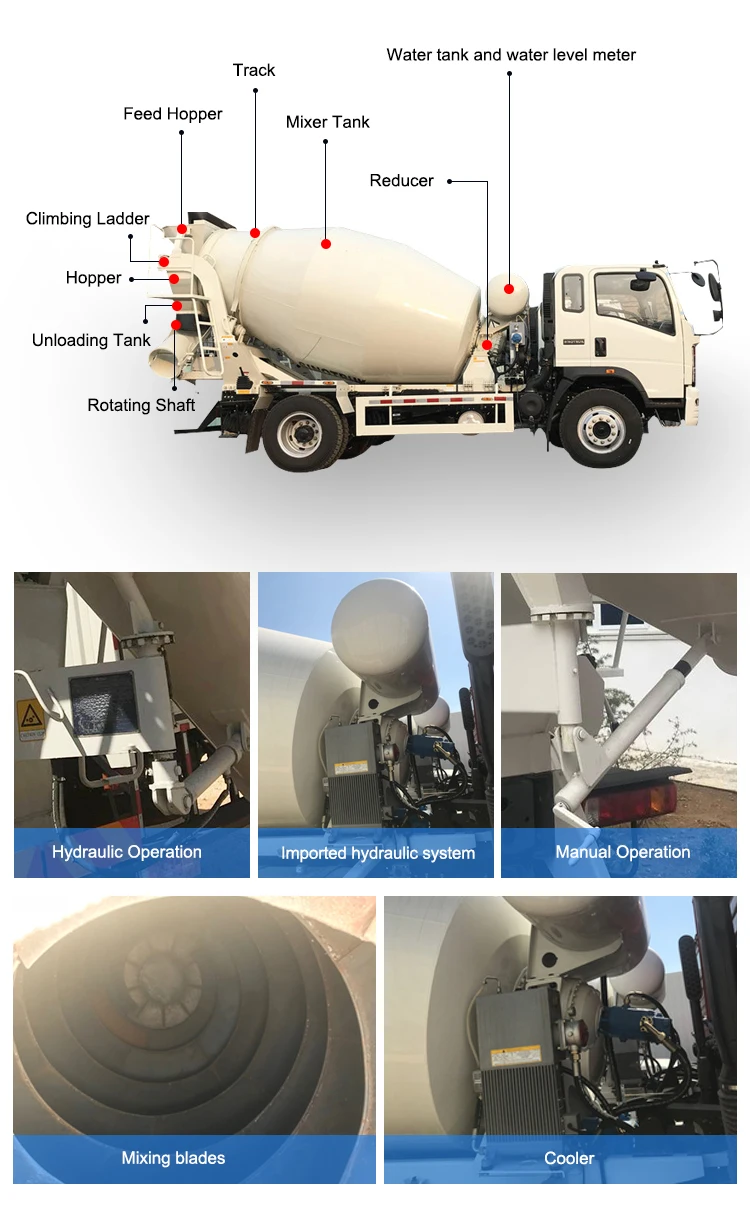

Mixer Tank Specification | |||
Mixing capacity | 4-6 cubic meters | ||
Thickness | 4-6mm | ||
Reduction gear | Italian TOP | ||
Hydraulic pump | ARK Brand | ||
Motor | ARK Brand | ||
Feeding speed | ≥4m3/min | ||
Related Products
Product Description
Company Information

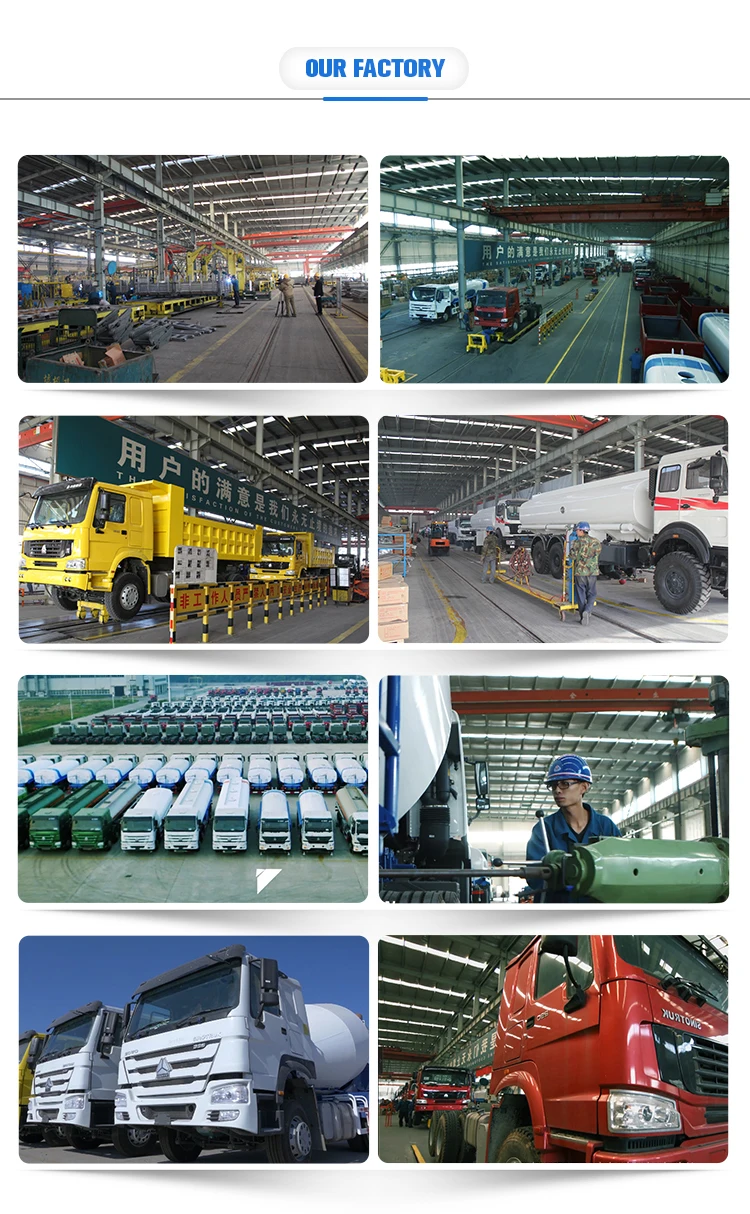

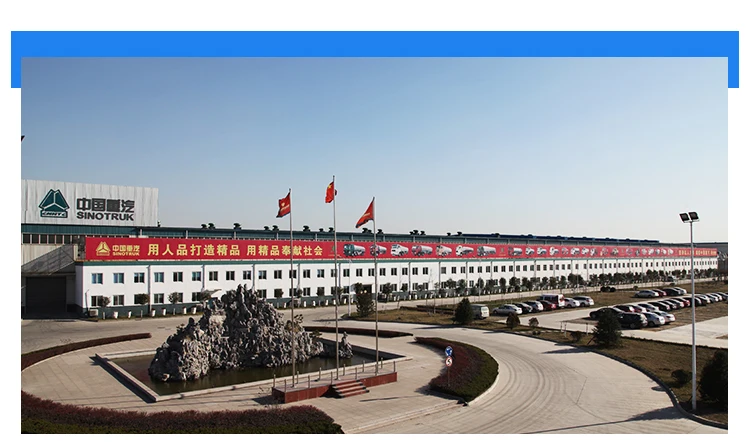

As a wholly- owned subsidiary of SINOTRUK, China National Heavy Duty Truck Group Jinan Special Automobile Co.ltd develops, manufactures and sells various kinds of special vehicles, serving as SINOTRUK'S refitted vehicle base in Jinan. The factory has a floor area of 250,000 m², building area of 42000 m², and 350 sets of advanced equipment.

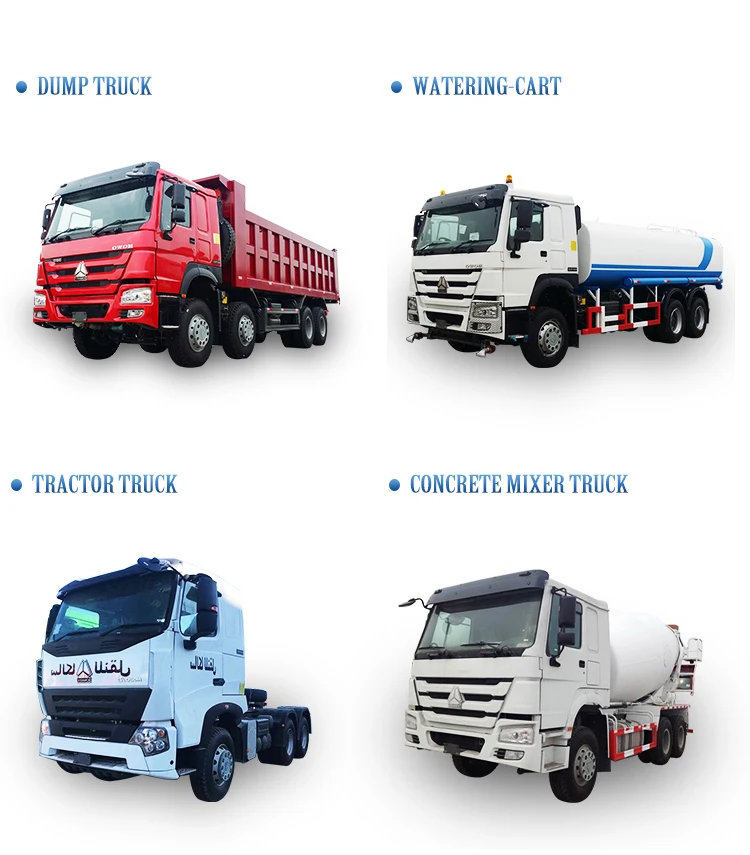

The main product is Dump truck, Sprinkler truck, Oil tank truck, Cargo tuck, Mixer truck, Tractor truck, Sewage suction dredge truck, Garbage truck series.
FAQ
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
Q: What is your lead time?
A: Usually it is 30-50 days after deposit received.
