Product Description

Product Application

It is fit to puff high density and low density polyethylene industry film, farm-oriented mulch film. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. It is double rolling and account the meter automatically.

\t
Main Technical Parameters
\t
SS-HL Series High Speed Film Blowing Machine
\t
Model
\t
600
\t
800
\t
1000
\t
1200
\t
1500
\t
Dia. of Screw
\t
Φ45mm
\t
Φ50mm
\t
Φ60mm
\t
Φ65mm
\t
Φ80mm
\t
Ratio of Screw
\t
30:1
\t
30:1
\t
30:1
\t
30:1
\t
30:1
\t
Speed of Screw
\t
10-150rmp
\t
10-150rmp
\t
10-140rmp
\t
10-140rmp
\t
10-140rmp
\t
Max. Output
\t
45-55Kgs/h
\t
50-65Kgs/h
\t
80Kgs/h
\t
90-100Kgs/h
\t
100-120Kgs/h
\t
Power of Main Motor
\t
15kw
\t
18.5kw
\t
30kw
\t
37kw
\t
55kw
\t
Die Model
\t
Φ50mm
\t
Φ80mm
\t
Φ100&220mm
\t
Φ120&250mm
\t
Φ150&350mm
\t
Thickness of Film
\t
0.008-0.05mm
\t
0.008-0.05mm
\t
0.008-0.05mm
\t
0.008-0.05mm
\t
0.008-0.05mm
\t
Max Folding Width of Film
\t
100-600mm
\t
200-800mm
\t
300-1000mm
\t
400-1200mm
\t
500-1500mm
\t
Machine Weight
\t
2.5t
\t
3.0t
\t
3.5t
\t
6.0t
\t
8.0t
\t
Machine Dimension
\t
4800*2200*
4800mm
\t
5000*2400*
4850mm
\t
5500*2600*
5200mm
\t
5500*2800*
6200mm
\t
6800*2600*
6500mm

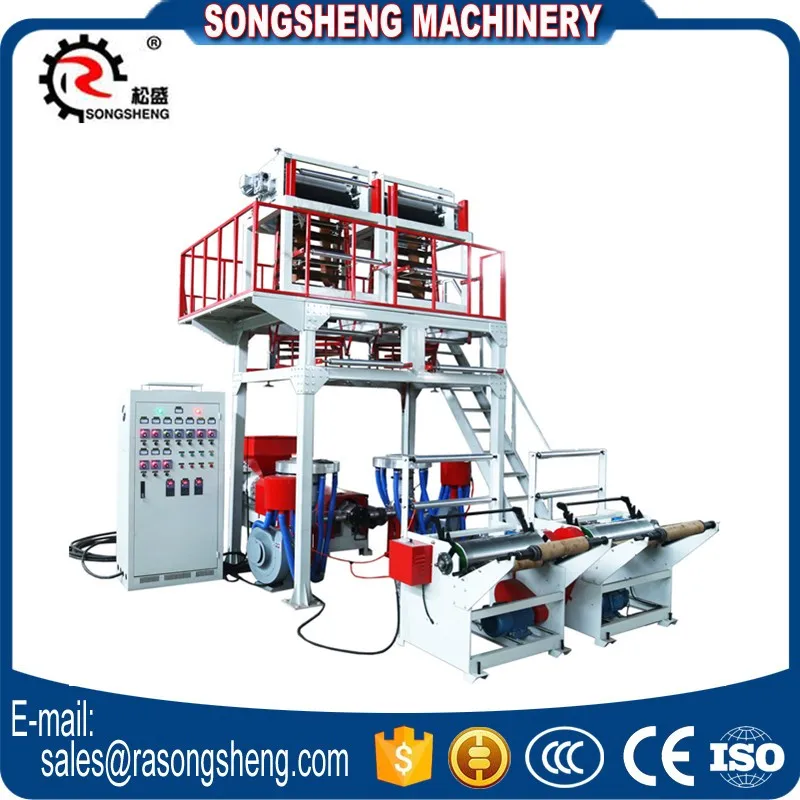

Main Machine Picture:

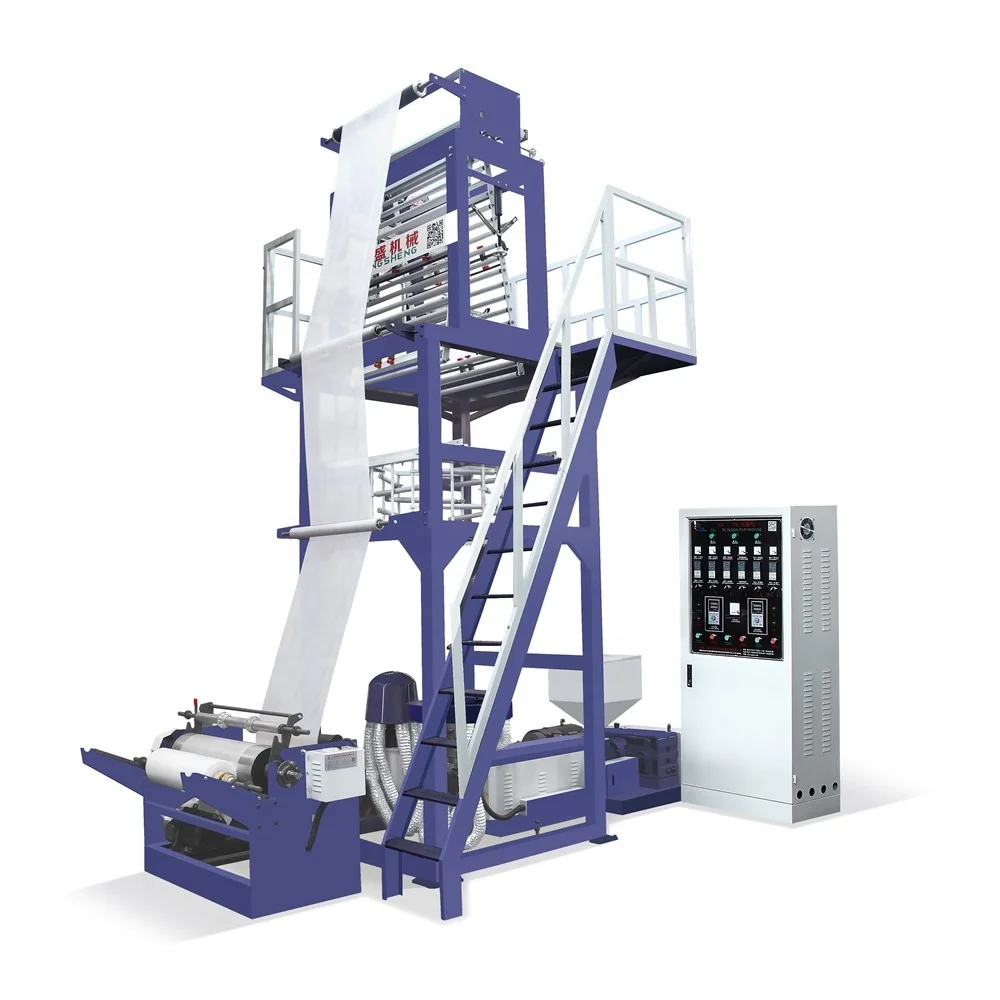

Standard HIgh Speed Film Blowing Machine(Taiwan type)
  For T-shirt bag film/shopping bag film/bottle packing
Detailed Images

Machine Parts

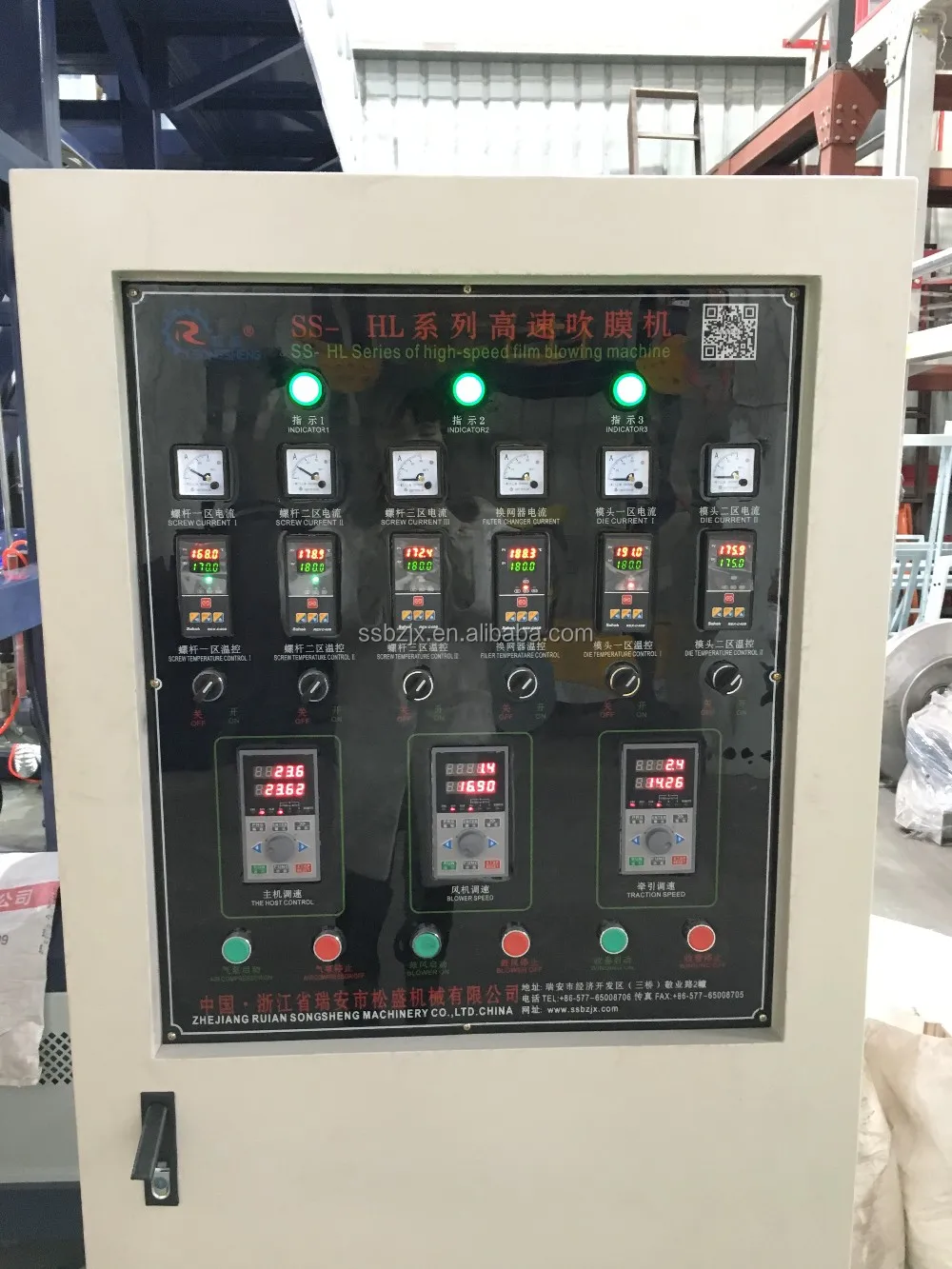

Name: Electic Box

Schneider switches, Siemens contactor and So on

Main Features

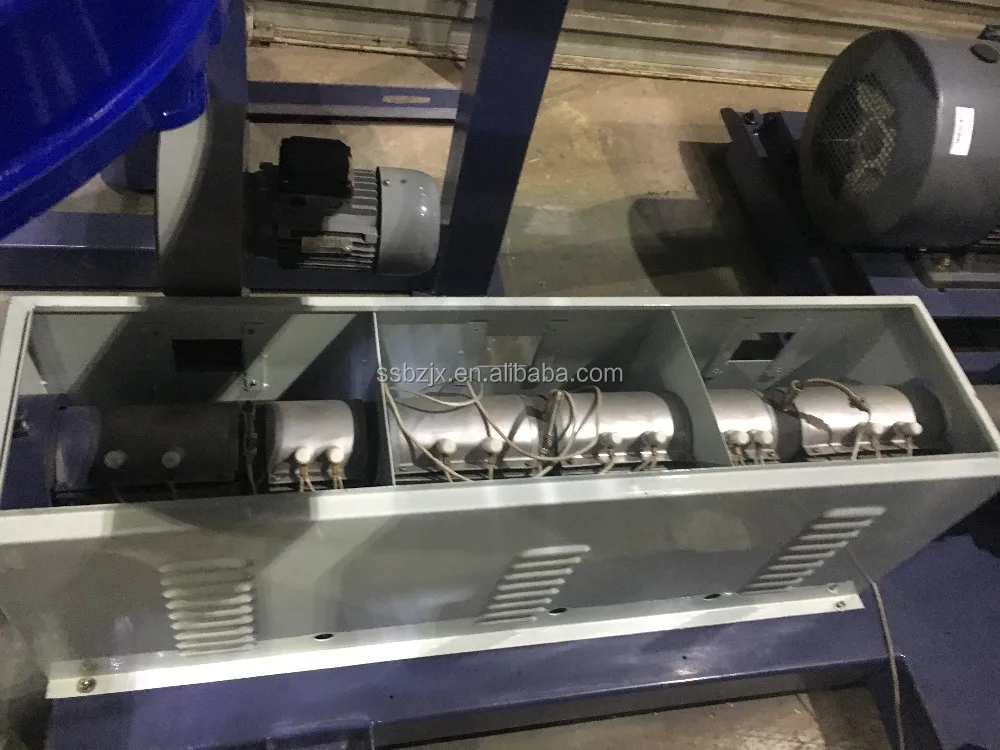

Name: Screw (HIgh speed and good quality alloy)
Original: Zhoushan, China.

Different Film: For example, HDPE & LDPE Film, the die head and wind ring is different. Please see the following two pictures:

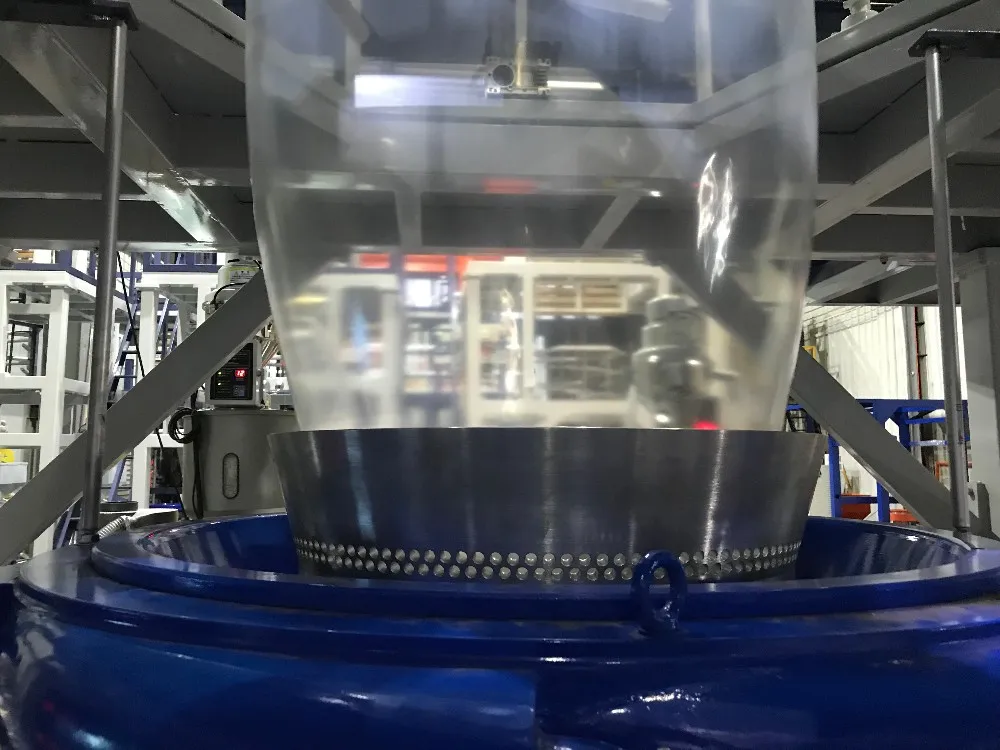

HDPE FILM BLOWING

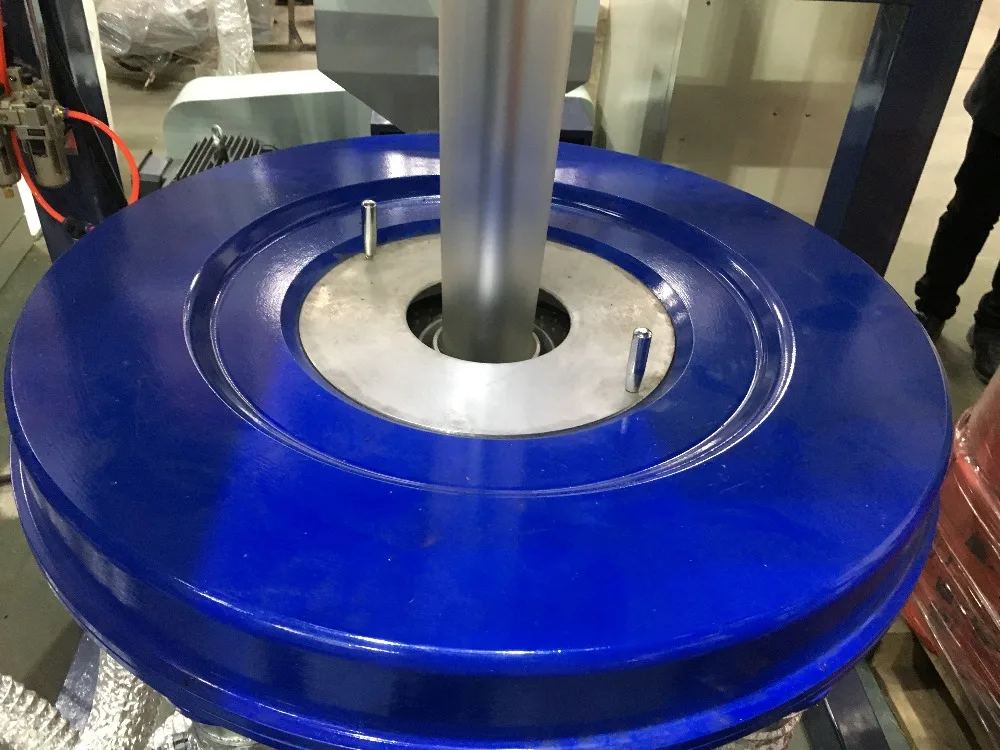

LDPE FILM BLOWING

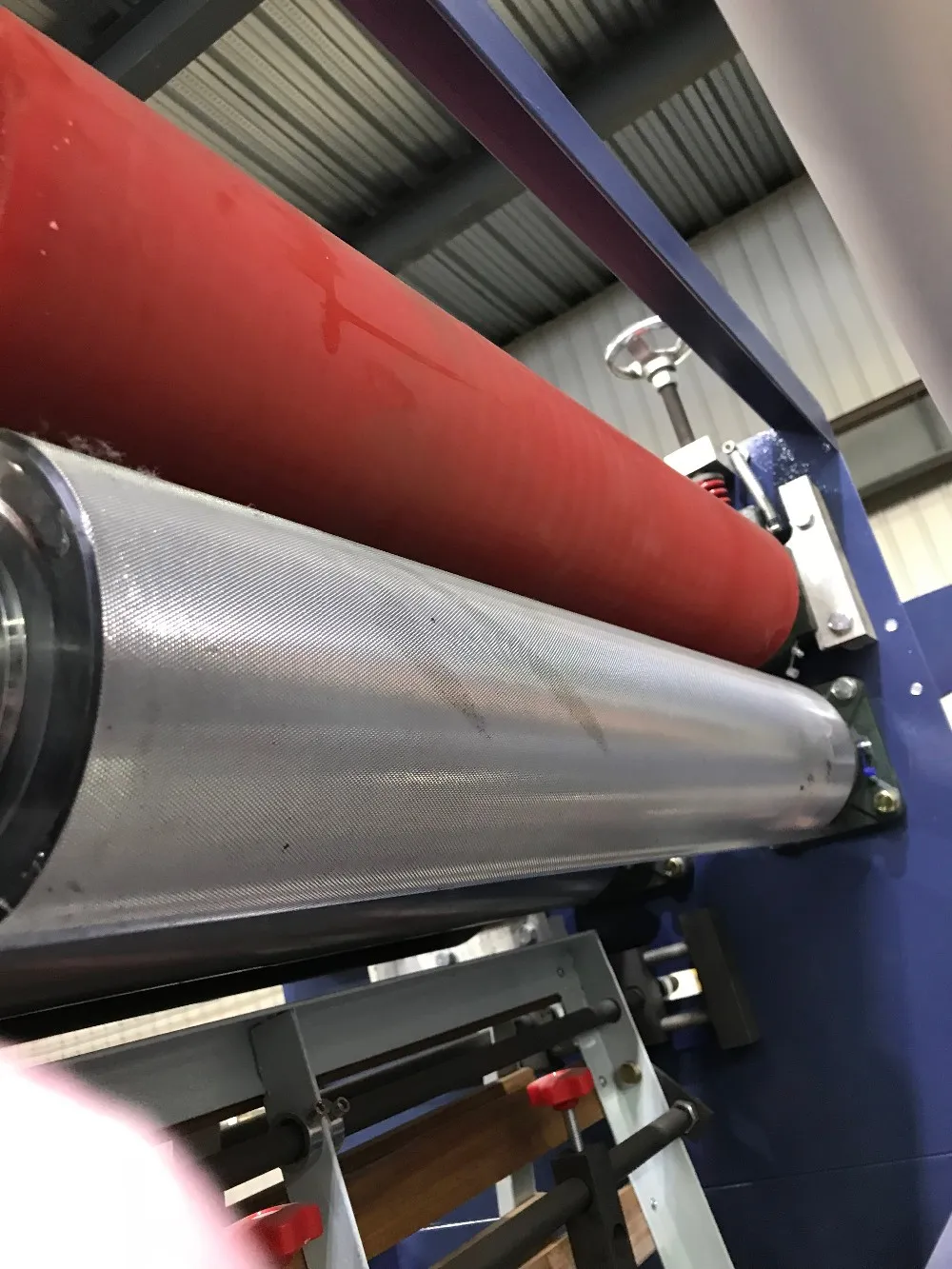

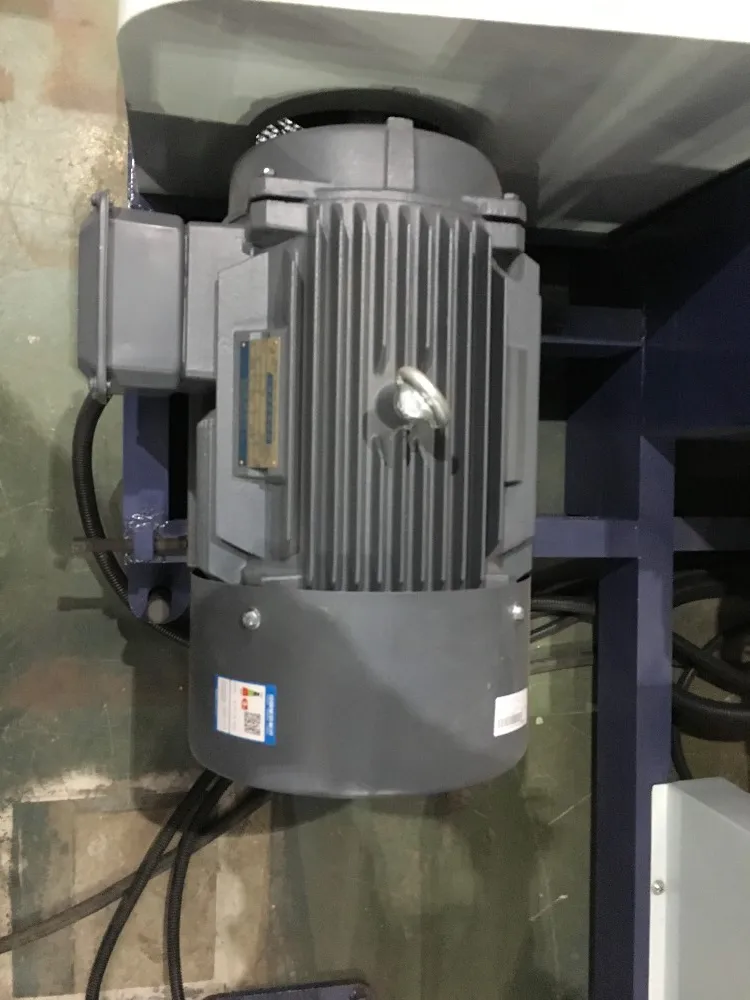

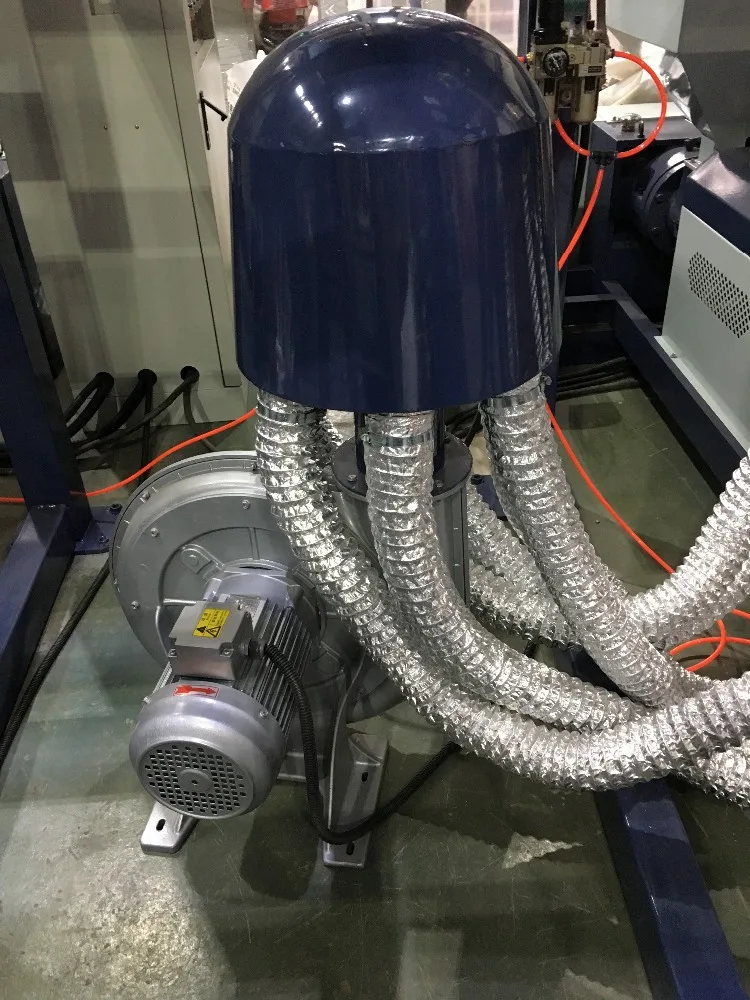

     Tracktion roller                                                       Blower                                       Main motor(Siemens)

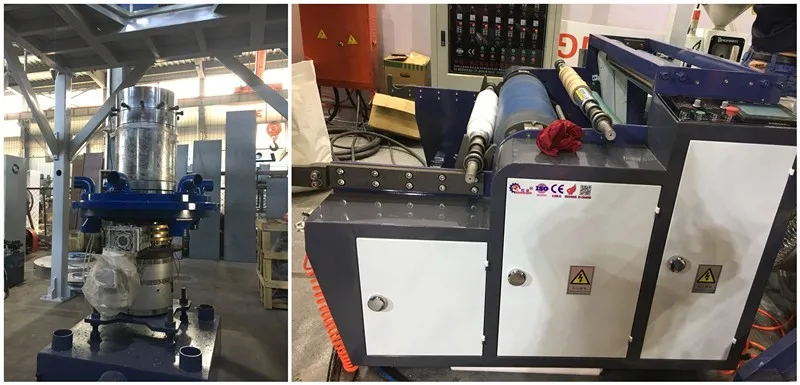

Optional device: 1. Rotary die head  2. Auto single rewinder

Other optional device: double rewinder, auto double rewinder, auto gravimetric system, auto mixer, cooling system, etc.
Related Products

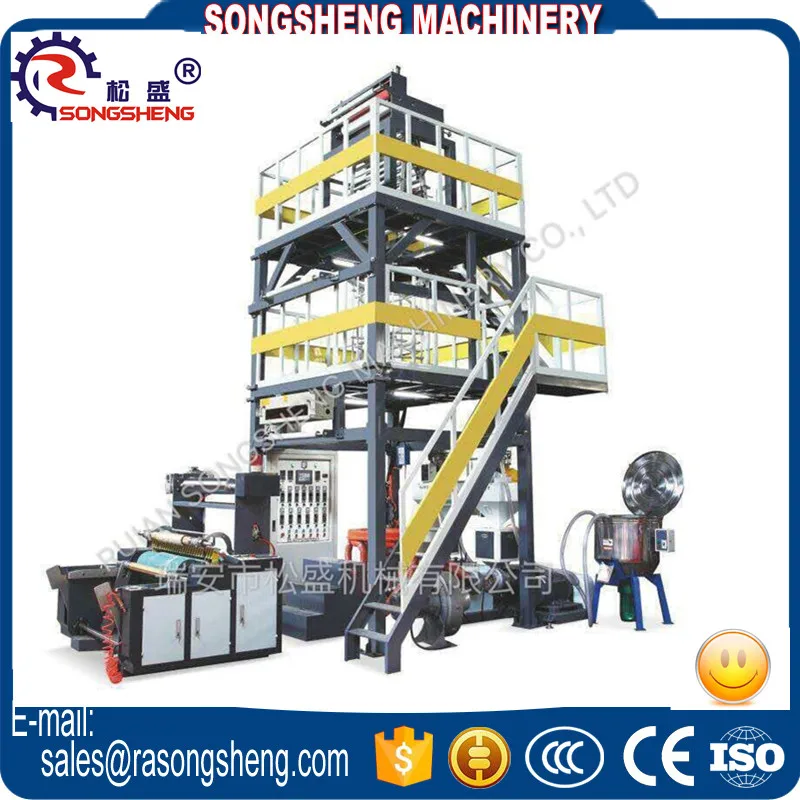

SS-ABA Series Three Layers Film Co Extrusion Machine


SS-H2 Double Die Film Blown Machine

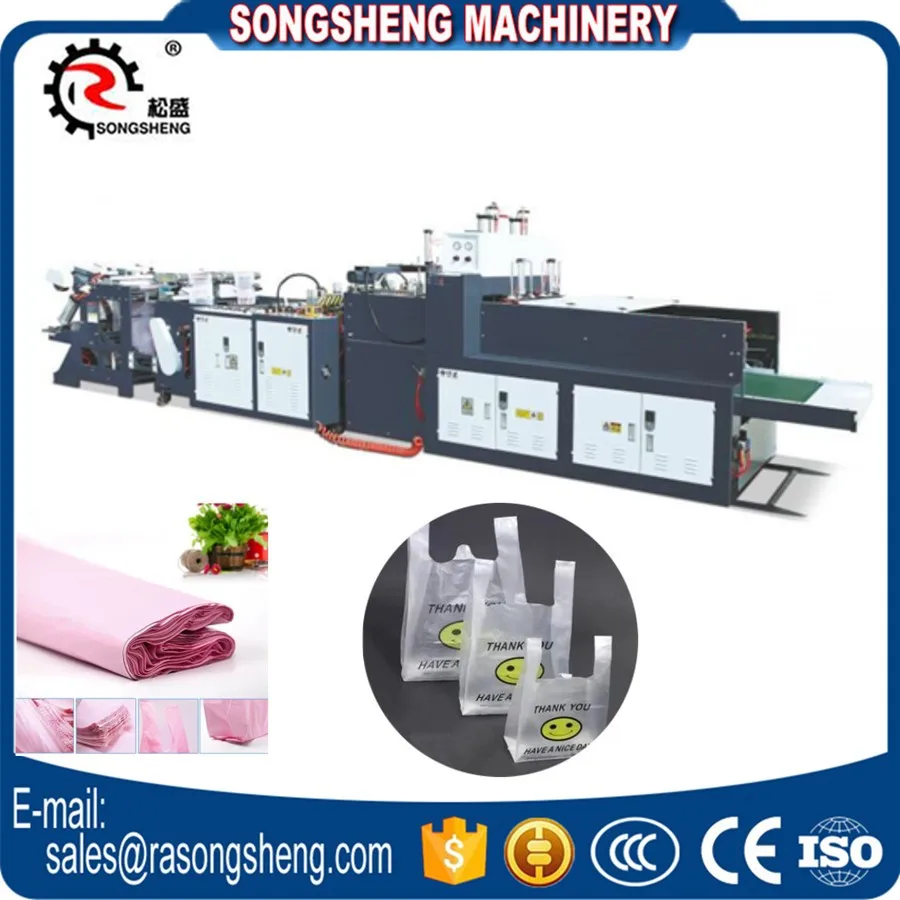

SS-CGS Fully Automatic Super High Speed Plastic Bag Making Machine


SSXJ Series Supermarket PE Rolling Bag Making Machine


Plastic Bag Soft Handle Loop Making Machine

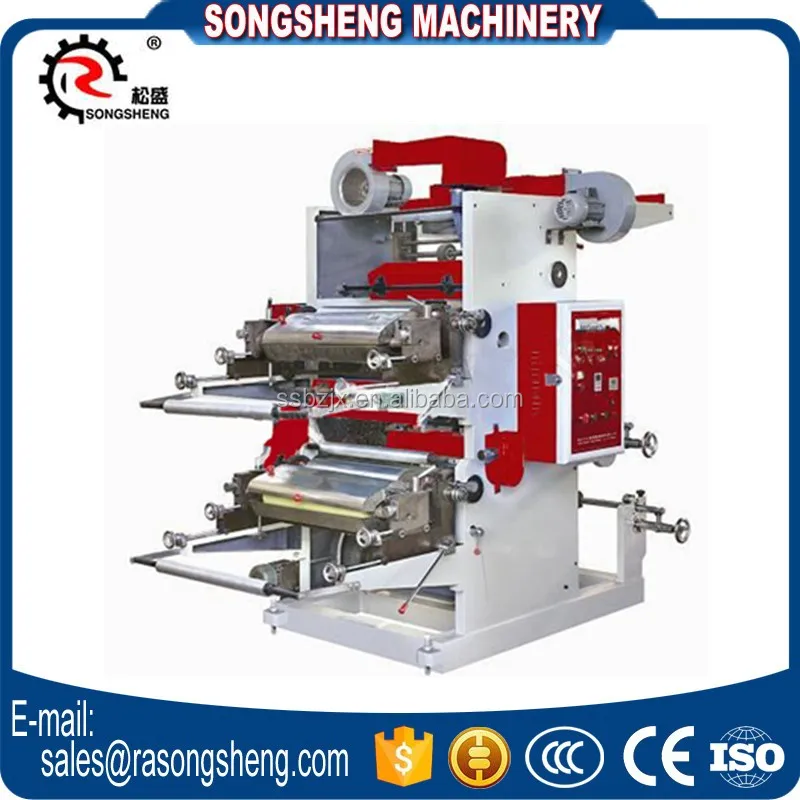

Plastic Film Two colors flexo printing machine

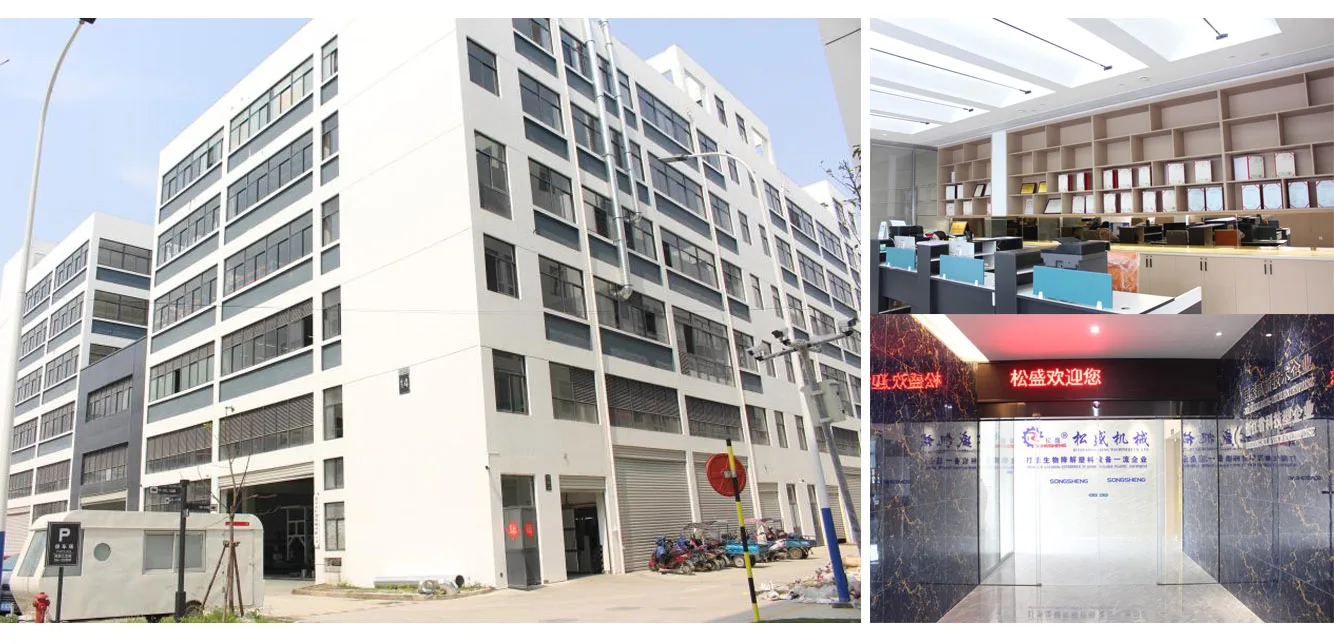

Our Company

Company Information:

Ruian Songsheng Machinery Co., Ltd is located in China's plastic machinery production base- Ruian city. Company specialized in manufacturing film blowing machine, plastic bag machines and other equiped machines in one line for more than 10 years. We strive for quality and innovation in machine. We export the machines to worldwide as Southeast Asia, the Middle East, South Asia, Russian, North Asia, North America, Eastern Europe, Africa etc.  Most welcome from all country to visit our company.

Our Service

Pre-sales Service:                                                           After-sales Service

* Inquiry and consulting support.                                                    *Training how to instal the machine, training how to use
* Sample testing support.                                                                      the machine.
* View our Factory.                                                                                 * Engineers available to service machinery overseas.

* Pick up customer from air-port and stations.

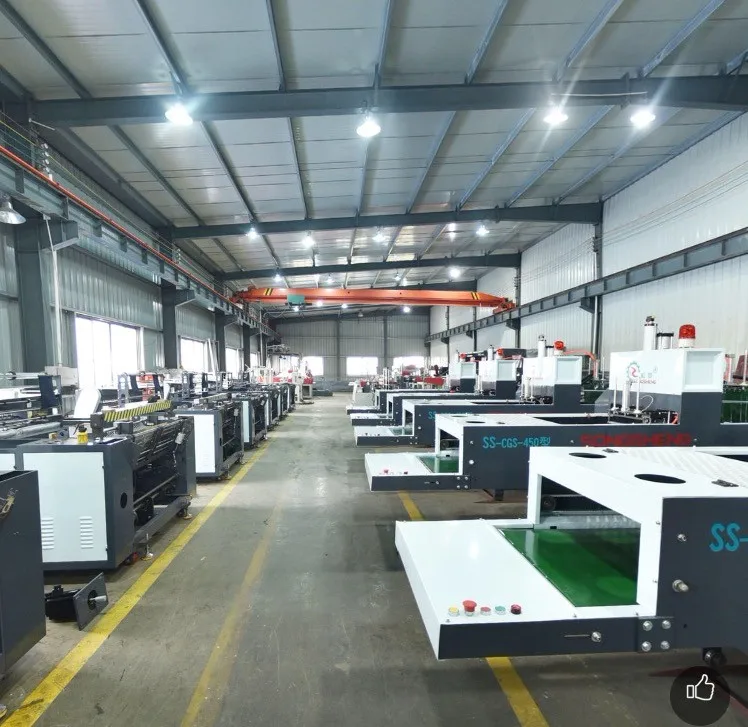

Factory Shows
Packing & Delivery

a. First film packed

b. Use forklift to carry machine

 into container one by one.


use iorn wires to tie up machines

with the container

a. Close the container

b. Shipping on the way to destination port.

FAQ

Q: Are you factory or trading company?
    we are the manufacturer/factory for film blowing machine, plastic bag /t shirt bag/shopping bag making machine & printing machine etc.

Q: How does your factory do quality control?
    We have profession engineers' team to prove and ensure machine quality.

Q: Machine warranty?
    one year since machines arrived your port.

Q: What's your delivery time?
     Normally, it need 15 to 20 working days since get the deposit.

Q: How do you keep the after-sales service?
    We do business based on faith, we insist on " quality is the first and most important" . We will carefully check the material, produce, test and adjust machines again and again.  If have any doubts, please contact us online or by calling, we will reply ASAP.

Q: Where's your company located? how can we visit?
     Our company located in Jingye Road, Ruian Economic Development Zone. You can by air to Wenzhou airport or by bullet train to Ruian Station. We welcome all friends from the world for future cooperation.
