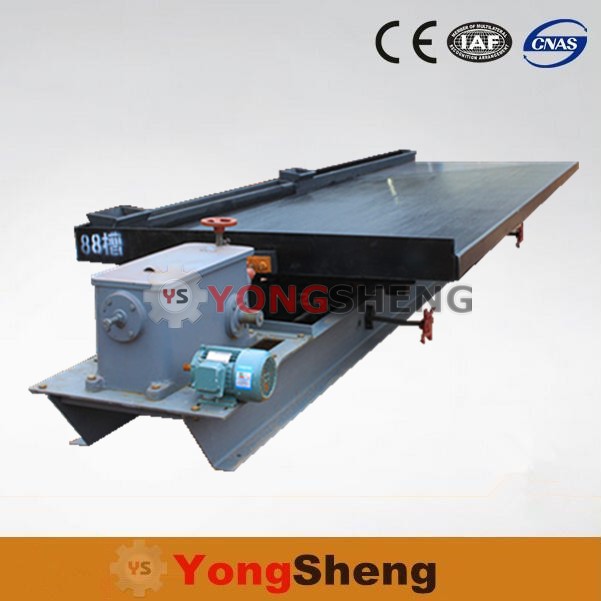

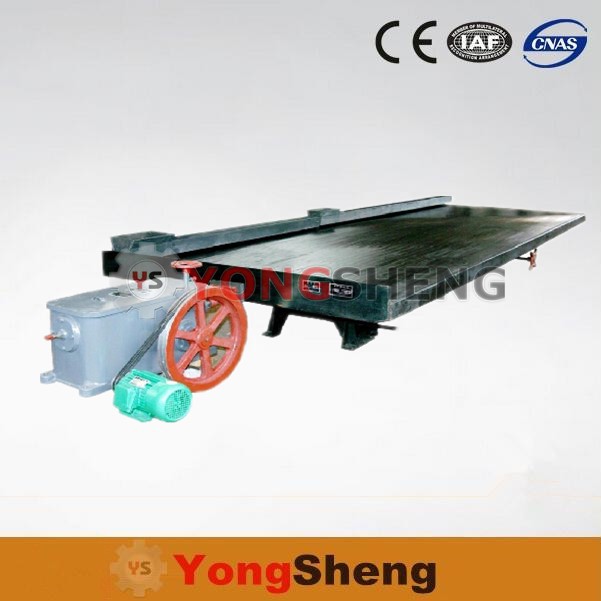

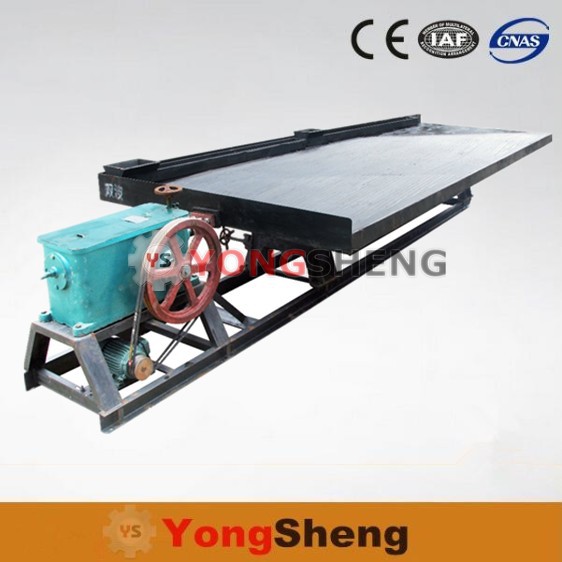

Wilfley Gravity Shaking Table Separator

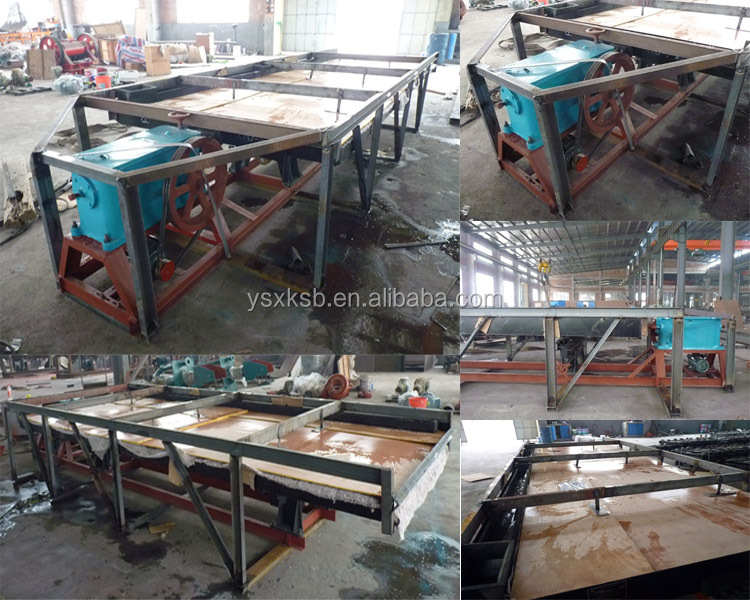

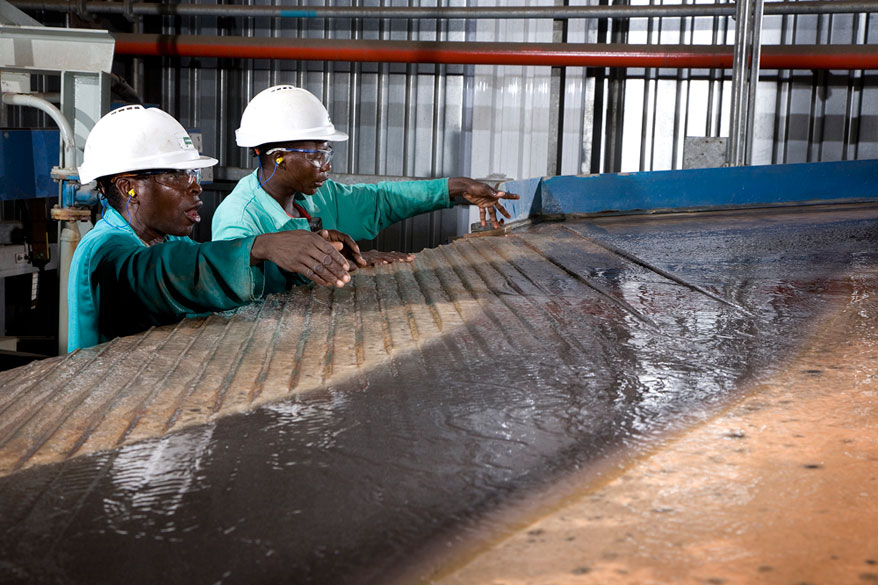

PRODUCT PICTURE~SHAKER TABLE IN MINING APPLICATION:

Customers from oversea countries had inquired about shaking table from Yongsheng and had applied it in gravity mining procedure. Yongsheng provide mining process design, free mineral test and gold machine operation guide. Welcome to visit us!

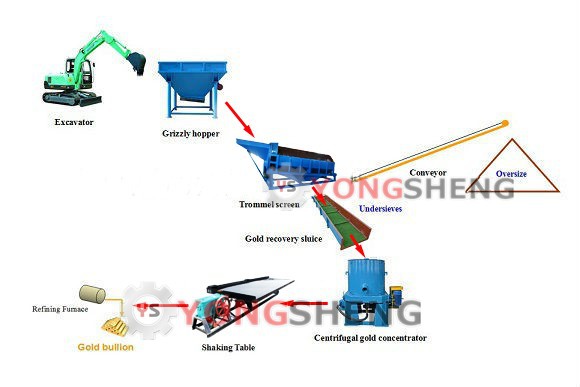

gold separation process

Gravity Gold Equipment Shaking Table INTRODUCTION:

Mineral Separation Equipment/Gold Machine Shaking Table is one of the main equipments of gravity concentration. Gravity gold shaking table is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.

Gravity Gold Equipment Shaking Table WORKING PRINCIPLE:

The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fine shaped

zoning.Then different products can be produced.

Put the raw materials into the feeding launder, and put some water in to make it into slurry of concentration of 20% to 25%, and gravity flow to the deck. The particle group become loose and layered because of the rinsing of water and shaking of the deck in the bed ditch. After the layered, the upper particle and the bottom particle move in different direction because of the different pressure of flowing water and the friction of the bed surface. The upper light particle moves downward along the transverse of bed surface result of the stronger flowing water., this side called tailing side. The heavy mineral particles which located in the bottom of bed layer was influenced by differential movement of bed surface, thus them move to the opposite of the drive end, and we call this point concentrate side. Because of the different density, granularity, and the directions of movement, the groups of mineral particles spread in Fan-shaped along the diagonal of the feeding launder. The production discharge along the edge of bed surface, the discharge line is so long, so that shaking table could produce many kinds of different quality product precisely.

Gravity Gold Equipment Shaking Table MODELS&PARAMETERS:

Models&Parameters
Model Type	Coarse sand deck	Fine sand deck	Grooved deck
Deck size(mm)	4436x1825x1536
Stroke(mm)	16-22	10-16	10-16
Frequency of stoke(r/min)	240-290	300-320	330-340
Water consumption(m³/t)	190	80	50
Capacity(t/d)	30	8	8
Feeding size(mm)	2-0.2	0.5-0.037	0.074-0.019
Feeding density(%)	20-25	15-20	15-20
Minimum Installed slope	2 degree 30'	1 degree 50'	0 degree 45'
Overall measurement(mm)	5454x1825x1242
Adjustable stroke(mm)	8-22
Power(Kw)	1.1
Weight(Kg)	1012

Mineral Separation Equipment/Gold Machine Shaking Table STRUCTURE:

Head motion: gravity gold shaking table cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum.

Decks: gravity gold shaking table have three distinct deck designs available. The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

Feed and Water Box: A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.

Gravity Gold Equipment Shaking Table FEATURES:

High recovery ratio;
High concentration ratio;
Easy installation;
Simple operation;
Deck constructed of fiber glass;
Seven different decks to choose;
Long working life;
Adjustable stroke length and speed.

Model Type Options

	l Ordinary foundation The Type needs the cement to bury the foot bolt in advance
	l 10# Small Channel Steel Support The support is made up of 10# channel steel, this type has the same effect as the ordinary support, it has the following characteristic. It does not need the cement to bury the foot .installs and uses more quickly, easy to disassemble,movable,and the cost is more competitive.
	l 28# Big Channel Steel Support The support is made of 28# channel steel,this type has the same effect as the ordinary support.it does not need the cement to bury the foot.easy installation and dissemble,movable ,is suitable especially for uneven surface,not the solid sand and empty superficial work.

table separator.jpg
