Fastest delta robot industrial spider robot,

delta robot, spider robot,









IP rating test through third-party body dustproof and waterproof rating test

• AP robot IP65

• AH Robot IP54

• HS robots up to IP65

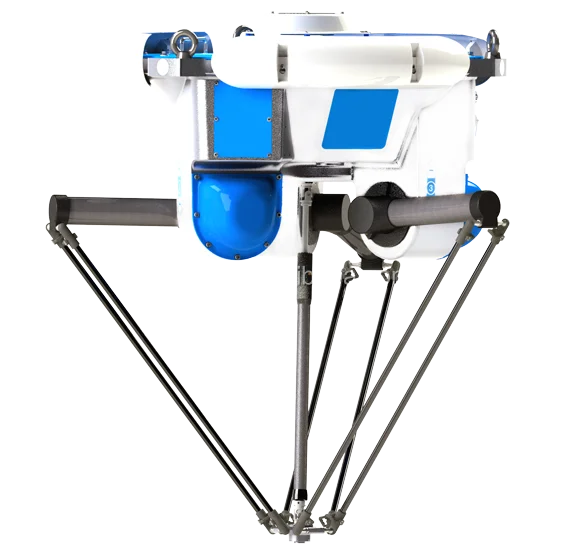

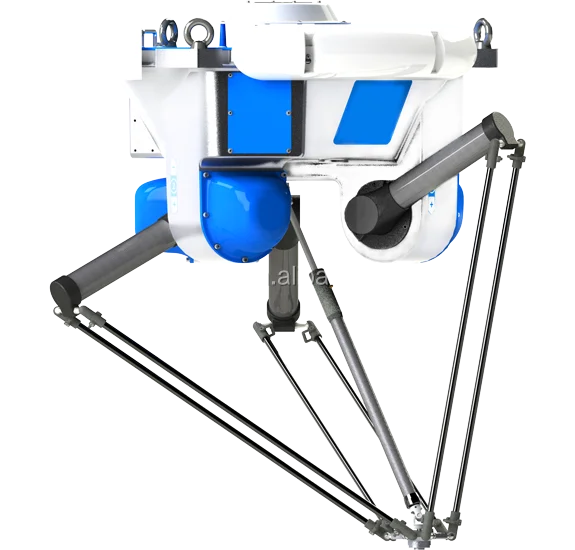

LZL AP robot is a new generation of integrated and integrated Delta (Delta) robot. The excellent robot hardware technology and mature application system software make AP series robots become the solution experts in high-speed sorting field.

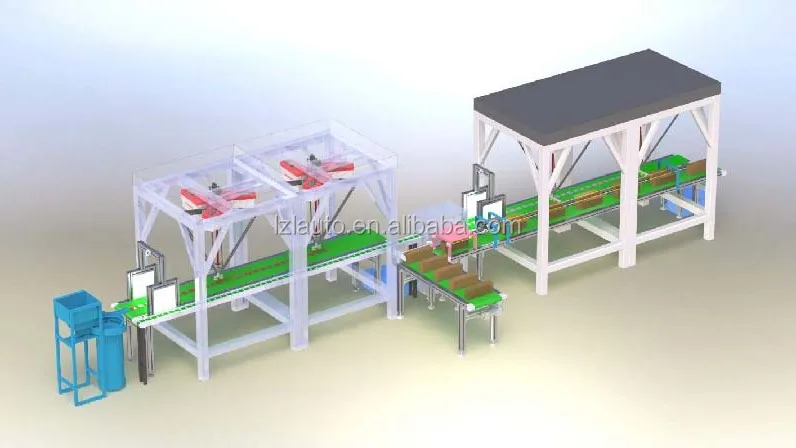

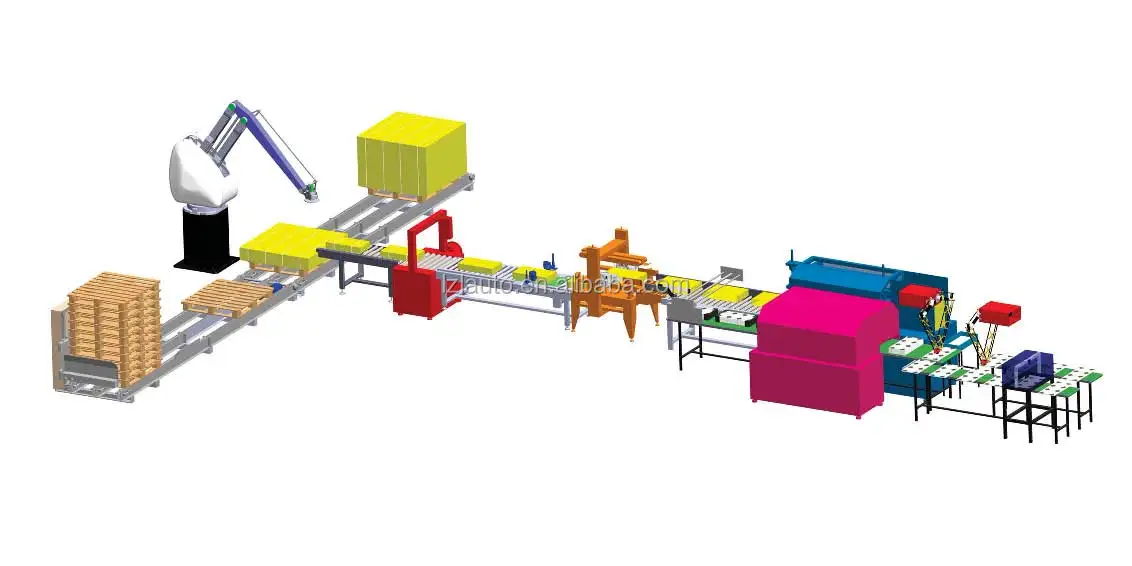

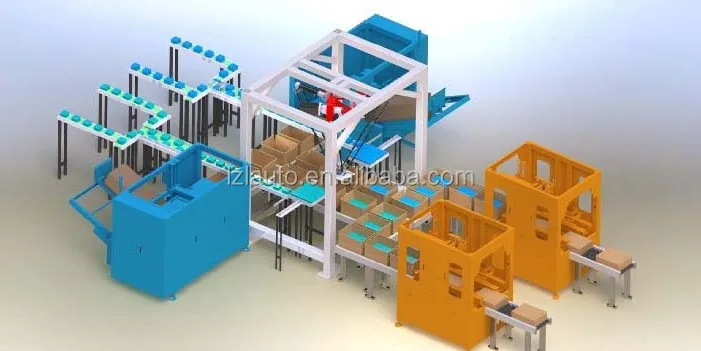

AP series robots have a wide range of applications in the field of food packaging automation. They are outstanding in the sorting and packing of large quantities of incoming materials, which brings more competitiveness to enterprises.

In the manufacture of pharmaceutical products, such as high-speed sorting and packaging of medical water bags, AP series robots provide a cleaner and more efficient production option.

The large number of electronic products, large number of models, fast update, high precision and many other characteristics make the AP series robots have full advantages such as speed block, high flexibility and openness.

The structure and functional characteristics of the AP series robots have excellent adaptability to modern and flexible daily chemical production, allowing the production line to be quickly switched between different products for production.

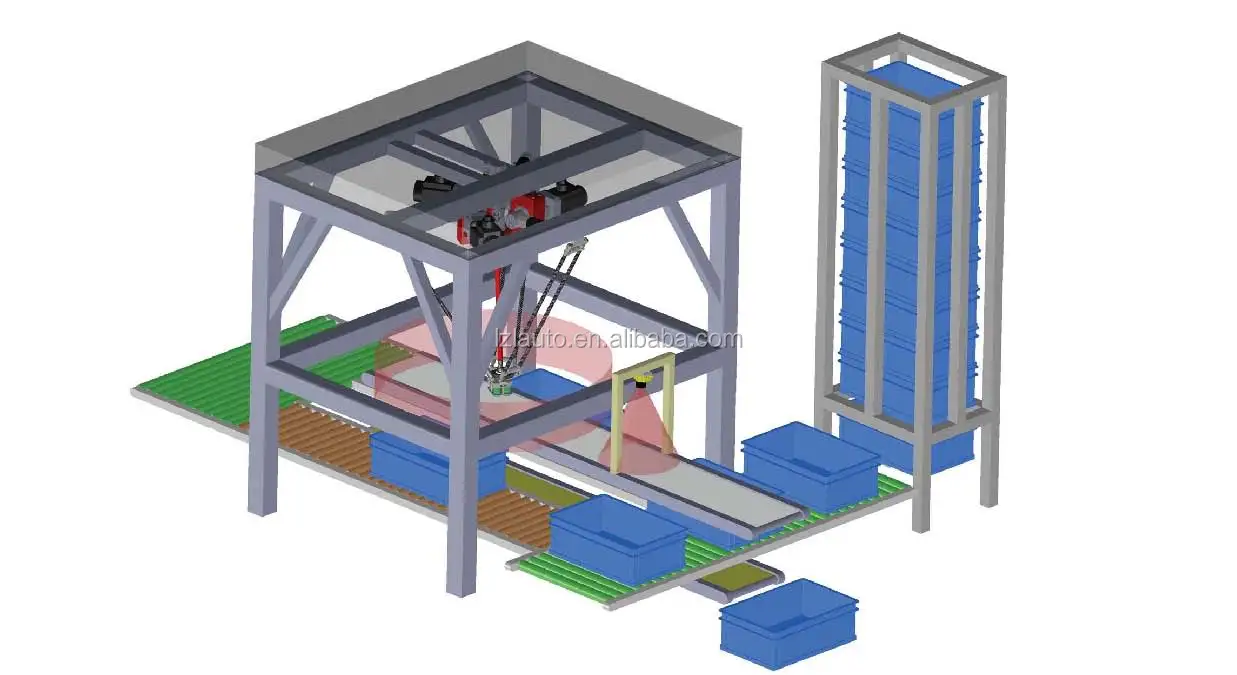

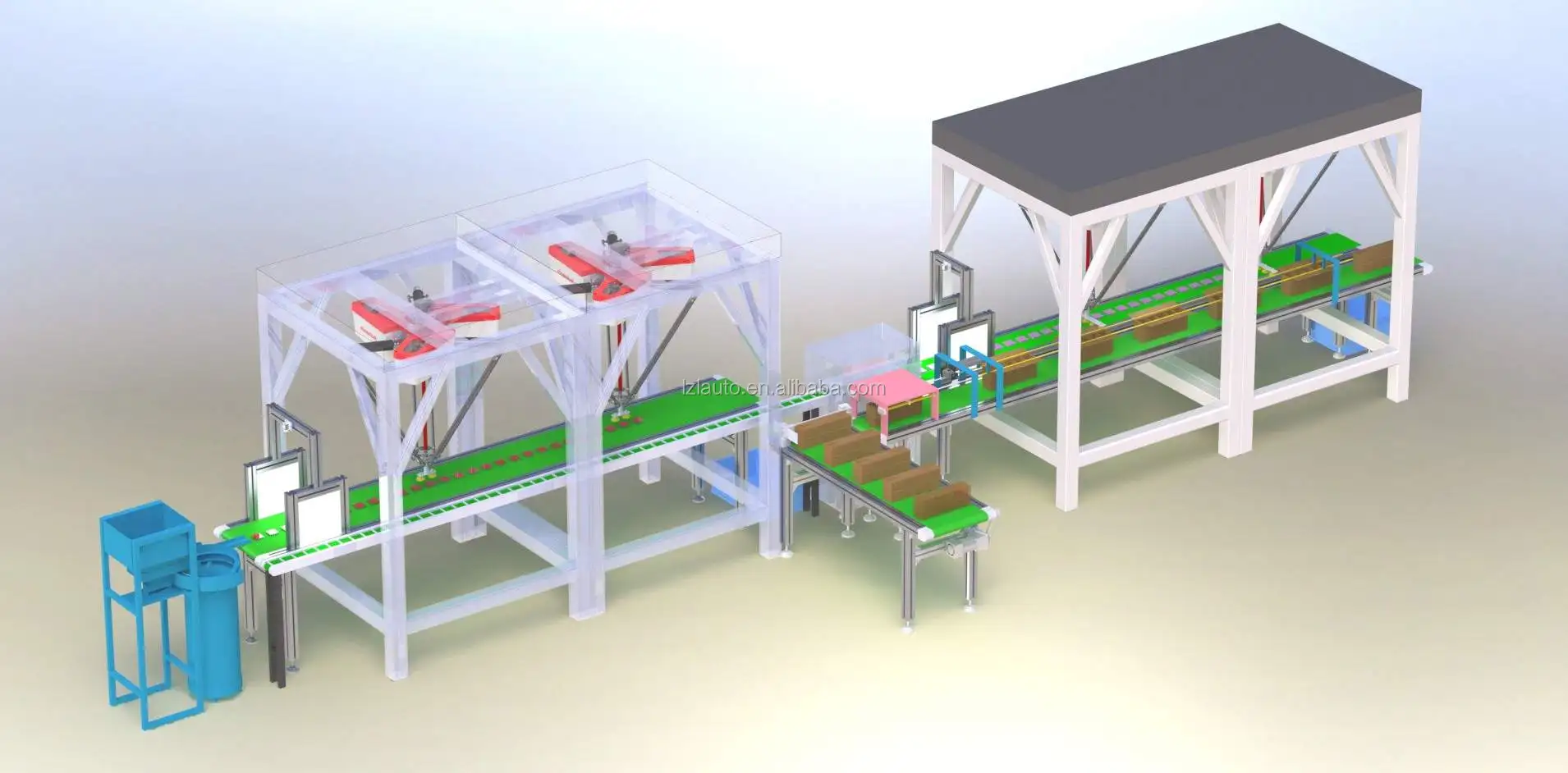

Equipped with visual positioning and conveyor tracking management system, it can identify and accurately locate and capture the shape and posture of the target, and repeat the positioning accuracy to 0.1mm.

The powerful operation and control technology enables the AP robot to move more smoothly and exercise more smoothly at high speed.

The integrated design of the control and the whole machine reduces the complicated external wiring and makes the AP robot light in weight and small in size, which greatly reduces the space occupancy rate.

The whole structure is enclosed and has IP65 protection level to better prevent the invasion of dust and liquid.

Adhering to the product design concept of creating art, both the selection of materials and the craftsmanship have undergone rigorous checks.

Adhering to the product design concept of creating art, both the selection of materials and the craftsmanship have undergone rigorous checks.

The AP robot can coordinate the control of the relevant automation unit, thus providing an innovative approach to automated engineering control.



Robot technical parameters:



LZL-AP-1130-465S

• Number of axes: 4 axes

• Repeat positioning accuracy: ±0.1 mm, ±0.2°

• Maximum load; 3 kg

• Motor brake voltage: 24 V d.c

• Work space: working diameter 1130 mm, working height 300 mm, angle of rotation ±360 °

• I/O interface: 12 universal digital inputs, 7 universal digital outputs (expandable) rated voltage 230 V a.c. 50/60 Hz

• Rated power: 1.5 kW weight (body) 125 kg

• Communication interface: Ethernet, RS-232, RS-485

• Standard tact cycle 25/305/25 (1 kg): 0.35 s

• Working environment: working temperature: 0 °C ~ 40 °C, relative humidity ≤ 95% (non-condensing), protection grade: IP65





LZL-AP-1130-365S

Number of axes: 3 axes

Repeat positioning accuracy ±0.1 mm

Maximum load: 3 kg

Motor brake voltage: 24 V d.c

Working space: working diameter 1130 mm, working height 300 mm

I/O interface: 12 universal digital inputs, 7 universal digital outputs (expandable)

Rated voltage: 230 V a.c. 50/60 Hz

Rated power: 1.5 kW

Weight (body): 120 kg

Communication interface: Ethernet, RS-232, RS-485

Standard tact cycle 25/305/25 (1 kg): 0.35 s

Working environment working temperature: 0 °C~40 °C,

Relative humidity ≤95% (non-condensing),

Protection level: IP65





LZL-AP-1635-465S

• Number of axes: 4 axes

• Repeat positioning accuracy: ±0.1 mm, ±0.2°

• Maximum load: 3 kg

• Motor brake voltage: 24 V d.c

• Work space: working diameter 1600 mm, working height 350 mm, angle of rotation ±360 °

• I/O interface: 12 universal digital inputs, 7 universal digital outputs (expandable) rated voltage 230 V a.c. 50/60 Hz

• Rated power: 1.5 kW

• Weight (body): 126 kg

• Communication interface: Ethernet, RS-232, RS-485 standard tact cycle 25/305/25 (1 kg) 0.38 s

• Working environment working temperature: 0 °C~40 °C, relative humidity ≤95% (non-condensing),

• Protection level: IP65





LZL-AP-1635-365S

• Number of axes: 3 axes

• Repeat positioning accuracy: ±0.1 mm

• Maximum load: 3 kg,

• Motor brake voltage: 24 V d.c,

• Work space: diameter 1600 mm, height 350 mm

• I/O interface: 12 universal digital inputs, 7 universal digital outputs (expandable)

• Rated voltage: 230 V a.c. 50/60 Hz

• Rated power: 1.5 kW

• Weight (body): 121 kg

• Communication interface: Ethernet, RS-232, RS-485 standard tact cycle 25/305/25 (1 kg) 0.35 s

• Working environment working temperature: 0 °C~40 °C, relative humidity ≤95% (non-condensing),

• Protection level: IP65
