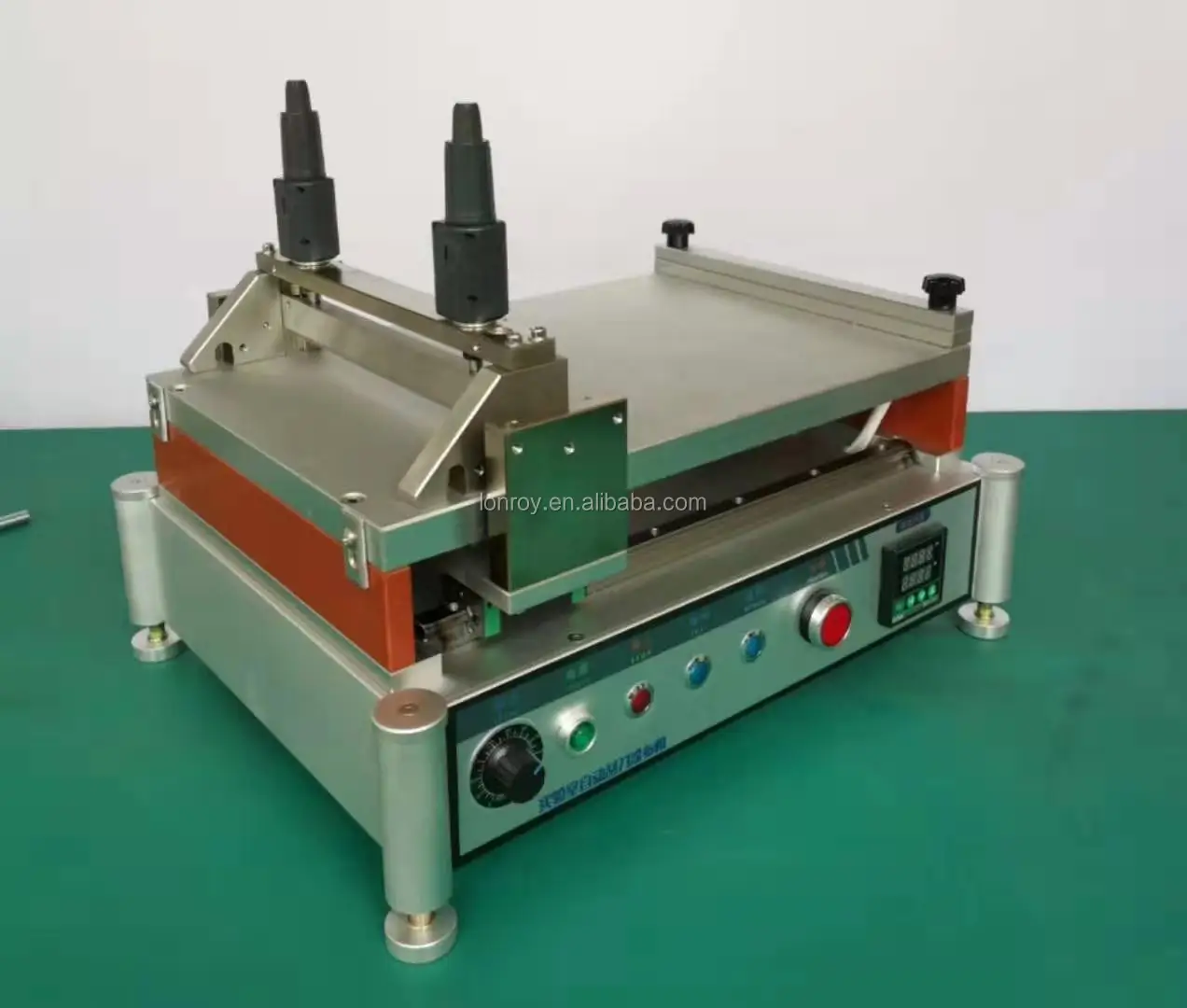

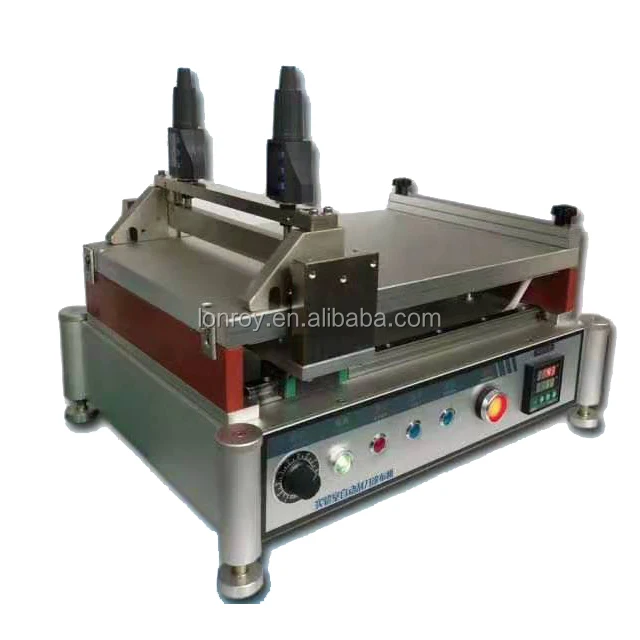

Laboratory Coating Machine for Paper Printing Film Adhesive Tape/mini coating machine/Film coating machine



Biggest advantage of the laboratory small coating machine: can be in paper, plastic, metal, PVC, PET, cloth, aluminum alloy board and other plane materials repeatedly, continuously coating out smooth and perfect test samples.It is convenient for laboratory personnel to apply coating accurately on different substrates, reducing and eliminating the error caused by different coating speed and pressure and other human factors.



Product overview:

Laboratory small coating machine using imported matsushita servo motor, through the control of speed and stable pressure to ensure coating effect, ensure coating uniformity and stability, many multinational enterprises research and development institutions, many famous universities at home and abroad.



Laboratory Coating Machine for Paper Printing Film Adhesive Tape/mini coating machine/Film coating machine

Product parameters:



Coating head: the use of stainless steel u-shaped scraper, to ensure that the experimental samples and large machine produced coating quality consistent, coating head can be opened 90 degrees quickly to clean the scraper after each experiment.



Coating method: scraper/wire rod used alternately

Speed: 10 m/min for digital display

Length: 10-420mm for digital display

Leveling device: with counterweight according to different thickness of materials, automatic leveling materials after coating

Accuracy error: ± 0.003mm (scraper) ± 0.002mm (wire rod)

 Picture: 300 * 450 mm

 Coating thickness: 0.005-5mm (minimum 5 micron wet film)

 Machine volume: 620*470*395 (length * width * height)

 Weight: net weight: 32KG

 Coated wire rod: length: 400MM

 Scraper material: alloy stainless steel (professional scraper)

Heating temperature:RT-200degree

 Power source: voltage 110~220V 50/60hz

 Power: 2000W(heating)
