HGY33S-4R Заводская бетонная стрела дистрибьютор бетонной

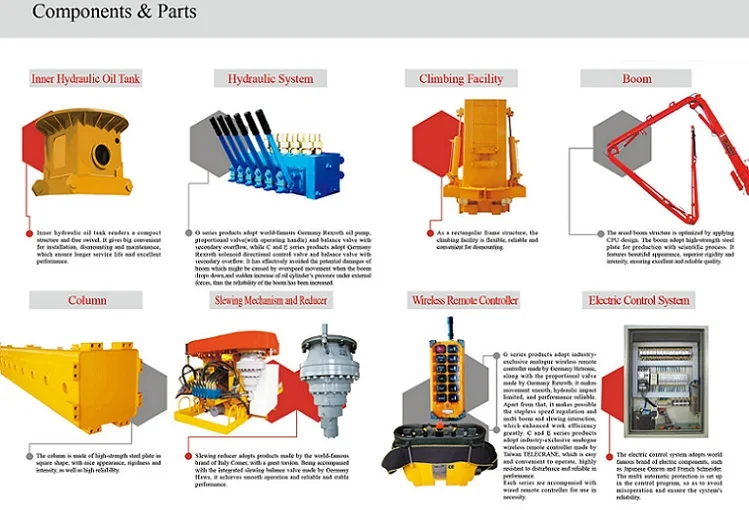

Technical Specifications

Model of Placing Boom

HGY33S-4R

HGY33P-4R

HGY33SC-4R

HGY33PC-4R

Performance

Max. Radius (m)

33

Free Standing Height,Slewing Range

22.7m,400°

Working temperature(℃)

0~60℃

Counter weight(kg)

/

2930

Total weight(kg)

22300

25230

Supply power to equipment

380V/50Hz

Electric motor

Motor Model

Y2-200L-4

Power(kw)

30

Hydraulic system

System pressure(Mpa)

32

Flow(L/min)

34

47

34

47

Oil tank capacity(L)

280

Control mode

(Cable+Radio) remote control

Clearing mode for concrete pipe

Water clear / Dry clear

Section of tubular column (m×m)

0.75×0.75

Arm(Booms)

Boom model

fully hydraulic foldable arms

Delivery pipeline diameter

DN125mm

Length of end hose

DN125mm×3000mm

The first section

Length(m)

9.3

Articulation

-2.5°~82.5°

The second section

Length(m)

7.9

Articulation

0°~180°

The third section

Length(m)

7.9

Articulation

0°~180°

The forth section

Length(m)

7.9

Articulation

0°~180°

Climbing

Climbing Mode

Cylinder Jack Lifting

Internal Climbing Step Distance(m)

0.52

Floor Frame

Hole Prepared in Floor

Shaft Frame

Size of Climbing Shaft : 2.0m-2.7m

Min. Space Between Internal Climbing Frame

Climbing(m)

3

Placing

Concrete(m)

6

Rest(m)

6
