Обновленный переключатель быстрого подключения
- Категории: Toggle Switches >>>
- Поставщик: Yueqing,Renew,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
post

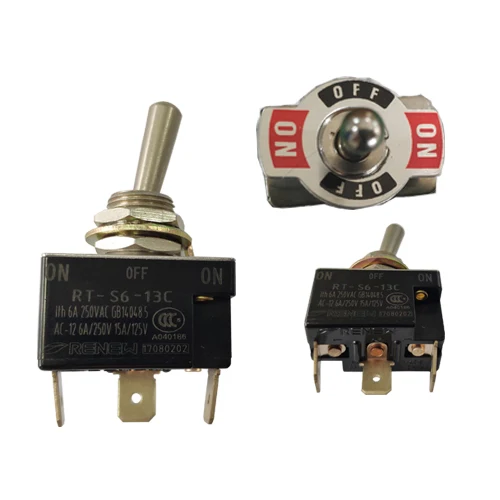

P/N: one pole on-off-on type toggle switch/universal toggle switch/wrench switch
Model No.: RT-S6-13C
Specifications:
Rated working current | 15A,10A,6A,3A/125V,250VA(resistive load) | ||
Contact type | Contact resistance (initial value ) | Less tan 15mΩ | |
Contact material | Sliver cadmium oxide contact (if no need cadmium,[according with ROSH certificate ] can customize | ||
Electrical | Insulation resistance(initial value ) | Above 100 mΩ(use the DC500V insulation resistance test) | |
Dielectric strength | Between Non-continuous terminals (initial value): 1000V 50/60HZ for 1 min Between non voltage metal parts and each terminal: 2000V 50/60HZ for 1min Between grounding and each terminal: 2000V 50HZ for 1 min
| ||
Mechanical | Shock resistance | In the free position | Less than 98m/s2(10G) |
In the full operating position | Less than 500m/s2(30G) | ||
Vibration resistance | 1.5mm double amplitude; 10-55HZ (contact gap is under 1ms ) | ||
Capacity | Mechanical | 50,000 operations min. (on/off frequency 20 operations/min) | |
Electrical (resistor load) | 25,000 operations min. (rated load, 7 operations/min) | ||
Using condition | Ambient temperature/ humidity | -20~+70(with no icing ), 85%RH max. (+5~20) | |
The max on/off frequency | 30 operations/min | ||
Company Information
Certifications
FAQ
WHY CHOOSE US?
1. More than 23 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".
2. High quality raw materials, long life and secure switches.
3. Dust-free plant, strict quality control, provide you satisfactory switches.
4. CE, CCC, UL. ROHS Certificates.
5. Plentiful stocks, solve your urgent needs.
?FAQ
1.Q:What are your payment terms? Do you accept paypal?
A: 100% T/T in advance. We do not have a paypal account at present.
2. Q: Do you have a price list?
A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.
3. Q: What are your warranties?
A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.
4. Q: Can you accept OEM?
A: Yes, need your trademark authorization letter.
5. Q: What about the package?
A: All use thickening export carton with "RENEW" mark, you specified mark or none.
6. Q: Do you provide sample?
A: Yes, free sample can provide to you, express freight collect.
7. Q: Do you accept small order quantity?
A: Yes, order quantity without limited.
8. Q: How about the delivery mothod?
A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS...... If not by sea or by air transport.
9.Q: Do you bear the freight charge?
A: We can offer you EXW, FOB or CIF price.
