Product Description
Factory price 1 ton 1.5 ton 2 ton 2.5 ton 3 ton 3.5 ton 4 ton 5 ton 7 ton 8 ton 10 ton diesel forklift with OEM service

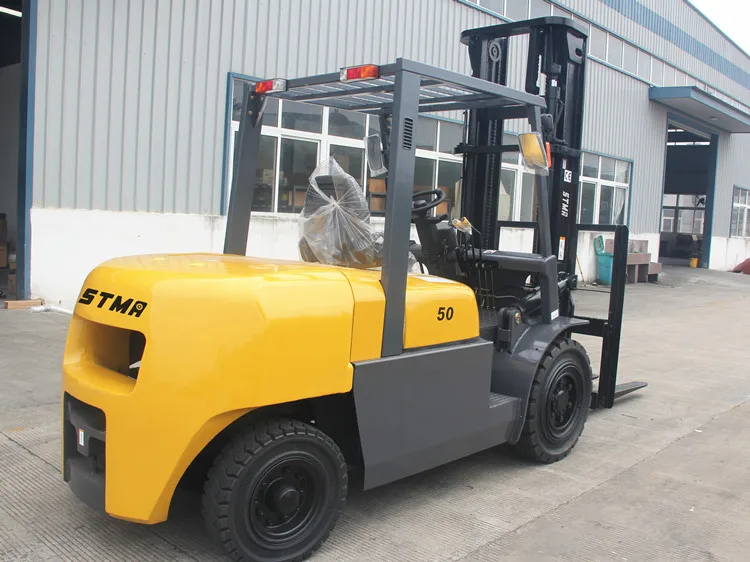

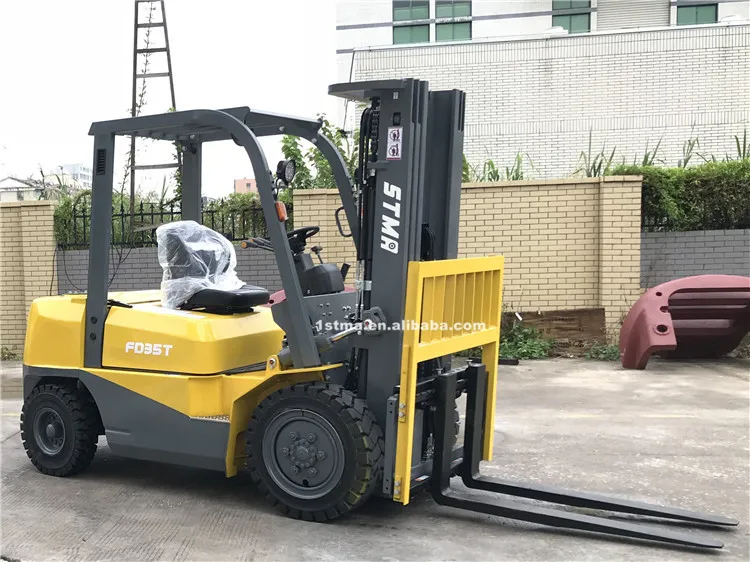

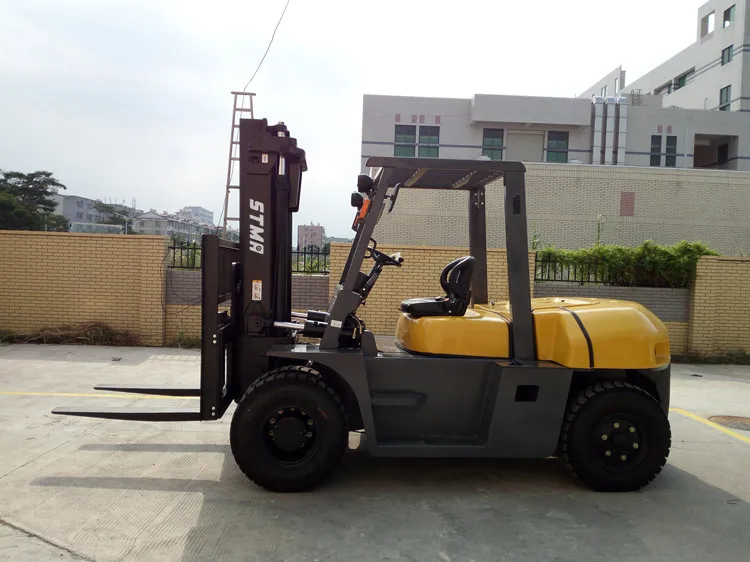

Forklift for sale

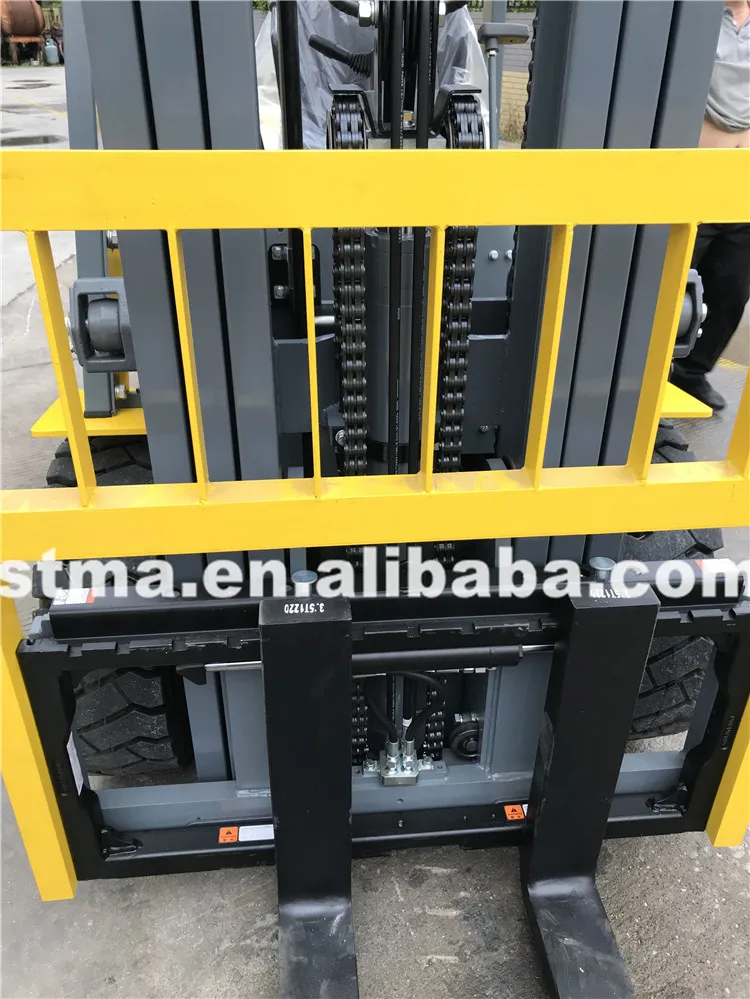

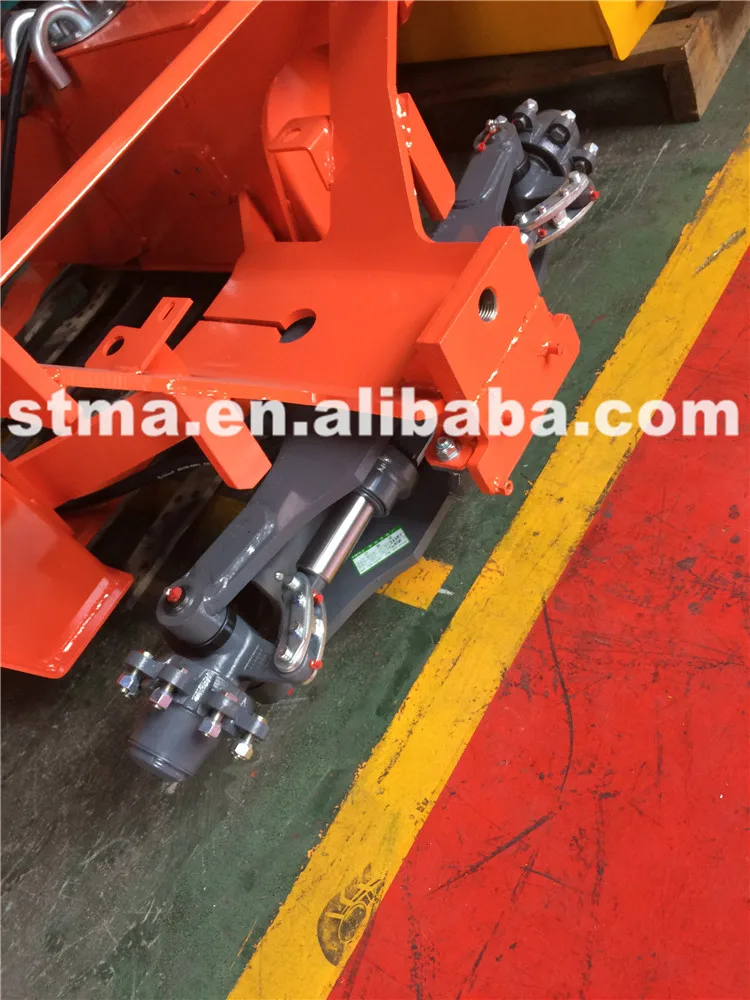

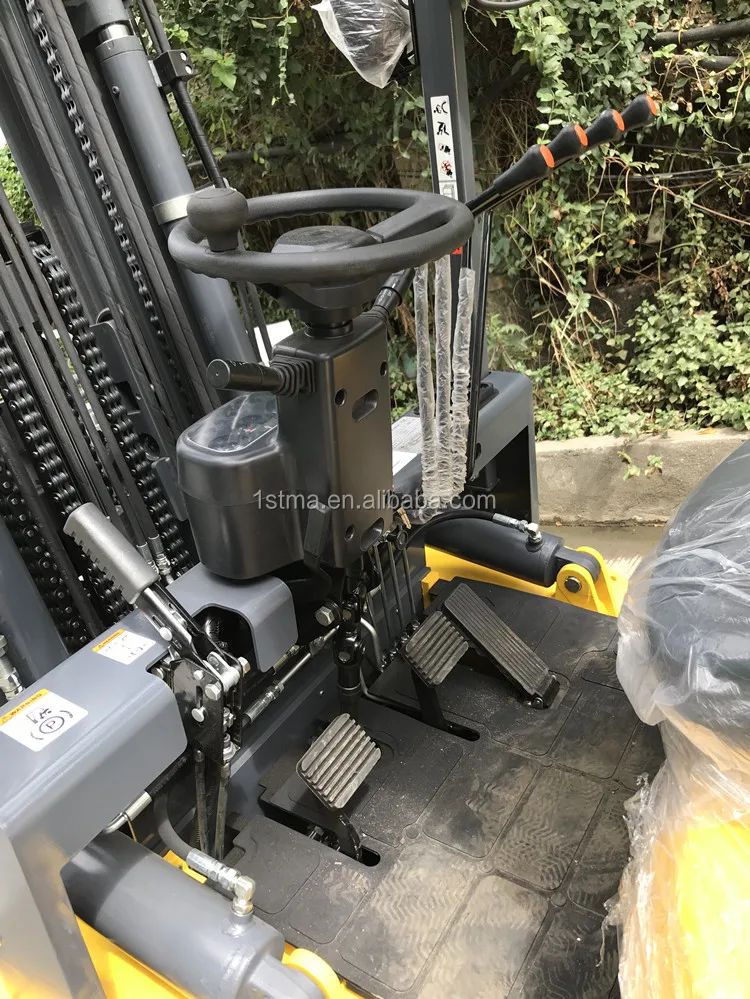

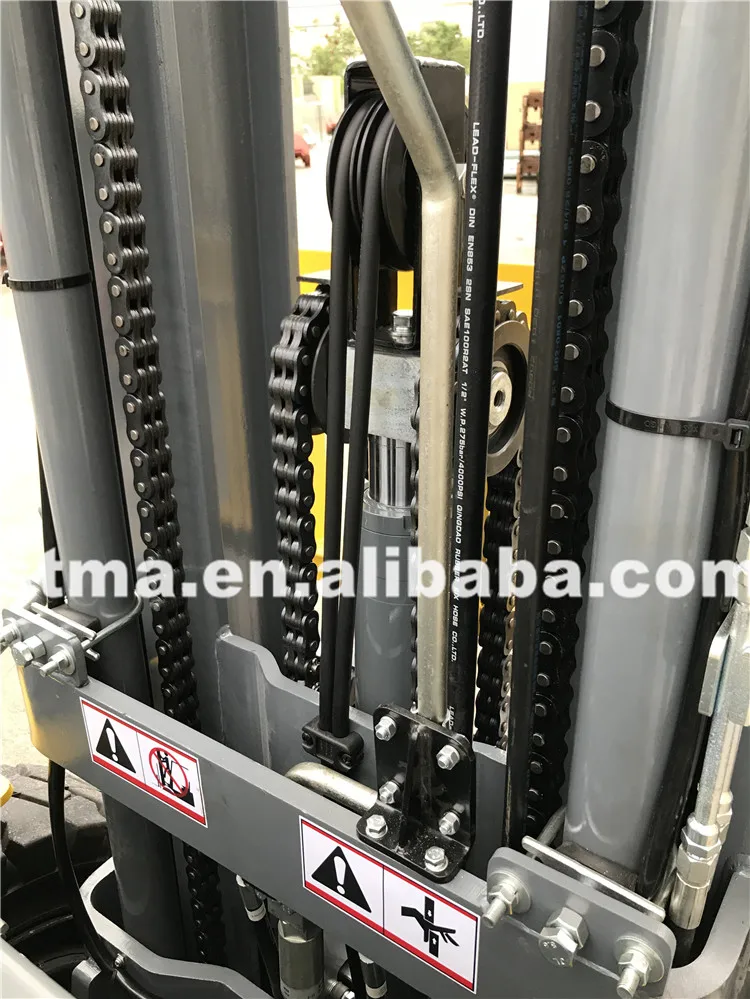

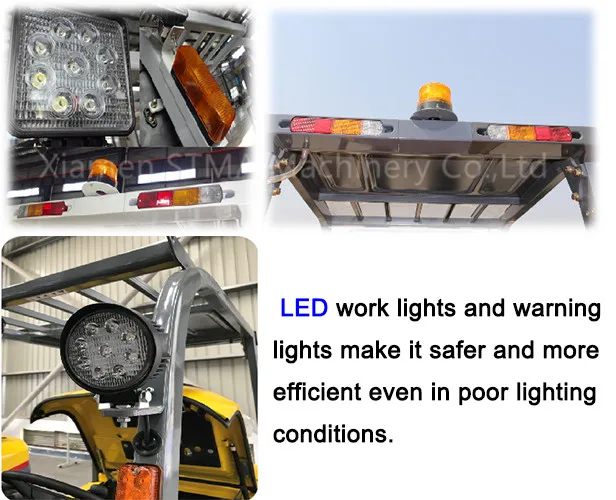

Detailed Image

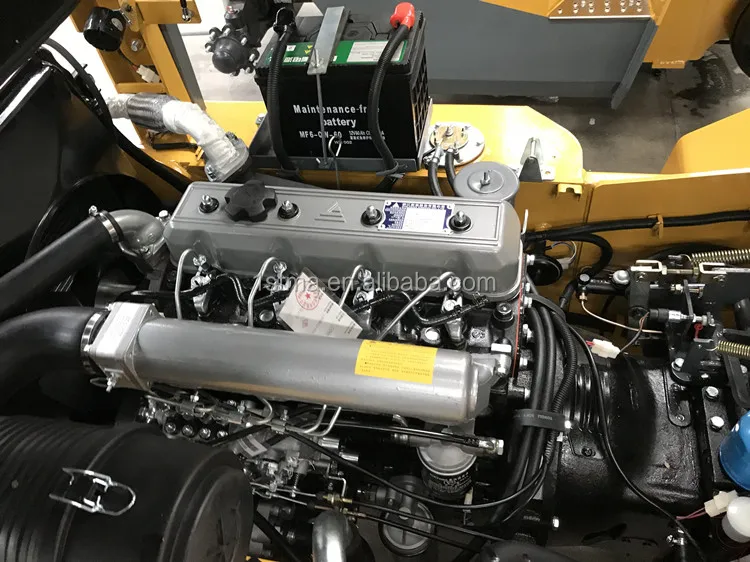

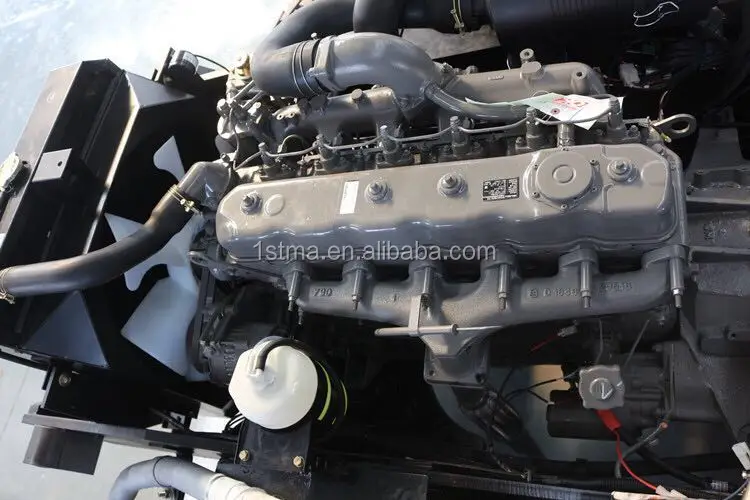

Chinese engine(Xinchai engine C490)

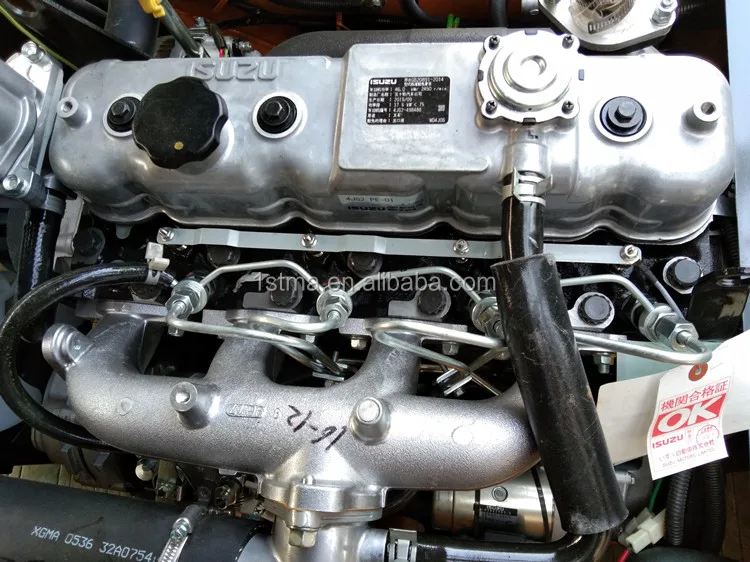

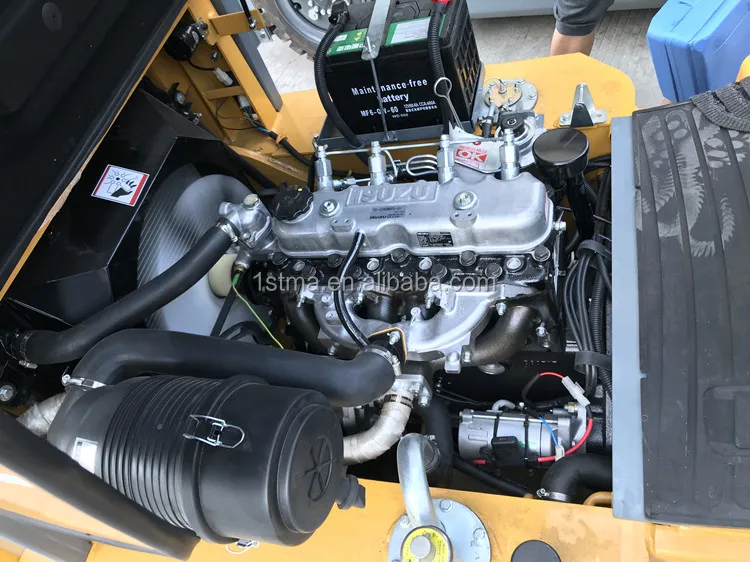

Japanese engine(Isuzu engine C240)
Japanese engine(Isuzu engine 4JG2)
Japanese engine(Isuzu engine 6BG1)

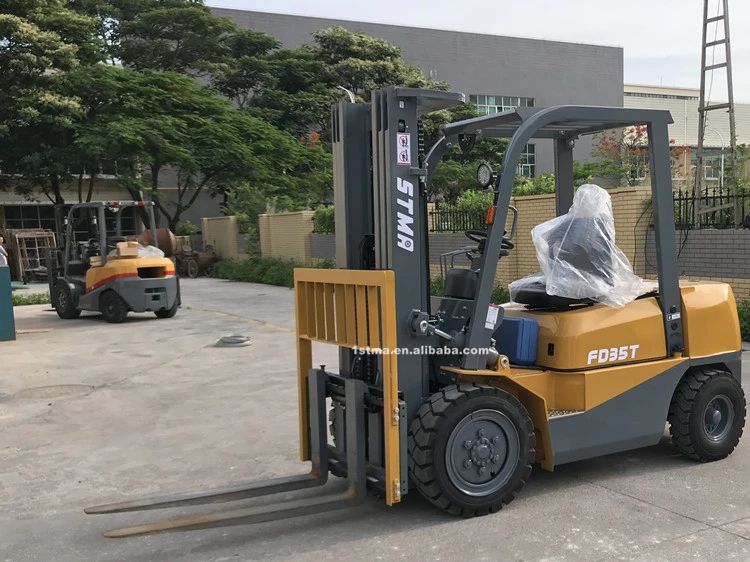

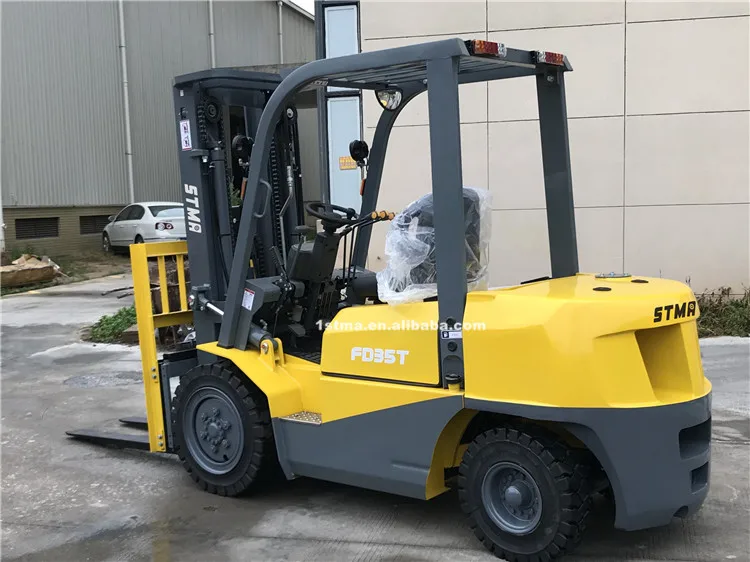

SPECIFICATIONS FOR 3.5 TON FORKLIFT FOR SALE | |||||||
Model | FD35 | ||||||
1 | Power Type | Diesel | |||||
2 | Rated Capacity | kg | 3500 | ||||
Load Centre | mm | 500 | |||||
Lift Height | mm | 3000 | |||||
3 | Fork Size (L×W×T ) | mm | 1070×125×50 | ||||
Mast Tilt Angle (F/R) | Deg | 6°/12° | |||||
Front Overhang (Wheel center to fork face) | mm | 490 | |||||
4 | Ground Clearance(Bottom of mast) | mm | 120 | ||||
Turning Radius (outside) | mm | 2445 | |||||
Min. Intersecting aisle | mm | 2235 | |||||
5 | Max.Gradeability (No load/Full load) | % | 19 | ||||
6 | Wheelbase | mm | 1700 | ||||
7 | Service weight | kg | 4390 | ||||
8 | Battery (Voltage/Capacity) | V/Ah | 12/90 | ||||
9 | Overall Dimension | Length to face of fork(Without fork) | mm | 2700 | |||
10 | Overall Width | mm | 1225 | ||||
11 | Mast Lowered Height | mm | 2125 | ||||
12 | Mast Extended Height(With backrest) | mm | 4150 | ||||
13 | Overhead Guard Height | mm | 2090 | ||||
14 | Travel (No load) | km/h | 19 | ||||
15 | Lifting(Full load) | mm/s | 410 | ||||
16 | Front | mm | 28x9-15-12PR | ||||
17 | Rear | mm | 6.50-10-10PR | ||||
18 | Model | C240 | |||||
19 | Manufacture | ISUZU | |||||
20 | Rated output/r.p.m. | kw | 35.4/2500 | ||||
21 | Rated torque/r.p.m. | N·m | 139/1800 | ||||
22 | No.of Cylinder | 4 | |||||
23 | Bore×Stroke | mm | 86×102 | ||||
24 | Displacement | cc | 2369 | ||||
25 | Fuel Tank Capacity | L | 70 | ||||
26 | Type | Powershift | |||||
27 | Stage FWD/RVS | 43101 | |||||
28 | Operating Pressure for Attachment | Mpa | 17.5 | ||||
Recommend Products
Our Service
1. STMA Warranty: 1 years or 2000 working hours spare parts warranty for STMA forklifts which occurs first
2. STMA 24hours Service system: Any quality claim or question from STMA customers will be replied by STMA service man within 24 hours, to assure all customers get a quick feedback from STMA for their problem.
3. STMA 48hours Service system: Once quality claim from customers are accepted by STMA, we will arrange to send spare part to them for free within 48hours, to guarantee a strong spare parts supporting for customers.
STMA Info and Customers

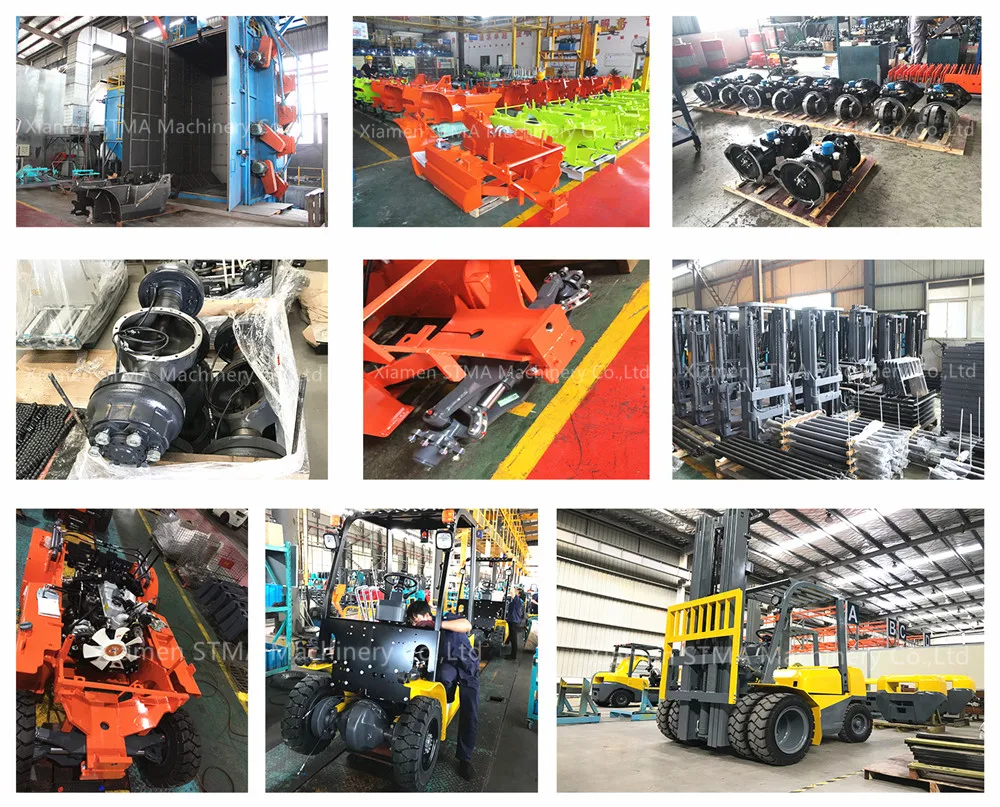

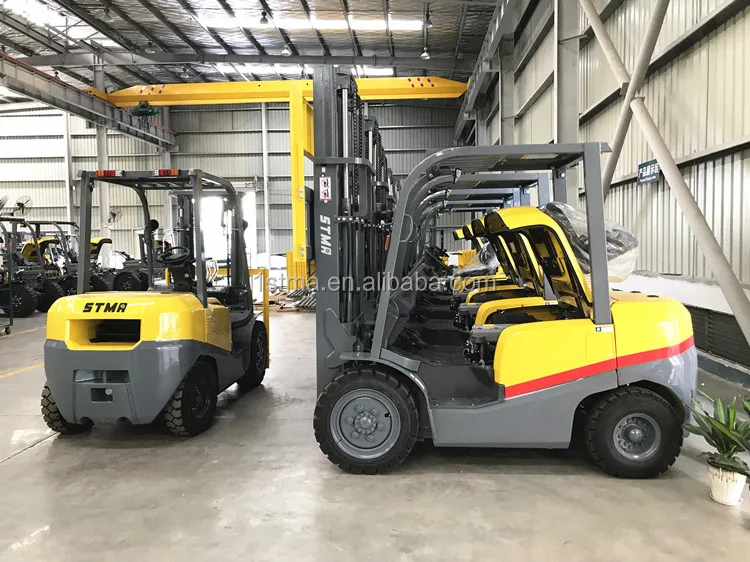

Production Line
FAQ
Q. Why choose STMA?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 15 years exported experience and our technology is the same as that of XGMA machinery
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 15 years exported experience and our technology is the same as that of XGMA machinery
Q.What are our advantages compared with other manufactures/factories?
A.1) Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and
many parts designed and produced by ourselves, always adapting the best materials
A.2) Fast Delivery: Generally, we can delivery within 10 working days in factory after receiving pre-payment from customers.
A.1) Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and
many parts designed and produced by ourselves, always adapting the best materials
A.2) Fast Delivery: Generally, we can delivery within 10 working days in factory after receiving pre-payment from customers.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
A. STMA can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
