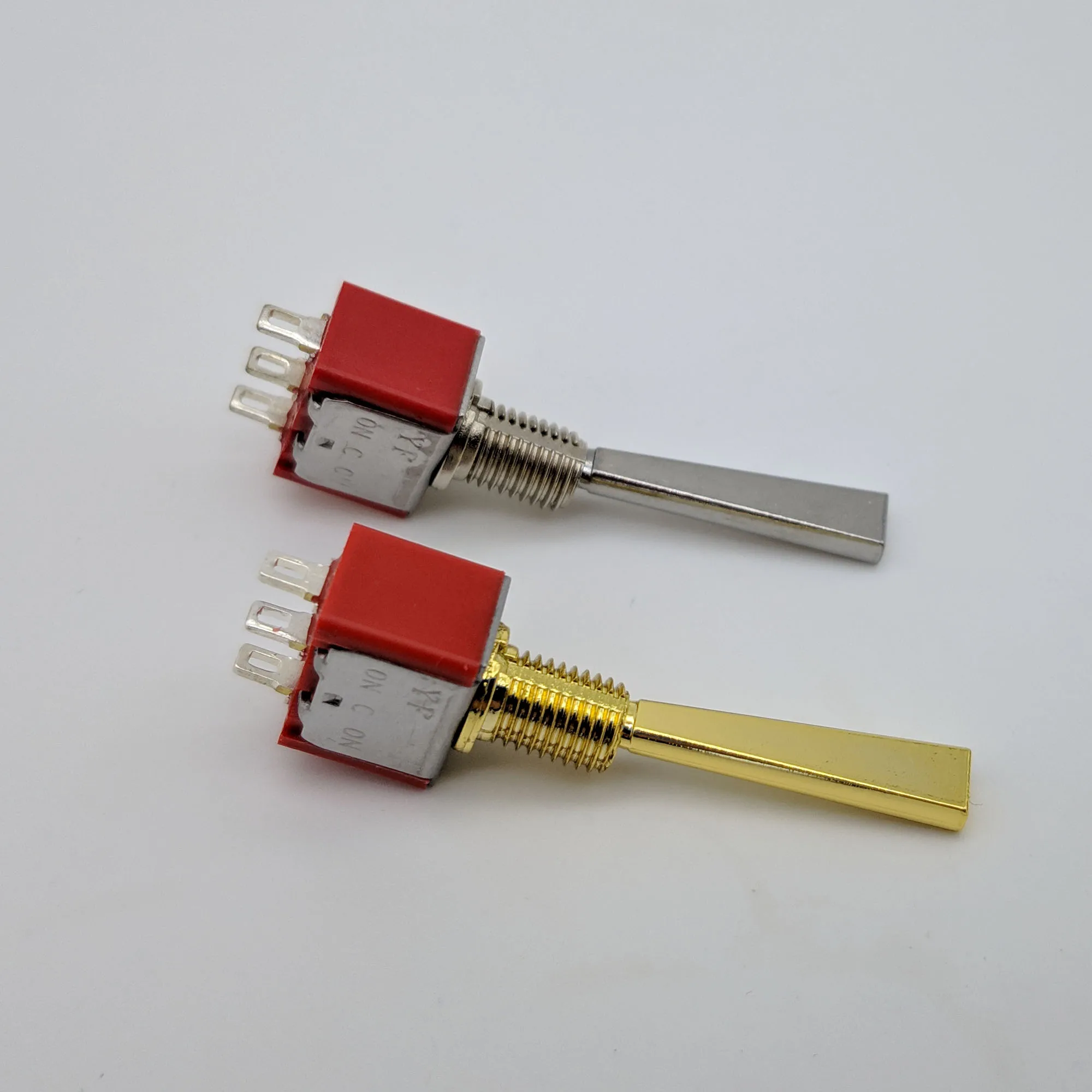

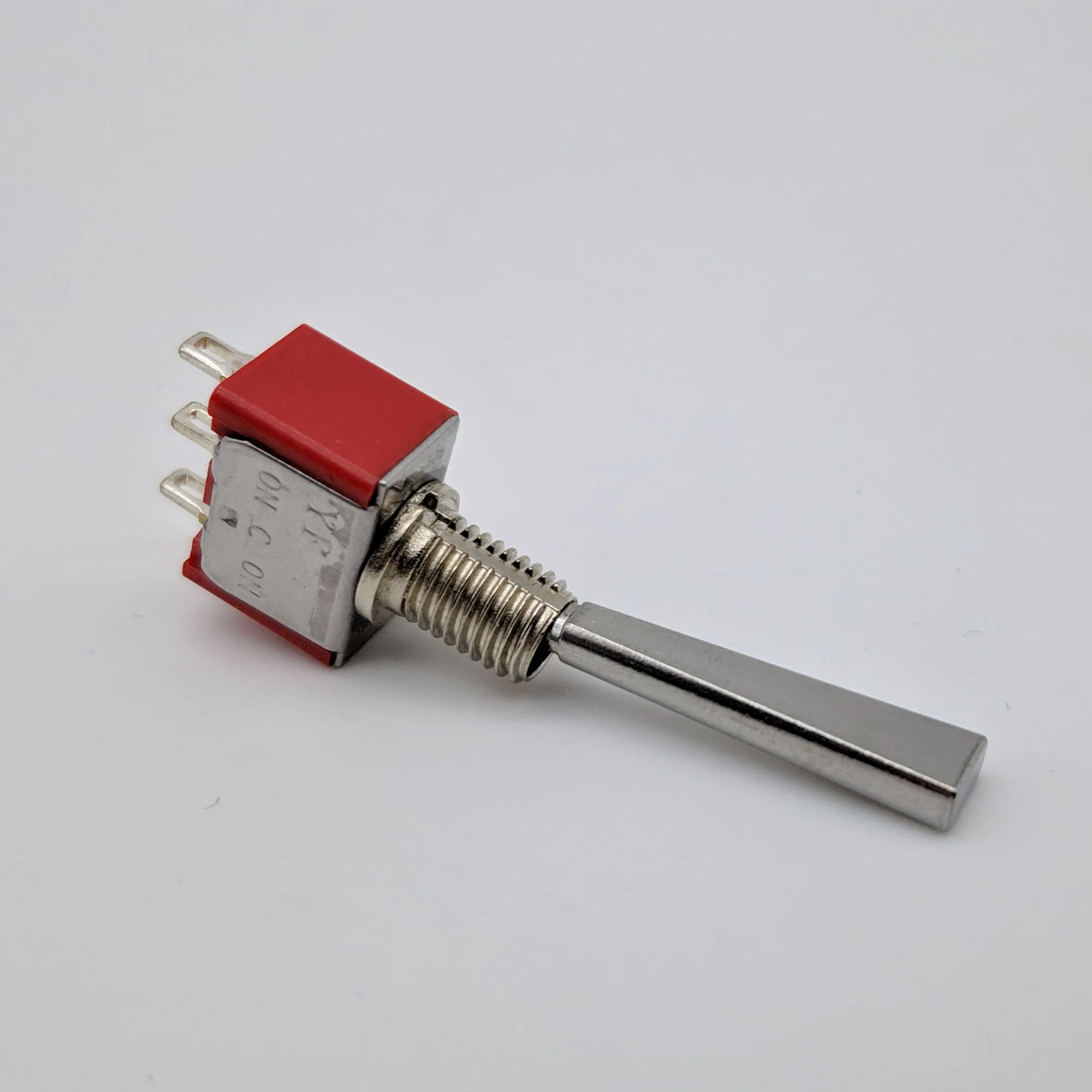

По (ВКЛ) SPDT 2 Позиция 3 Pin длинные плоские ручки мгновенная застежка-тогл
- Категории: Toggle Switches >>>
- Поставщик: Yuenfung,Eelctronics,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specifications | |
Rating | 5A 125VAC, 2A 250VAC |
Contact Resistance | 20MΩ Max |
Insulation Resistance | 500VDC 1000MΩ Min |
Dielectric Strength | 1500V AC， 1 Minute |
Operatiing Temperature | -25ºC~+85ºC |
Electrical Life | 10000 cycles |
Mechanical Life | 40000 cycles |
Circuit | SPDT |
Switch function | ON OFF (ON) |
Materials: | |
Case | PPA(UL94V-0) |
Actuator | Brass,Aluminium Alloy,Nickel-plated,Chrome-plated |
Bushing | Brass,Aluminium Alloy,Nickel-plated,Chrome-plated |
Housing | Stainless Steel |
Support Bracket | Brass,Tin-plated |
Contact/Terminals | Copper Alloy, Silver or Gold-plated |
NOTE: Specifications and Materials listed above are for switches with standard options. For information on specific and custom switches, Please feel free to contact us.
( )= Momentary
( )= Momentary
Typical Applications:
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
• Medical equipment
• Telecommunications
• Instrumentation
• Machinery
Hardware：Nuts*2 ，Locking washer *1，Locking ring*1
