Er70s миг co2 газ Сварочная проволока er70s-6
US $18.00-$36.00
4043 алюминиевая сварочная проволока ER5356 5356 Tig rod цена завода 4047
- Категории: Welding Wires >>>
- Поставщик: Wenzhou,Chiefstone,C&T,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product advantages

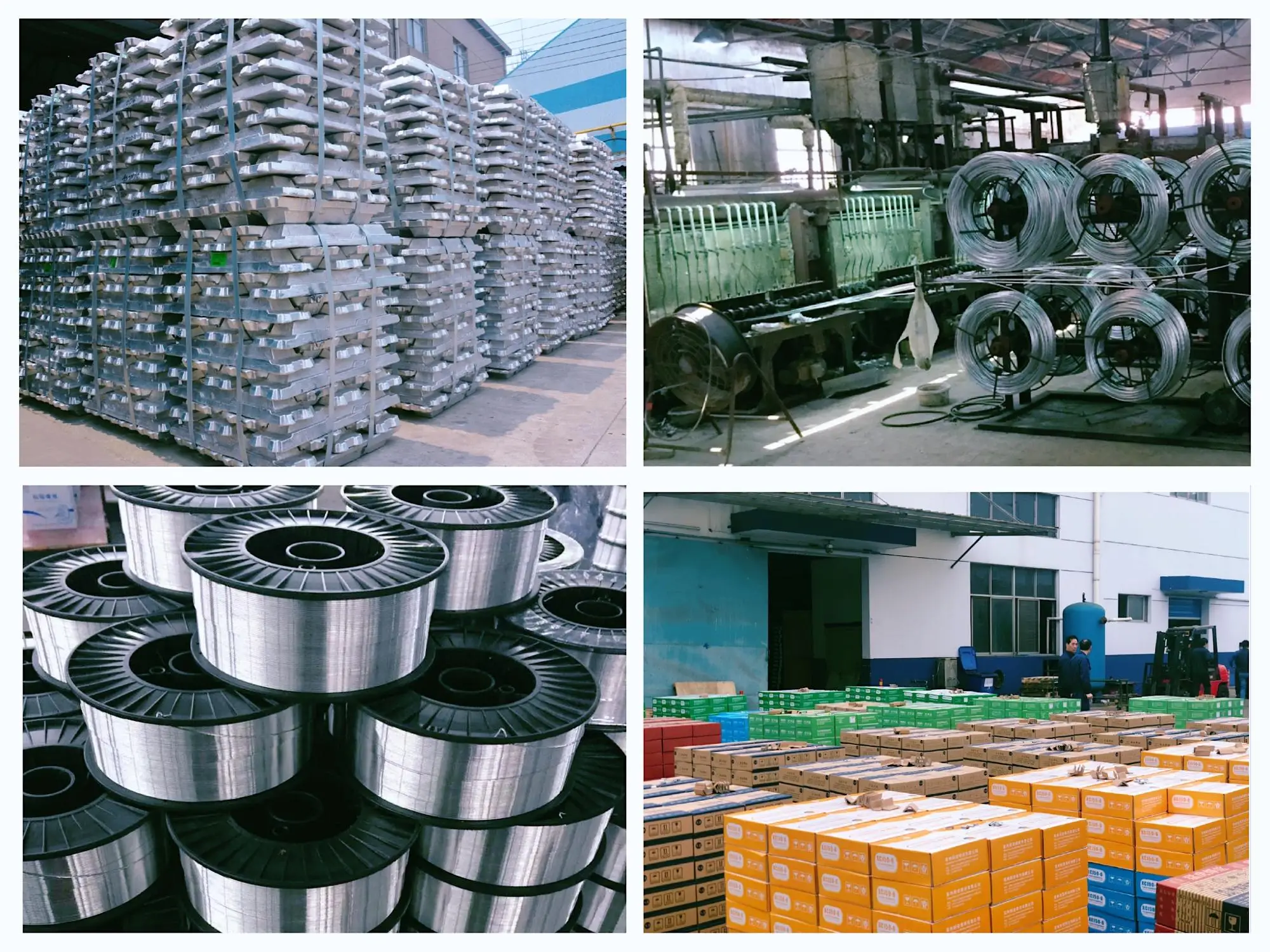

We not only purchase good quality raw materials and strict incoming inspection, not lax management of the production process, so we are able to provide customers with clean, uniform aluminum wire. Following a variety of aluminum welding wire have excellent performance, stable arc, low spatter and small, good weld, high deposition efficiency.
Oversea reputation:
Thanks to our high-quality products and services, we have established long-term cooperation with many customers, including world's top 500 enterprises (e.g. LG, Ford), and have covered more than 40 countries and regions.
Application:

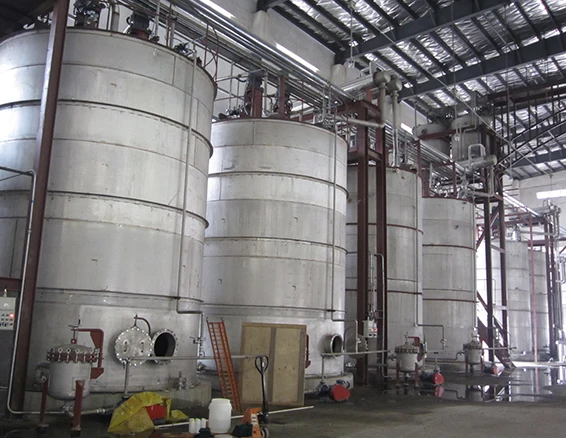

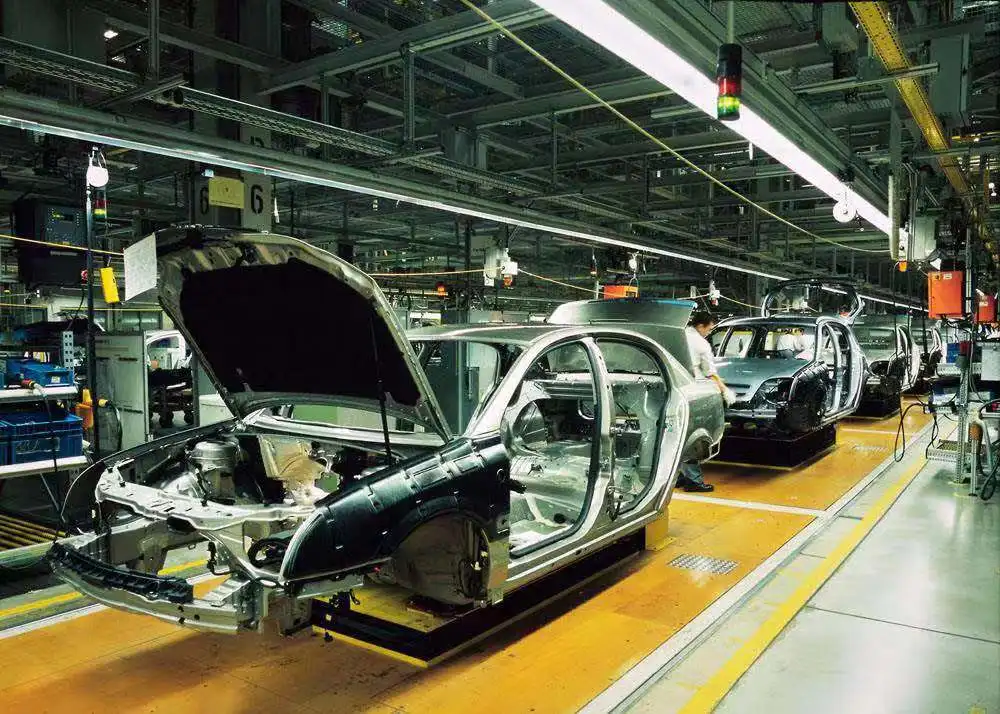

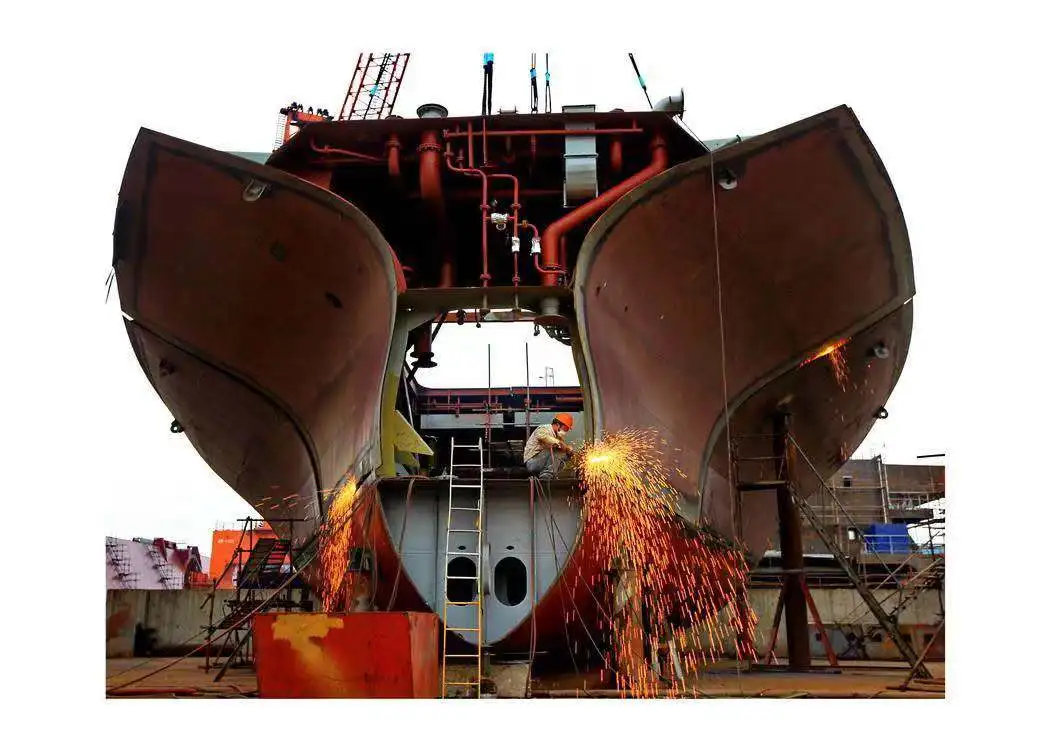

Due to its high strength, forgeability, good corrosion resistance, this type of wire is widely used in ships, locomotives, chemicals, food, sports equipment industry and many others.
We not only purchase good quality raw materials and strict incoming inspection, not lax management of the production process, so we are able to provide customers with clean, uniform aluminum wire. Following a variety of aluminum welding wire have excellent performance, stable arc, low spatter and small, good weld, high deposition efficiency.
Oversea reputation:
Thanks to our high-quality products and services, we have established long-term cooperation with many customers, including world's top 500 enterprises (e.g. LG, Ford), and have covered more than 40 countries and regions.
Application:
Due to its high strength, forgeability, good corrosion resistance, this type of wire is widely used in ships, locomotives, chemicals, food, sports equipment industry and many others.
Technical data
Chemical composition
Noted: (%) Accord with GB/T8110-95 and AWS 5.10
Cu | Si | Fe | Mn | Mg | Cr | Zn | Ti | AI | |||||||||
ER1100 | Corrosion resistant aluminum gas welding or TIG welding. | ||||||||||||||||
0.05~0.20 | ≤1.0 | - | ≤0.05 | - | - | ≤0.10 | - | ≥99.5 | |||||||||
ER5183 | High strength, good corrosion resistance, aluminum welding use. | ||||||||||||||||
≤0.10 | ≤0.40 | ≤0.40 | 0.50~1.00 | 4.3~5.2 | 0.05~0.25 | ≤0.25 | ≤0.15 | Rem | |||||||||
ER5356 | Good corrosion resistance, high strength, good versatility, aluminum welding use, especially for 5083 welding materials | ||||||||||||||||
≤0.10 | ≤0.25 | ≤0.40 | 0.50~0.20 | 4.5~5.5 | 0.05~0.20 | ≤0.10 | 0.06~0.20 | Rem | |||||||||
ER4043 | Good corrosion resistance, versatility, large, aluminum welding, or welding purposes, not for high-magnesium alloy welding, welding materials used for 4043 | ||||||||||||||||
≤0.30 | 4.5~6.0 | ≤0.80 | ≤0.05 | ≤0.05 | - | ≤0.10 | ≤0.20 | Rem | |||||||||
ER4047 | Has lower melting point and higher fluidity, which can be used as a substitute for 4043 wires to increase silicon in the weld metal, minimize hot cracking. | ||||||||||||||||
≤0.30 | 11~13 | ≤0.80 | ≤0.15 | ≤0.10 | - | ≤0.20 | - | Rem | |||||||||
Product packaging
Tig wire: 5kg/pack or 10kg/pack

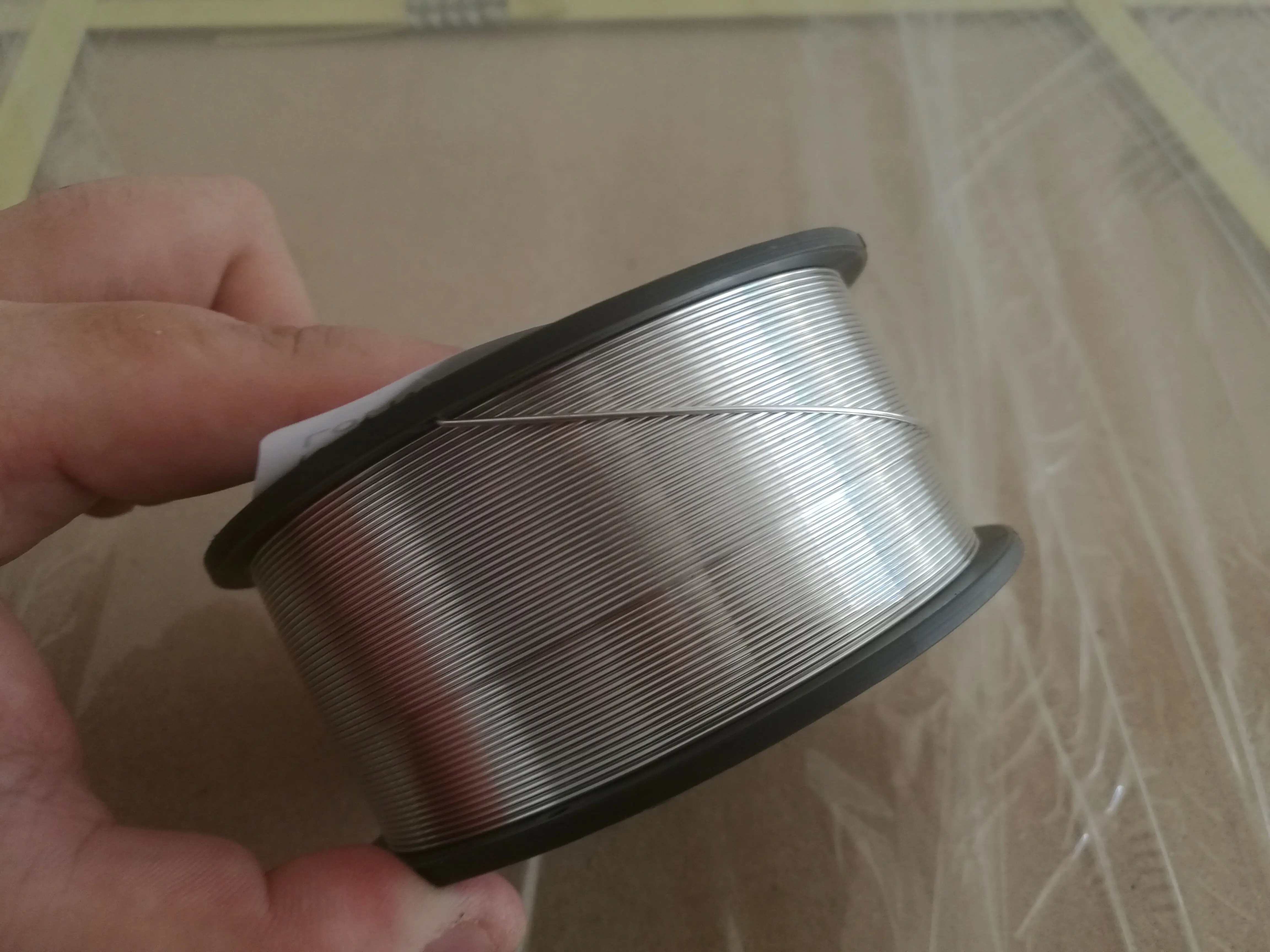

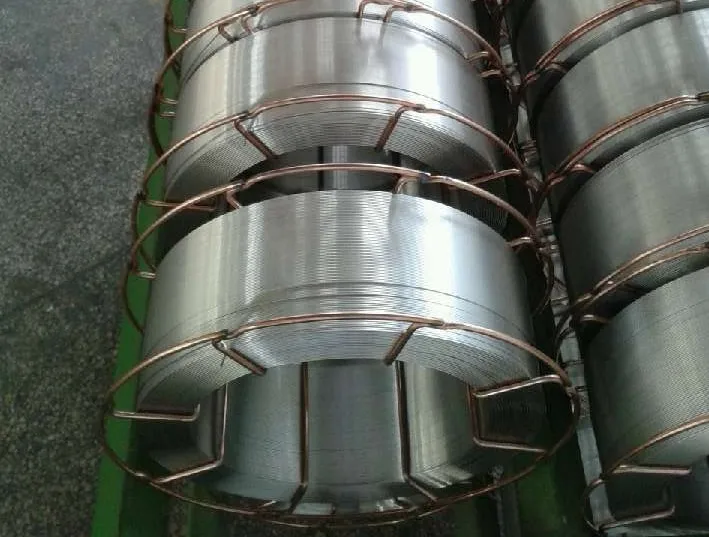

Mig wire: 0.5kg/spool; 2kg/spool; 7kg/spool.
84 spools in a pallet, then 20 pallets in a 20ft Container
OEM is accpeted.
OEM is accpeted.
Recommend Products
Company Introduction
We, Wenzhou Chiefstone C&T Co., Ltd., also known as Sinoweld Manufacturer and Exporter, is a specialized welding products manufacturer in China. Except for our own products, we have very close and long-term relationship with lots of leading welding products manufacturers in China, which allows us to provide the one-stop service for the majority of welding products.
Our products possess superior quality in compliance with European standard but gives Chinese competitive price. Also, our one-stop shopping service will significantly reduce the time and cost of our customers. We can give the best choice for your demand of welding products. Thus, our company is highly acclaimed in the global market.
In the past over 15 years, we have accumulated valuable experience in producing and exporting welding products. We always help our customer to develop whole series of welding products which are fit for their market. This high-quality service makes our company develop fast with an annual sales volume of more than 10 million dollars.
Except for welding wire, we also provide all kinds of welding products, such as welding machines, air plasma cutting machines, welding or cutting torches, safety supplies, welding consumable materials.
Our products possess superior quality in compliance with European standard but gives Chinese competitive price. Also, our one-stop shopping service will significantly reduce the time and cost of our customers. We can give the best choice for your demand of welding products. Thus, our company is highly acclaimed in the global market.
In the past over 15 years, we have accumulated valuable experience in producing and exporting welding products. We always help our customer to develop whole series of welding products which are fit for their market. This high-quality service makes our company develop fast with an annual sales volume of more than 10 million dollars.
Except for welding wire, we also provide all kinds of welding products, such as welding machines, air plasma cutting machines, welding or cutting torches, safety supplies, welding consumable materials.
FAQ
Q1. Will you deliver the right goods as ordered? How can I trust you?
A: We are a member of Alibaba Trade Assurance which is a new service provided by Alibaba, safeguarding buyer's payment to suppliers to ensure suppliers fulfill their obligations regarding order delivery and product quality. If any different with the contact, customer can get refund from Alibaba.
Q2: What’s the delivery time? Do you have products in stock?
A: The number of stock depends on the demands. After receiving the deposit we will get your goods ready as soon as possible. The delivery time for urgent order is negotiable.
Q3: Could I visit the factory?
A: Yes, please contact us in advance to make an appointment.
Q4: Could I get any sample?
A: Yes, we provide free sample under 3kg because we are confident for the product of our quality!
A: We are a member of Alibaba Trade Assurance which is a new service provided by Alibaba, safeguarding buyer's payment to suppliers to ensure suppliers fulfill their obligations regarding order delivery and product quality. If any different with the contact, customer can get refund from Alibaba.
Q2: What’s the delivery time? Do you have products in stock?
A: The number of stock depends on the demands. After receiving the deposit we will get your goods ready as soon as possible. The delivery time for urgent order is negotiable.
Q3: Could I visit the factory?
A: Yes, please contact us in advance to make an appointment.
Q4: Could I get any sample?
A: Yes, we provide free sample under 3kg because we are confident for the product of our quality!
